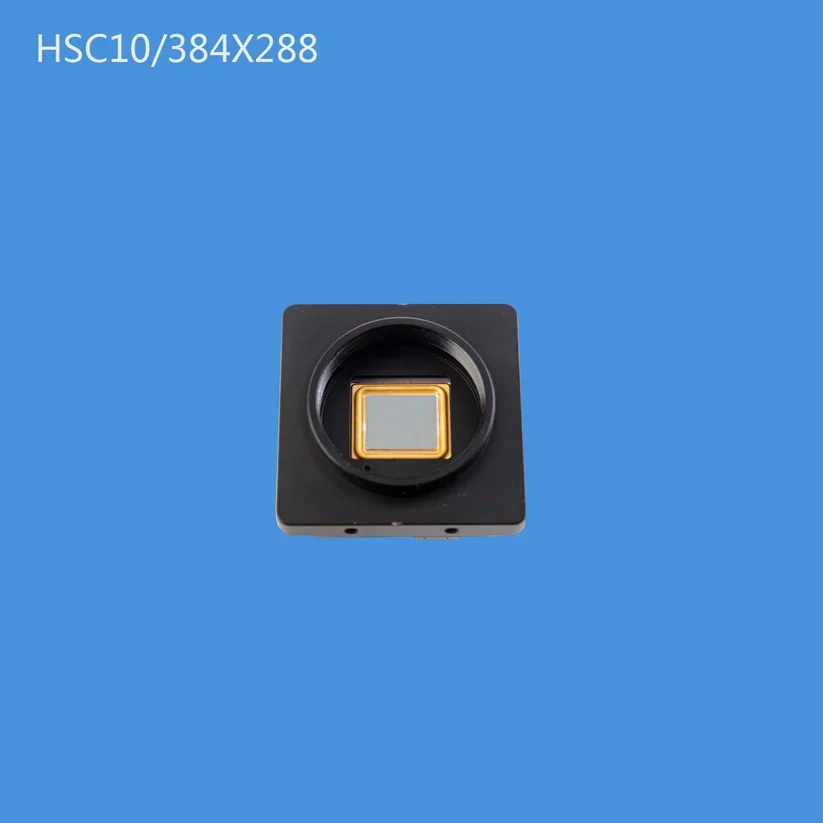

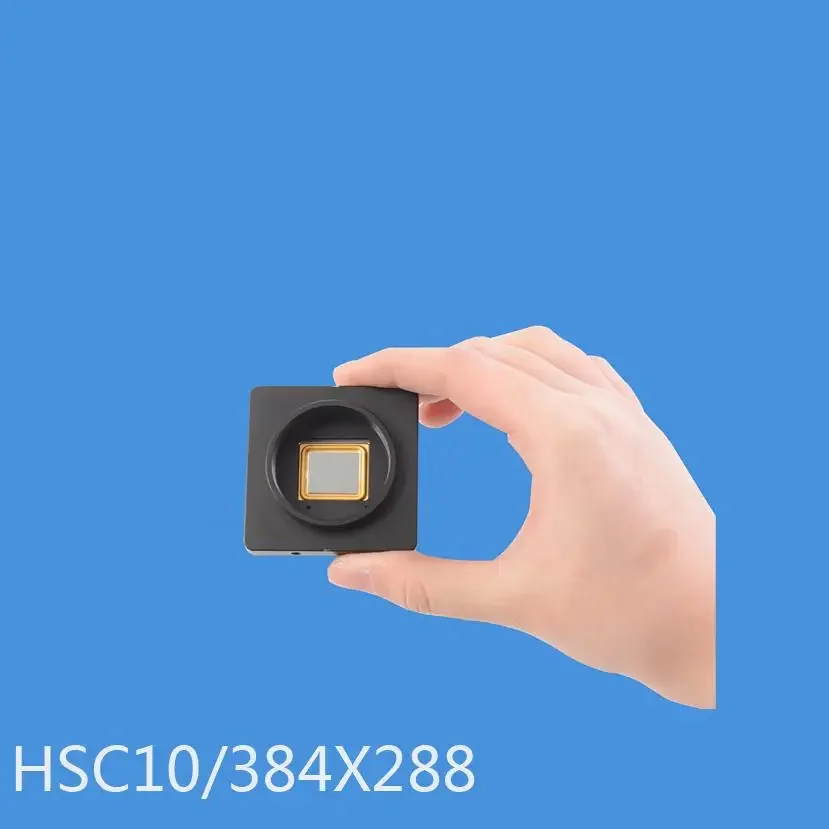

384*288 19mm Lens Infrared Thermal Camera For Drone with USB Output
-
Detail
384*288 19mm SPECIFICATIONS
Brand Name: XMSJ
Origin: Mainland China
Place of Origin: Jiangsu, China
Brand Name: Hivintek
Model Number: HSC10
Warranty: 1 Year, 1 Year
Special Features: Shutterless technology
Sensor: Uncooled FPA
Style: Module
Function: Thermal image
Video Compression Format: PAL, NTSC
Data Storage Options: NULL
Application: Outdoor, Indoor
Customized support: Customized logo
Technology: Infrared
Type:
Certificate: ISO FCC CE
Lens: Optional
Resolution: 384*288
Certification: ce
Dear friend, this product is a customized product.
Please be sure to communicate with us to determine the parameters of the product before purchasing, In order to ensure that it can be used normally, otherwise we will not ship.
We need to communicate before we can deliver the goods correctly. If you place an order directly, we will not deliver the goods to avoid disputes.
You can choose lenses with other specifications for an additional fee.
If you have any questions, Please contact our customer service:
WhatsApp: +86 15343313337
Email: opera.lay@gmail.com
SpecificationDetector
Type
HSC10
Array format
384*288
Pixel size
17μm
Detector
Uncooled FPA
Spectral range
8~14μm
NETD
≤60mk@30℃
Calibration
NBT digital calibration patented technology
Noise reduce
Digital filtering
Image enhancement
TIE thermal imaging enhance patented technology
Electric zoom
2X, 4X, 8X,16X digital zoom
Polarity reversal
Available
Frame rate
50Hz
Display
Video output
CVBS 50Hz(PAL )/ 60Hz(NTSC)
UVC
USB video device class(USB2.0)
Palette
12 Palettes
Level adjustment
Automatic/Manual
Brightness/Gain
Automatic/Manual
OSD
Firmware programmable, Full-screen overlay
Interface
Port
RS485/232 optional
Power
Available
USB interface
Micro USB
Video
Available
Keyboard control
Optional
Power Supply
Operate voltage range
DC 5~9V
USB power supply
Yes
Power consumption
<1.6W
Reverse connect protect
Available
Over-voltage protection
Available
Environment
Operating temp.
-40℃~+60℃
Storage temp.
-50℃~+85℃
Humidity
≤95% (non-condense)
Lens
Focal length
(8mm, 10mm, 15mm, 19mm, 35mm, 50mm, 75mm, 100mm, 150mm) optional
Focus
Fixed, manual, electric (optional)
Physical
Dimension
28mm x 40mm x 40mm(L x W x H) without lens
Weight
<57g(without lens)
Features
Calibration
NBT digital calibration, Continuous video output
Imaging
Thermal image enhancement , Noise reduction
UVC interface
Digital, analogue, USB output and keyboard connect
Playback
Constant Video playback, pick up details
OSD overlay
Firmware program, Full-screen overlay
MTBF
Extra Long MTBF
Stronger structure
No moving parts, stronger structure
Application
Outdoor
Transportation
Main Channel
Buildings
Warnings
Avoid aiming the window (with lens or not)at extreme hi-temperature radiation source (such as the sun, molten steel, laser) in any cases(start/shut down), or the detector may be damaged.
This module is a high-precise optoelectronics product, please protect properly during using,storage ,transportation, rough handling(such as drop,collision causing scathe to the detector outer cover, inner connecting wire rupture occurring in installation, being affected with damp,rain)is likely to incur module performance-reduction, even damage the module.
Make it sure that the power control connection is reliable, if switch on the module when the power control wire is in bad connection, it will damage the thermal image or even the detector
Make it sure that the connection of power control cable and data cable are reliable, otherwise it will damage the thermal image camera or even the detector.
Should this product work abnormally, please contact the dealer or the nearest after-sale service center. Please don't dismantle or replace it in any manners.
Please use the power supply according with product specifications or the module may work abnormally or even be damaged.
Do not touch the PCB when the power is on. -
