JBL MA7100 220 Volt Receiver 鈥?7.2 Channel 8K AV Amplifier

JBL MA7100 220 Volt Receiver 鈥?7.2 Channel 8K AV Amplifier

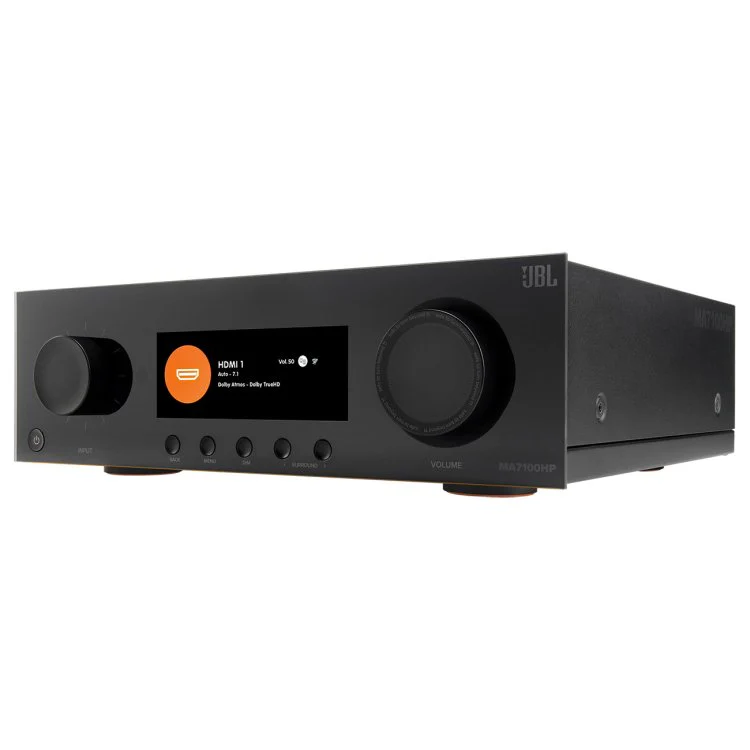

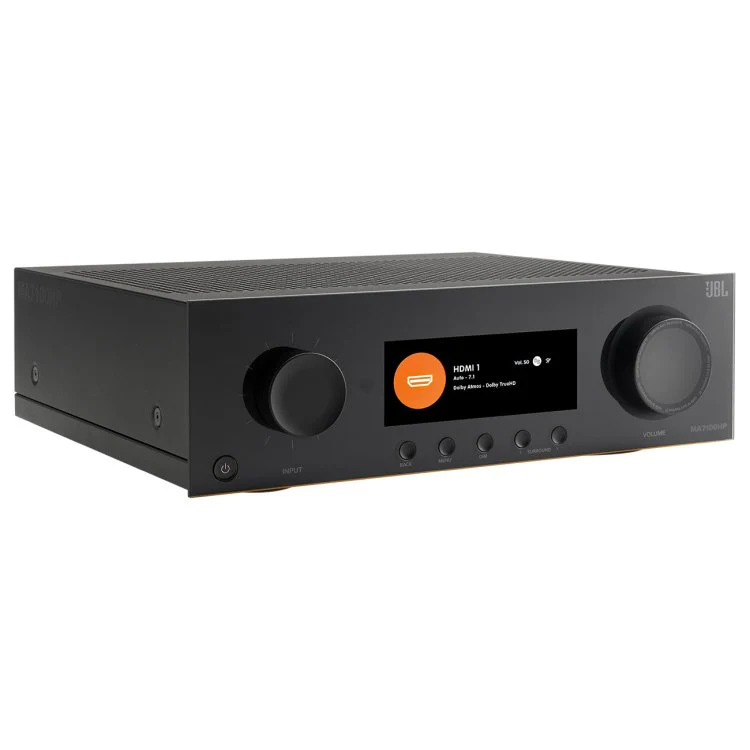

The JBL MA7100HP 220 volt receiver is built for home theater setups that need clean sound, solid power, and full support for modern video formats. Since it runs on 110鈥?40V, it works perfectly as a true 220 volts amplifier for regions that rely on 220V power, while still offering the flexibility to use it anywhere in the world.

Inside, seven Class D channels keep playback steady and controlled, even when soundtracks get busy. Dolby Atmos and DTS:X decoding let you build layouts like 7.1 or 5.1.2, giving movies the space they need to sound alive and layered. The receiver also includes Pure Direct for moments when you want the cleanest path possible.

On the video side, the MA7100HP supports 8K, 4K/120Hz, HDR10+, and Dolby Vision. With six HDMI inputs and two HDMI outputs, you can connect a TV and projector at the same time or send video to a second zone. Gaming features like VRR, ALLM, QFT and high-frame-rate 4K keep consoles running smoothly without image drops.

Music options are wide and simple to access. The built-in phono input supports a moving-magnet turntable, while Wi-Fi streaming through Apple AirPlay 2 and Google Chromecast covers digital listening. Bluetooth with AptX HD and AptX Adaptive adds another quick way to play from a phone or tablet, and Bluetooth transmit lets you listen through wireless headphones if you want a private setup.

One of the strongest parts of this model is its room-tuning capability. It comes ready for Dirac Live, so users who want advanced control can shape the sound to their room with precision. For quicker adjustment, EZ Set EQ handles basic correction.

The layout is easy to understand, and the on-screen display through HDMI removes confusion during setup. The receiver includes the remote, antennas, and power cable, and the unit itself stays relatively compact despite its 700W max power draw and sturdy amplification.

For anyone searching for a dependable 220 volt receiver with serious HDMI support, strong audio performance, and the flexibility of a powerful 220 volts amplifier, the JBL MA7100HP stands out as a complete and practical choice for long-term home theater use.

Specification List

Amplifier Section

• Channels: 7.2
• Rated Power @ 8惟 (20Hz 鈥?20kHz, 2 channels driven, 0.5% THD max): 125 W RMS
• Rated Power @ 4惟 (20Hz 鈥?20kHz, 2 channels driven, 0.5% THD max): 175 W RMS

Video Features

• HDMI eARC: Yes
• HDMI Audio Return Channel: Yes
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
• HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• HDR 10+: Yes
• Dolby Vision: Yes

Audio Features

• File Format Support:
  - MP3 / MPEG-4 AAC: up to 48 kHz / 320 kbps
  - WMA: up to 48 kHz / 192 kbps
  - ALAC: up to 192 kHz / 24-bit
  - FLAC: up to 192 kHz / 24-bit
  - PCM / WAV / AIFF: up to 192 kHz / 24-bit
• Pure Direct: Yes
• EZ/Set EQ: Yes
• Dirac Live Ready: Yes (License purchased separately)
• Front channel bi-amp: Yes
• DA Converter: 192kHz/24-bit

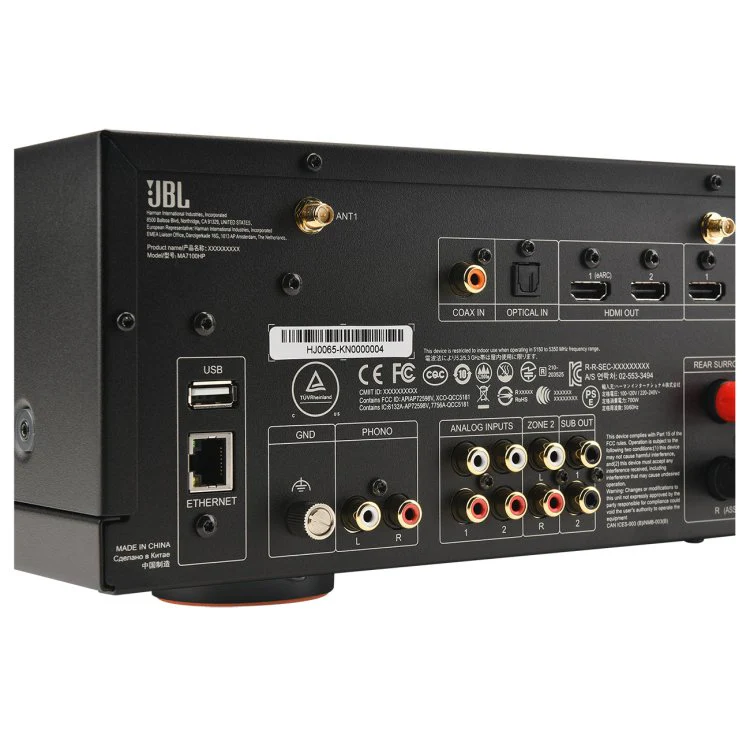

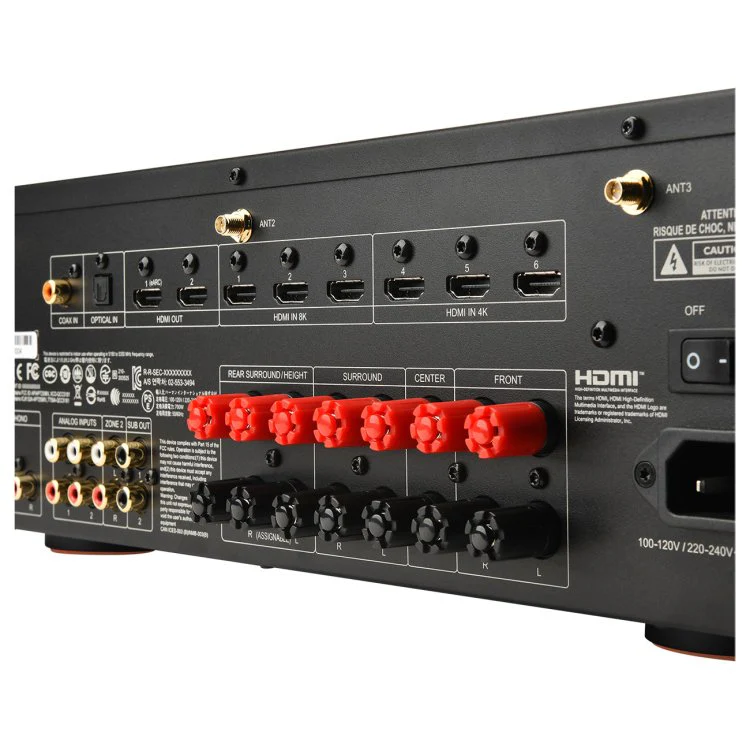

Connectivity

• HDMI Input/Output: 6 / 2
• Wi-Fi: Yes (2.4 / 5GHz)
• Bluetooth Receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Bluetooth Transmit: Yes
• Digital Audio Input: 1 Coax, 1 Optical
• Stereo Analog Input: 2 single-ended RCA
• Pre-Out (RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2

General

• Mains Voltage: 110 鈥?240V, 50鈥?0Hz
• Max. Power Consumption: 700W
• Standby Power Consumption: <0.5W
• Dimensions (H x W x D): 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)
• Weight: 16.4lb (7.4kg)

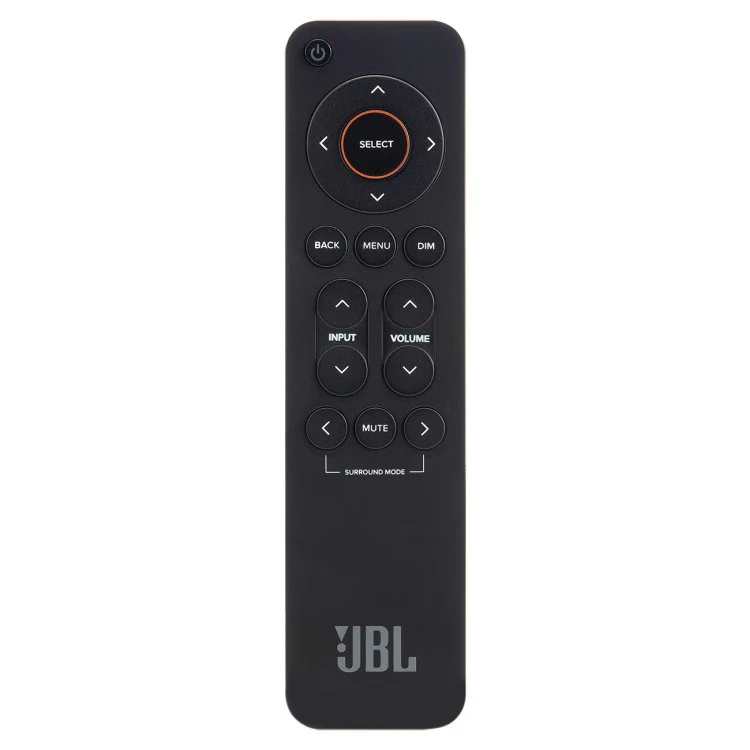

• Supplied Accessories: IR remote, 2x AAA batteries, Bluetooth antenna, 2x Wi-Fi antenna, power cord
