1.2G 5W VTX - Miniature FPV Video Sender 1200Mhz 5000mW Audio Video Wireless Transmitter and Receiver LOS Long Distance

$73.73
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.2G 5W   SPECIFICATIONS

    Brand Name: Readytosky

    Origin: Mainland China

    Material: Composite Material

    Recommend Age: 14+y

    RC Parts & Accs: Radio Systems

    For Vehicle Type: Airplanes

    Use: Vehicles & Remote Control Toys

    Remote Control Peripherals/Devices: RECEIVERS

    Tool Supplies: Cutting

    Technical parameters: Value 6

    Model Number: 1.2Ghz 1.2G 5000mw

    Four-wheel Drive Attributes: Assemblage

    Wheelbase: Screws

    1.2G 5W VTX, readytosky is a professional FPV RC Module accessories company . we will

    readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

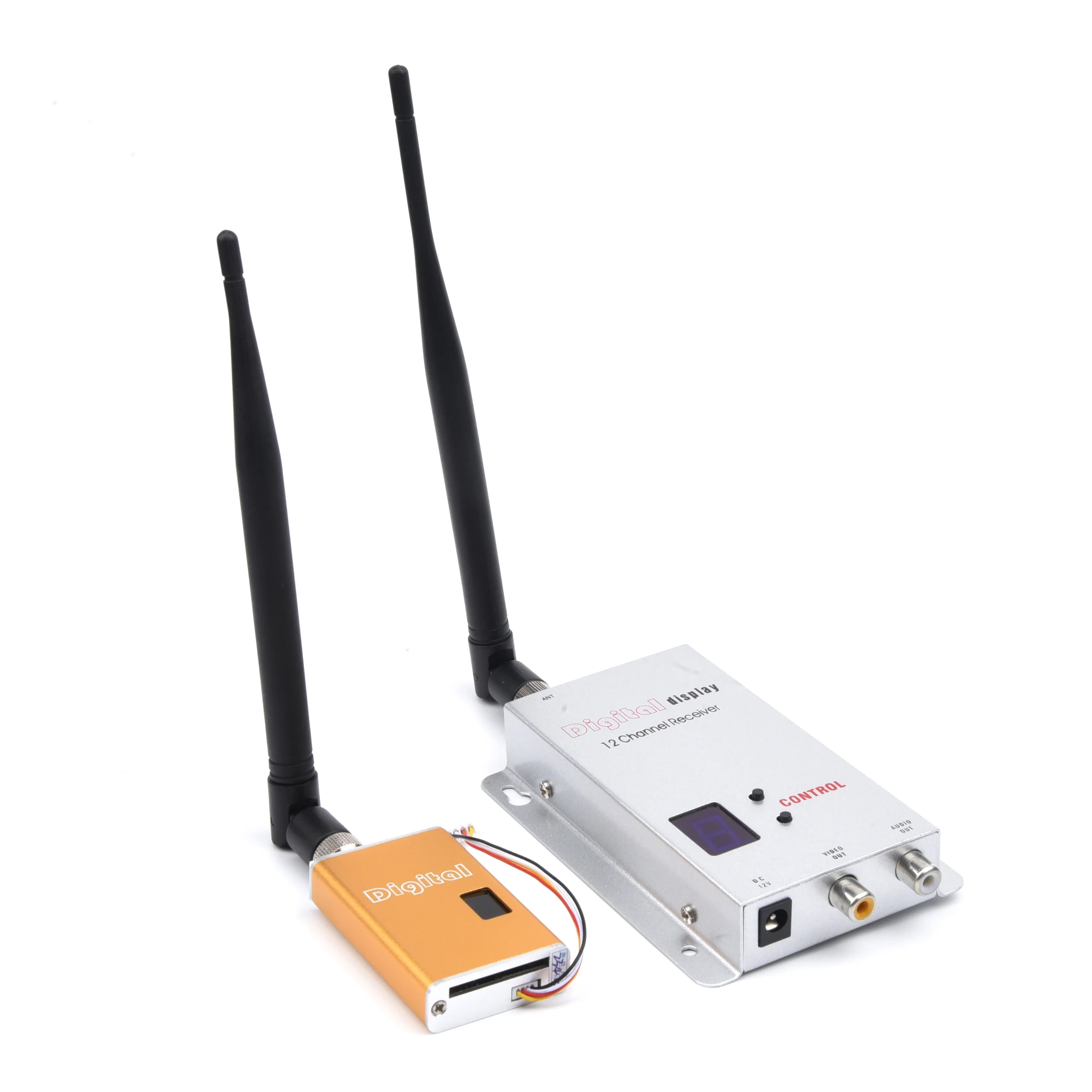

    1.2G 5W VTX - Miniature FPV Video Sender


    5000mW 5W Miniature FPV Video Sender 1.2G 1200Mhz Audio Video Wireless Transmitter and Receiver LOS Long Distance


    Description:

    KP-MINIA7 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna,     And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

    It\'s not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

    Features:

    1. Wireless transmission: no need to set up communications cable
    2. Image, audio sync, color black and white compatible
    3. Small size, light weight, easy to carry, good installation
    4. Responsive, timely, send and receive real-time transmission
    5. Using FM mode, anti-interference ability, good image quality
    6. Highly integrated, stable and reliable transmission distance
    7. DC power supply, easy to use.
    8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

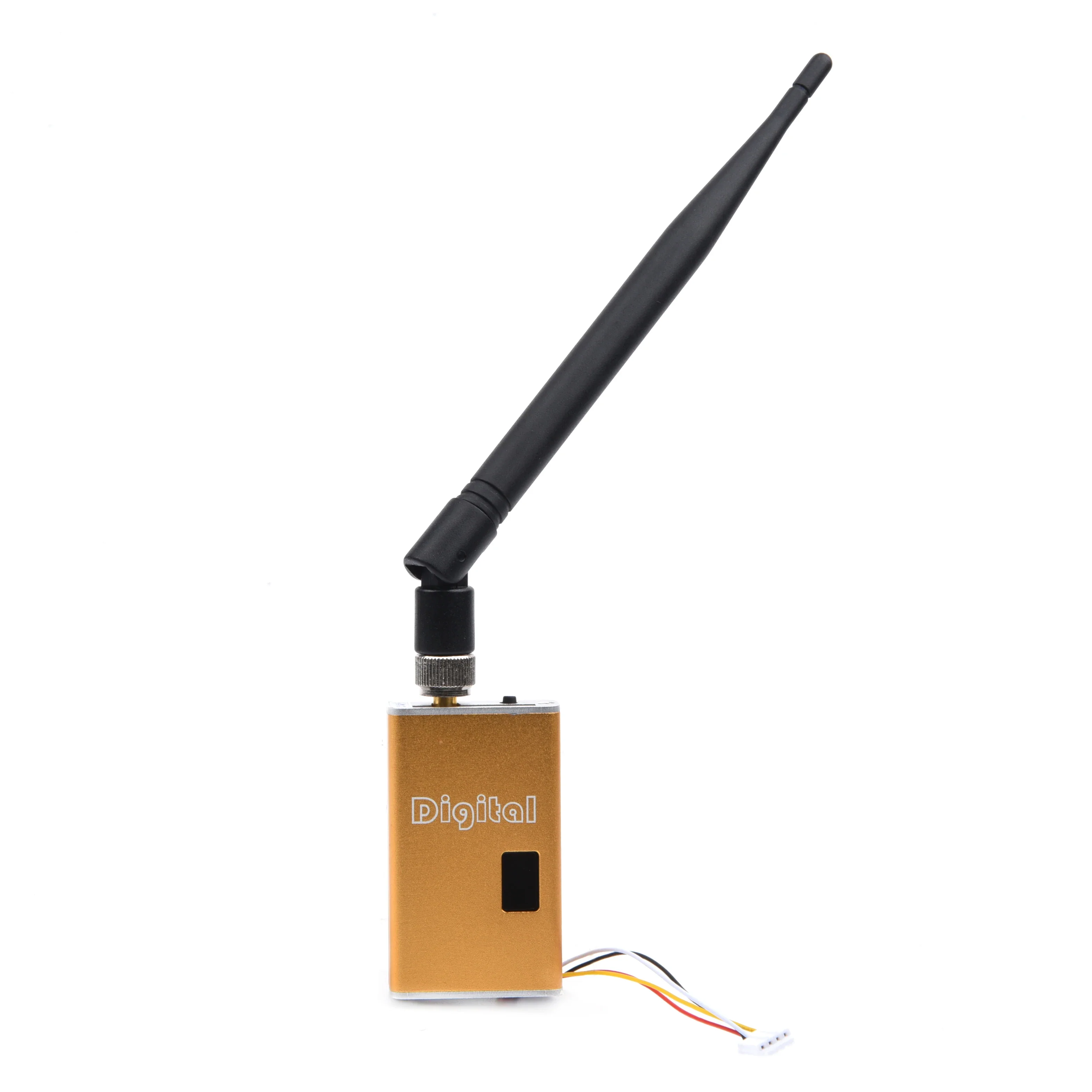

    Transmitter parameter:

    Output: 5000mw


    Current Consumption: 1.5A


    Frequency: 1080,1120,1160,1200,1240,1280


    Channel: 6CH


    Output impedance:50 Ohm


    Audio input impedance:1k Ohm


    Audio input amplitude:1.2Vp-p


    Video input impedance:75 Ohm


    Video input amplitude:1.2Vp-p


    Voltage: DC 12V(at 36dbm)


    Working current:700mA


    The lowest Voltage    : DC 5V(at 31dbm)


    Weight:100g


    Size:74*56*36mm

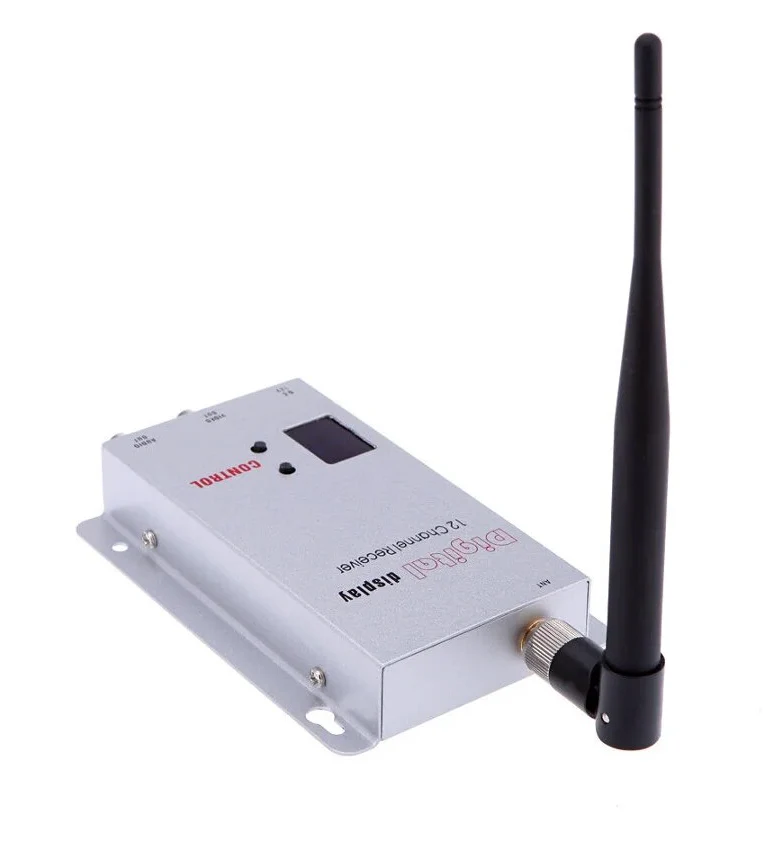

    Receiver Parameter:
    Weight:115g
    Dimension:115*80*21mm
    Working Voltage:DC12V
    Working Current:≤260mA
    Working Frequency:1.2G
    Working Channels:12CH
    Connector:receiver module side RP-SMA jack, antenna SMA plug
    Receiving frequency: 1.2GHz - HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320 HC12:1360(MHz)

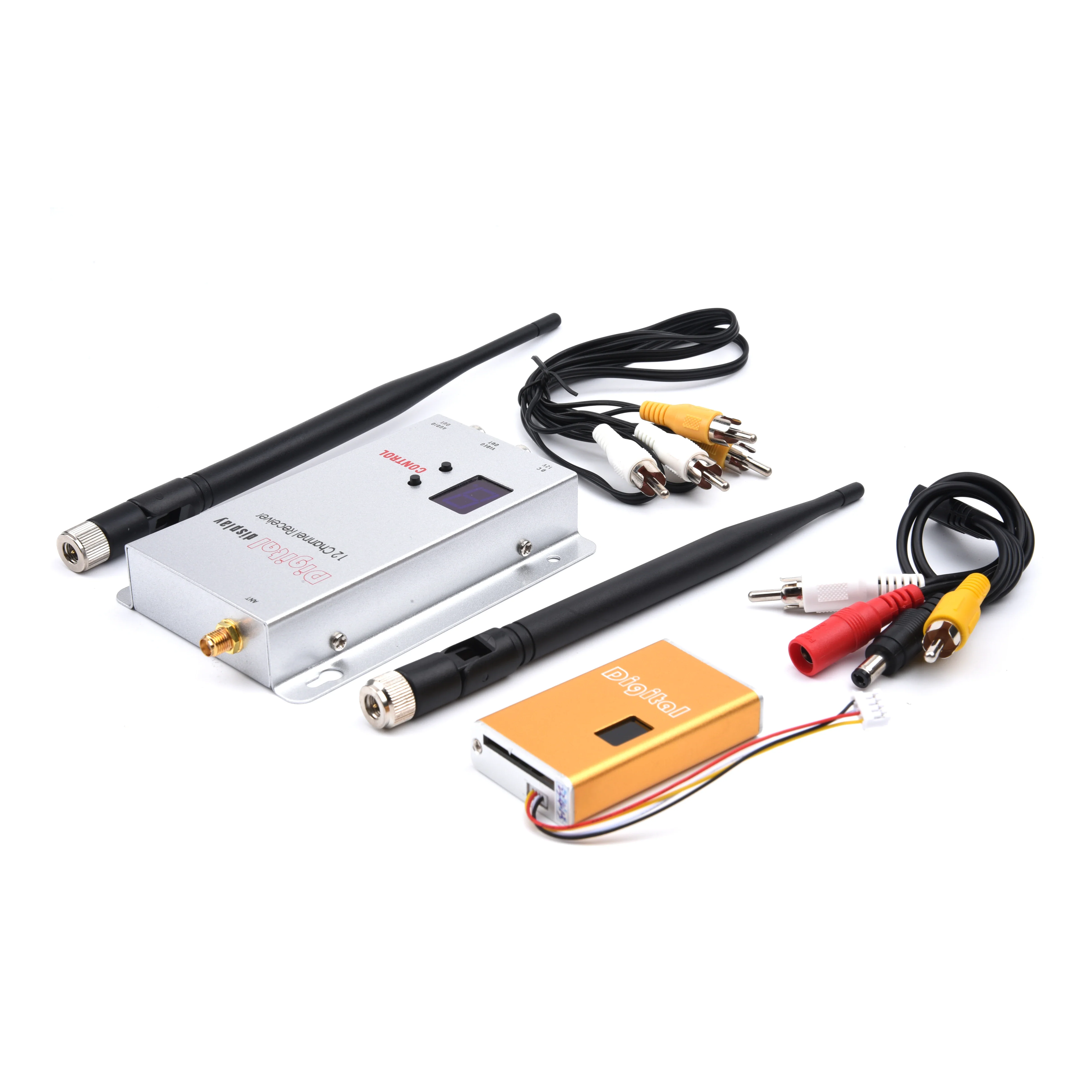

    Receiver Accessories:Receiver,antenna,AV cable.(We don't offer adatper for receiver,please use DC 12V 1A adapter.)

    1.2G 5W VTX, Small size, light weight, easy to carry, good installation

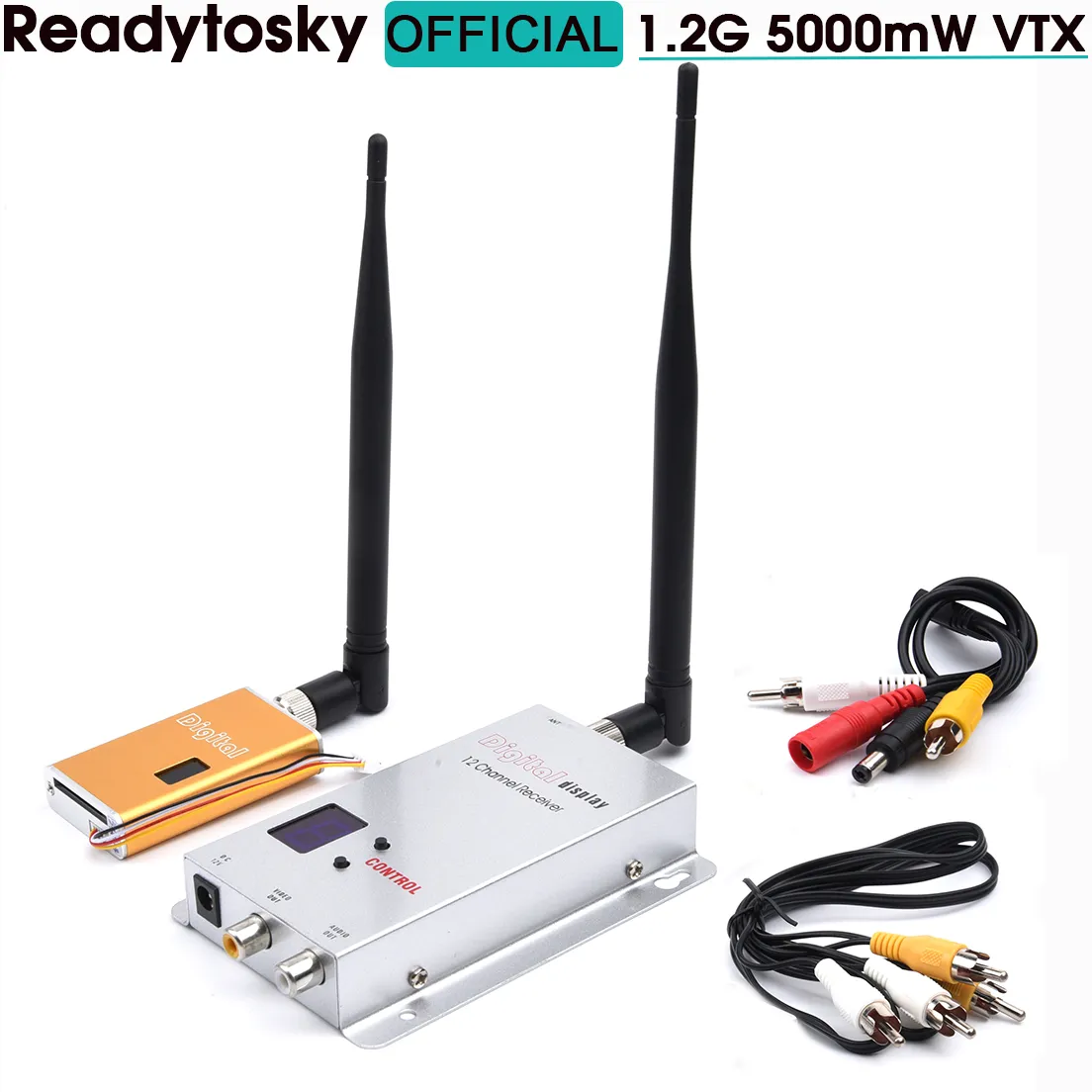

    1.2G 5W VTX, Readytosky OFFICIAL 1.2G 500OmW VTX [D

    Readytosky OFFICIAL 1.2G 500OmW VTX [Digifal 2ii8al 12 Chamnelneceve "display CONTRO

    1.2G 5W VTX, Small size, light weight, easy to carry, good installation1.2G 5W VTX, large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects 1.2G 5W VTX, CO @nI oan 1orlnoa @NB3s1.2G 5W VTX, 372 TD diodd 0joia JOH1NO? 1.2G 5W VTX, aisalay bhatral Recevei 12 Channel" control Rudi
