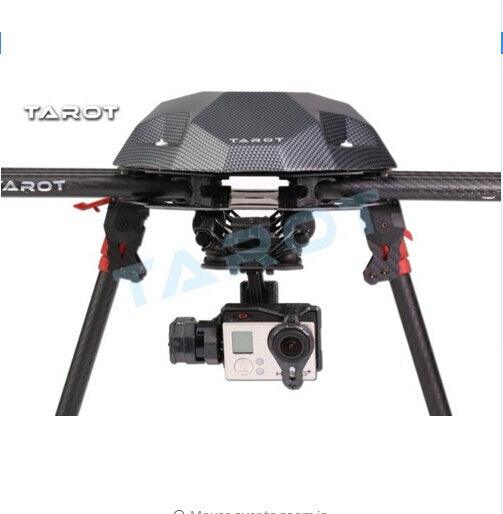

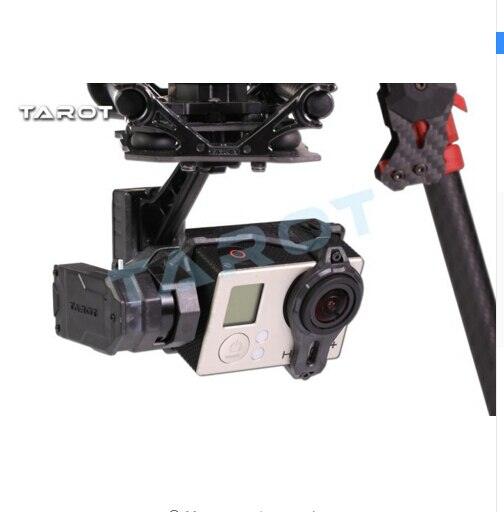

Tarot T4-3D dual suspension three axis stable platform designed for custom GoPro HERO3/HERO4 and the same size and weight of the camera, integrated TAROT series PTZ all the high-end technology.



The combination of aluminum and engineering plastics structure stability of lightweight and strongest, even in extremely harsh environment, can also accurately locked the camera to maintain high stability and output the ultimate experience exquisite industrial grade picture is the best choice for professional film and television photography and aerial love.



Tarot T4-3D dual suspension three axis stable platform by using advanced control algorithm, the built-in independent IMU precise control platform attitude, integrated platform and servo drive module. Support point to follow (PF) and first person (FPV) two modes of operation. The power and signal lines all cleverly embedded in the platform structure. The pitch axis rotation speed is controlled, the amount of the stick corresponds to the rotation speed of the pitch axis, the higher the speed of the rotation speed is.









Support computer operation interface settings

Point to follow mode (PF)

First person mode (FPV)

Built in independent IMU module

TAROT special PTZ servo drive module

AV output interface

Wide range voltage input support

Support for conventional receiver /S-Bus receiver /DSM receiver

Peripheral equipment:

Support camera type: HERO3/HERO4 GOPRO and camera of the same size

Input power: LiPo 2S~6S battery

Mechanical / electronic properties:

Angle control accuracy: + 0.02

Maximum controllable speed:

Pitch direction (TILT): + 200 degree /s

Controllable rotation range

Pitch direction (TILT):-120 degrees to +15 degrees

Working current: 30mA (@25V) 50mA (@12V)

Locked rotor current: 350mA (@25V) 700mA (@12V)

Working environment temperature: -20 degrees ~50 C degrees C

Weight: 201g

Size: 100mm * 88.5mm * 105.6mm

Software installation requirements:

XP Windows; VISTA Windows; Windows 7; 8 (32 or 64 bit); Windows;
