F08618-T   DIY FPV Drone   Full Set Hexacopter 6-axle Aircraft Kit HMF S550 Frame PXI PX4 Flight Control 920KV Motor GPS AT9 Transmitter 30A ESC 9443 Propers GPS Folding Antenna B3 Pro Compact Balance Charger 11.1V 4400MAH 30C 3S1P battery (assembled)

Package including:

1 set HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear

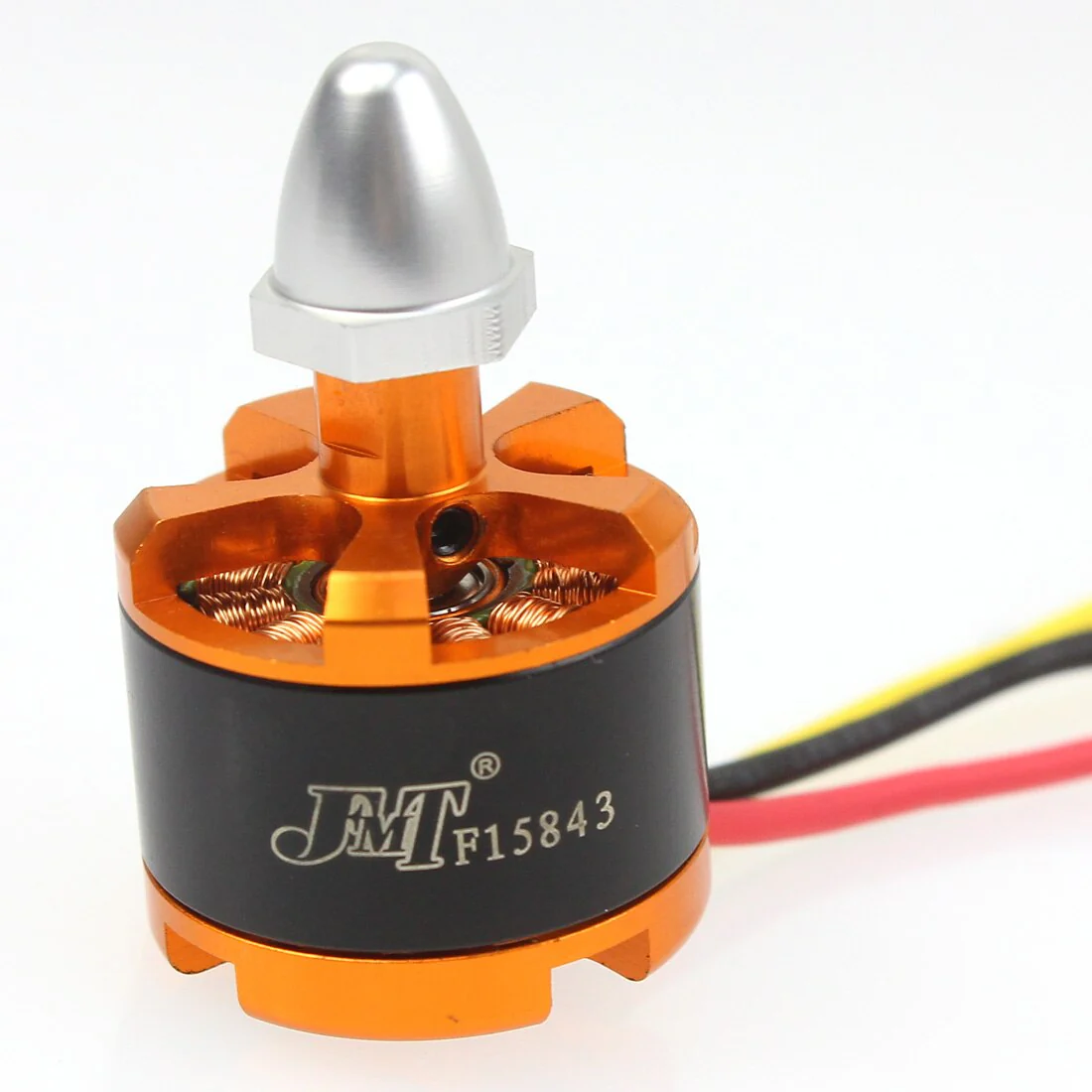

3 Pair JMT 920KV CW CCW Brushless Motor

6 pcs 30A Brushless ESC Speed Controller

3 pair 9443 CW CCW Propellers

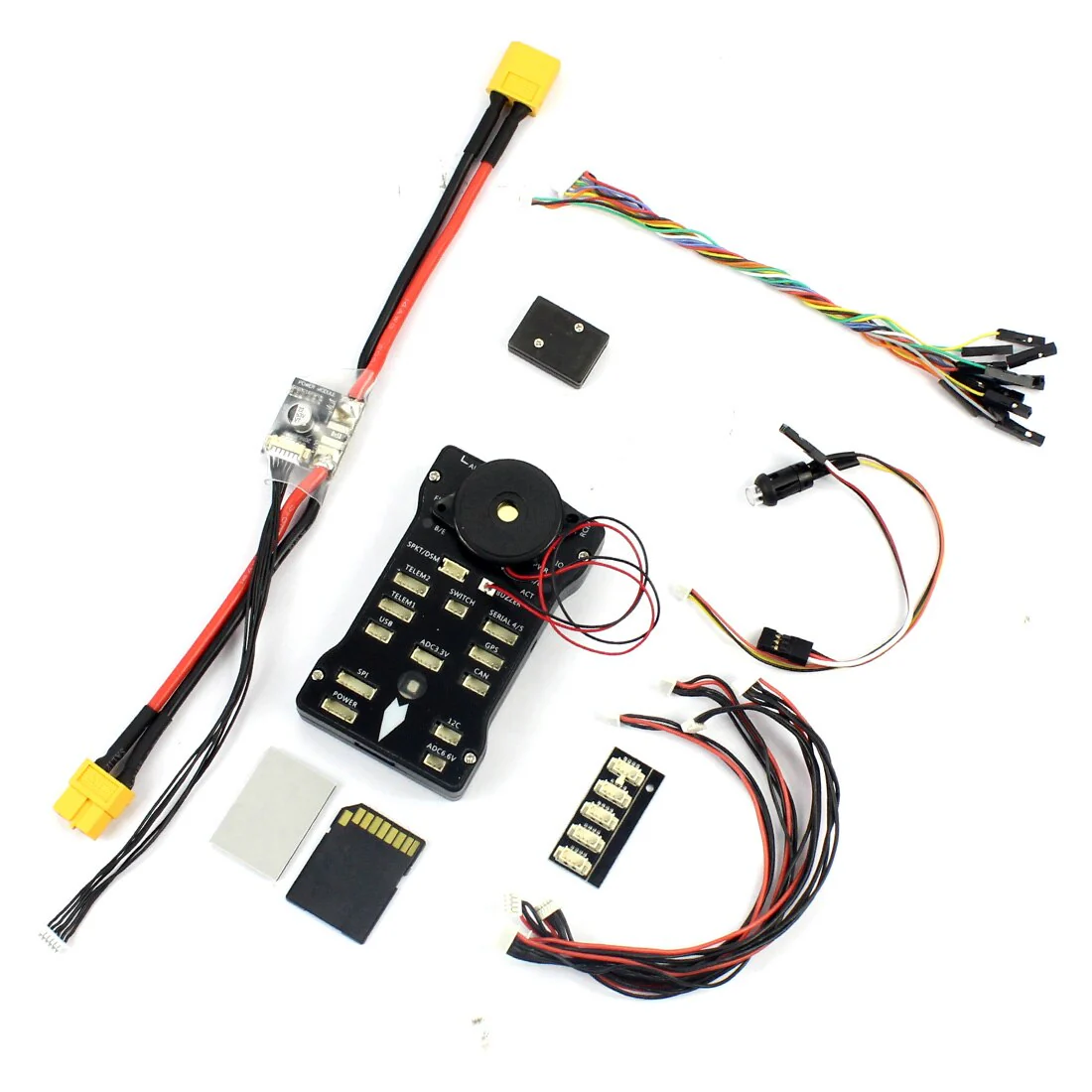

1 pcs PIXHAWK PIX PXI PX4 Flight Controller

1 pcs 6M GPS with Compass L5883 25cm Cable

1 pcs DJI GPS Folding Antenna Mount Holder Metal

1 pcs Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver TX &RX

  18 pcs 3.5mm Bullet Connector ( banana plug )

1 pcs Hook & Loop Fastening Tape

1 pcs T Plug Male Connector

1 pcs IMAX RC B3 Pro Compact Balance Charger

1 pcs 11.1V 4400MAH 30C 3S1P battery


1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
 sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
 interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2.2 CAN
3. DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

This ESC do not have the English instruction.

Before producing, the manufacturer have set up the program, the ESC do not need additional program.

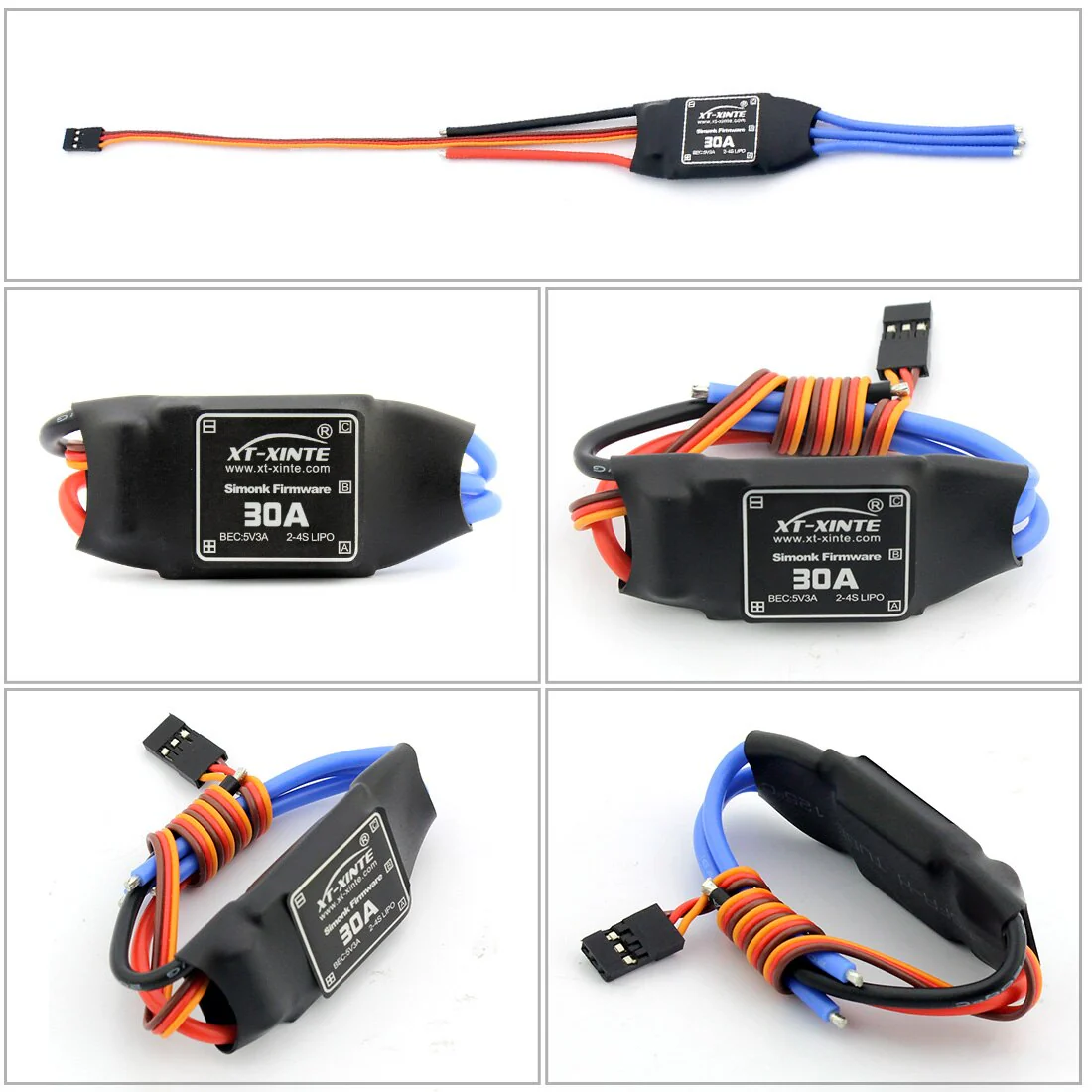

XT-XINTE Simonk Firmware  30A ESC Electric Speed Controller with 5V 3A BEC for 2 to 4s Lipo Battery

Specification:

weight: 25 g

Input voltage:2-4S

Working current:30A

BEC output: 5V 3A

Quantity: 1 pcs

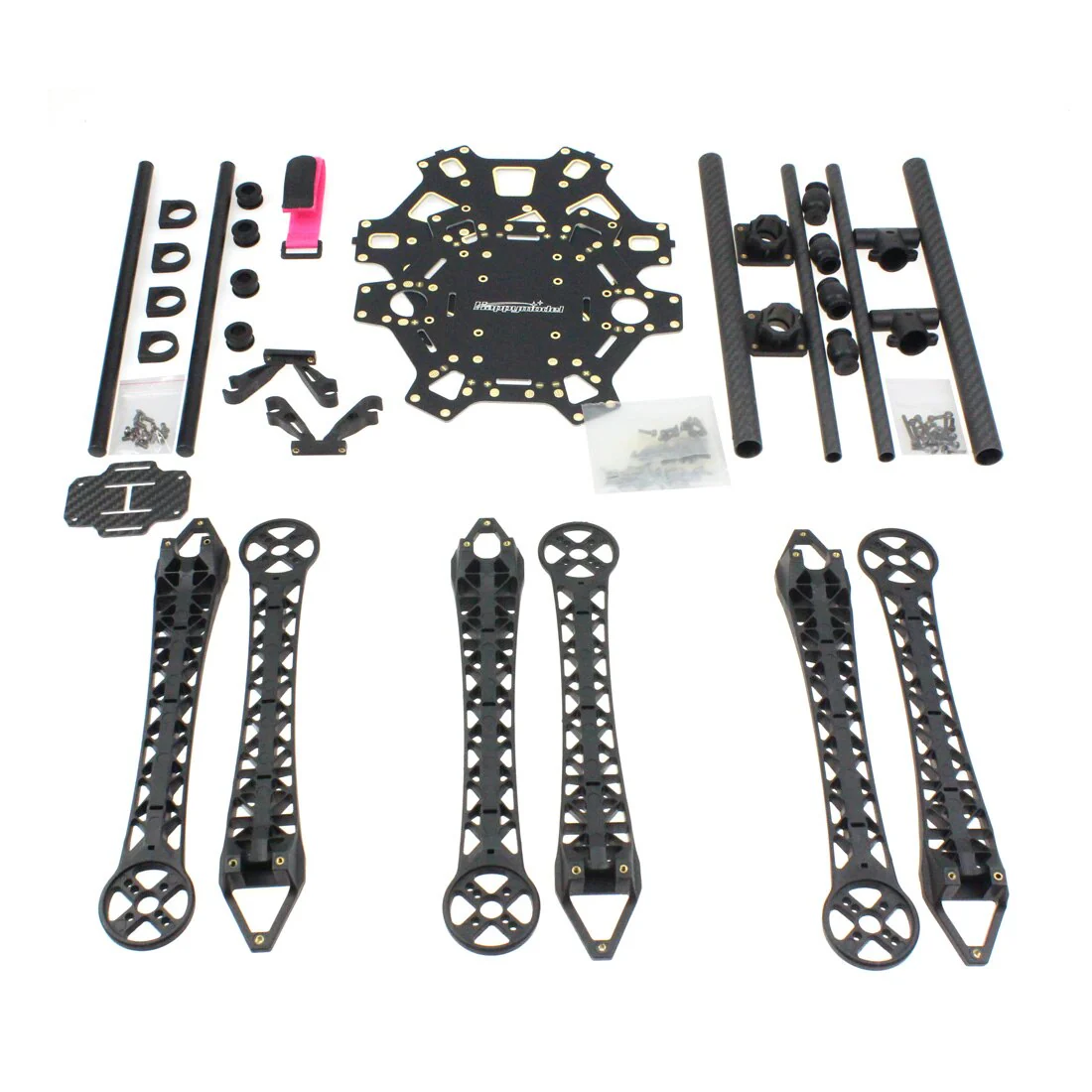

HMF S550 RC Hexacopter Frame Kit + Landing Gear 6-axle FPV F550 Flamewheel Upgrade

Features:
- Adopts S800 upward tilt arm design
- Plastic injection moduling, ensures hardness and lighter weight
- Brushless gimbal compatible for FPV (Not included)

Specifications:
- Wheelbase: 528mm
- Weight: 550g/720g(without/with gimbal)
- Motor suggest: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900
- Prop suggest: 8038 9047 1038 1045 1047
- Battery suggest: 3S-4S 2200mAh-5200mAh
