G616 6-Axis Parameter

Package included:

Pacakage 1:
EFT G616 6 Axis Drone Frame Kit x 1
16L Water tank x1

Pacakage 2:

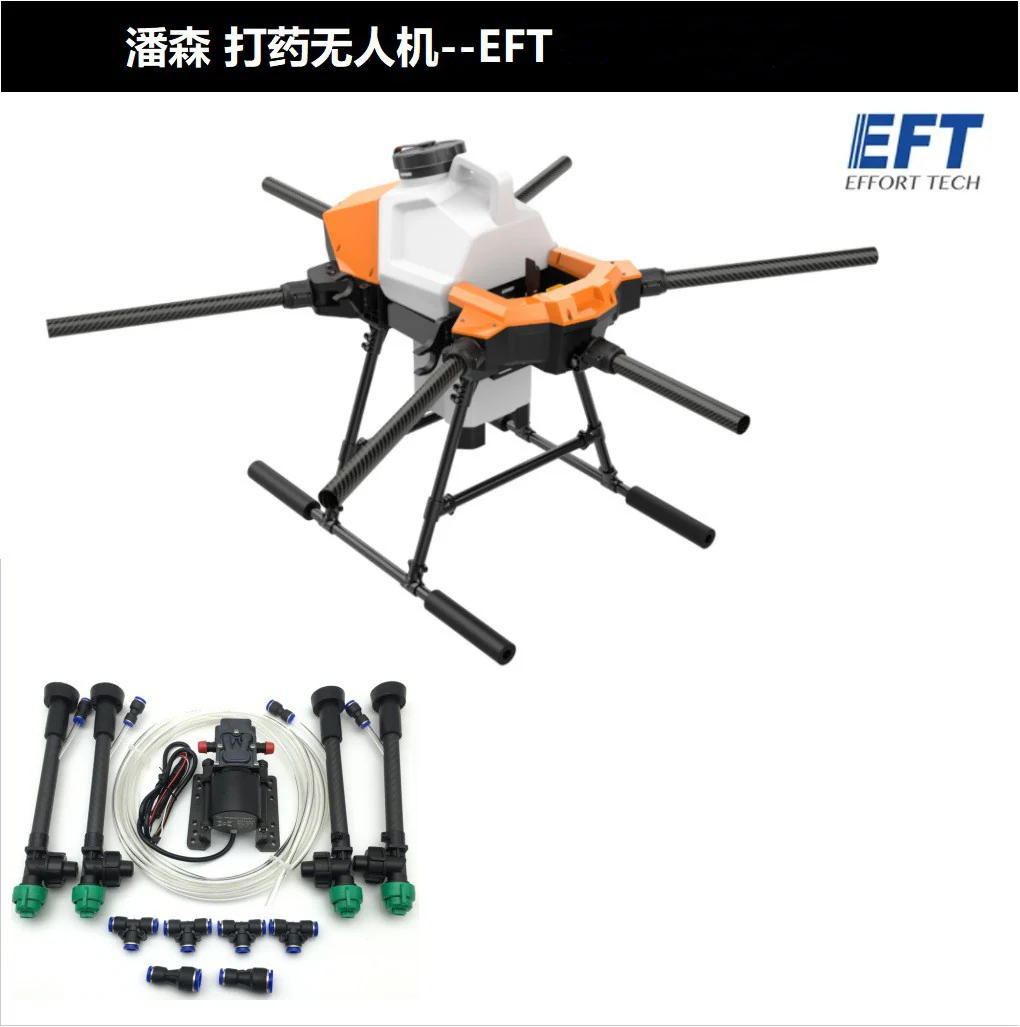

EFT G616 6 Axis Drone Frame Kit x 1
16L Water tank x1
Brushless Spraying System x 1

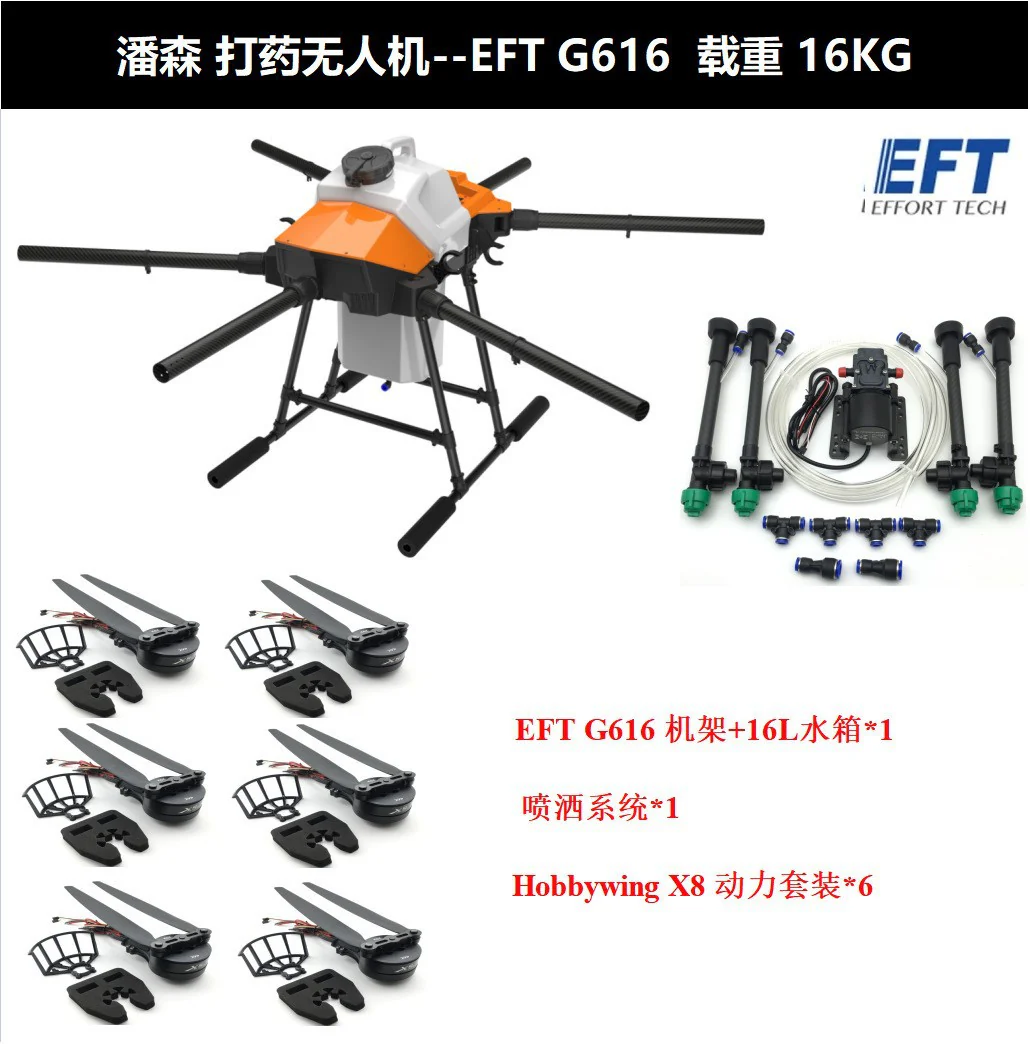

Pacakage 3:
EFT G616 6 Axis Drone Frame Kit x 1
16L Water tank x1
Brushless Spraying System x 1
Hobbywing X8 propulsion System for drones x 6 (3CW+3CCW)

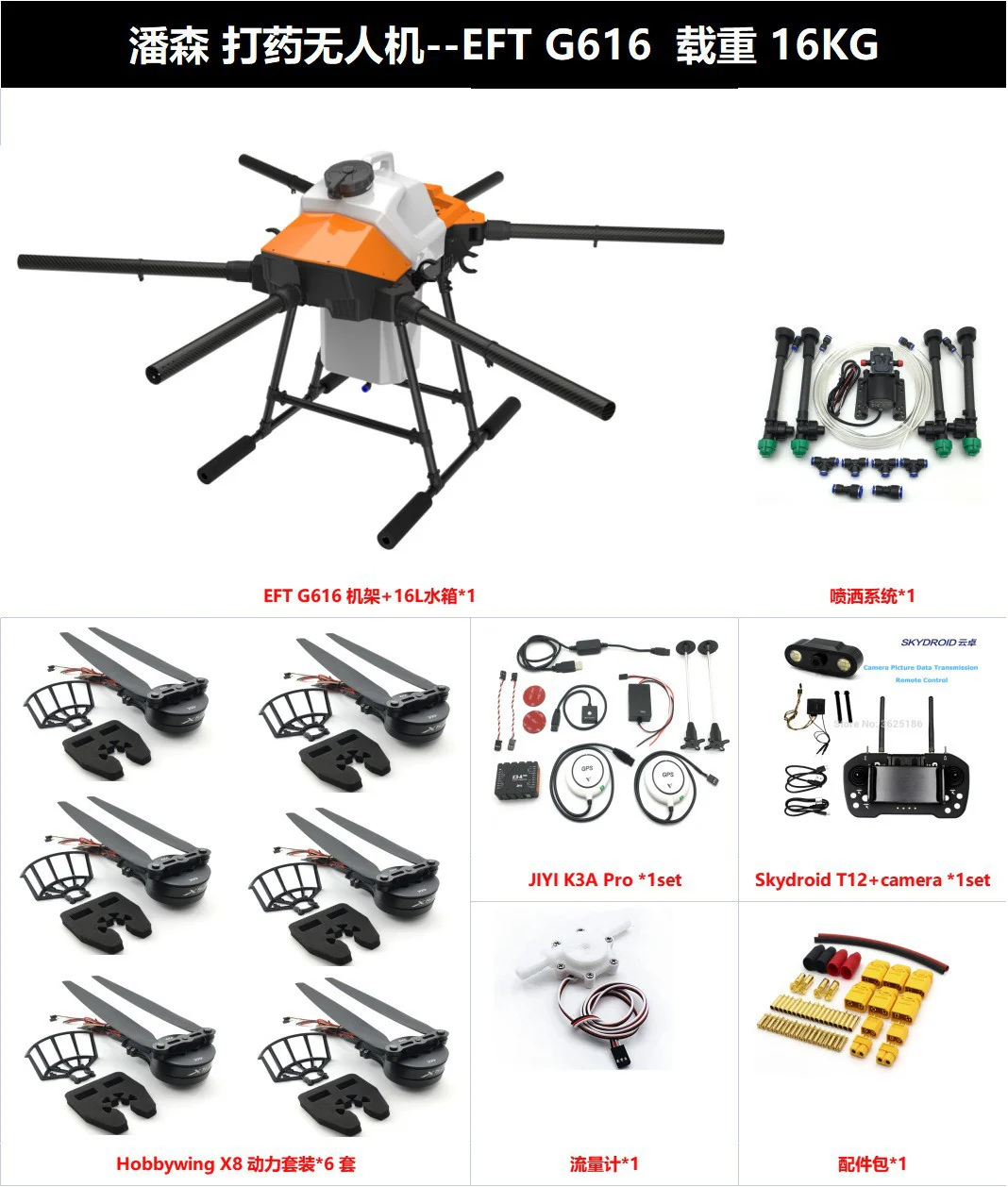

Pacakage 4:
EFT G616 6 Axis Drone Frame Kit x 1
16L Water tank x1
Brushless Spraying System x 1
Hobbywing X8 propulsion System for drones x 6 (3CW+3CCW)
JIYI K3A pro Flight Controller x 1(or JIYI K++ flight controller x1)
Skydroid T12 Remote Controller x 1
Camera x1
Accessories Bag x 1
Flow meter x1

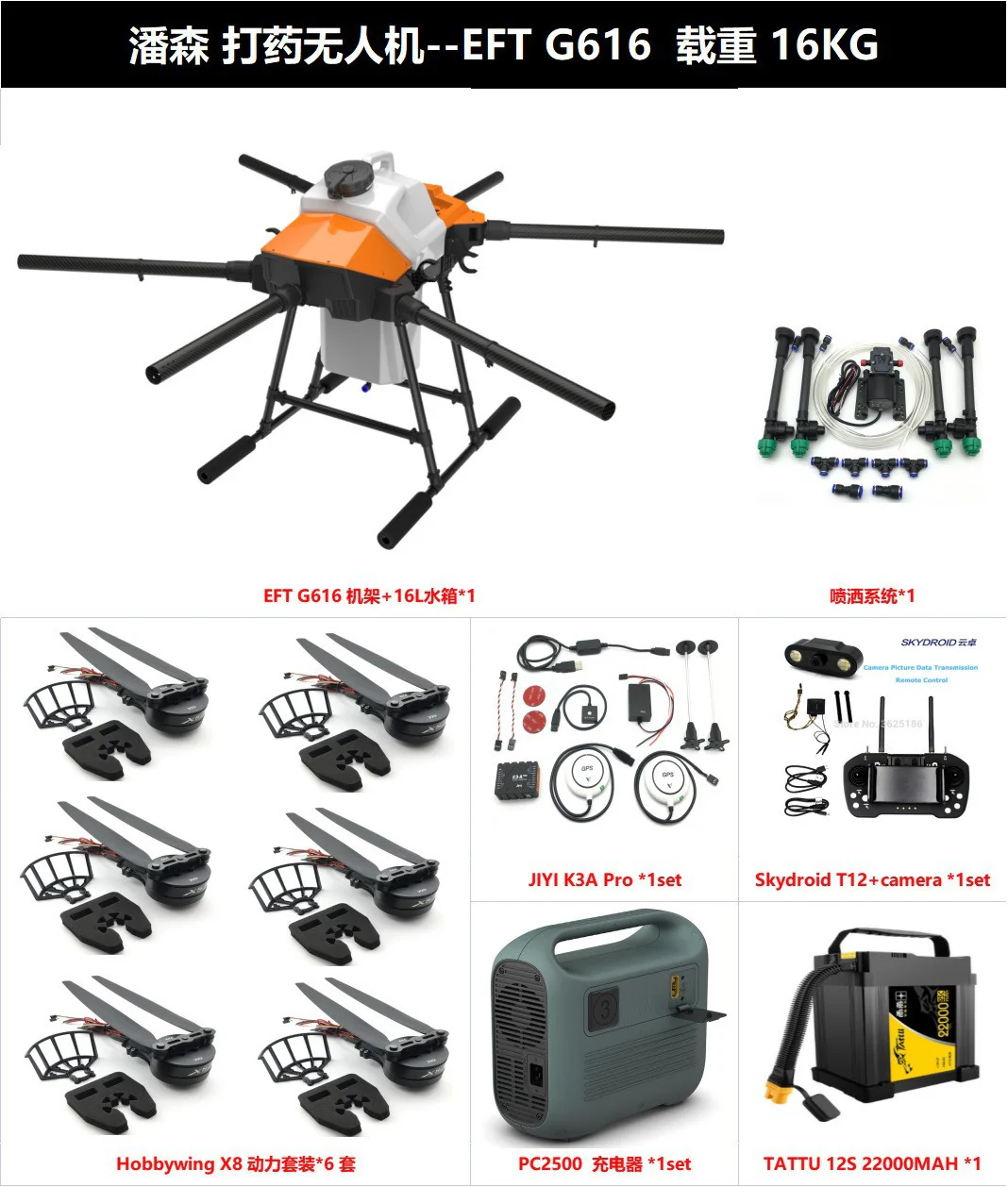

Pacakage 5:
EFT G616 6 Axis Drone Frame Kit x 1
16L Water tank x1
Brushless Spraying System x 1
Hobbywing X8 propulsion System for drones x 6 (3CW+3CCW)
JIYI K3A pro Flight Controller x 1(or JIYI K++ flight controller x1)
Skydroid T12 Remote Controller x 1(or Skydroid H12 Remote Controller)
Camera x1
TATTU 12S 22000mah Battery x 1
SKYRC PC2500 Dual Channel Charger x 1

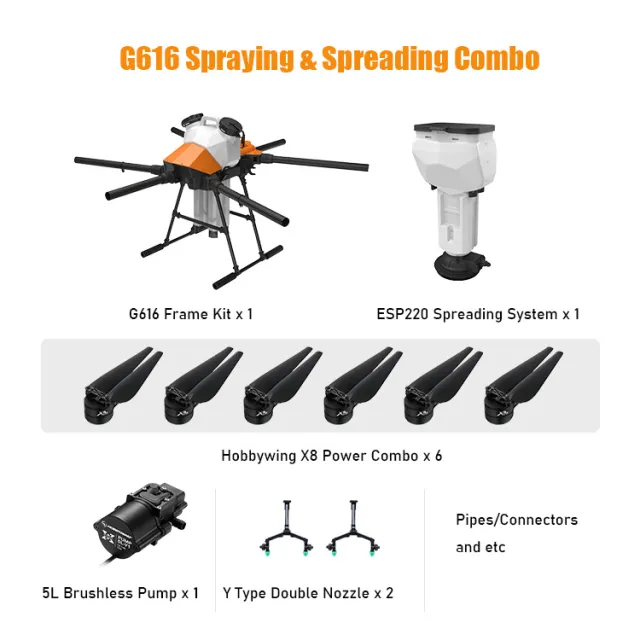

Pacakage 6:
EFT G616 6 Axis Drone Frame Kit x 1
16L Water tank x1
5L Brushless Pump x 1
Y-type Double Nozzle x2
Hobbywing X8 power System x 6 (3CW+3CCW)
EFT  ESP220 Spreading system with Tank x1
Pipes/Connectors and ect..

EFT G616 16L Installation Guide

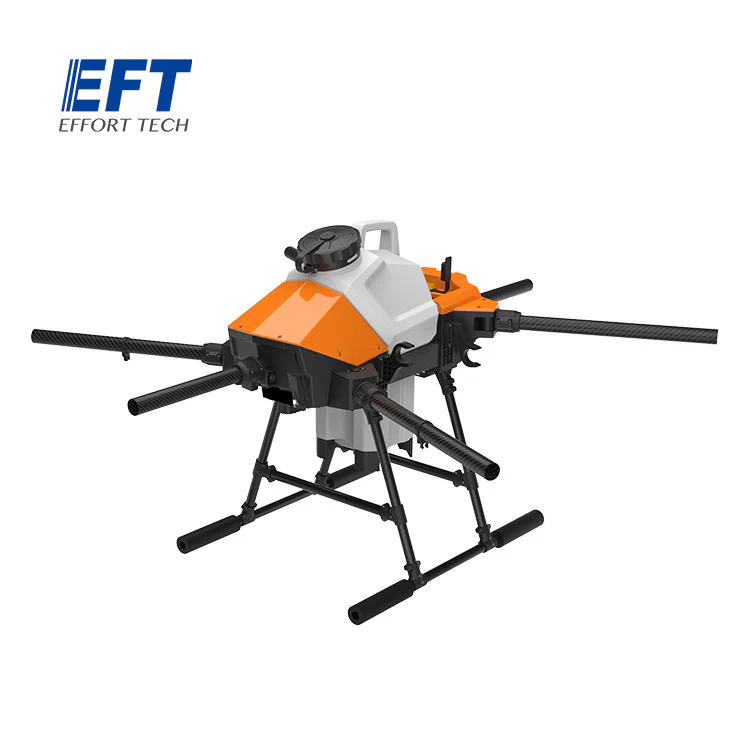

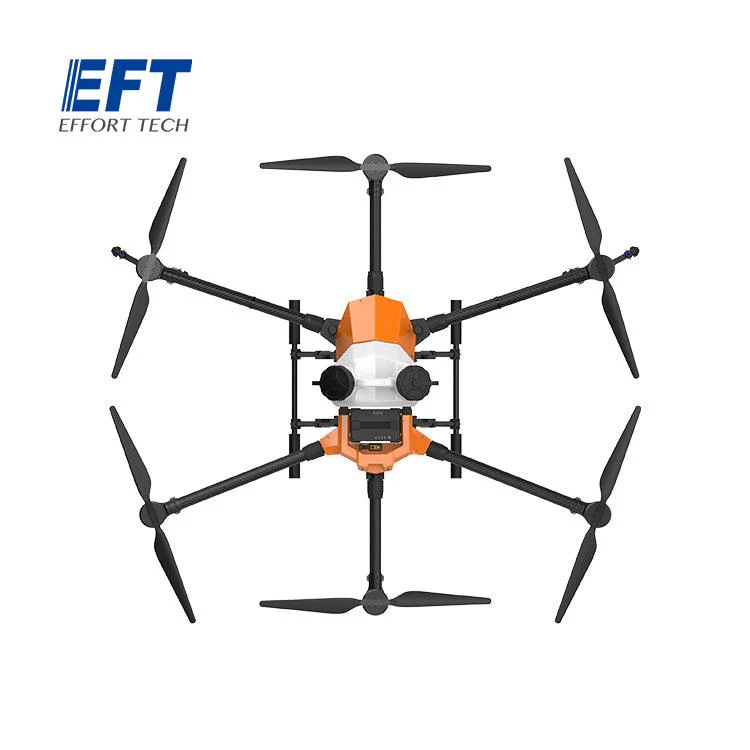

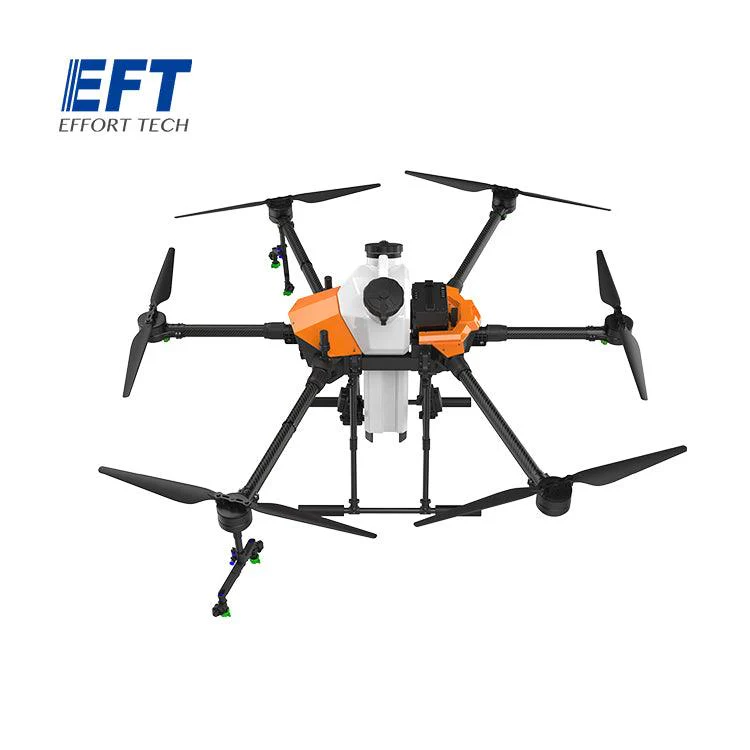

EFT G616 6-Axis 16L Agriculture drone Details

Quick Battery Replacement: The design features a plug-in and vertically-oriented battery that allows for easy replacement of both the battery and tank simultaneously.

Convenient Folding Design: The arms of this drone feature a unique cross-folding structure that allows for compact storage when not in use, resulting in a miniature-sized design that's easy to transport.

Dust- and Water-Resistant Design: The EFT G616 16L Agriculture Drone features a robust construction that is both dustproof and waterproof, achieving an IP6S rating. This allows for easy cleaning with water, eliminating the need for complicated maintenance procedures.

Integrated Fuselage Frame: The EFT G616 16L Agriculture Drone features a seamless fuselage frame design that combines simplicity and strength. This single-body construction ensures exceptional durability and resistance to wear and tear.

Comprehensive Accessories Package: The EFT G616 16L Agriculture Drone comes equipped with a range of accessories, including obstacle avoidance radar, extended Y-type nozzle, brush pump, FPV camera, and laminated structure, making it easy to install and use.

Product Dimensions and Packaging Information: The EFT G616 16L Agriculture Drone comes in a compact package with dimensions of approximately 660mm x 490mm x 30mm, making it easy to transport and store.

Product Packaging Information: The EFT G616 16L Agriculture Drone comes in a package with dimensions of approximately 680mm x 440mm x 385mm, featuring a plug-in design for easy installation.

EFT G616 6-Axis 16L Agriculture Drone Review

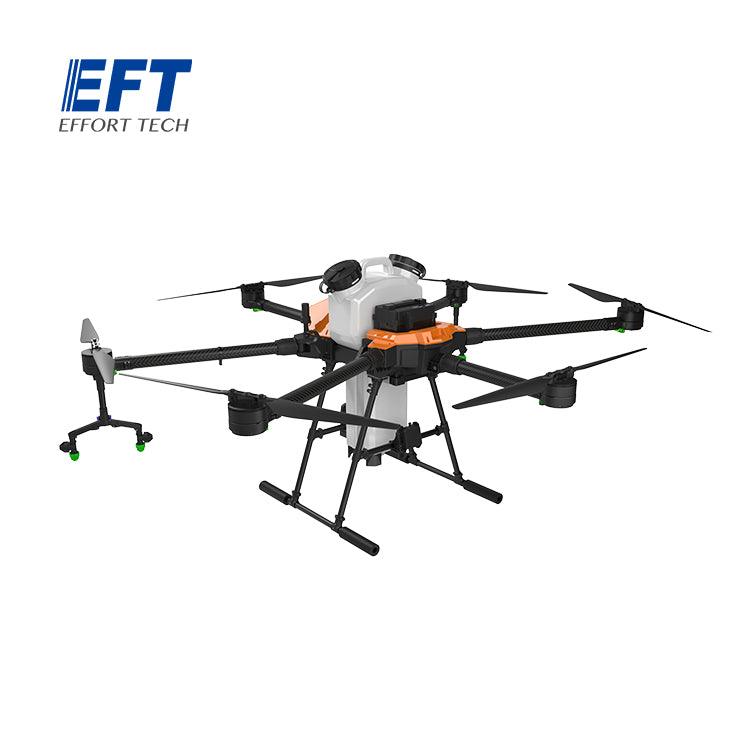

EFT G616 16L agriculture drone is specially designed for the popular 16L capacity. The effective capacity of the drone is 16L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold.  This combo comes with the G616 Frame kit with hobbywing X8 power systems, brushless spraying systems, 20L spreading systems.
It is compatible with the mainstream flight controllers, such as JIYI Flight controller, Pixhawk, Topgun, Boying Poladin, Hex Cube and etc.

EFT G616 6-Axis 16L Agriculture drone Specifications:

Item Model: G616
Diagonal wheelbase: 1721mm
Size: 2301*2241*813mm
Folded Size: 1026*581*813mm
Arm Diameter: 40mm
Effective Capacity: 16L
Frame Weight: 7.35kg
Frame+Power System Weight: 14.85kg
Frame+Power+Spraying System Weight: 16.3kg
No-Load take-off weight: 22.6kg
Max take-off weight: 38.6kg
No-load flight Time: 22.5minutes (42.8V)
Full-Load flight time: 4 minutes (42.8V)
Manual Mode Flying time: 5 minutes 16 second
A-B Point Flying Time: 8 minutes 39 second
* Note: We use the hobbywing X8 powersystem, JIYI K++ V2 flight controller with Tattu 12S 22000mah battery to do the test.

Spreading System
Item Model: EPS220
Voltage Range: DC 24V-60V
Support particle diameter: 0.5-6mm (dry granules)
Max. warehouse area: 43m²
Valve angle: 0-60°
Max. speed: 1100r/min
Spred width: 12m
Material shortage singal: Empty-0V, Full-5V
Speed control signal: 1000us-2000us
Max. Power: 120W
Protection level: IP67
Working temperature: 0-40℃
Dimensions: 300x250x145mm

Tank Capacity: 20L

Main Features:

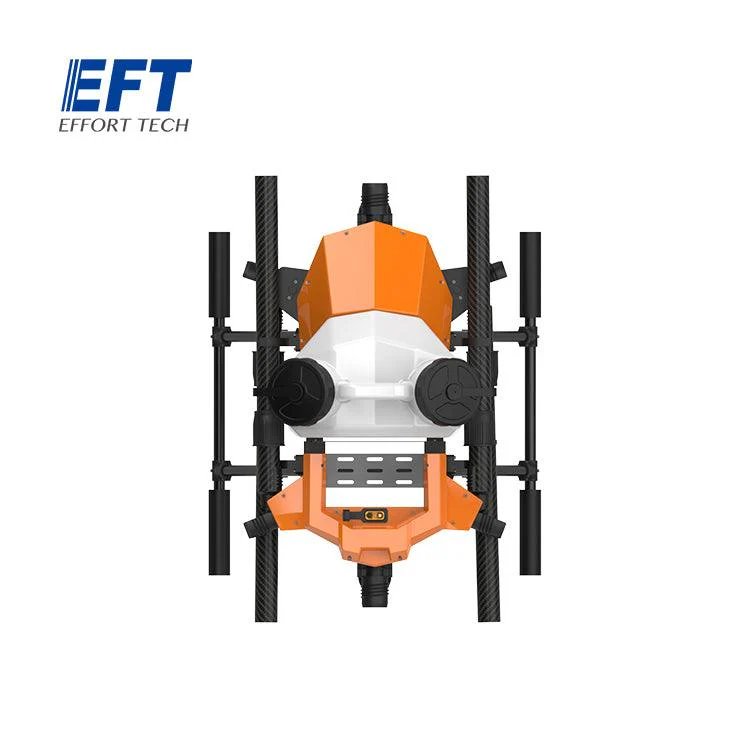

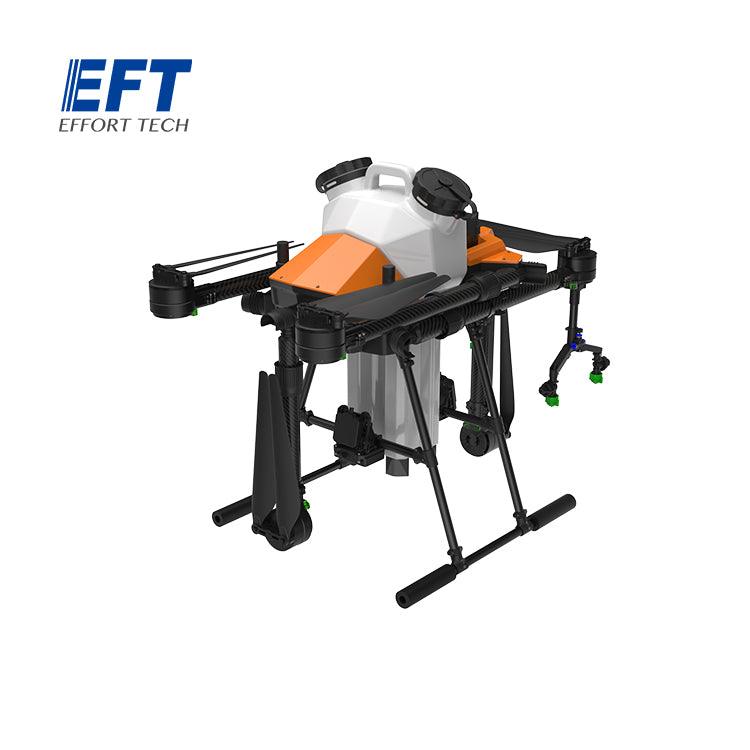

Crossfolding Method
The arms of the G616 are folded in a staggered way, minisize the folding size, more convenient for transportation.

Integrated Fuselage Frame
The fuselage frame of the G410 Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the G410 has good durability and reliability.

Quick Release Battery & Tank
The water tank of the G616 adopts plug-in design, and the battery can be placed vertically in the battery compartment. For the G616, we suggest the 12S 22000mah lipo battery.

Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.

Great Expandability
The radar, fpv camera, pump and some other parts can install on the drone. The below picture is just for reference.

The EFT G616 16L Agriculture Drone features an integrated X8 propulsion system that combines the motor, ESC (Electronic Speed Controller), propeller, and motor mount into one convenient unit. This design makes it easy to install and use, and includes a standard tube adapter for seamless integration.

The EFT G616 16L Agriculture Drone features advanced control capabilities, including PWM (Pulse Width Modulation) technology with a IP67 rating for resistance to water and dust. Additionally, it offers 360-degree tool-free disassembly, dual-control compatibility across multiple platforms, and sow-mode functionality.
