Eachine EV800D FPV Goggle - 5.8G 40CH 5 Inch 800*480 Video Headset HD DVR Diversity FPV Drone Goggles With Battery For RC Model RC Drone Parts
-
Detail
EV800D FPV Goggle SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories:
Tool Supplies: FPV Goggles
Technical parameters: KV1100
Remote Control Peripherals/Devices: FPV Goggles
Recommend Age: 12+y
RC Parts & Accs: FPV Goggles
Origin: Mainland China
Model Number: EV800D 5.8G 40CH
Material: Composite Material
Four-wheel Drive Attributes: FPV Goggles
For Vehicle Type: Helicopters
Brand Name: EACHINE
Description :Brand Name : EACHINEItem Name : EV800D
AppearanceDimension: 180*145*82mm
Weight: 362g without antenna
Belt : three-way adjustable belt

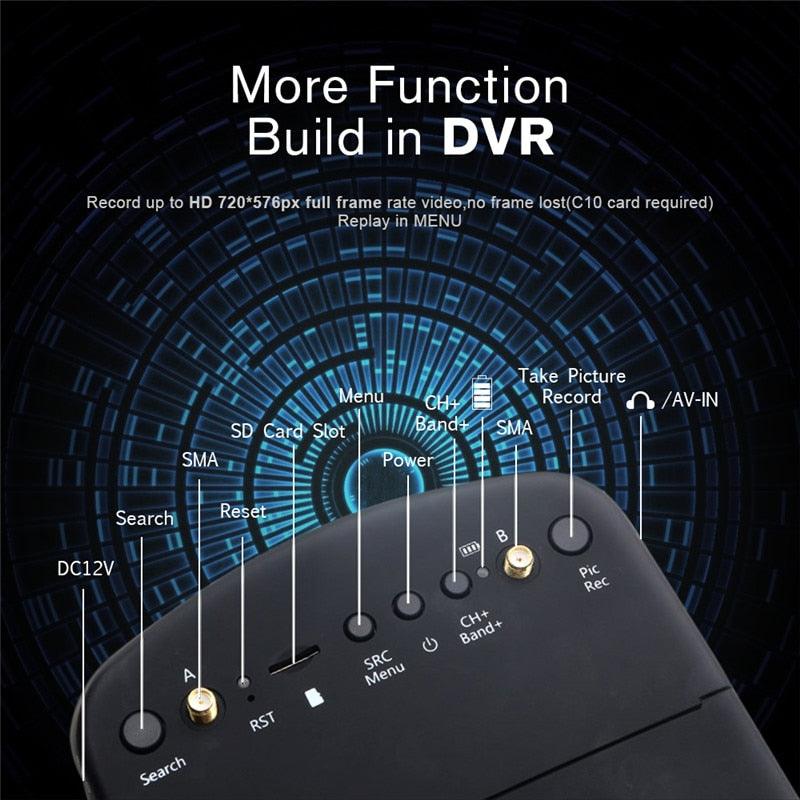

SpecificationBuild in DVR
R ecord up to 720*576px full frame rate video, no frame lost (C10 card required)
Re play in MENU
Require C10 card to r ecord full frame rate
Diversity-90dB Super sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used
DisplayScreen size: 5.0 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio : 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)
Lens3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;
BatteryBuilt-in 7.4V/1200mAh battery;
Each battery circle offer around 2hr working time;
10-22V wide range recharging voltage range, typical recharging voltage is 12V
Charger : 12V,2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.
Frequencies (5.8GHz, with RaceBand)CH
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
GROUP
A or FR1
5865 MHZ
5845 MHZ
5825 MHZ
5805 MHZ
5785 MHZ
5765 MHZ
5745 MHZ
5725 MHZ
B or FR2
5733 MHZ
5752 MHZ
5771 MHZ
5790 MHZ
5809 MHZ
5828 MHZ
5847 MHZ
5866 MHZ
C or FR3
5705 MHZ
5685 MHZ
5665 MHZ
5645 MHZ
5885 MHZ
5905 MHZ
5925 MHZ
5945 MHZ
D or FR4
5740 MHZ
5760 MHZ
5780 MHZ
5800 MHZ
5820 MHZ
5840 MHZ
5860 MHZ
5880 MHZ
R or FR5
5658 MHZ
5695 MHZ
5732 MHZ
5769 MHZ
5806 MHZ
5843 MHZ
5880 MHZ
5917 MHZ
Features:
Built-in with superHD DVRup to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching
Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording)
Work friendly with p ilot-OSD, no block on the important flying OSD information;
Separable design, 5 inch screen can be used as small on radio controller or with tripod;
HD high brightness 5 inch LCD specially tuned for FPV racing;
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Built-in 7.4V 1200mAh battery, each full charge offer 2 hours working time;
Wide range re-charge voltage 11-20V;
Accept 2S or 3S batteries as back-up power source, to prolong the working time;
Nice ergonomic design and fit different faces;
Super-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
5 Inch 800*480px HD high brightness LCD
Package Included :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
-
