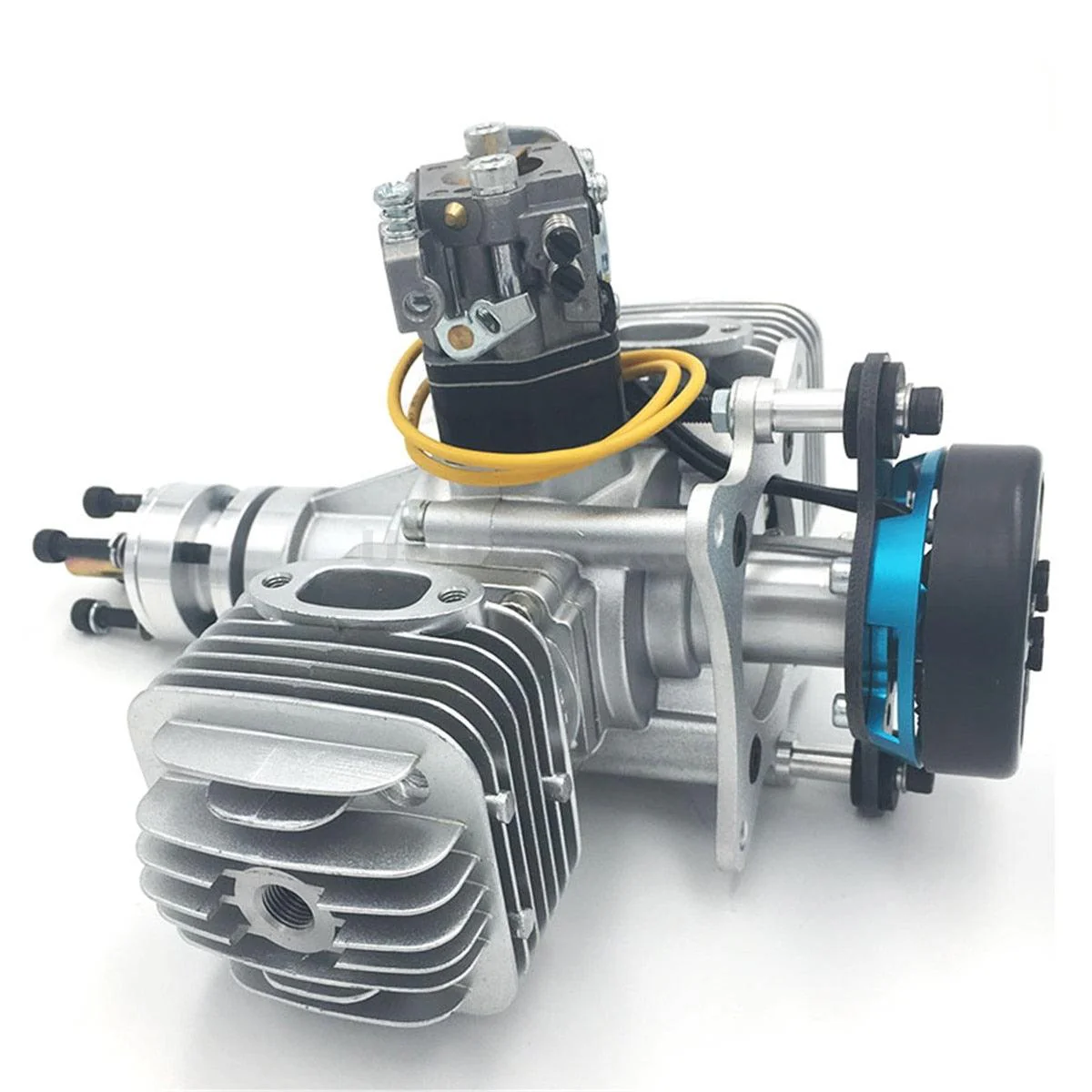

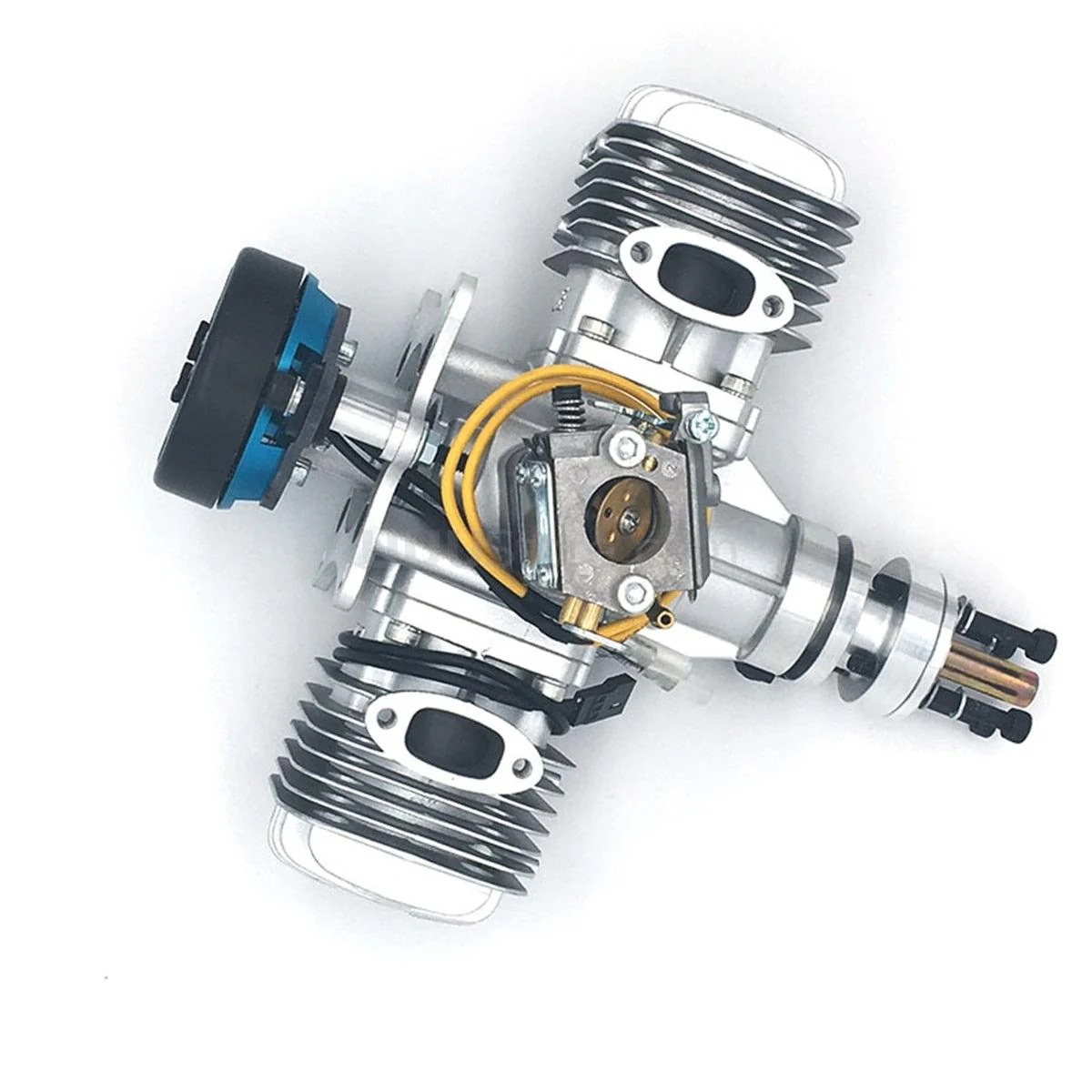

DLE60 60CC Twin Gasoline Engine UAV power system W/Electronic Igniton Muffler For RC Airplane
-
Detail
DLE60 60CC Twin Gasoline Engine SPECIFICATIONS
type of the sparking plug:: NGK CM6
Upgrade Parts/Accessories: Gear
Tool Supplies: Assembled class
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 18+,12+y
RC Parts & Accs: Engines
Performance:: 7HP/8500rpm
Origin: Mainland China
Model Number: DLE60CC
Material: Metal
Idle Speed:: 1400 rpm/min.
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
This engine is not toy. For your own safety, please read the manual carefully before operation. DLE is not responsible for all injuries result from the use.
Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. (Loctite242.243) is strongly recommended on all the screws.
During the break-in process, engine must running with shock absorber installed. Or the engine will be seriously damaged by vibration.Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or to the sides of the propeller when starting or
the engine. Anyone near the engine should wear protective eyewear. Do not wear loose clothing near the engine or propeller
SPECIFICATIONS:
Performance:7HP/8500rpm
Idle Speed: 1400 rpm/min.
15.2Kg Static Thrust / 100 meters Altitude
13.5Kg Static Thrust / 1800 meters Altitude
The specification of the aircraft propeller:22×10;23×8;23×10;24×8;
the type of the sparking plug :NGK CM6
Parameter:
Exhaust Amount :
61cm3
diameter × stroke :
36mm×30mm
Ratio of compression:
7.6:1
Ratio of lubricating capacity :
30: 1
Weight: Main engine:
1560g
Exhaust pipe:
200g
Ignition equipment:
190g
Ignition volt:
4.8V-8.4V

With 80W generator


Without generator

-
