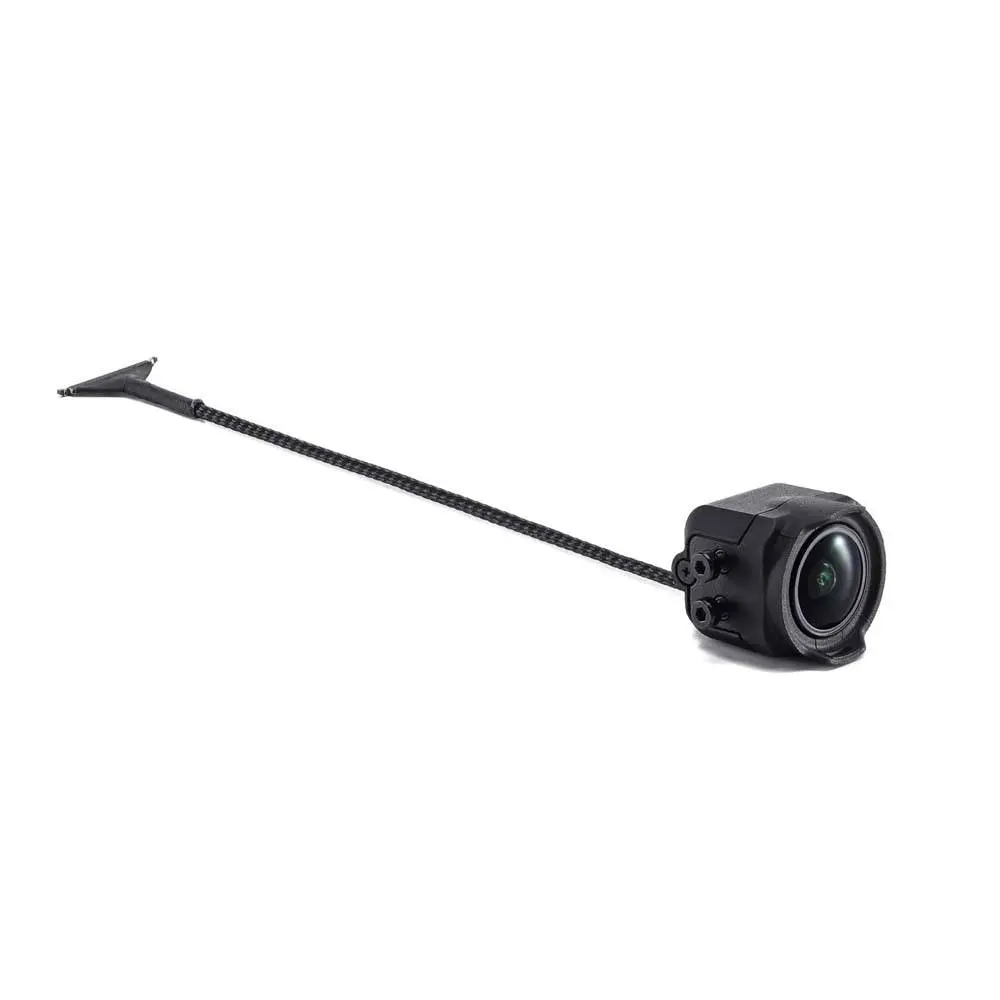

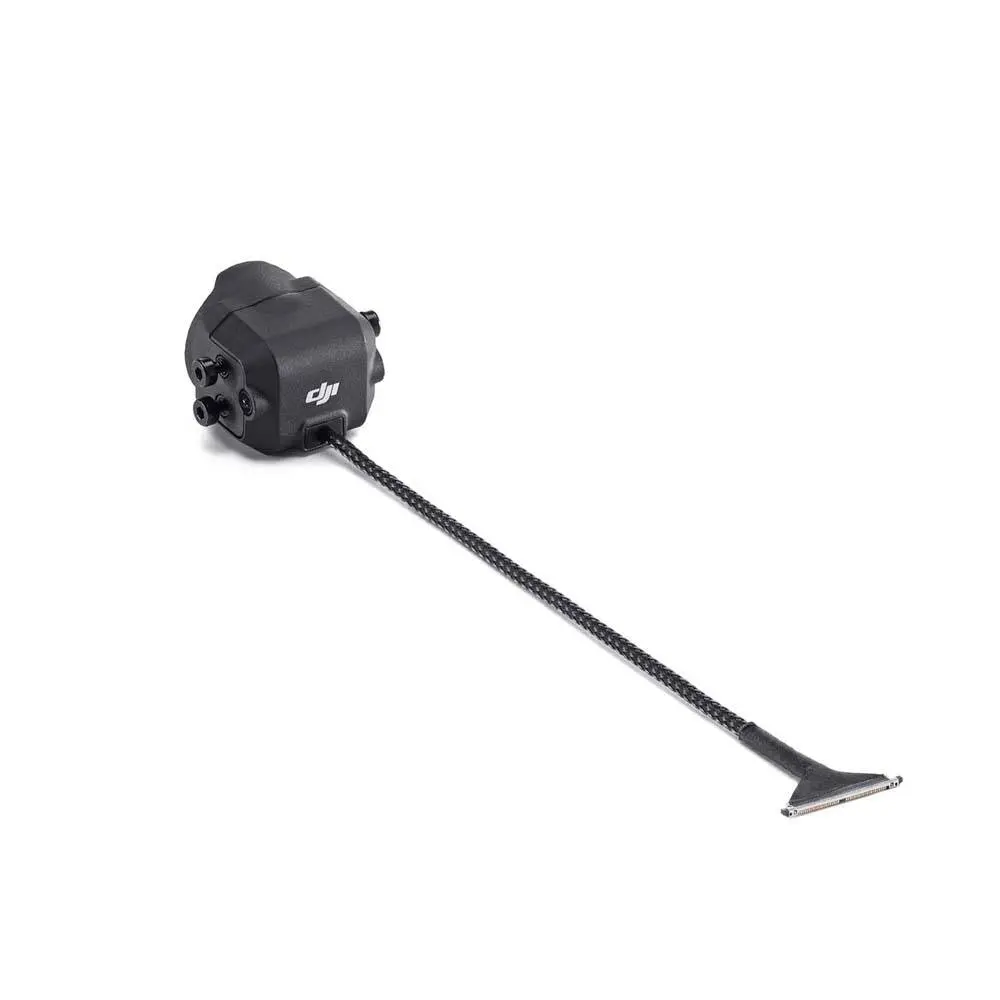

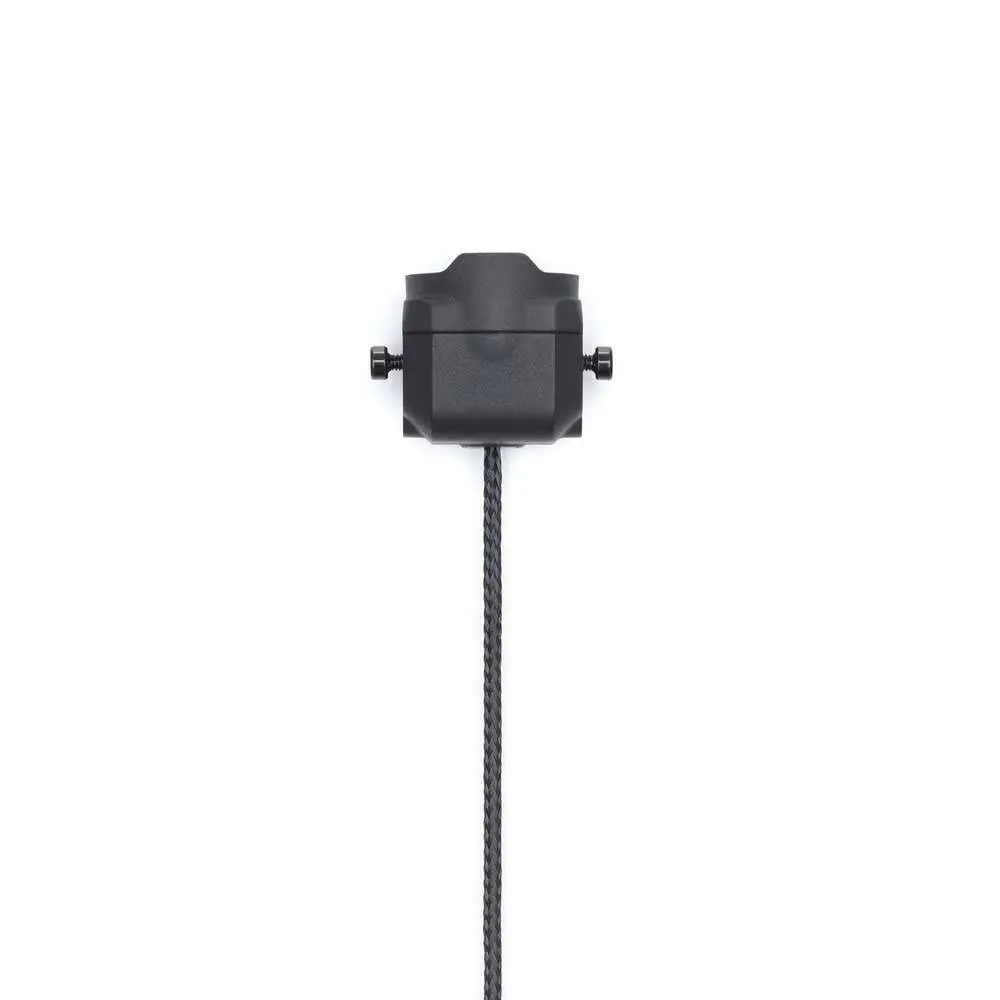

DJI O3 Air Unit Camera Module

The DJI O3 Air Unit Camera Module is a single camera module with a quick-release design for convenient replacement. This camera module features a 1/1.7-Inch CMOS sensor, 155° Super-Wide FOV, f/2.8 aperture, and more!

Compatible with the DJI O3 Air Unit Transmission Module and works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2.

• Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
• 155° Super-Wide FOV
• 1/1.7-Inch CMOS Sensor
• Compact in Size
• Compatibility: DJI O3 Air Unit Transmission Module

• Camera Sensor

  • 1/1.7-inch CMOS

  • Effective Pixels: 48 MP
• Camera Lens

  • FOV: 155°

  • Equivalent Focal Length: 12.7 mm

  • Focal Length: 2.34 mm

  • Aperture: f/2.8

  • Focus Mode: FF

  • Focus Range: 0.6 m to ∞
• Camera ISO Range

  • 100-6400 (Auto)

  • 100-25600 (Manual)
• Camera Shutter
  • Rolling Shutter
• Camera FOV: 155°
  • Camera Video Resolution
  • With DJI Goggles 2:

    • 4K@50/60fps

    • 2.7K@50/60/100fps

    • 1080p@50/60/100fps


  • With DJI FPV Goggles V2:

    • 4K@50/60fps

    • 2.7K@50/60/100/120fps

    • 1080p@50/60/100/120fps
• Effective Pixels: 48 MP
• Video Format: MP4
• Weight: Approx. 8.3 g (coaxial cable included)
• Dimensions (L×W×H): 21.2×20×19.5 mm
• Weight (coaxial cable included): Approx. 8.3 g
• Coaxial Cable Length: 115 mm

IMPORTANT NOTES

• The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
• Video latency data varies depending on the headset you use. With DJI Goggles 2 at 1080p/100fps video transmission quality, the lowest latency is 30ms. With DJI FPV Goggles V2, at 810p/120fps video transmission quality, the latency does not exceed 28 ms.
• Compared to using DJI FPV Goggles V2 and DJI FPV Remote Controller.4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.
• This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.
• 4K/60FPS videos only support 16:9 aspect ratio. A 4:3 aspect ratio is not supported.

• 1x DJI O3 Air Unit Camera
• 1x Coaxial Cable
• 4 M2 Screws
