DJI N3 Autopilot Flight Controller for Multi-rotor Industrial and Agriculture Drone

$197.98

Quantity

ADD TO CART

BUY IT NOW

Detail

Key Features

Controls Various Multi-Rotor Aircraft
Dual IMU Redundancy
Built-In 8GB Black Box Flight Recorder
Integrated Vibration Dampening System
DJI Onboard & Mobile SDK for Custom Apps
Works with DJI Zenmuse Gimbals/Cameras
Wide Remote & Software Compatibility
Sport, GPS, & Attitude Modes
Real-Time Propulsion System Monitoring
Automatic Inspection of Connected Parts

Specifications

Supported Multi-rotor	Quadcopter: I4，X4; Hexacopter: I6，X6，Y6，IY6 Octocopter: X8，I8，V8
Supported ESC	400Hz frequency, DJI Intelligent ESC with feedback
Recommended Battery	3S to 12S LiPo or DJI Smart Battery
Recommended Radio	Lightbridge 2, S-BUS or D-BUS
Other DJI Products Supported	DJI GO, iOSD, DATALINK PRO, Zenmuse series, Ronin series, X3, X5, X5R, Z15, Ronin-MX, DJI propulsion systems, S900, S1000, S1000+, etc.
Assistant Software System Requirement	Windows 7 /8 /10 (32 or 64 bit) Mac OS
Built-in Functions	Sport mode, with adjustable maneuverability Intelligent Flight Mode Dual IMU redundancy Built-in 8GB Sdcard for data recorder as Blockbox External SBUS receiver Lightbridge 2 receiver 8 function channels (including 4 configurable direction channels) SDK
Protection Function	Motor Fail Protection(Minimum 6 axis) Propulsion system Protection(Motor Overload) Smart Return To Home(RTH) Low Battery Protection, support Smart RTH(only Smart Battery) Low Battery Voltage Protection No Fly Zones
FLIGHT PERFORMANCE
Hovering Accuracy	Vertical: �0.5m Horizontal: �1.5m
Maximum Wind Resistance	<10m/s
Max Yaw Angular Velocity	150 deg/s
Max Pitch Angle	45�
Max Ascending Velocity	5m/s?
Max Decending Velocity	4m/s
EXTENDING FUNCTION
PWM I/O Ports	F1-F4 ports for output F5-F8 ports for I/O function
Data Storage	Built-in data recorder
Intelligent Flight Modes	Home Lock and Course Lock. (with Lightbridge 2) Point of Interest, Waypoints,
Remote Parameter Adjustment	Knob with sbus Receiver enabled by DJI ASSISTANT2 It can be realized in DJI GO APP With Lightbridge 2
Assistant software	DJI ASSISTANT 2, support simulator support MAC OS & windows
iOSD	iOSD Mark II, iOSD mini
Zenmuse Gimbal&Camera	Z15, Ronin-MX, X3, X5,X5R
Propulsion systems	all
SDK
SDK	Mobile SDK Onboard SDK
SDK Port	API/CAN2
HARDWARE
Weight	Total： 132g MC： 46g GPS-Compass：37g PMU：36g LED：13g
Power Consumption	Normal 3.3W Max 4.8W
Size	Controller: 57.9mm x 39mm x 17mm PMU: 40mm x 28.2mm x 11.2mm LED: 25mm x 25mm x 6.3mm GPS-Compass: 50mm (diameter) x 12.2mm
Operating Temperature	-10°C to +55°C

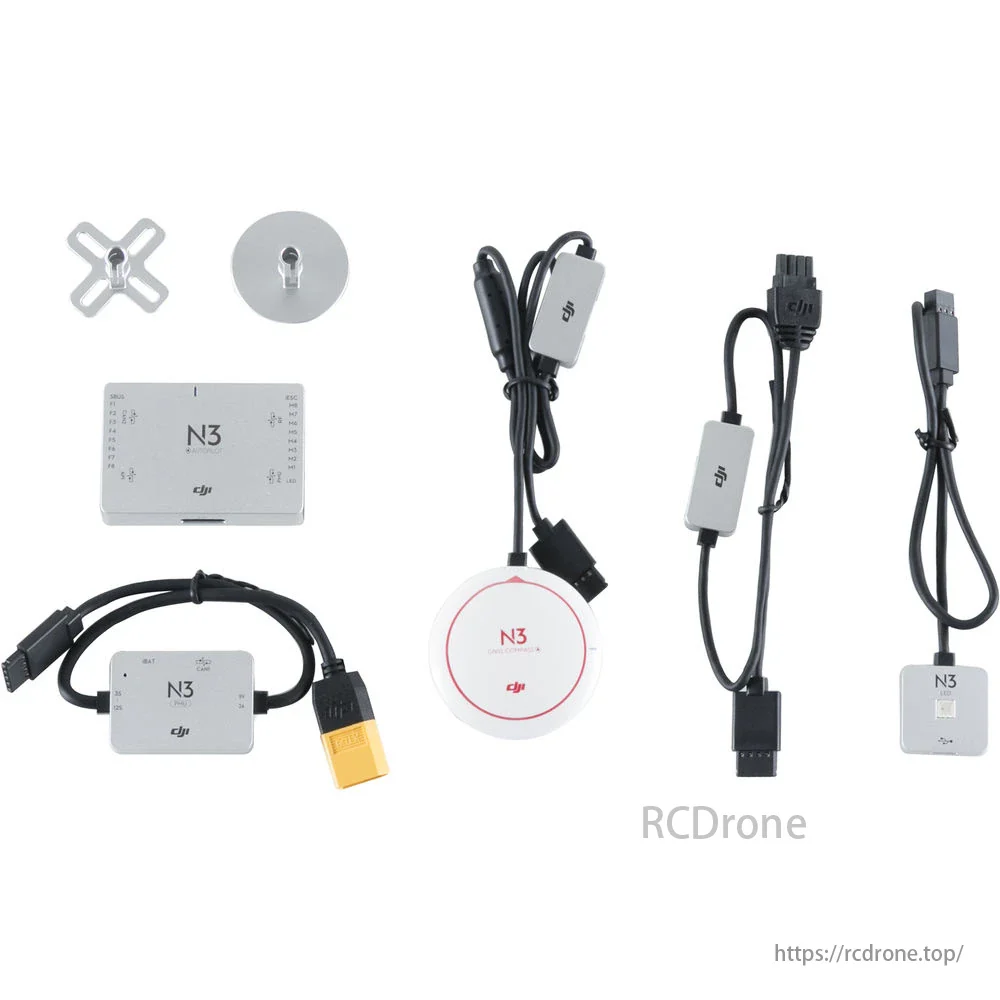

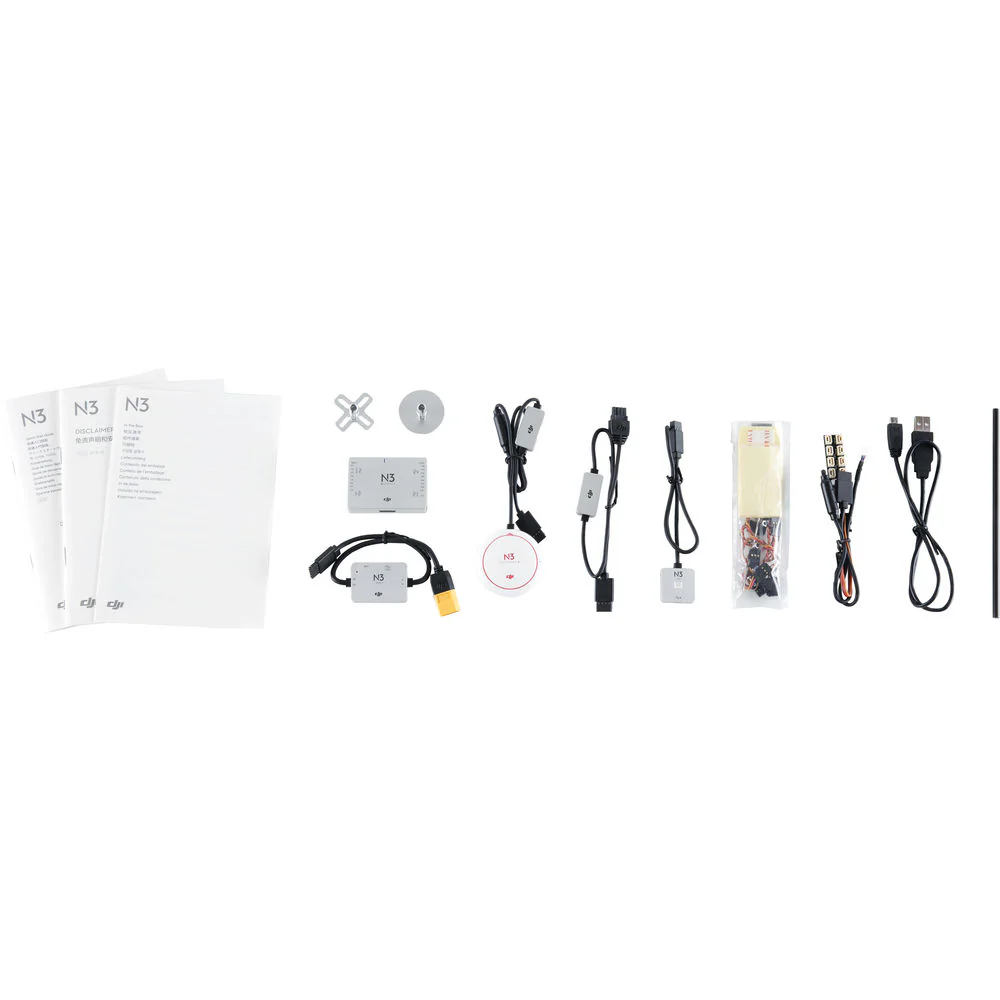

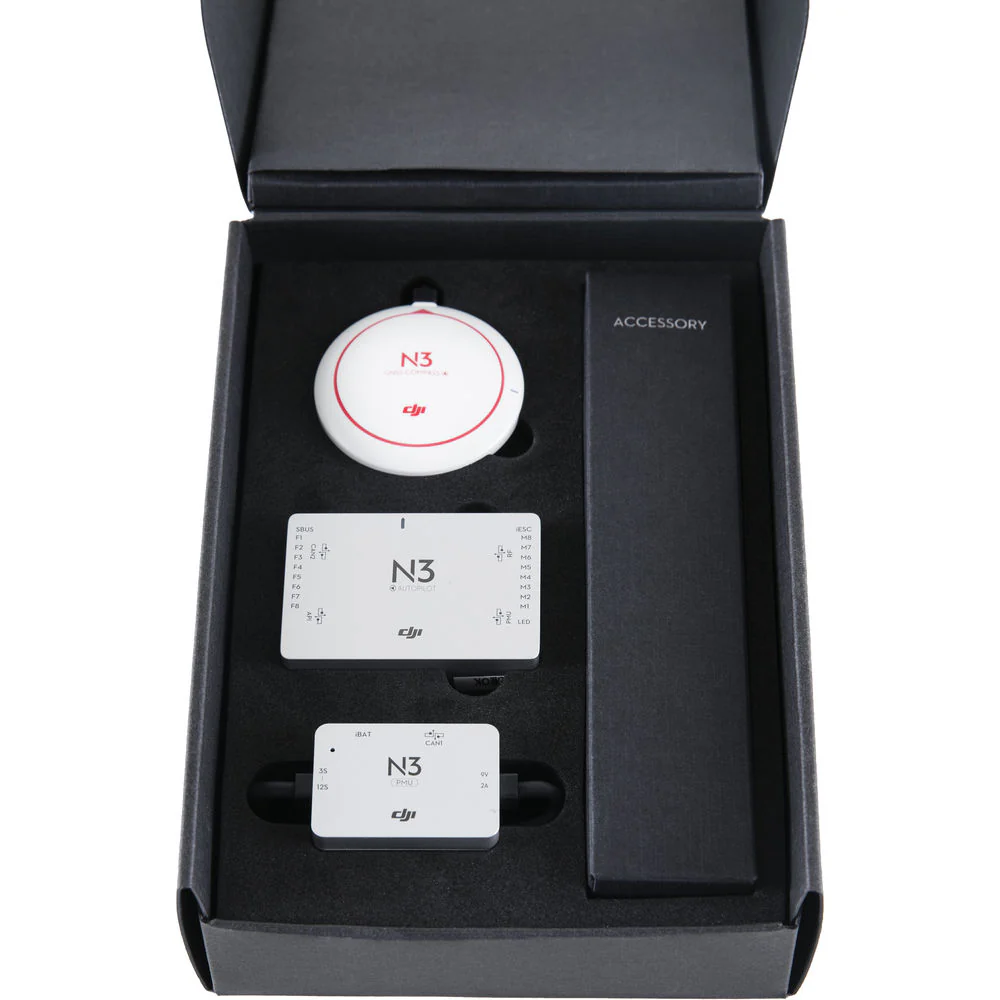

Items Included

DJI N3
GNSS Compass
LED Module
PMU
GNSS Compass Mounting Bracket
Smart ESC Communication Cable
Gimbal Cable
Micro-USB Cable
5 x Servo Cable
RF Cable
Screw Pack
3 x Cable Tie
2 x Double-Sided Adhesive
Limited 1-Year Manufacturer Warranty (MC, PMU, LED, and GPS)

DJI N3 Manual - Setting Up

Details

DJI N3 Autopilot Flight Controller, N3 flight controller supports professional controllers, ESC, Lightbridge 2, Datalink Pro, iOSD, Zenmuse gimbals/cameras, with DJI Assistant 2 compatibility for custom software.

N3 flight controller integrates with professional remote controllers, DJI Intelligent ESC, Lightbridge 2, Datalink Pro, and iOSD. It works with Zenmuse gimbals and cameras, offering access to flight applications. Compatible with DJI Assistant 2 for industrial use, ideal for hobbyists and professionals creating custom software solutions.

The DJI N3 Autopilot Flight Controller features dual IMUs, an 8GB black box, and vibration dampening for robust flight control and better reliability.

The Dual Redundant IMUs feature a vibration dampening system for improved flight performance and reliability. The 8GB Industry Black Box records every detail of the aircraft flight, allowing real-time monitoring and fine-tuning. In case of IMU failure, the robust algorithm automatically switches to backup, ensuring safety at all times.

DJI N3 Autopilot Flight Controller, Expandable Navigation Module offers dual IMU redundancy, upgradeable A3 kit for enhanced stability, reliability, and safety.

Expandable Navigation Module: Dual IMU redundancy, upgradeable A3 kit, enhances stability and reliability. Detects failures, switches to internal units for safety.

DJI N3 Autopilot Flight Controller, N3 SDK offers hobbyists and professionals compatibility with custom software and DJI Assistant 2 for expanded industrial application possibilities.

SDK Compatibility, More Possibilities. N3 ideal for hobbyists and professionals with custom software solutions. Works with DJI Assistant 2 for industrial applications.

DJI N3 Autopilot Flight Controller, Sport Mode enhances N3's speed and control, with adjustable parameters for maneuverability and sensitivity, ensuring stable flight and safe landing.

Sport Mode allows the N3 to fly at up to 45° for speed and control. Adjustable Mobility maximizes maneuverability in Sport Mode, with parameters adjustable via DJI's Assistant 2. EXP Curve adjusts remote controller stick sensitivity. Precision Fault-Tolerant Controls stabilize aircraft attitude and land safely even with propulsion failure.

DJI N3 Autopilot Flight Controller, N3 offers propulsion protection, advanced inspection, optimized altitude stabilization, enhanced performance, and effective magnetic interference handling.

N3 features propulsion protection, installation inspection, optimized altitude stabilization, and reduced magnetic interference. It monitors flight conditions, automatically inspects motors, enhances aerial performance, and handles magnetic interference effectively.

DJI N3 Autopilot Flight Controller, DJI software supports live video, battery status, signal strength, and camera control via DJI GO and Assistant 2.

Software Support: Compatibility with DJI GO and DJI Assistant 2 for live video feed, battery status, signal strength, and camera control.

DJI N3 Flight Controller Applications
