Return to Home (RTH) Modes: Smart RTH Low battery RTH (requires DJI Intelligent Flight Battery) Low voltage RTH (for other LiPo batteries) Failsafe RTH
Safety Features
Failsafe mode Low battery level warning (requires DJI Intelligent Flight Battery) Low battery voltage warning (for other LiPo batteries) Custom flight altitude and radius limits No Fly Zones Motor redundancy (for 6 and 8 rotor platforms) Motor overload detection Triple modular redundancy (requires A3 Pro upgrade)
App-Enabled Modes
Beginner mode Auto takeoff and landing Wireless flight controller configuration Flight data OSD (built-in data recorder) Intelligent Flight Modes: Course Lock / Home Lock / Point of Interest (POI) / Waypoints
Note: Lightbridge 2 Required for all except Course Lock and Home Lock
Assistant Software: Windows 7, 8 or 10 (32 or 64 bit) Mac OS X 10.9 or later
Peripheral
SDK
Mobile SDK Onboard SDK
Onboard SDK Ports
API
Expansion Ports
F1 to F4 ports for output
Electrical and Mechanical
Rated Power
A3: 5 W With A3 Pro Upgrade: 10 W
Rated Peak Power
16 W
Input Voltage Range
10.5 to 52 V
Static Electricity
AD: ±8 KV CD: ±4 KV
General
Operating Temperature
14 to 113°F / -10 to 45°C
Dimensions
Flight Controller: 2.5 x 0.9 x 0.8" / 64 x 24 x 19.5 mm GPS-Compass Pro: 2.4" / 61 mm (diameter) x 0.5" / 13 mm LED Module: 1.1 x 1.1 x 0.3" / 27 x 27 x 8 mm IMU Pro: 1.3 x 1 x 0.8" / 34 x 26.5 x 20 mm PMU: 2 x 1.3 x 0.5" / 51 x 34 x 13.5 mm
Weight
Complete A3 Pro System: 13.6 oz / 386 g
Packaging Info
Package Weight
2.65 lb
Box Dimensions (LxWxH)
7.5 x 5.65 x 5.1"
Items Included
DJI A3 Pro Flight Control System
Flight Controller
2 x IMU Pro
3 x GPS-Compass Pro
LED Module
PMU
3 x GPS Mounting Bracket
LED Mounting Bracket
CAN-Bus to Gimbal Cable
Micro-USB Cable
5 x Servo Cable
D-BUS Cable
Screw Pack
9 x Cable Tie
10 x Double-Sided Adhesive
The image lists the contents of a DJI A3 package, including a flight controller, GPS-Compass Pro, LED module, PMU, GPS and LED mounting brackets, cables, screw pack, cable ties, double-sided adhesive, and manuals. It also provides a tip for upgrading to A3 Pro.
A3 Upgrade Kit includes GPS-Compass Pro, IMU Pro, GPS Mounting Bracket, Screw Pack, Double-sided Adhesive, Cable Tie, and manuals. Ensure all items are present; contact DJI or local dealer if missing. Upgrade A3 to A3 Pro by installing two upgrade kits.

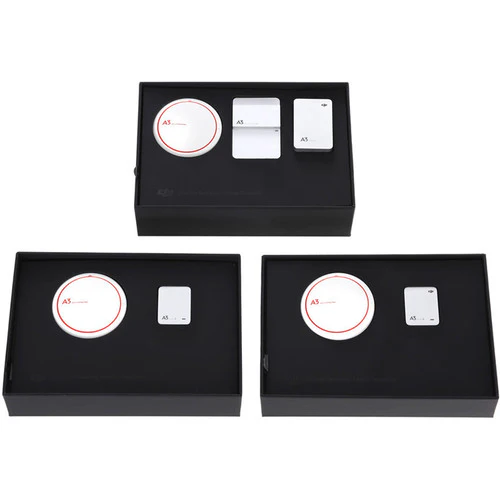

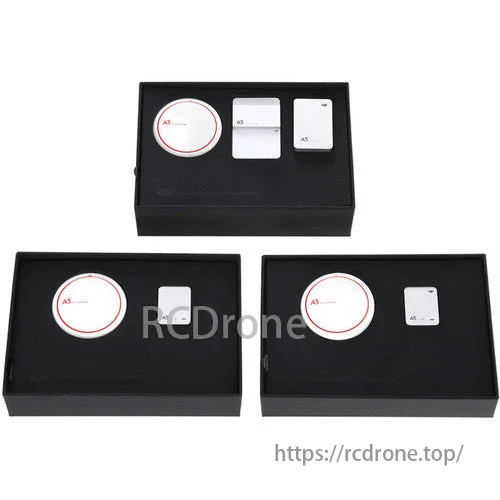

DJI A3 Pro Flight Control SystemOverview
This bundle fromDJIfeatures the A3 plus two upgrade kits that, combined, yield a completeA3 Pro Flight Control System. With three IMU/GNSS systems, the A3 Pro provides triple redundancy, ideal for mission critical applications where failure is not an option.
The A3 Pro system is optimized for professional and cinematography applications, providing navigation and stabilization to quad-, hexa-, and octo-rotor aircraft. The system features GNSS, which means it can use satellite systems, such as GPS or GLONASS, in combination with a compass to provide precise positional data. The A3 Pro can be used in combination with DJI's Lightbridge 2 system to provide a high quality video downlink from a gimbal-mounted camera. Ground station software enables features, such as telemetry monitoring and route planning, and provides a flight simulator (additional ground station hardware required). It features support gimbals, including the Zenmuse Z15 line and the Ronin-MX. Mobile and Onboard SDKs allows developers to program custom solutions tailored to industry-specific use cases.
A3 Pro Features
Note:To complete the A3 Pro system one standard A3 is required
Triple Modular Redundancy
The A3 Pro gives the system three IMUs and three GNSS units, with additional analytical redundancies for a total of six redundancies. Working together with advanced diagnostic algorithms, if the A3 Pro detects GNSS or IMU unit failure during flight, it seamlessly switches to another unit to maintain reliability and precision
Performance
Fault-Tolerant Control
The new attitude determination and multi-sensor fusion algorithms improve the A3 Pro's control accuracy. The robust control algorithm enables the A3 Pro to be adapted to a wide range of aircraft without the need for manual tuning. With a fault-tolerant control system, a hexacopter or octocopter can land safely even in the event of propulsion system failure
Optional D-RTK GNSS
The A3 Pro supports separately available D-RTK GNSS for centimeter-level positioning accuracy compared to a normal GPS and barometer solution. Using dual antennas, its heading reference is more accurate than a compass sensor, and it is able to withstand magnetic interference from metal structures
Ground Station
Ground Station Software
Supporting both touchscreen and mouse and keyboard, the redesigned Ground Station can support mission design, for use in a range of industry applications. Users can simultaneously manage and monitor the mission implementation of multiple aircraft and plan formation flights. Ground Station is compatible with the Matrice 100 and Matrice 600, Phantom 4, and DATALINK hardware (all available separately)
Optional DATALINK PRO
The separately available DATALINK PRO operates at a frequency below 1 GHz, and works over a range of up to 1.2 miles. It integrates seamlessly with the A3 Pro and D-RTK as well as the Ground Station, which allows up to five aircraft to be controlled from one base station. A broadcast mode lets the base station broadcast data to 32 mobile devices and a duplex mode keeps data locked to one device
Assistant Software
DJI Assistant 2 allows you to set up a variety of DJI aerial systems. A new, built-in flight simulator ensures that complex moves can be practiced in advance without risking the aircraft, and a completely overhauled Ground Station supports touch screen interaction, offline mission design, route planning, and even formation flight for multiple aircraft
SDK Support
With Onboard and Mobile SDKs, custom-built applications can access flight data, and control the aircraft, gimbal, and camera. Dedicated hardware interfaces including CAN and API ports allow industry experts to craft their ideal aerial system by adding actuators and sensors
Details
A3: Ultimate reliability, infinite possibility. Accurate flight control for demanding industrial and cinematic applications.
A3 Pro features triple modular redundancy with three IMUs and GNSS units, ensuring seamless switching for reliability and precision during flight. Upgrade A3 to A3 Pro with 2 kits.
Precision control with fault-tolerance. Improved attitude determination and multi-sensor fusion algorithms enhance A3's accuracy. Robust control adapts to various aircraft without manual tuning. Fault-tolerant system ensures safe landing in propulsion failure.
A3 series offers industry solutions with D-RTK GNSS, smart ESCs, intelligent batteries, and Lightbridge 2. SDK compatibility allows custom-built applications to access flight data and control aircraft, gimbal, and camera. Hardware interfaces enable adding actuators and sensors.
A3 series supports D-RTK GNSS for centimeter-level accuracy, using dual antennas for heading reference and magnetic interference resistance.
DATALINK PRO operates below 1 GHz, up to 2 km range. Integrates with A3 and D-RTK, controls up to 5 aircraft from one base station. Broadcasts data to 32 devices in broadcast mode, locks to one device in duplex mode.
Next-Generation DJI Assistant 2 is powerful and simple, facilitating setup of DJI aerial systems. It includes a flight simulator for practicing complex moves and an overhauled Ground Station for touch interaction, offline mission design, route planning, and formation flight for multiple aircraft.
