Diamond Pro 6S 21.9V 330WH/KG 27000mAh 33000mAh 36000mAh High Density Semi Solid State Li-ion Battery for UAV Drone

Pro 6S 21.9V 330WH/KG Semi--State Li-ion

The Diamond Pro 6S Series is a cutting-edge, high-performance power solution designed to meet the demanding requirements of UAV drones and other autonomous systems. With an energy density of 330Wh/kg, this series combines lightweight design with superior power capacity, offering models from 27000mAh to 36000mAh. Whether you're looking to enhance flight time or maximize payload efficiency, the Diamond Pro 6S batteries deliver unparalleled performance.

Key Features

• 330Wh/kg Energy Density: Ensures extended endurance with minimal weight impact.
• Capacities: Available in 27000mAh, 33000mAh, and 36000mAh configurations.
• High Discharge Rate: Supports up to 10C, meeting the power demands of high-drain applications.
• Extended Lifecycle: Over 500 charge cycles, reducing maintenance and replacement costs.
• Low-Temperature Operation: Reliable performance at temperatures as low as -20°C.

Safety and Durability

• Semi-Solid-State Technology: Uses advanced gel or solid electrolytes for enhanced safety, minimizing risks of leakage and explosion.
• UN and MSDS Certified: Compliant with international safety standards for secure global usage.

Customizable Connectors

The default connector is XT90S, with options to customize to AS150, QS8, or QS9L, catering to diverse UAV and equipment requirements.

Applications

Ideal for a variety of unmanned systems, including:

• Multi-rotor and fixed-wing drones
• VTOL and UAV helicopters
• Ground robots and UGV systems

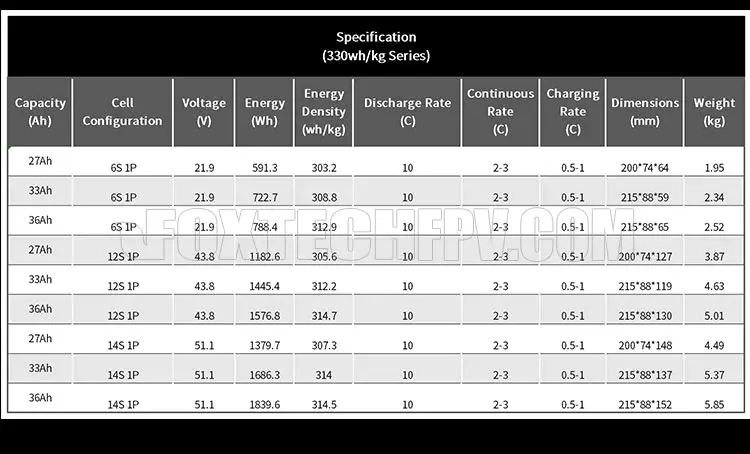

Specifications at a Glance

Contact and Customization

For wholesale or custom orders, please contact us at .

SoarTech Diamond Pro 6S UAV Battery: 3300mAh, 21.9V, 306Wh

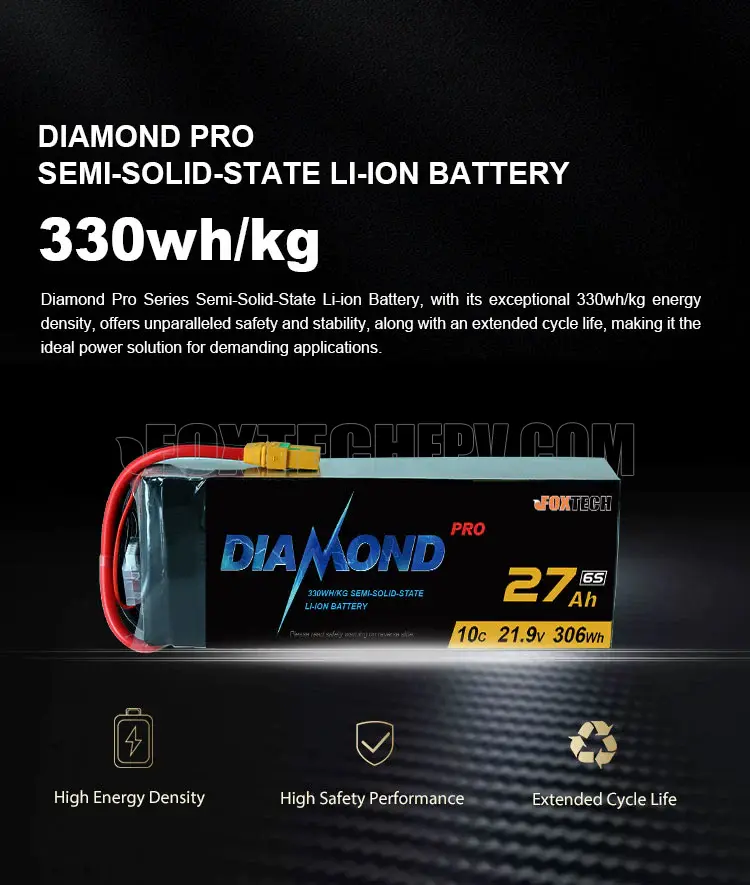

Diamond Pro Series Semi-Solid-State Li-ion Battery, featuring exceptional energy density of 330 Wh/kg, offers unparalleled safety and stability along with an extended cycle life, making it the ideal power solution for demanding applications.

Lightweight design, high energy density elevates efficiency and performance. Diamond Pro semi-solid-state batteries store more energy per unit weight than traditional batteries, significantly extending endurance for drones or UGVs, allowing for an increase in effective payload capacity.

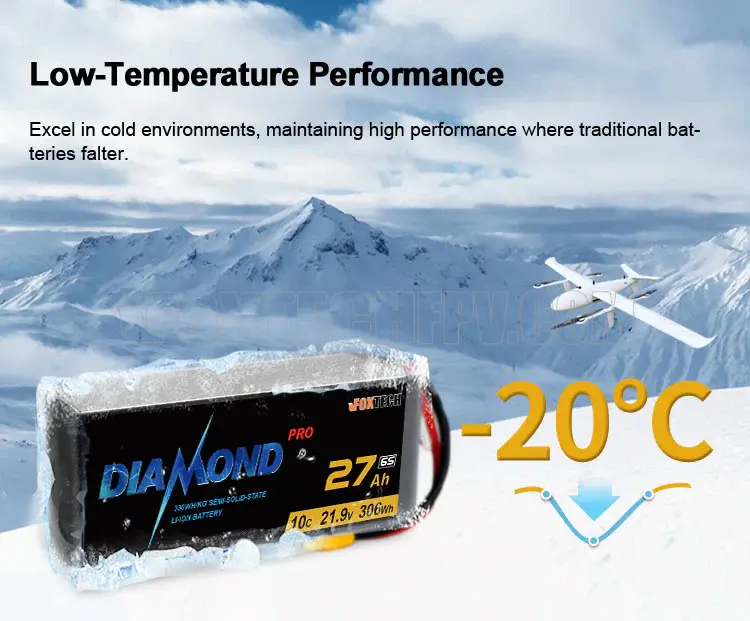

Low Temperature Performance Excel in cold environments, maintaining high performance where traditional batteries falter. Diamond Pro 6S UAV Battery offers reliable power in extreme conditions.

Discharge Capacity Comparison Curve Graph for 6S 2200mAh Battery: This graph compares the discharge curves of three capacities, 22Ah, 224h, and 30C. The x-axis represents time (hours), while the y-axis shows capacity (Amps per hour). The graph demonstrates the battery performance under different discharge rates, with the 30C curve showing a steeper decline in capacity over time. The AS150 plug is optional, but recommended for optimal performance.

The Diamond Pro 6S UAV Battery is certified safe and compliant, meeting international standards for global distribution and use with UN and MSDS certifications.
