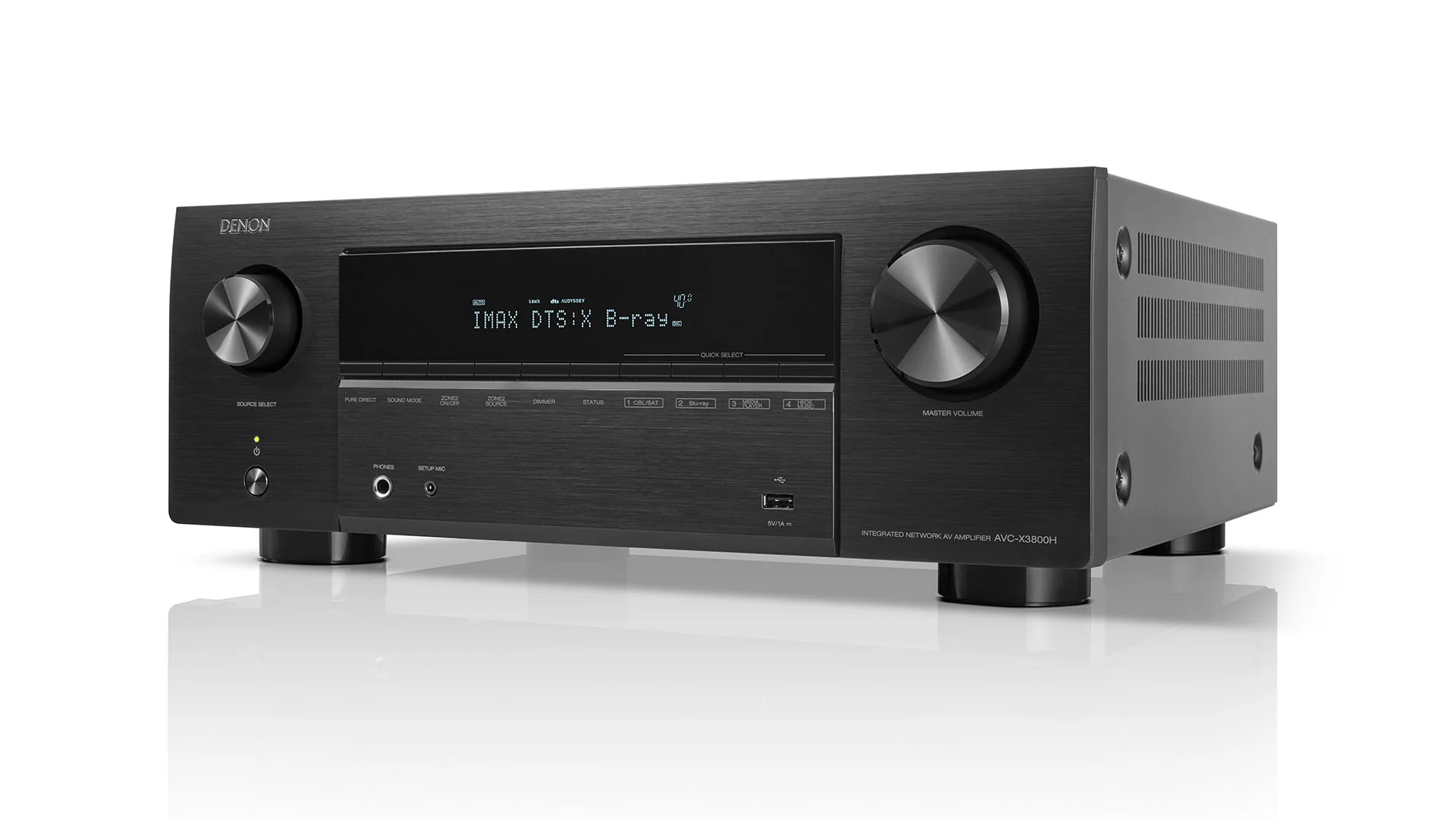

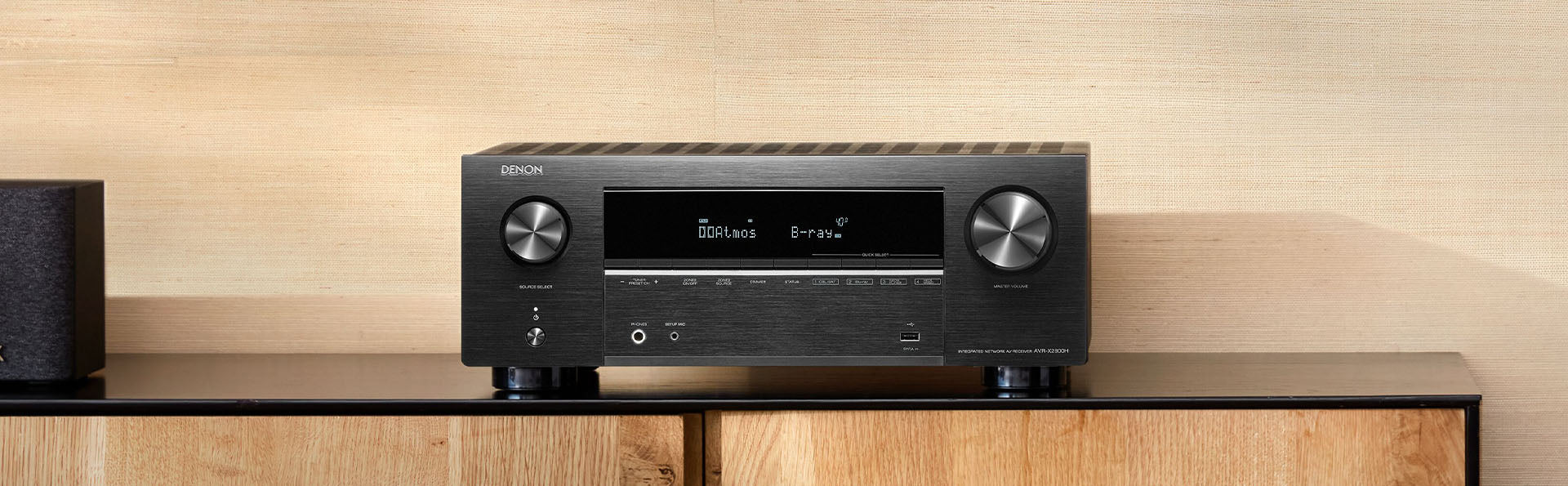

Denon AVC-X3800H 220 volt AV Receiver Amplifier 9.4 Channel 8k Bluetooth HEOS 220v 240 volt

Multichannel Stereo

• DTS HD Master / DTS:X - Yes/Yes
• DTS Neo:X / DTS Neural:X - No/Yes
• DTS Virtual:X - Yes
• Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music - Yes to All
• Dolby ProLogic Il / Dolby Surround - No/Yes
• Dolby Height Virtualization - Yes
• IMAX Enhanced - Yes
• Auro 3D - Yes
• Multichannel Stereo - Yes
• Max Number of Processing (Preamp) Channels - 11.4

Sound Enhancements

• Discrete Power Amplifier - Yes
• Pure Direct - Yes
• Audyssey - MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume - Yes
• Audyssey LFC - Yes
• Dirac Live Upgradability - Yes
• Compressed Audio Restorer - Yes

Network

• Media Server - Yes
• HEOS Multiroom and Streaming - Yes
• Alexa/Google Voice Assistant/Apple HomePod - Yes
• Lossy Formats: MP3 / WMA / AAC - Yes
• Lossless Formats: FLAC / ALAC / WAV - Yes
• DSD Audio Streaming - 2.8/5.6MHz
• AirPlay 2 - Yes
• TuneIn - Yes
• Spotify Connect - Yes
• Pandora - Yes
• SiriusXM - Yes
• Roon Tested - Yes
• HEOS App Control - Yes
• Compatible with Remote APP for Smart Phones - Denon 2016 AVR Remote
• Ethernet Ports - Yes
• Wi-Fi - Yes
• Bluetooth - Yes

HDMI

• HDMI Inputs: Back / Front - 6/0
• HDCP 2.3 support - Yes
• HDMI Outputs: Main / Zone - 2/1
• HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB - Yes
• HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR - Yes
• ALLM (Auto Low Latency Mode) Pass-Through for Gaming - Yes
• 3D Signal Pass-through - Yes
• 8K Signal Pass-Through, Scaling, GUI Overlay - Yes
• DSD Audio Capability - Yes
• Audio Return Channel (ARC), Enhanced ARC - Yes
• Auto LipSync - Yes

Multiroom/CL

• Multi-Room Zones - 2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - Yes(2ch)/Yes/Yes(2ch)/Yes
• Zone Audio Output: Speaker / Preout - Yes/Yes
• Zone HDMI Output from HDMI Source - Yes
• IP Control / RS232 Control / Web Control / App Control - Yes
• DC Trigger Output - 1
• HDMI Diagnostics - Yes

Others

• Auto Speaker Setup by Microphone - Audyssey MultEQ XT32, Dirac Live (upgrade)
• FL Display - 1 line FLD
• GUI Languages - 3
• Setup Assistant - Yes
• Quick Select Plus / Quick Select -Yes / No
• Variable Cross Over - Yes
• Optimized Bass Redirection - Yes
• ECO Mode - Yes
• Bass Sync - Yes
• Auto Power Off - Yes
• Sleep Timer - Yes

Inputs/Outputs

• HDMI In / Out - 6/3
• Analogue In / Out - 5/-
• Phono (MM) In - Yes
• Digital In: Optical / Coaxial - 2/2
• Multi-room Out: Analog / Digital - 1/-li>
• Multichannel Preout - Yes (11.4)
• Subwoofer Out - 2 (independent)
• Speaker Terminal: Gold Plated Screw / Regular Screw - Regular Screws
• Number of Speaker Terminals - 11
• Speaker A/B - Assignable
• Bi-amp Drive - Assignable
• Multi-Room Speaker Terminal - Assignable
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - HDMI & USB< - No/No/No/Yes/li>
• AM/FM Tuner - Yes

Specifications

• Number of Poweramps - 9
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) - 105W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 135W
• Power Output (6 ohm, 1 kHz, 1% 1ch Drive) - 215W

General

• System Remote Control - RC-1253
• Power Consumption in W - 660
• Power Consumption No-Sound (ECO On / Off) in W - 60/100W
• Standby Consumption in W - 0.1
• CEC Standby Consumption in W - 0.5
• Network Control On Consumption in W - Less than 2.0
• Maximum Dimensions: 17.1 x 15.3 x 6.6
• Antenna: Horizontal (W x D x H) in inches - 17.1 x 15.3 x 9.3
• Weight in LBS - 27.6
