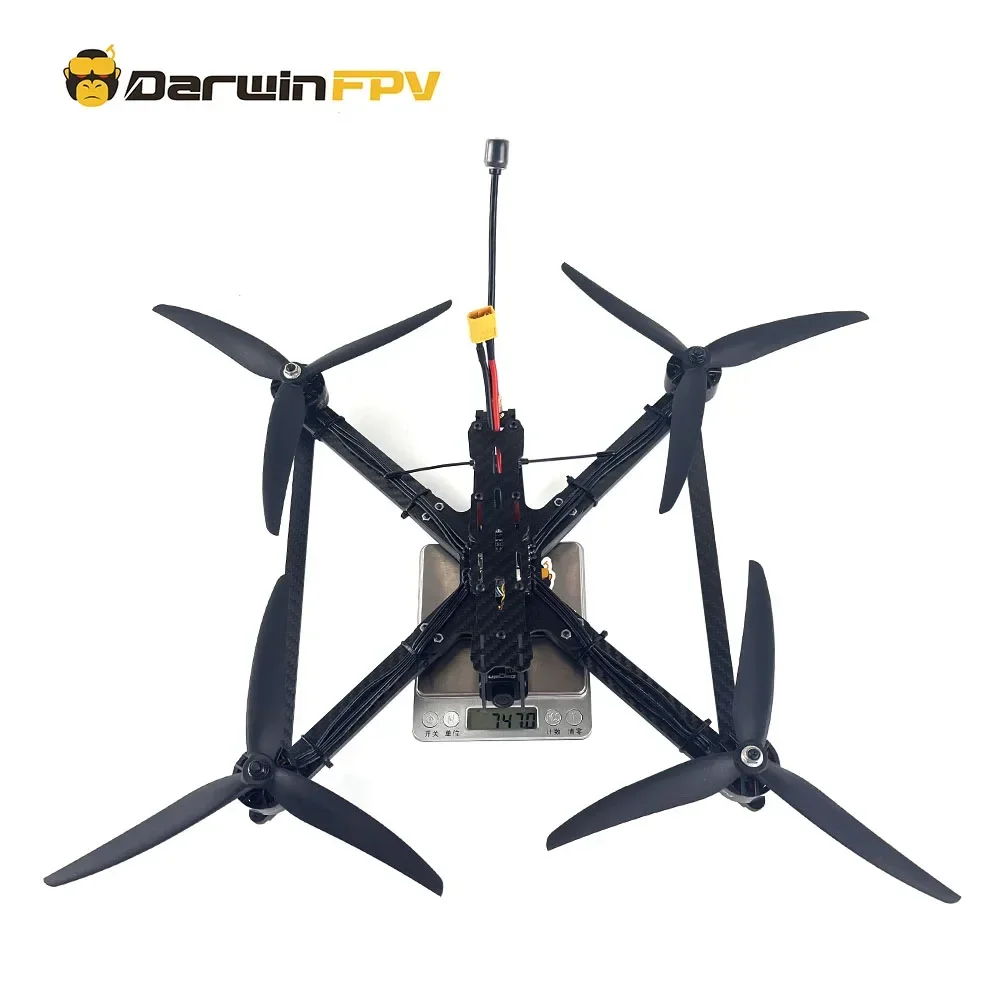

DarwinFPV X9 9 inch FPV Analog Drone - 3KM Distance 2.5KG Payload F11 FC 100A 4in1 ESC 2812 1100KV Motor 5.8Ghz 1W VTX 3-6S RC Long Range Quadcopter

Darwin X9 is a 9-inch heavy load . It is equipped with 2812 motors, 1000mW analog video transmission, F4 flight control and 100A ESC. It is a real monster in the sky and it can fly with you anytime, anywhere!

Features:

Large size 2812 motor, with very strong loading capacity and durable performance.
The new 1000mW analog VTX, with DarwinFPV dedicated receiving antenna, can provide a longer flight distance.

Specifications:

• Model : Darwin X9 Analog Version
• Video :  Non(can be attached to the action camera)
• Camera : Darwin "cement" waterproof camera
• VTX 5.8G 1000mW VTX
• FC : 3-6S F411 MPU6500
• ESC : "Cement" 100A 3-6S BLHeli_32 128kHz 4in1
• Receiver:  TBS Nano//PNP(Reserve 4Pin plug)
• GPS:  Non
• VTX Antenna:  5.8G LHCP RP-SMA 150mm antenna
• Motor:  2812 - 1100KV
• Propeller : GEMFAN 9045-3 Black (2CW, 2CCW)
• Frame type : True-X
• Wheelbase:  363mm
• Arm thickness:  6mm
• payload capacity:  1.5kg-2.5kg
• Furthest flight distance:  3km
• Maximum horizontal speed:  170km/h
• Maximum take-off altitude:  6000m
• Maximum wind resistance level : Level 7
• Operating temperature range: :  -10℃-40℃
• Battery life (using 6S 8200mAh 60C battery):
• parallel cruise no load 33 mins
• cruise and load 1.5kg 10 mins
• cruise and load 2 kg 7 mins
• cruise and load 3 kg 4 mins

The data is for reference only, and factors such as different environments, usage methods, and firmware versions may have an impact on the test data
Freestyle

Recommended battery: 6S 6500-8500mAh
Dimensions(without propeller) (L×W×H):280mmx295mmx50mm
Weight(without package) : 747g±5g
Package Size : 314mmx326mmx74mm
Weight(with package) : 1100g±5g

Packing List:

• Darwin X9 Long Range FPV Drone*1

• GENFAM 9045-3 propeller*1

• 120mmx120mm sticker *1

• 20mmx260mm battery strip *1

• M5 flange nut*4

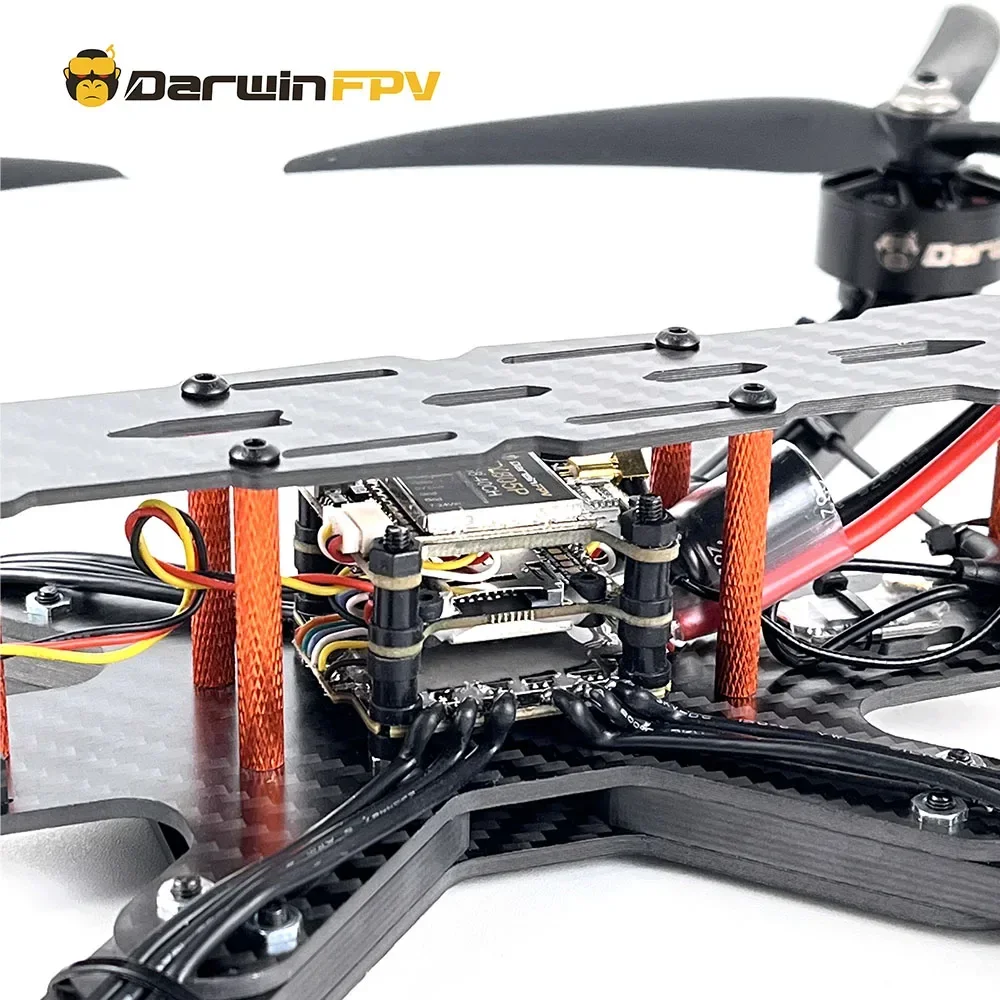

DarwinFPV X9 9 inch FPV Drone Details
