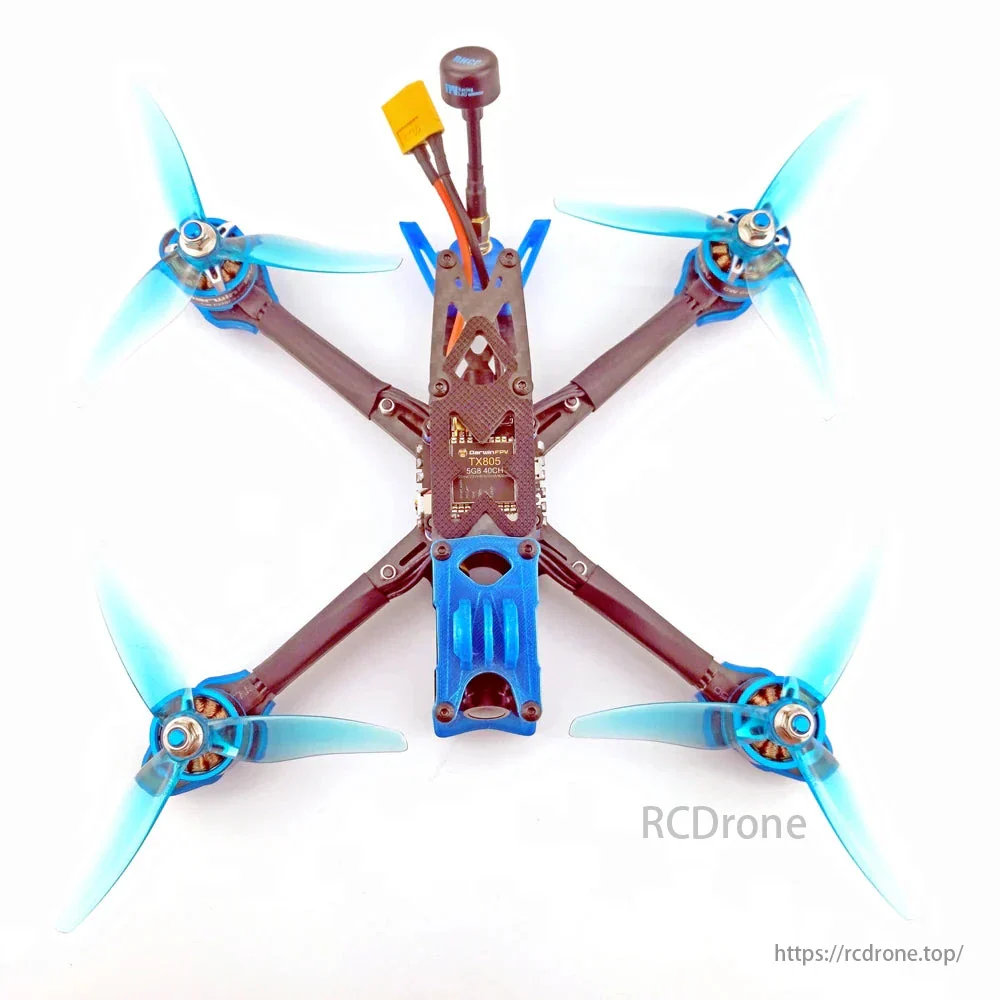

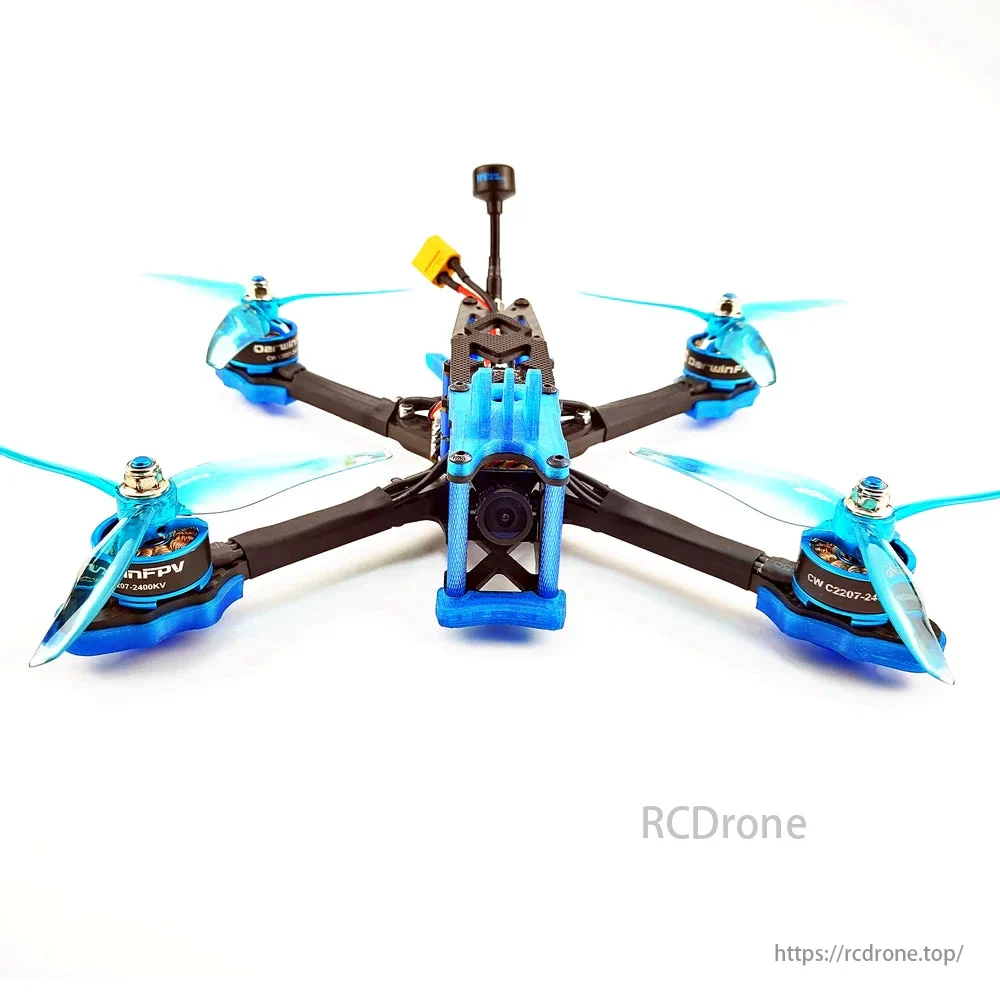

DarwinFPV Johnny 5 Analog 5-Inch FPV Drone β PNP & ELRS BNF (1W VTX, 174km/h, F405 FC)
-
Detail
Overview
The Darwin 240 Johnny 5 is a high-performance 5-inch freestyle analog FPV drone built for aggressive flying and cinematic footage alike. Available in both PNP (no receiver) and BNF with ELRS 2.4G / R81 RX, this quad features a robust True-X frame, 2207-2400KV motors, a 1W video transmitter, and a Bluetooth-enabled for rapid tuning and in-field flexibility.
With a top horizontal speed of 174km/h, a durable 5.5mm arm thickness, and compatibility with external GoPro or action cameras, the Johnny 5 is a competitive option for freestyle and racing pilots alikeβwhether you're building a budget basher or a precision rig.
Key Features
π§ PNP & BNF Options: Choose between a plug-and-play setup or ready-to-fly with ELRS 2.4G / R81 receiver.
π‘ High-Power VTX: VT5804 HV MAX 5.8G 1W analog transmitter delivers extended range and robust penetration.
π§ Advanced F405 FC: Features MPU6500 gyro, Bluetooth tuning, and SD card support for blackbox logging.
π Efficient & Fast: Powered by 2207-2400KV brushless motors and 4S 1500mAh LiPo battery for speeds up to 174km/h.
π₯ FPV + HD Support: Equipped with C1000 analog cam; external GoPro or action cam can be mounted for HD recording.
πͺΆ Lightweight: Weighing only 353.9g, it maintains excellent agility without compromising stability.
Specifications
Item Darwin240 Johnny 5 Analog PNP Darwin240 Johnny 5 Analog BNF Receiver None ELRS 2.4G / R81 VTX DarwinFPV VT5804 HV MAX 5.8G 1W Farthest Flight Distance 2KM Weight 353.9g Flight Controller DarwinFPV F405 MPU6500 Bluetooth SD FC ESC DarwinFPV BLHeli_S 3β6S 50A ESC Camera DarwinFPV C1000 Video Output Analog (external GoPro supported, not included) Motor DarwinFPV 2207β2400KV Propeller GEMFAN 51466-3 Frame Type True-X Wheelbase 235mm Arm Thickness 5.5mm Max Horizontal Speed 174km/h Recommended Battery 4S 1500mAh Dimensions 155 Γ 175 Γ 39mm Β
