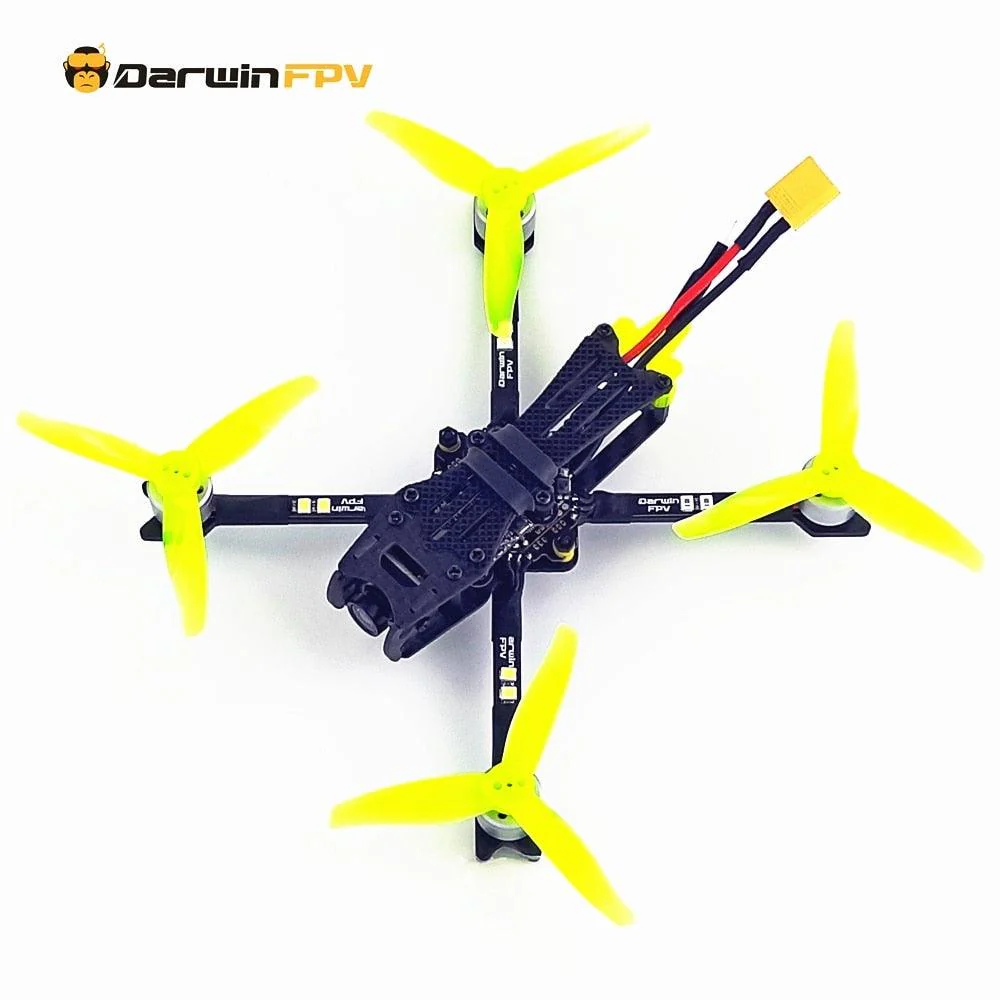

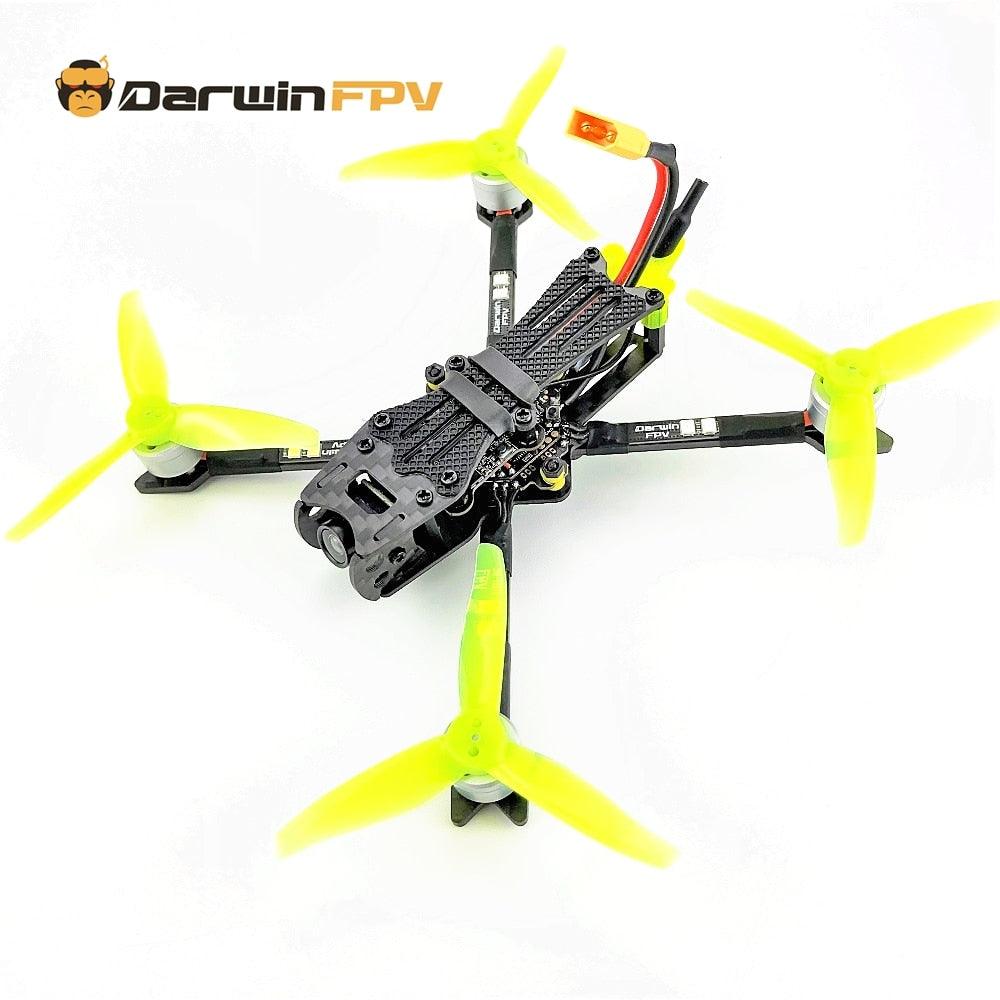

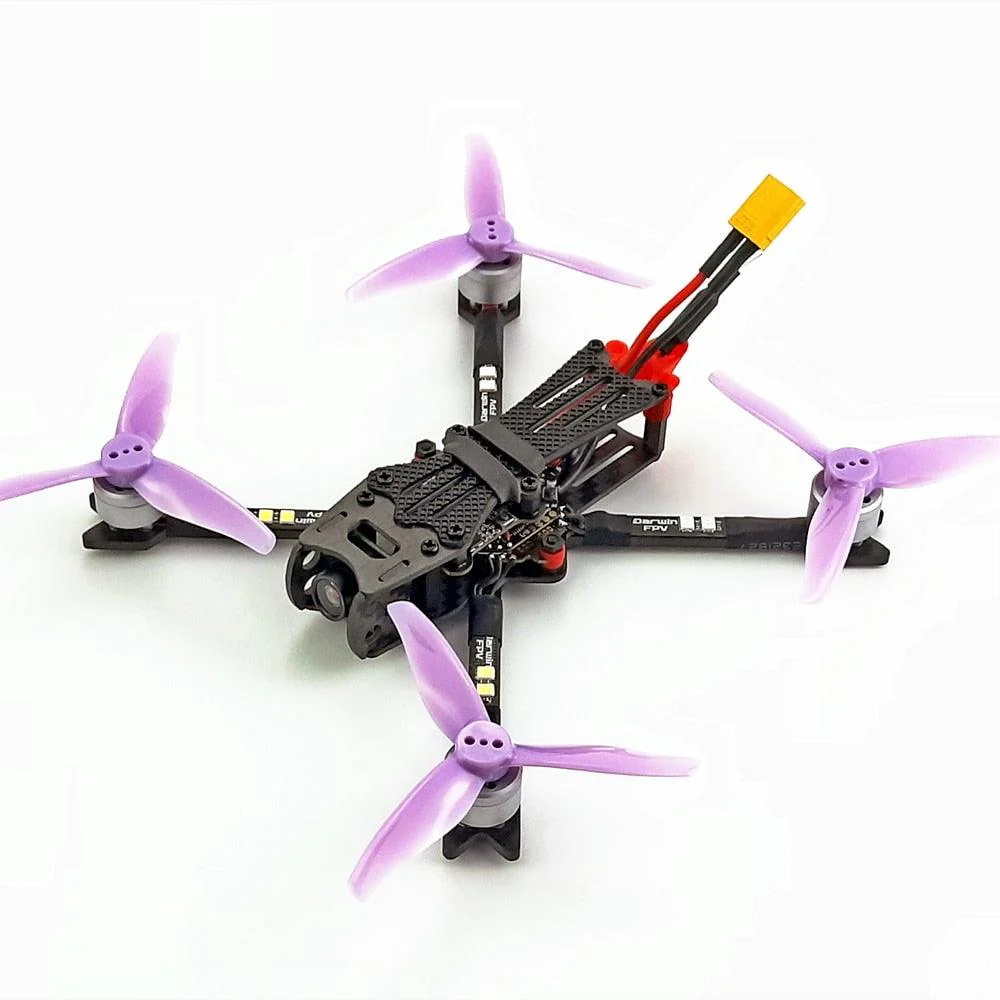

Darwin FPV Baby Ape/Pro 142mm 3 inch 2-3S FPV Racing RC Drone PNP Quadcopter F4 FC 15A AIO ESC 1104 Motor 5.8G VTX 700TVL Camera
-
Detail
Darwin FPV Baby Ape/Pro SPECIFICATIONS
Video Capture Resolution: 720P HD
Type: HELICOPTER
Remote Distance: 500
Remote Control: No
Recommend Age: 12+y
Package Includes: Original Box
Origin: Mainland China
Model Number: Baby Ape/Pro
Material: Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Features: App-Controlled
Controller Mode: MODE2
Controller Battery: 2
Control Channels: 9 Channel
Camera Mount Type: Other
Aerial Photography: Yes
Item name： Baby Ape
Add new Item name: Baby Ape Pro （Camer upgraded to ANT）
Comes without battery, charger, receiver or remote control.
Description:
Brand: DarwinFPV
Item Name: Baby Ape/Pro 142mm 3"

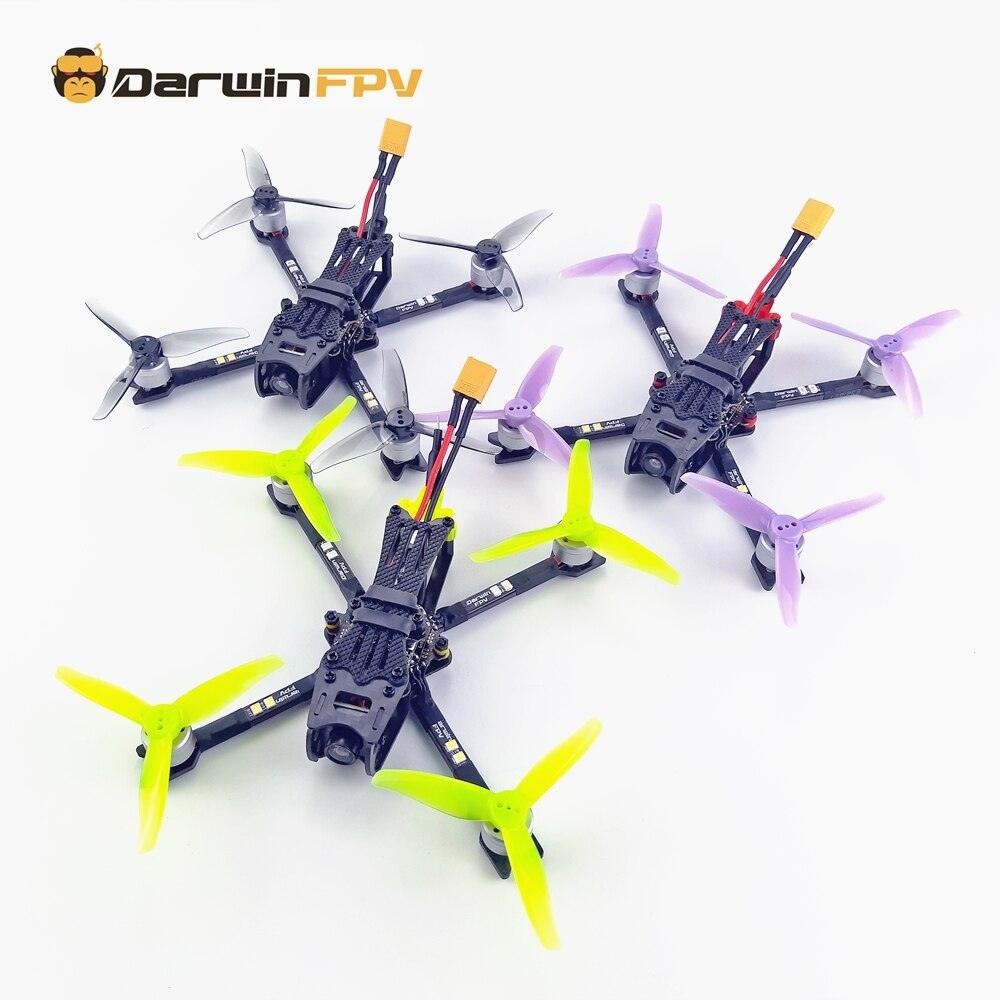

Color: Yellow/Black/Purple
Weight: 71.6g
142mm Frame Kit
Wheel base: 142mm
Frame arm thickness: 2.5mm
Other thickness:1.5mm
Frame kit material: 3K carbon fiber
11044300KV 2-3S Brushless Motor
KV: 4300KV
Lipo cell: 2-3S
Weight: 6.0g
AIO 4 IN 1 15A BLHeli_S ESC
Input voltage: 1-3SLiPo
Continuous current: 15A
Pe ak current:17A (10S)
BEC output: no
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600/Oneshot125
MOS: 3*3

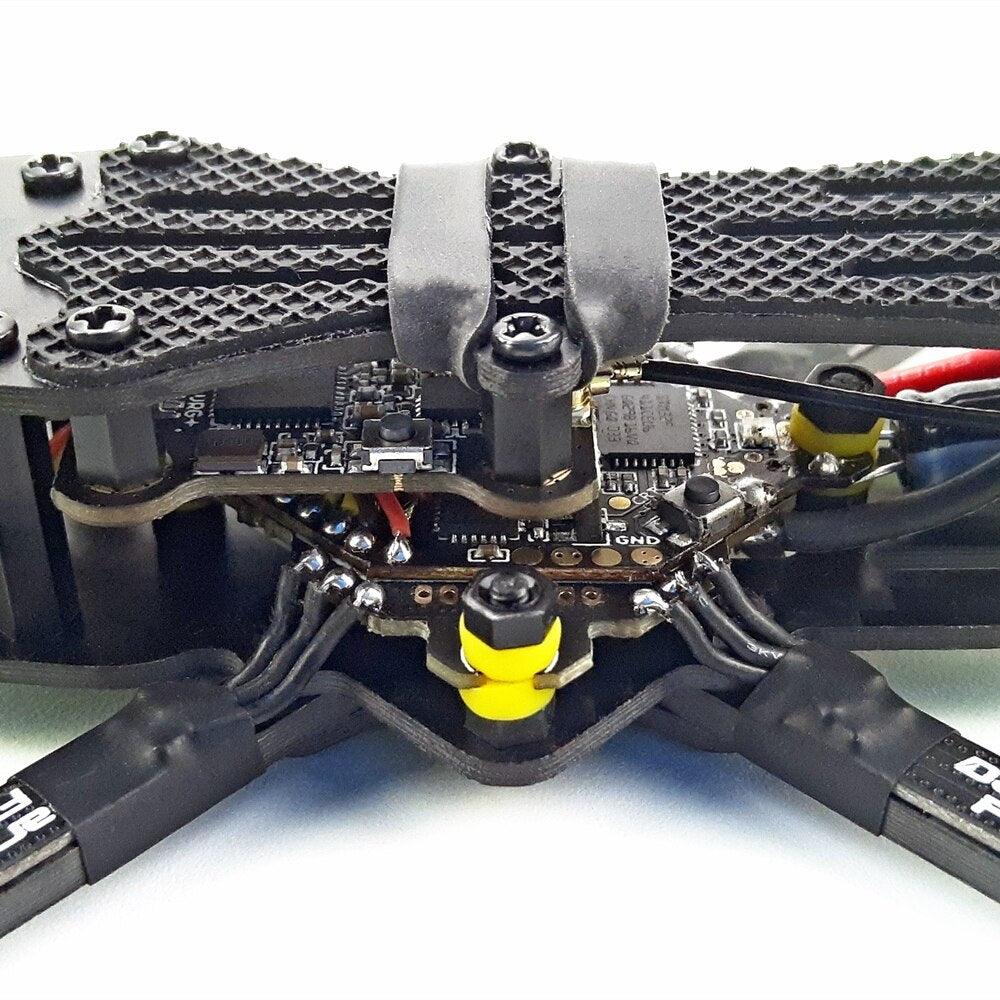

F411 AIOFlight Controller
Main control chip: STM32F411
Sensor: MPU6000
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 25.5*25.5mm
Supports Betaflight firmware
Baby APE
Darwin700TVL Camer
Resolution:700TVL
Lens: 1.8mm
Input: 3.5-5V
TV System: PAL/NTSC
Baby APE Pro
CADDX ANT
Resolution:1200TVL
mage Sensor: 1/3" CMos Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC
5.8G 40CH 0mW/25mw/200mw switchable VTX
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
30163-blade propeller
Material: PC
Mounting hole: 1.5mm
Center thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair
Lipo Battery
Not included
Recommend 2-3S 300-450mahPackage Included(Optional):
1x Baby Ape/Pro 142mm 3" FPV Drone
-
Customer ReviewsNo comments
