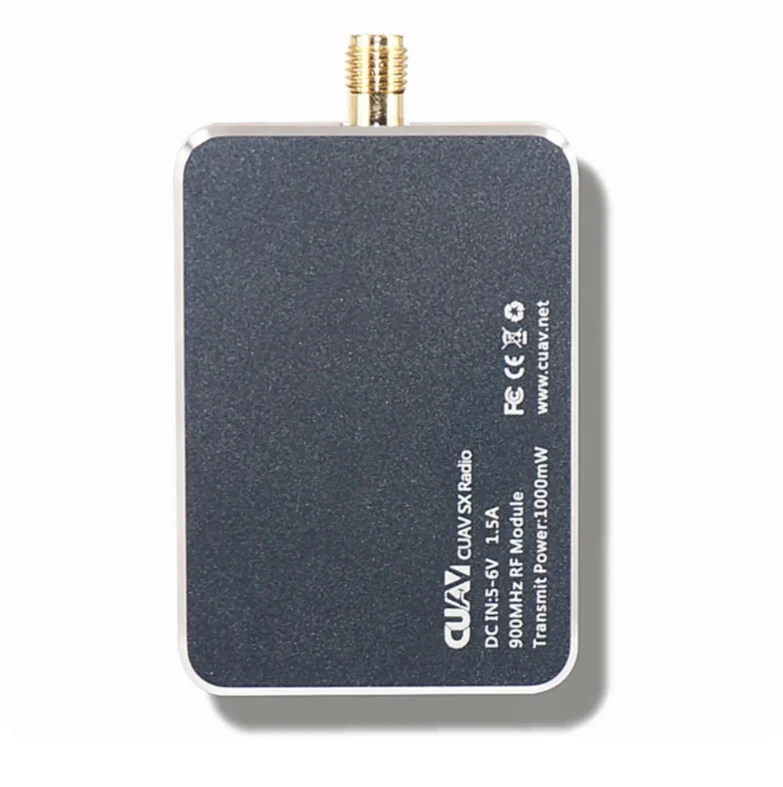

CUAV SX Radio - 1W 900MHz 64KM Long Range Radio Telemetry for Pixhawk Pixhack Flight Controller

$164.45
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    CUAV SX Radio Specifications

    CUAV® SX RF
    Function
    Frequency range902 ~ 928 MHz
    Transmitted power（Software selection）up to 30 dBm
    CHANNELS10 frequency hopping sequences share 50 frequency points
    RF date rateLow data rate：10 kb/s;，
    Intermediate data rate:110kb/s;
    high data rate：250 kb/s
    Maximum data volume120kb/s
    Available channel frequencyLow and medium data rates：101;
    high data rate：50
    Receiver sensitivityLow data rate：-113 dBm;
    Medium data rate：-106 dBm;
    high data rate：-103 dBm
    Transmission distanceReference distance: 40km
    Network and security
    ModulateGaussian Frequency Shift Keying
    FHSSFrequency Hopping Spread Spectrum (FHSS)
    Net topologyPoint-to-point
    DIGImesh
    network relay
    Encrypt256bits AES
    Power System
    Operating Voltage4.75~5v
    Receive current40mA
    Transmission current900mA@30dBm;
    640mA@27dBm;
    330mA@20dBm
    Sleep current2.5uA
    GENERAL
    Size58*31*23mm
    Weight39g（no antenna）；</br>60g（include)
    Antenna interfaceRPSMA
    Interface ProtocolTTL(UART)
    Operating temperature-40°C to 85°C
    REGULATORY APPROVALS
    United States certificationFCC ID: MCQ-XBPSX
    Canadian certificationIC: 1846A-XBPSX
    Australian certificationRCM



    CUAV SX Radio Details

    Summary

    The CUAV SX Radio is a high-power, high-speed data transmission module with exceptional reception sensitivity.

    Featuring a built-in SDI RF module from DIGI, USA, this device boasts a transmit power of 1000mw and operates on the legal ISM frequency. It supports a variety of advanced network configurations and topology modes.

    The SX Radio module provides an unmatched range of affordable wireless data solutions. It's user-friendly and ideal for unmanned unit networks and point-to-point over-the-horizon transmissions, ensuring stable and critical data transmission between drones and equipment. Its compact design optimizes on-board space usage.

    Features

    • High Power and Adjustable: Transmit power adjustable from 1mw to 1000mw.
    • Ultra High Receiver Sensitivity: Maximum receiver sensitivity of -113 dBm in low-rate mode.
    • Security Encryption: Supports 256-bit AES encryption for secure data communications.

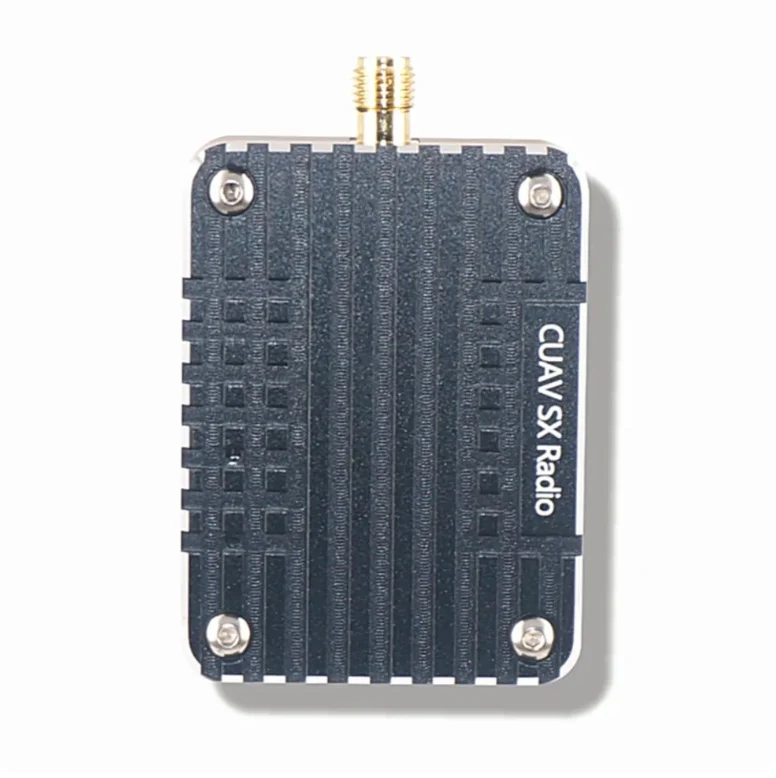

    • CNC Integrated Shell: Aerospace aluminum alloy one-piece CNC housing, lightweight, robust, aesthetically pleasing, and resistant to interference.



    Pinouts

    CUAV SX Radio, Stable data transmission solution for unmanned units and point-to-point connections.

    Connection to FlightController

    CUAV SX Radio, QGroundControl opens, automatically connecting to connected hardware.

    Mission Planner

    • After connecting the hardware, select the corresponding device port, set the baud rate to 57600, and click Connect.

    CUAV SX Radio, mission planner

    QGroundcontrol

    • After connecting the hardware, open the QGC ground station and the ground station will automatically connect.
