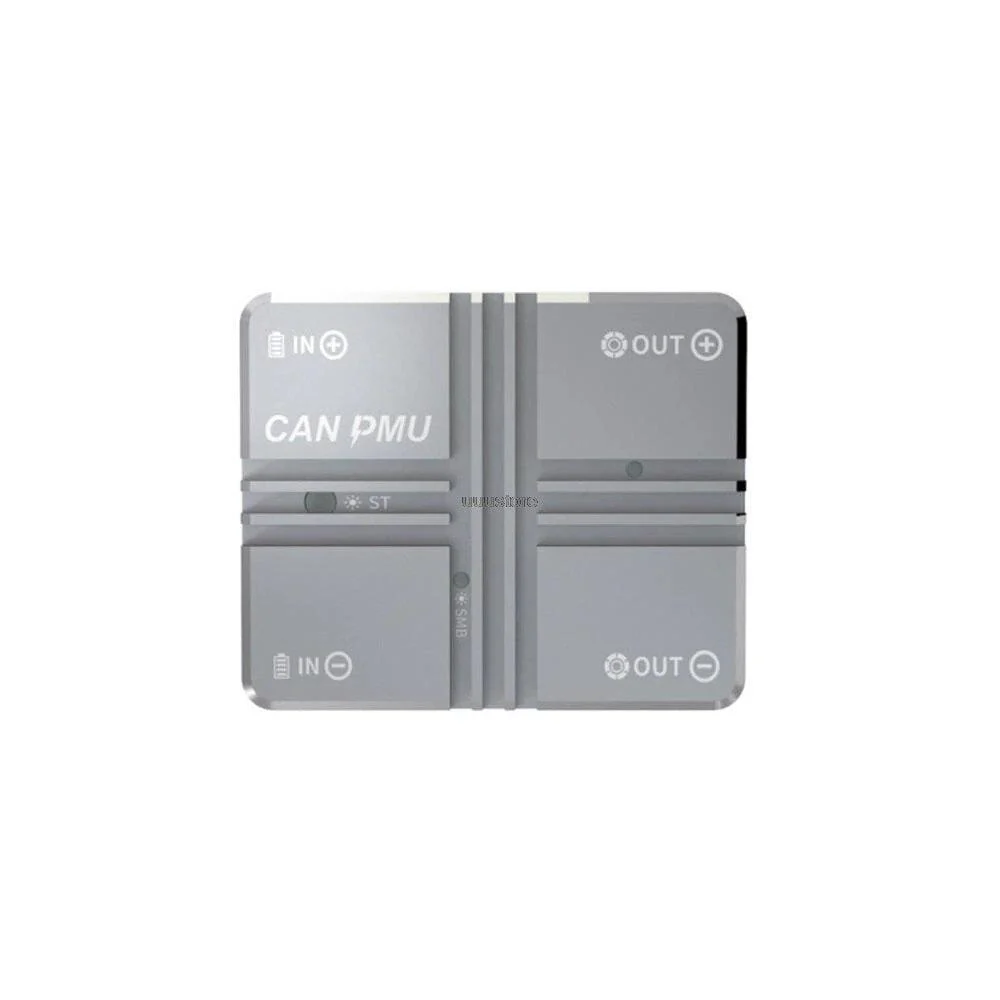

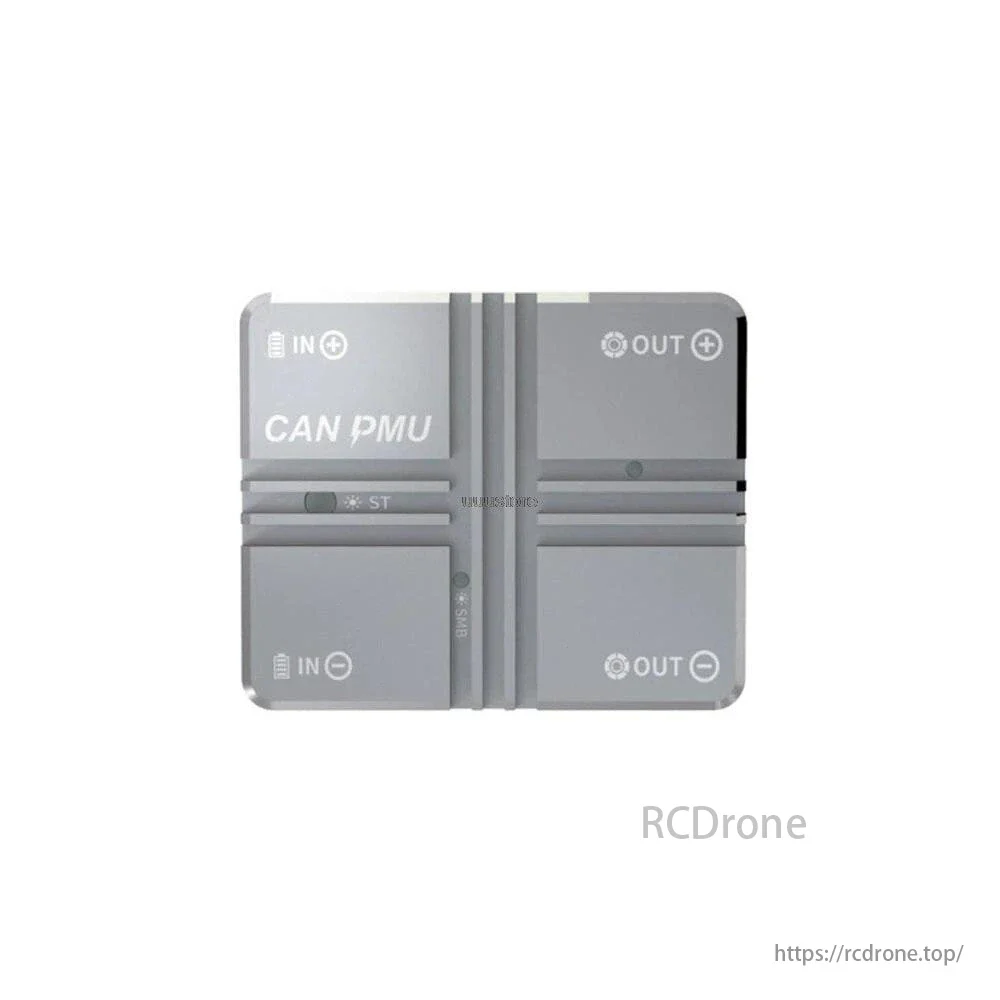

Cuav Can Pmu - Digital high-precision power detection module UAV power management module RC drone accessories

$91.88
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Can Pmu SPECIFICATIONS

    color: light grey

    Wheelbase: Bottom Plate

    Upgrade Parts/Accessories: Adapter

    Tool Supplies: Assembled class

    Technical parameters: Value 9

    Size: As description

    Remote Control Peripherals/Devices: Receivers

    Recommend Age: 12+y,18+

    RC Parts & Accs: Connectors/Wiring

    Quantity: 1 pcs

    Origin: Mainland China

    Model Number: CAN PMU

    Material: Metal

    Four-wheel Drive Attributes: Motors

    For Vehicle Type: Airplanes

    CUAV can pmu digital high precision / high voltage industrial grade voltage / current Detection module PIX for RC drone RC toy part

    Functions overview CAN PMU is a UAV power management unit module with built-in STM32F4 processor and running CUAV ITT algorithm. It can accurately measure UAV voltage and current in real time. It can support 6-62V voltage and 110A current at maximum, and can output 5.4V 8A. The is powered by CAN bus communication and supports the standard UAV CAN protocol. Each PMU unit is factory calibrated to ensure good consistency and high accuracy Notes - Please read the product manual carefully. - Please check the connection carefully before connecting the battery - Please use at rated voltage, current and power - Please read the documentation center for configuration and use - Do not disassemble

    Overview:
    CAN PMU is a UAV power management unit module with built-in STM32F4 processor and running CUAV ITT algorithm. It can accurately measure UAV voltage and current in real time. It can support 6-62V voltage and 110A current at maximum, and can output 5.4V 8A. The flight controller is powered by CAN bus communication and supports the standard UAV CAN protocol. Each PMU
    unit is factory calibrated to ensure good consistency and high accuracy

    Specifications
    Processor: STM32F412
    Voltage input: 6~62V(2-15S)
    Max current: 110A
    Voltage accuracy: ±0.05V
    Current accuracy: ±0.1A
    Resolution: 0.01A/V
    Max output power: 6000W/90S
    Max stable power: 5000W
    Power port output: 5.4V/5A
    Protocol: UAVCAN
    Operating temp: -20~+100
    Firmware upgrade: Supported.
    Calibration: Not needed.

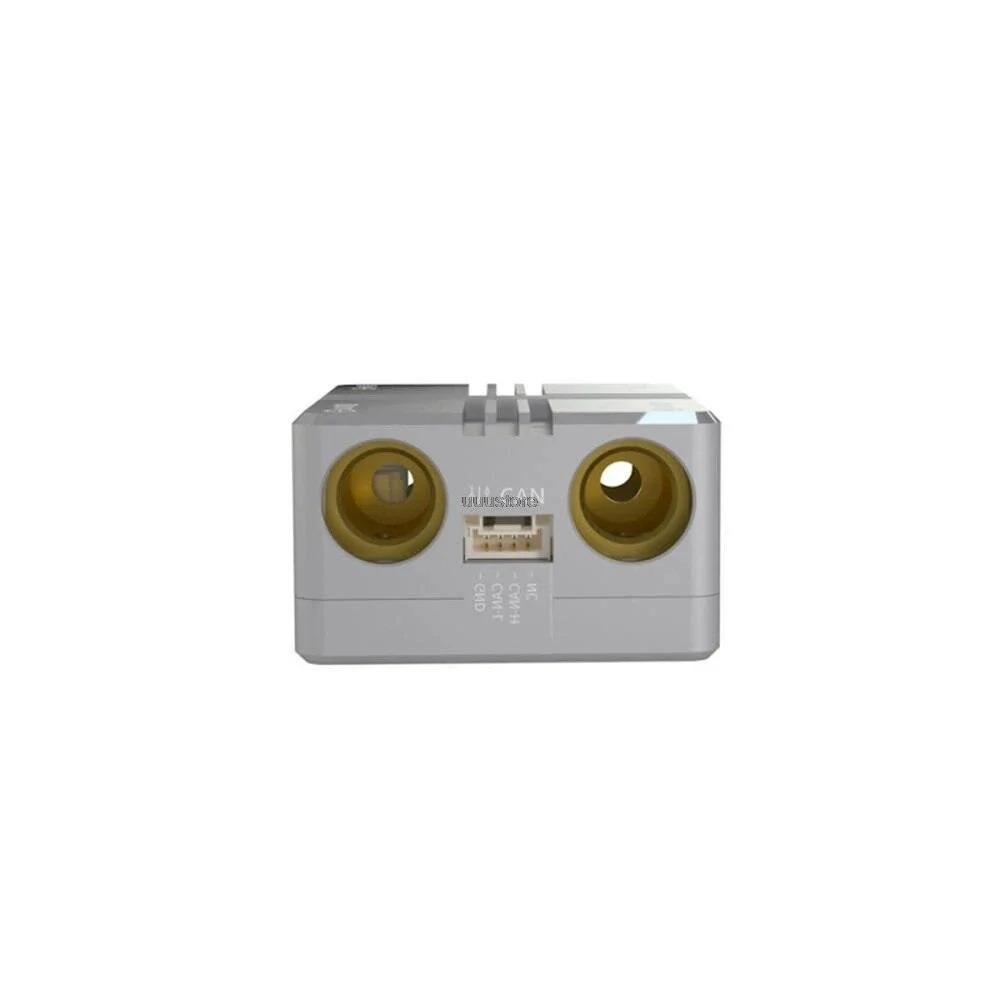

    Interface Type:

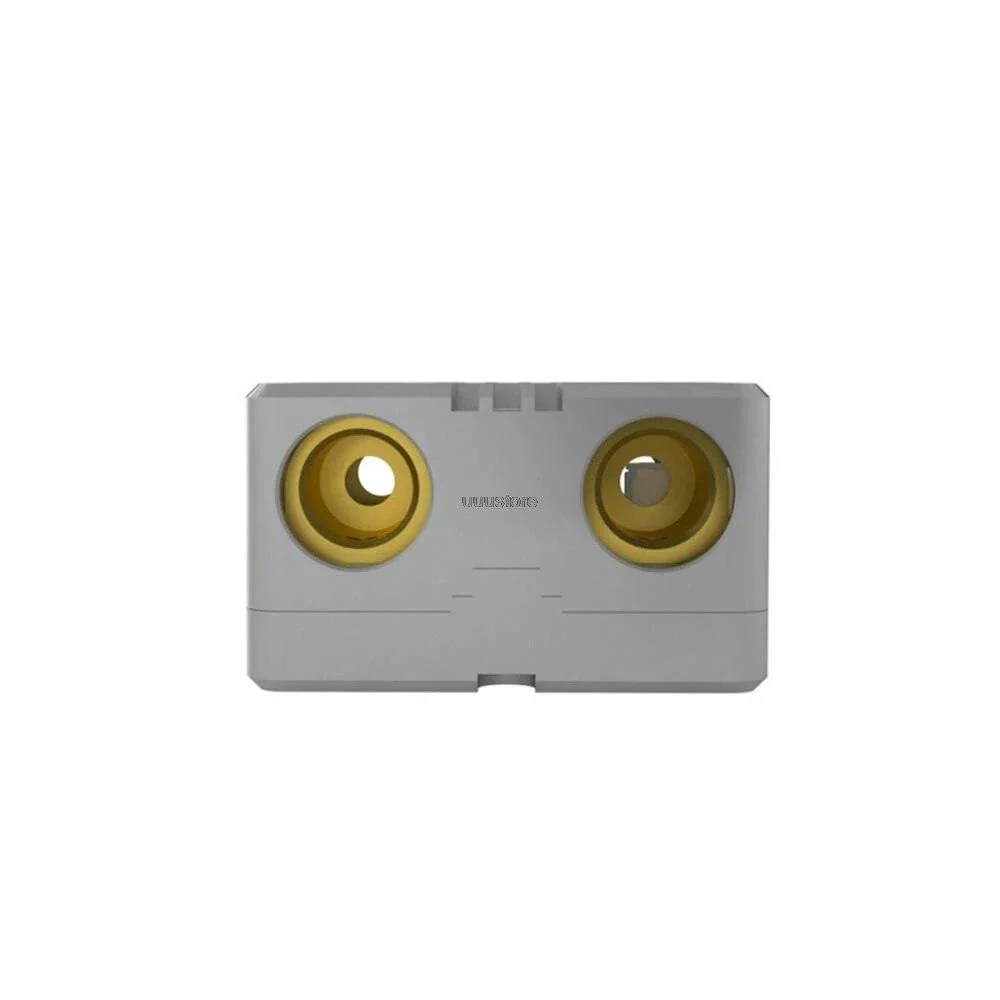

    IN/OUT: XT90(Cable)/Amass 8.0(Module)
    Power port: 5025850670
    CAN: GHR-04V-S
    Appearance:
    Size: 46.5mm * 38.5mm * 22.5mm
    Weight: 76g

    Notes:
    - Please read the product manual carefully.
    - Please check the connection carefully before connecting the battery
    - Please use at rated voltage, current and power
    - Please read the documentation center for configuration and use
    - Do not disassemble

    Cuav Can Pmu, CAN PMU is a digital high precision power detection module . it can accurately measure

    The Cuav Can Pmu is a digital high-precision power detection module designed to accurately monitor and track UAV voltage and current in real-time. It utilizes CAN bus communication to power the flight controller, enabling efficient and reliable control.

    Cuav Can Pmu, CAN PMU uses the standard UAVCAN digital commu- nication

    The Cuav Can Pmu employs the standard UAVCAN digital communication protocol, enabling the transmission of all information digitally. This approach avoids the errors commonly encountered with traditional analog-to-digital conversion (ADC), which can be easily attenuated and interfered.

    Cuav Can Pmu, CAN PMU uses the self-developed ITT (impedance tem- per

    The Cuav Can Pmu utilizes its self-developed ITT (Impedance Temperature Track) algorithm to mitigate measurement errors resulting from changes in impedance due to varying operating temperatures.

    Cuav Can Pmu, power consumption/instantaneous power consumption can be calculated in real time over 100hZ

    The Cuav Can Pmu enables real-time calculation of power consumption and instantaneous power usage. This accurate data can be transmitted to the flight controller for safer and more controllable flight missions. Additionally, the module features a built-in voltage regulator with an LT8645S chip, supporting up to 62V input and providing a stable output of 5.4V at 8A via a synchronous buck converter.

    Cuav Can Pmu, each PMU unit is factory calibrated to ensure good consistency and high accuracy Notes -Cuav Can Pmu, Specifications Basic parameters Processor STM3ZF4I2 IOOMhz

    Specifications: * Processor: STM32F4I2, 72 MHz, 512 KB Flash, 256 KB RAM * Voltage Input: 6-62V (2-15S) * Voltage Accuracy: ±0.1% * Resolution: 0.01 A/V * Max Output Power: 60W/30s * Max Stable Power: 50W * Power Port Output: 5.4 V/8A (Instantaneous 8A/120s, Sustainable 8A) * Protocol: UAVCAN * Operating Temperature: -20°C to +100°C * Firmware Upgrade: Supported * Calibration: No need * Interface Type: IN

    Cuav Can Pmu, each PMU unit is factory calibrated to ensure good consistency and high accuracy Notes -
