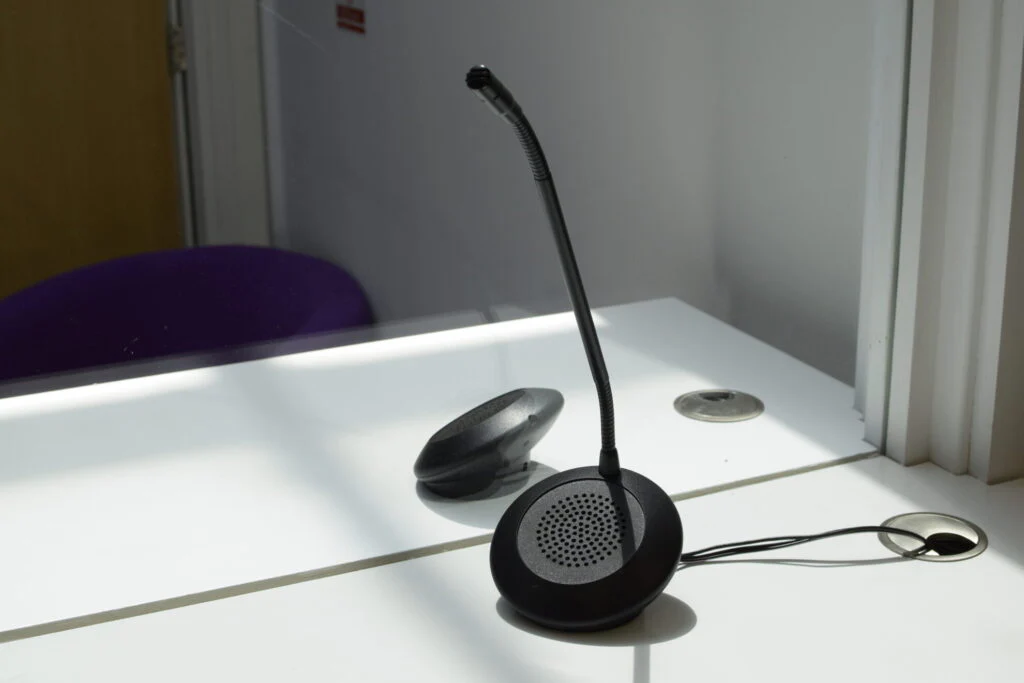

Contacta STS-K071 Speaker and Microphone Pod System

Clear communication through barriers shouldn't be complicated. The Contacta STS-K071 Speaker and Microphone Pod Window Intercom System ensures staff and customers can speak comfortably and clearly, even when separated by glass or security screens. Designed as an affordable entry-level solution, it's ideal for banks, pharmacies, healthcare facilities, and reception areas where reliable communication matters.

This system includes a surface-mountable or free-standing speaker pod for customers, a dedicated loudspeaker pod for staff, and a discreet mouse microphone. Combined with an open duplex amplifier, the STS-K071 delivers natural two-way conversation without the need to take turns. Compact and flexible, it integrates seamlessly into any counter environment.

Simple to install and built for everyday use, the STS-K071 also features a Level VI power supply and can be paired with optional hearing loop aerials for enhanced accessibility. Rugged and dependable, it's a straightforward way to enhance service, minimize miscommunication, and provide peace of mind.

FAQs:

Q: Where can I use this system?
A: It's ideal for banks, pharmacies, reception desks, hospitals, clinics, and customer service counters, or anywhere communication needs to be clear through a barrier.

Q: Is the system simple to install?
A: Yes. The speaker and microphone pods can be surface-mounted or left free-standing, and the included amplifier connects quickly with minimal setup.

Q: Can I connect it to a hearing loop?
A: Absolutely. Optional hearing loop aerials can be added, ensuring accessibility for customers with hearing aids.

Q: Does it allow both people to talk at once?
A: Yes. The open duplex amplifier enables natural, two-way conversations without the need for pauses or taking turns.

Q: What's included in the kit?
A: You'll get one speaker pod, one mouse microphone, one staff loudspeaker pod, an open duplex amplifier, and a power supply, everything you need to get started.

Features:

• Speaker and microphone pod configuration for the customer side.
• Staff loudspeaker pod for clear, natural communication.
• Provides reliable two-way communication through glass or security barriers.
• Affordable entry-level system for low- to moderate-ambient noise environments.
• Compact design with flexible mounting options (free-standing or surface-mounted).
• Open duplex amplifier for natural, simultaneous conversation.
• Includes:
  • (1) Open duplex amplifier (STS-A31H)
  • (1) Speaker and microphone pod (STS-SU1)
  • (1) Staff loudspeaker pod (STS-S61)
  • (1) Mouse microphone (STS-M70)
  • (1) PS-55 Level VI power supply
• Optional extras available: counter, glass-mounted, or under-counter hearing loop aerials.

Applications:

For one-to-one communication through windows and barriers.

• Banks and Credit Unions
• Government Facilities
• Hospitals/Health Clinics
• Nursing Homes
• Pharmacies
• Reception Desks and Customer Service Counters

Technical Specifications:

Amplifier (STS-A31H)

• Dimensions: 1.3" H x 4.3" W x 4.3" D
• Weight: 11.6 oz (330g)
• Power: 12V DC, 500mA
• Frequency Response: 300Hz-12kHz
• Inputs: Two microphone inputs (3.5mm jack)
• Outputs: Two speaker outputs (4-pin molex), loop output

Speaker & Microphone Pod (STS-SU1)

• Dimensions: 2.6" H x 2.6" W x 2.9" D (pod), base 3.2" diameter
• Weight: 6.7 oz (190g)
• Frequency Response: 150Hz-10kHz
• Power Rating: 5W

Staff Loudspeaker Pod (STS-S61)

• Dimensions: 3.1" H x 3.1" W x 2.5" D
• Weight: 7 oz (200g)
• Frequency Response: 150Hz - 10Khz
• Power Rating: 5W

Mouse Microphone (STS-M70)

• Type: Mouse microphone
• Dimensions: 0.7" H x 1.7" W x 1.9" D
• Weight: 1.1 oz (30g)
• Frequency Response: 100Hz - 16kHz
• Polar Pattern: Omnidirectional

Power Supply (PS-55)

• Input: 100-240V AC, 50/60Hz
• Output: 12V DC, 1.25A
