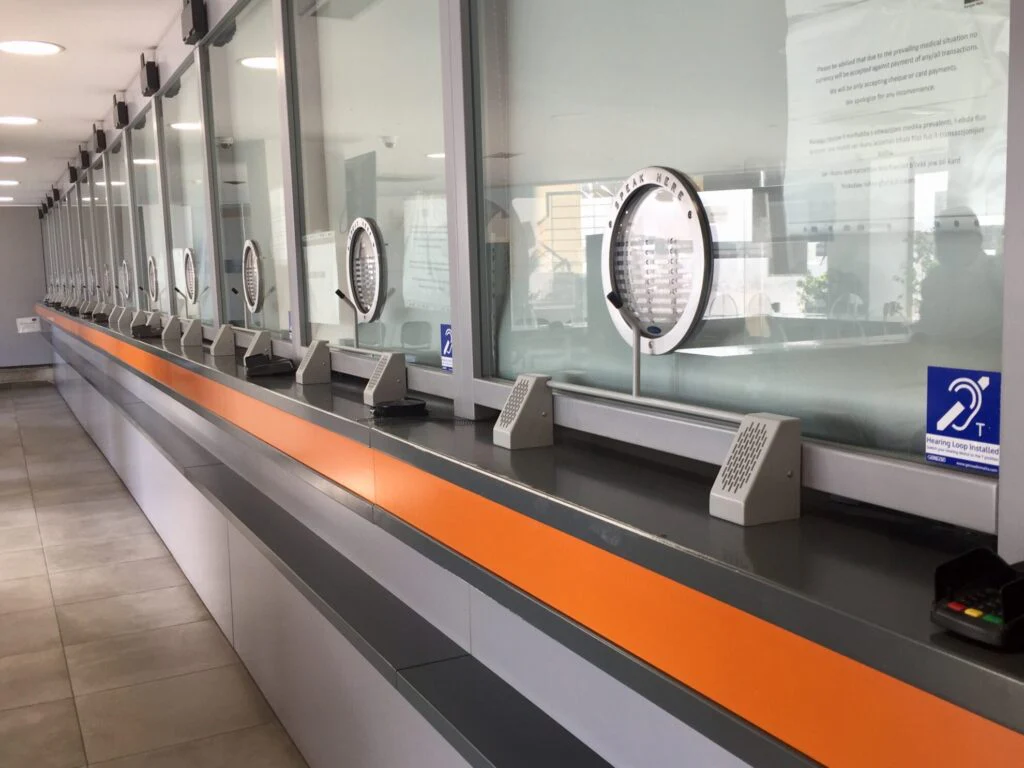

Contacta STS-K001 Bridge Bar Window Intercom System

The Contacta STS-K001 Bridge Bar Window Intercom System is designed for clear, effortless communication in areas where glass or security screens obstruct the view. Whether you're at a bank, ticket counter, government office, or information booth, this system ensures that staff and customers can hear each other clearly, eliminating the need for shouting through the glass or repeating oneself. It's the ideal solution for creating a smooth, professional interaction while maintaining safety and privacy on both sides of the counter.

The complete kit includes everything you need for instant clarity: the Bridge Bar speaker and microphone unit for customers, a staff headset microphone and speaker, and high-performance amplifier, and an under-counter hearing loop for customers using hearing aids. With its durable steel construction and sleek powder-coated finish, it's designed for heavy daily use in busy public environments. And because it's pre-engineered for plug-and-play setup, you can have it up and running quickly without complicated configuration.

Behind the scenes, the STS-K001 is equipped with advanced technology that ensures high-quality sound and reliable operation. Directional microphones minimize background noise, while the precision-tuned amplifier delivers crystal-clear audio on both sides of the barrier. The integrated hearing loop makes it fully accessible, and the anti-pry, low-profile design blends seamlessly into your workspace. Reliable, efficient, and ADA-friendly, this is the professional standard for modern service counters.

FAQS:

Q: What types of locations use the STS-K001 system?
A: It's perfect for any environment where glass or barriers make normal conversation difficult, such as banks, post offices, ticket counters, and government buildings.

Q: Does this system include a hearing loop for customers with hearing aids?
A: Yes! The STS-K001 includes an under-counter hearing loop aerial (IL-AE99) that transmits sound directly to hearing aids equipped with a T-coil.

Q: How many components come in the kit?
A: The complete set includes the amplifier, staff microphone and speaker unit, bridge bar speaker and microphone unit, hearing loop aerial, and power supply.

Q: Is installation complicated?
A: Not at all. The system is designed for quick installation with minimal wiring, and each component comes ready to connect right out of the box.

Q: What colors are available?
A: The STS-K001 is available in two powder-coated finishes: Grey Leatherette and Black Textured, so you can match it to your workspace.

Features:

• Clear Two-Way Communication - Enables staff and customers to communicate clearly through security screens or barriers.
• Integrated Hearing Loop - Includes an under-counter hearing loop aerial (IL-AE99) to assist customers with hearing aids (T-coil compatible).
• Complete System Kit - Comes with all major components:
  • STS-A31H Window Intercom Amplifier
  • STS-SU1-3W Staff Unit Speaker and Microphone (dual mute)
  • STS-B80 Bridge Bar Customer Speaker and Microphone
  • IL-AE99 Under-Counter Hearing Loop Aerial
  • PS-55 Power Supply
• Bridge Bar Design - Customer microphone and speaker are mounted on a durable steel bridge bar for stable installation across service counters.
• Dual Mute Function - Allows staff to control communication flow with privacy when needed.
• High-Quality Audio - Cardioid microphones and 5W RMS speakers deliver excellent sound clarity with a wide frequency response.
• Constant Current Loop Drive - Ensures consistent performance for hearing aid users.
• Rugged Construction - Made from mild steel with a powder-coated finish (available in Grey Leatherette or Black Textured).
• Flexible Power Options - Powered via the PS-55 14V DC power supply, with efficient low-current operation.
• Compact Amplifier Unit - ABS plastic housing with membrane push-button power control.
• Tamper-Resistant Design - Durable metal construction for secure installations in public or high-traffic environments.
• Easy Installation - Components are designed for under-counter or surface mounting, depending on configuration needs.
• Compliant Standards - CE, RoHS, WEEE, and BS EN 60118-4 (when correctly installed).

Applications:

The STS-K001 Window Intercom System is designed for any setting where clear communication is required through glass, partitions, or security barriers. Ideal for:

• Banks
• Post Offices
• Theaters and Ticket Counters
• Information Centers
• Government Buildings
• Embassies and Consulates
• Public Transit Systems
• Reception or Security Windows

Technical Specifications:

• Model: STS-K001 Window Intercom System with Hearing Loop
• Power Supply: PS-55 (Input 100-240 V, Output 14 V DC, 2.14 A, 30 W max)
• Compliance: CE, RoHS, WEEE; BS EN 60118-4 (in correct installations)
• Construction: Mild steel (main system), ABS plastic amplifier housing
• Finish Options: Powder-coated Gray Leatherette or Black Textured
• Weight (boxed): 8.00 Pounds


System Components:

STS-A31H Window Intercom Amplifier

• Supply Voltage: 12-14 V DC
• Quiescent Current: 100 mA typical
• Operating Current: 2 A typical on speech peaks
• Speaker Output Power: 2.5 W RMS @ 8 Ω / 4.4 W RMS @ 4 Ω
• Loop Drive: Constant current, bounded by 4 V RMS & 3 A RMS
• Total Harmonic Distortion: <5% (loop + speakers)
• Microphones: Electret, 5 V supply via kΩ load resistor
• Power Switch: Push on/push off tactical switch under membrane
• Dimensions: 4.58" H x 4.50" W x 1.58" D
• Weight: 0.32 Pounds
• Housing: ABS Plastic, Matt Black Finish

STS-SU1-3W Staff Unit Speaker & Microphone (Dual Mute)

• Speaker Output: 5W RMS @ 4 Ω
• Sound Pressure Level: 85 dB @ 1W/1 m
• Speaker Frequency Response: 150 Hz - 10,300 Hz
• Microphone Type: Cardioid directional electret
• Mic Sensitivity: 49.5 dB ± 2 dB @ 1 kHz (0 dB = 1 V/Pa)
• Mic Impedance: 1.6 kΩ ± 3% @ 1 kHz
• Mic Frequency Response: 150 Hz - 10,500 Hz
• Dimensions: 2.61" H (base), 14.50" H (extended), 3.80" W x 6.02" D
• Weight: 1.79 Pounds
• Construction: Mild Steel; Powder-coated finish

STS-B80 Customer Bridge Bar Speaker & Microphone Unit

• Speaker Output: 5 W RMS @ 4 Ω
• SPL: 85 dB @ 1 W/1 m
• Speaker Frequency Response: 150 Hz - 11,000 Hz
• Microphone Type: Cardioid directional electret
• Mic Sensitivity: -67 dB ± 3 dB @ 1 kHz
• Mic Impedance: 1.6 kΩ ± 30% @ 1 kHz
• Mic Frequency Response: 70 Hz - 14,000 Hz
• Speaker Pod Dimensions: 4.26" H x 2.37" W x 2.93" D
• Bridge Bar Width: 24.25" overall (19.68" between pods)
• Height to Mic Top: 8.63"
• Weight: 3.00 pounds
• Material: Mild Steel; Powder-coated finish

IL-AE99 Under-Counter Hearing Loop Aerial

• Construction: Copper wire with PVC casing
• Finish: Black
• Dimensions: Molded to the required size during installation
• Weight: 0.19 pounds

PS-55 Power Supply

• Input: 100-240 V AC, 50-60 Hz, 1 A max
• Output: 14 V DC, 2.14 A, 30 W max
• Cable Length: 70.87"
• Dimensions: 1.38" H x 2.08" W x 3.92" D
• Weight: 0.51 Pounds
• Construction: ABS Plastic, Black Finish
