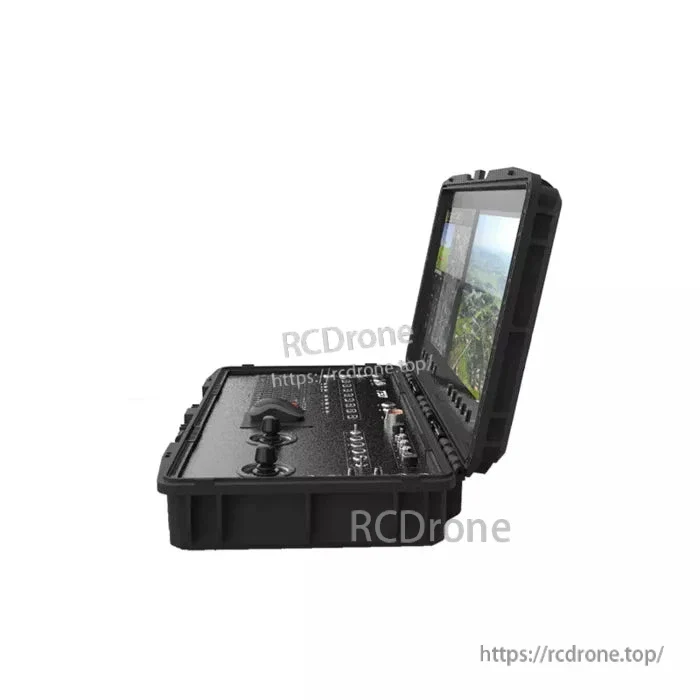

CHINOWING T50 Dual Screen Drone Ground Station, i7-1260P, 17 inch 1280x1024, 32G RAM, 1T SSD, SBUS, 150km Link
-
Detail
Overview
The T50 Dual Screen Drone Ground Station is a portable drone ground station integrating computing, control and long-range communication. It features a 17 inch 1280x1024 display (1000nit*2, bottom screen) with a 10-finger capacitive touch screen, an Intel i7 1260P platform, and a built-in RC system with dual SBUS outputs for simultaneous vehicle and payload control. Windows11 / Linux are supported.
Key Features
- Intel i7 1260P (standard) with 32G RAM and 1T SSD (standard) \ 2T
- 17 inch 1280x1024 1000nit*2 (bottom screen) with 10-finger capacitive touch
- WIFI/Bluetooth (standard); 4G (optional)
- Interfaces: HDMI in \ USB3.0 \ LAN \ Type-c
- Remote control: 27 physical channels, USB HID, 40ms latency
- Dual SBUS independent output; SBUS IN*1 and SBUS OUT*2
- IP53 (open status) and IP65 (closed status)
- Battery: DC 25.2V/30000mAh; 5 hs@full battery capacity; DC 25.2v charging port; external power supported
- Communication link V21/V31: 5-150km grade video&telemetry&RC link; 3rd party link supported
- Mechanical size 850mm(L)*425mm(W)*160mm(H); overall weight 20 Kg (Battery included 2.8kg)
- From product images: highly integrated system, innovative damping design, retractable three-axis joystick with hall-effect, precision multi-segment switches, protective caps on buttons, and multi-interface design
Specifications
Overall weight 20 Kg (Battery included 2.8kg) Dimension 850mm(L)*425mm(W)*160mm(H) Screen size 17 inch 1280x1024 1000nit*2 (bottom screen) Touch pad 10-finger capacitive touch screen CPU Intel i7 1260P (standard) Operating system Windows11 / Linux RAM 32G (standard) SSD storage 1T (standard) \ 2T Network WIFI/Bluetooth (standard) 4G (optional) Interfaces HDMI in \ USB3.0 \ LAN \ Type-c Physical channel 27 Human interface USB HID Remote control function Dual SBUS independent output, able to control the vehicle and the payload simultaneously SBUS port SBUS IN*1; SBUS OUT*2 Remote control latency 40ms IP rating IP53 (in open status); IP65 (in closed status) Battery capacity DC 25.2V/30000mAh Working time 5 hs@full battery capacity Charging port DC 25.2v Temperature range -20 ~ 60 ℃ Communication link V21/V31; 5-150km grade video&telemetry&RC link 3rd party communication link Supported Manuals
Software
Firmware
Details
Dual 17" HD touchscreens, i7 12-core CPU, 32GB RAM, 1TB storage, 27 physical channels, and telescopic master telepods enable precise control and superior user experience in the T50 Dual Screen Drone Ground Station.
Dual-screen T50 ground station enables 150km digital transmission, supports friendly link integration, expands mission coverage, and empowers both professional and beginner pilots with advanced technology and limitless flight possibilities.
CHINOWING T50 offers Intel i7 performance, integrated system, innovative damping, multifunctional keyboard, precise joystick and switches, secure protective caps, and multi-interface connectivity for versatile use. (39 words)
-
