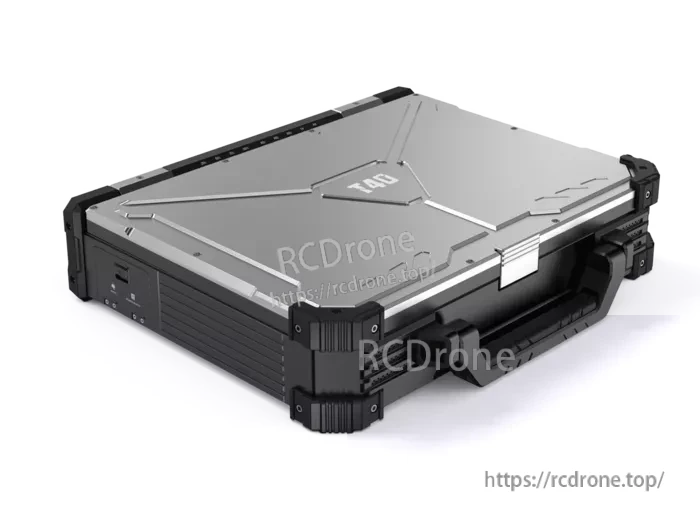

CHINOWING T40 Dual Screen Ground Station, i7, 13.3in + 12.1in high-bright, VM21 networking, dual SBUS, IP53

$180.9

Quantity

ADD TO CART

BUY IT NOW

Detail

Overview

T40 Dual Screen Ground Station is a highly integrated ground station designed for real-time video and data transmission, remote control, and collaborative networking across UAVs, unmanned vehicles, and other carriers. Its dual-display layout combines a 13.3inch FHD top screen with a 12.1inch high-bright bottom touch screen, enabling simultaneous viewing and control. Built around an Intel i7 8565U platform with Windows10 / Linux support and extensive I/O (RS232, USB3.0, LAN, HDMI in, VGA out), the T40 provides a complete control, mapping, and digital link solution in a single portable unit.

The T40 supports two operation modes: one-control-multiple-aircraft and multiple-aircraft-one-control. Its VM21 module enables wireless networking between multiple ground stations for real-time data sharing, command transmission, and coordinated operations. The displays can unfold completely flat for an extended workspace, and the integrated control panel with joysticks allows precise take-off, landing, hovering, and trajectory control in real time.

Key Features

Dual screens: 13.3inch 1920×1080 1000nit (top) + 12.1inch 1280×800 1500nit (bottom) touch display
Real-time video streaming plus bidirectional telemetry and data exchange
Two operation modes: one-control-multiple-aircraft and multiple-aircraft-one-control
VM21-enabled networking for multi-station collaboration; supports V21/V31 links and 3rd party communication links
Comprehensive controls with dual SBUS independent outputs to control vehicle and payload simultaneously
20 physical channels, USB HID human interface, 40ms remote control latency
Intel i7 8565U, 16G RAM standard (32G max), 512GB SSD standard (1T max)
Windows10 / Linux OS options; WIFI / Bluetooth (standard), 4G (optional)

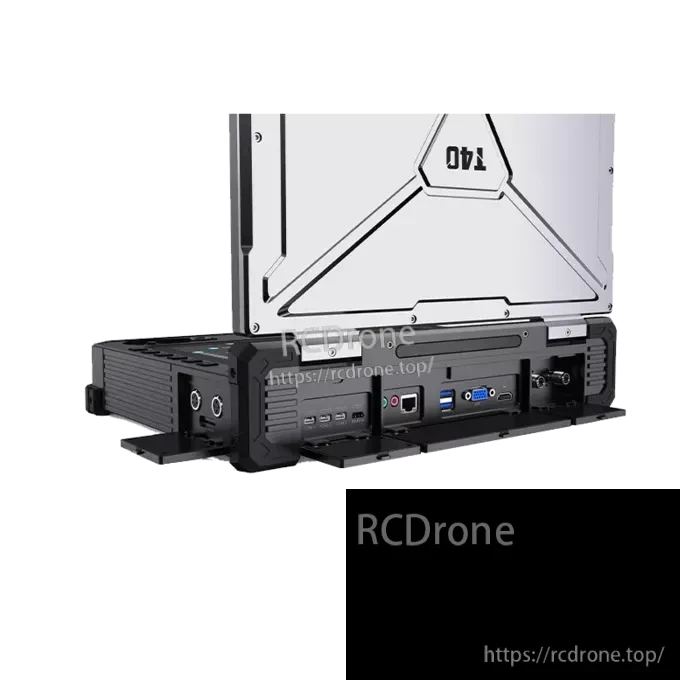

Rich I/O: RS232×4, USB3.0, LAN, HDMI in, VGA out; audio interface as shown
Fold-flat dual-screen design for expanded workspace
IP53 protection level; -20 ~ 60 °C working temperature
Battery: DC 16.8V / 17500mAh, working time 3hs@full battery capacity; DC16.8v charging; external power supported
Overall weight 6000g; compact 355mm(L)×282mm(W)×80mm(H)

Specifications

Dimension
Overall weight	6000g
Dimension	355mm(L)282mm(W)80mm(H)
Screen size (top)	13.3inch 1920*1080 1000nit
Screen size (bottom)	12.1inch 1280*800 1500nit
Computer Peripherals
CPU	Intel i7 8565U(standard)
Touch pad	10-finger capacitive touch screen
Operating system	Windows10 / Linux
RAM	16G(standard), 32G max
SSD storage	512GB SSD(standard), 1T max
Network	WIFI / Bluetooth(standard) 4G(optional)
Interfaces	RS232*4, USB3.0, LAN, HDMI in, VGA out
Remote Control
Physical channel	20
Human interface	USB HID
Remote control function	Dual SBUS independent output, able to control the vehicle and the payload simultaneously
SBUS port	SBUS IN1; SBUS OUT2
Remote control latency	40ms
Protection level	IP53
Battery Peripherals
Battery capacity	DC 16.8V /17500mAh (external power source also supported)
Working time	3hs@full battery capacity
Charging port	DC16.8v
Working temperature	-20 ~ 60 °C
Communication link
V21/V31	5-150km grade video&telemetry&RC link
The 3rd party communication link	Supported

Applications

Real-time video streaming and telemetry from UAVs, unmanned vehicles, and other carriers
Multi-station collaborative operations via VM21-enabled networking
Single-operator control of multiple aircraft or joint control of multiple carriers
Field operations requiring dual-screen monitoring and precise joystick control
