CHASING M2 PRO MAX Underwater ROV – 200m 4K/EIS Camera, 12MP, 8,000lm Dual Lights, 5-Port Mount, E-Reel 200m Underwater Drone

Overview

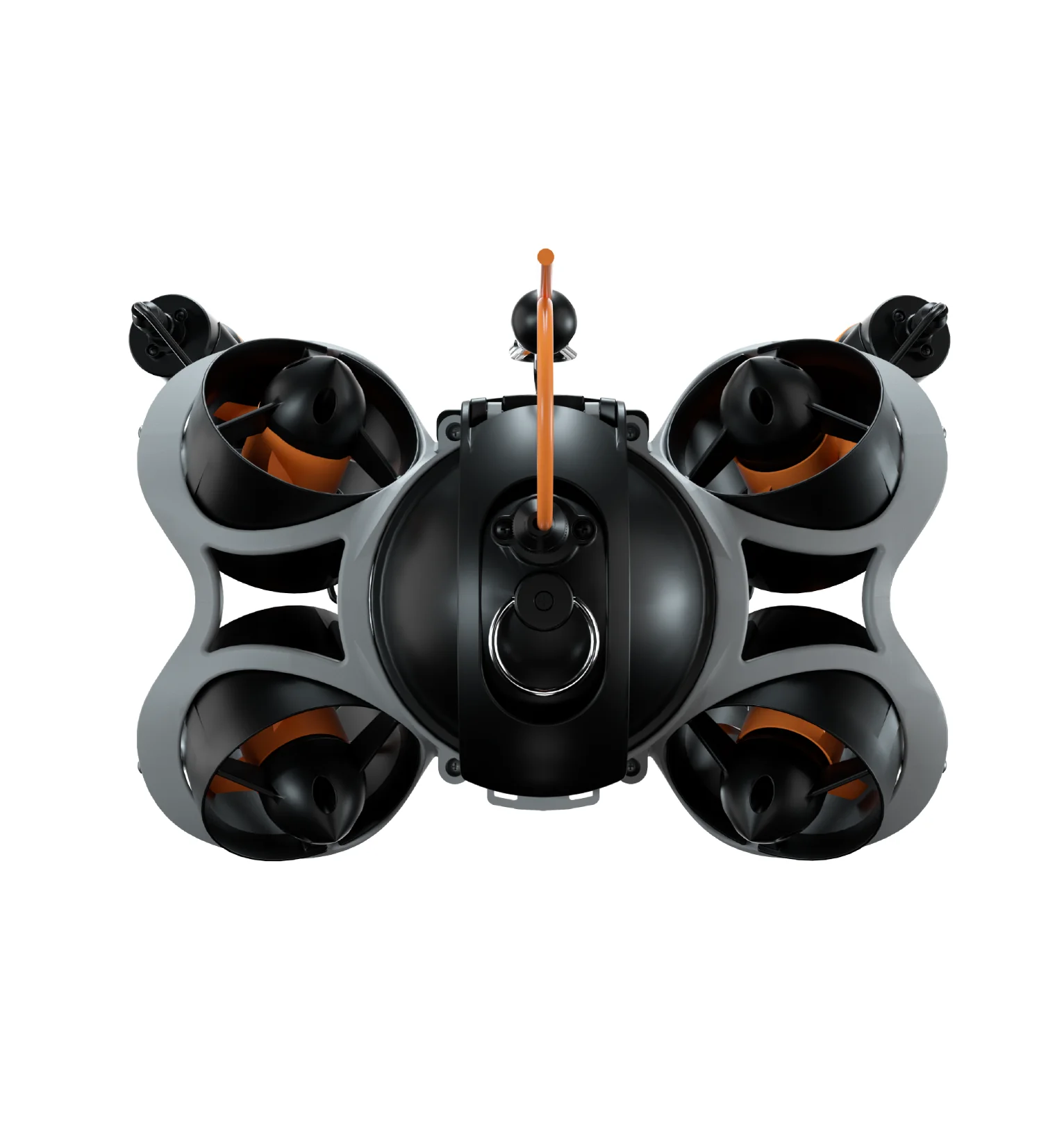

CHASING M2 PRO MAX is a professional underwater ROV designed for 360° omni-directional maneuvers and deep-water work to 200 m (656 ft). It integrates five accessory ports (mount up to five tools at once), a fast slide-in quick-mount system, and second-generation anti-jam motors. Imaging is handled by a 1/2.3" CMOS 12 MP camera with F2.8, 150° FoV, 4K30 video with EIS, and dual 4,000-lumen (8,000 lm total) 5000–5500 K floodlights. Power options include the onboard 300 Wh battery (up to ~4 h) or a shore-base power supply (200 m) for unlimited runtime. Typical uses span emergency rescue, hull/dock and offshore wind inspections, aquaculture, hydropower, and scientific exploration.

Key Features

• 200 m rated depth with sturdy sealed structure; operating temp -10 °C to 45 °C.

• 360° movement; improved motors with anti-stall design.

• Pro imaging: 4K @ 25/30 fps; 1080p @ up to 120 fps; 12 MP stills; EIS; JPEG/DNG; MP4; 60 Mbps max stream; time-lapse (4K/1080p).

• Wide-angle optics: F2.8, 150° FoV, focus 0.3 m – ∞, ISO 100–6400.

• Dual floodlights: 2×4,000 lm, CRI 85, three-step dimming.

• Expandable: 5 accessory ports; >20 official/third-party tools supported; mount up to five simultaneously (e.g., imaging sonar, distance-lock sonar, laser scaler, grabber/sampler, aux camera, water-quality sensors).

• Quick slide-in mounts for fast accessory swap.

• Power flexibility: 300 Wh battery (up to ~4 h) or shore-base power system for continuous operations.

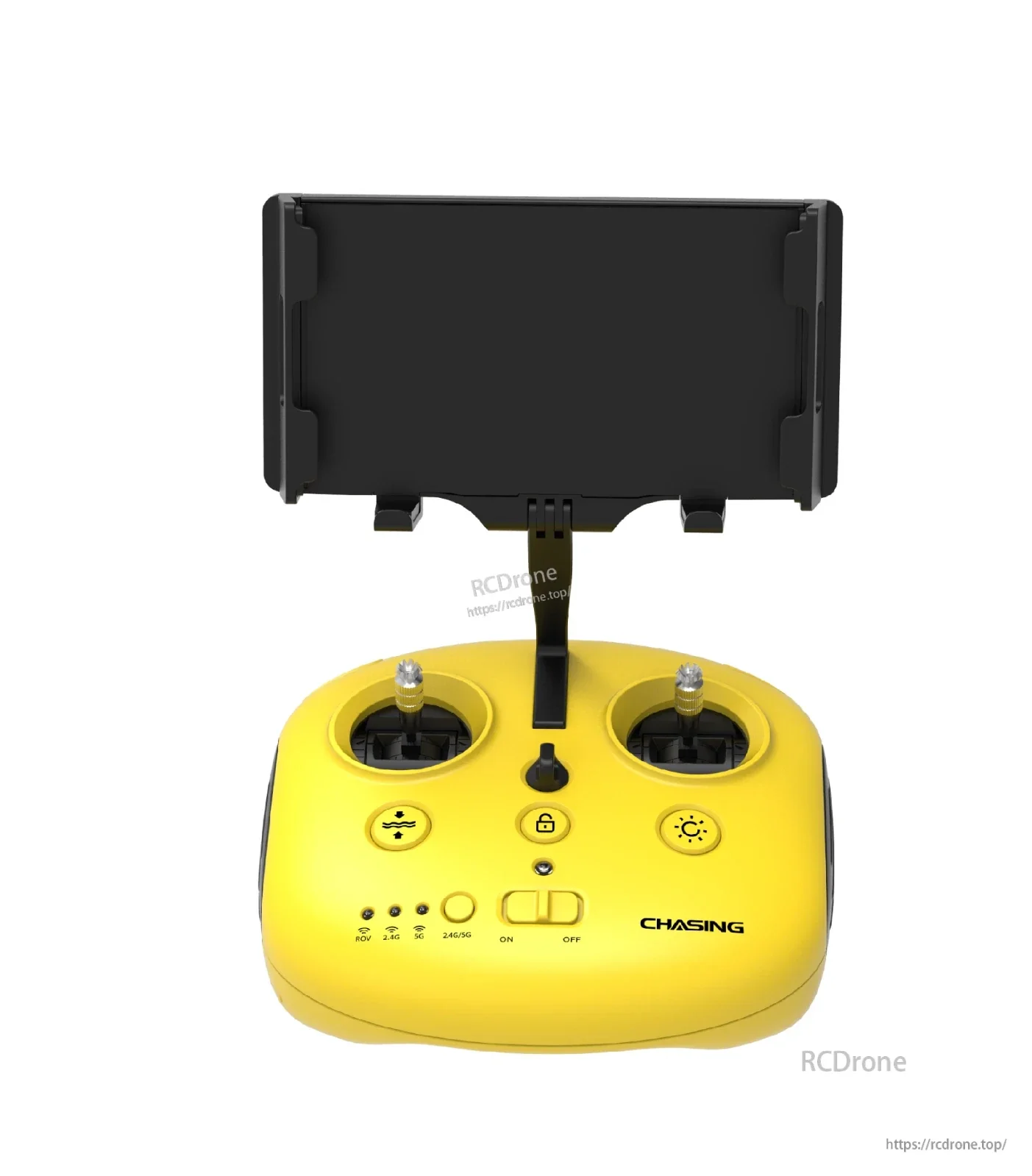

• Smart control console: handheld controller (Wi-Fi, HDMI), supports tablets/monitors up to 10"; ≥6 h controller runtime.

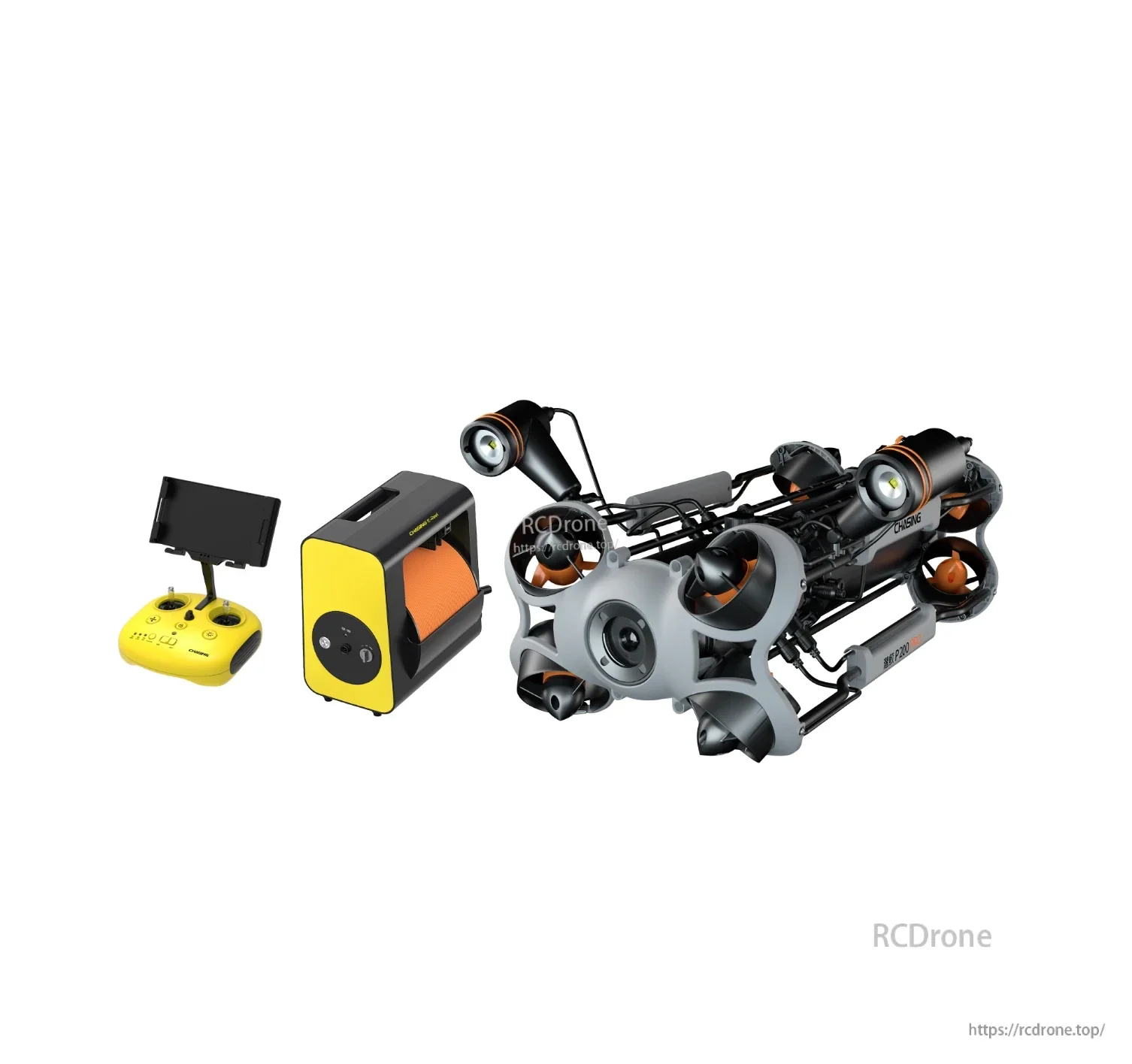

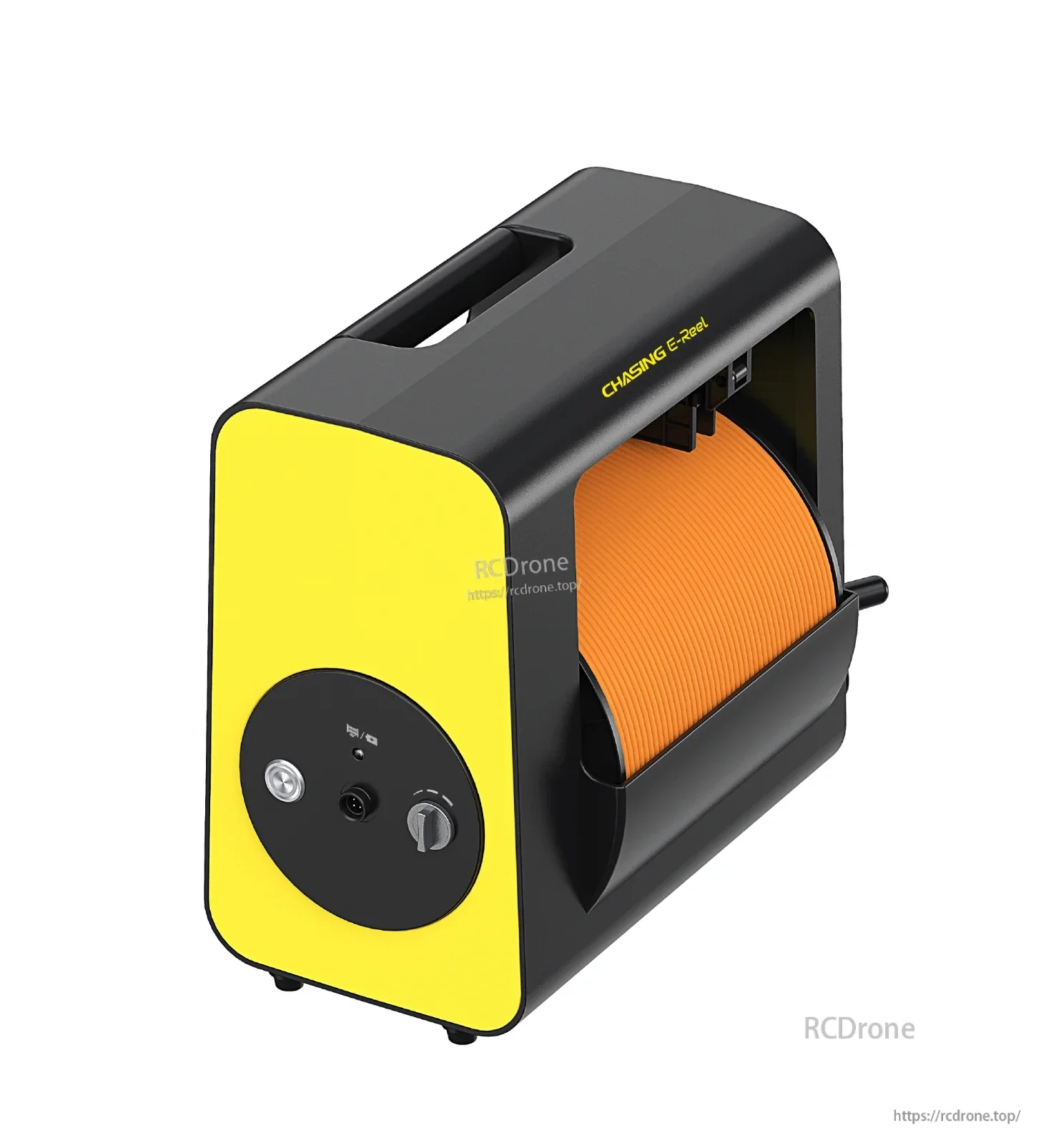

• Tether options: E-Reel with 200 m tether for efficient deployment and retrieval.

Specifications

ROV

Camera

LED Floodlights

Sensors (Navigation/Environment)

Remote Controller / Console

Charging

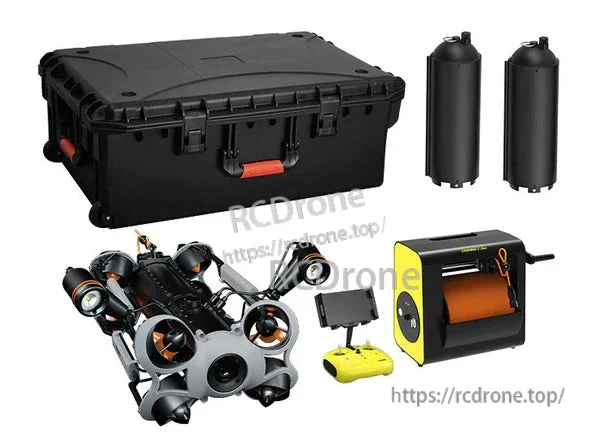

Packages (What’s Included)

Advanced Set

• M2 PRO MAX ROV

• Remote controller

• E-Reel with 200 m tether

• 300 Wh battery ×2

• 128 GB SD card

• Carrying case

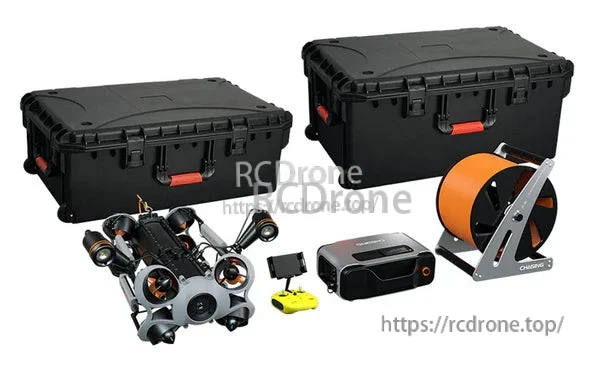

Professional Set

• M2 PRO MAX ROV

• Remote controller

• 128 GB SD card

• Carrying case

• Shore-base power supply system (200 m) for continuous operation

Notes: Accessory tools (e.g., sonar, grabber) are optional and shown for illustration. Actual runtime and performance depend on configuration, current, temperature, and load.

Applications

• Underwater emergency rescue and search

• Hull & dock inspections, ship maintenance

• Aquaculture monitoring and net inspections

• Water conservancy & hydropower facility checks

• Scientific exploration and research dives

• Offshore wind power and marine infrastructure inspections

Details

CHASING M2 PRO MAX is an industrial-grade ROV built for government and enterprise use. It features next-gen accessory mounting, quick assembly and disassembly, an advanced shore-based power system, and enhanced floodlighting. These innovations offer professional, reliable, and user-friendly underwater solutions. Combining ease of use with high performance, it excels in demanding industrial tasks. Its durable construction and advanced technology enable efficient operation in harsh underwater conditions, delivering consistent results for complex missions.

360° omni-directional movement, 200m diving depth, 4-hour battery, 5 accessory ports, quick assembly, shorebase power, 8,000 lumen lights, anti-stuck motor, 4K video, 12-megapixel camera.

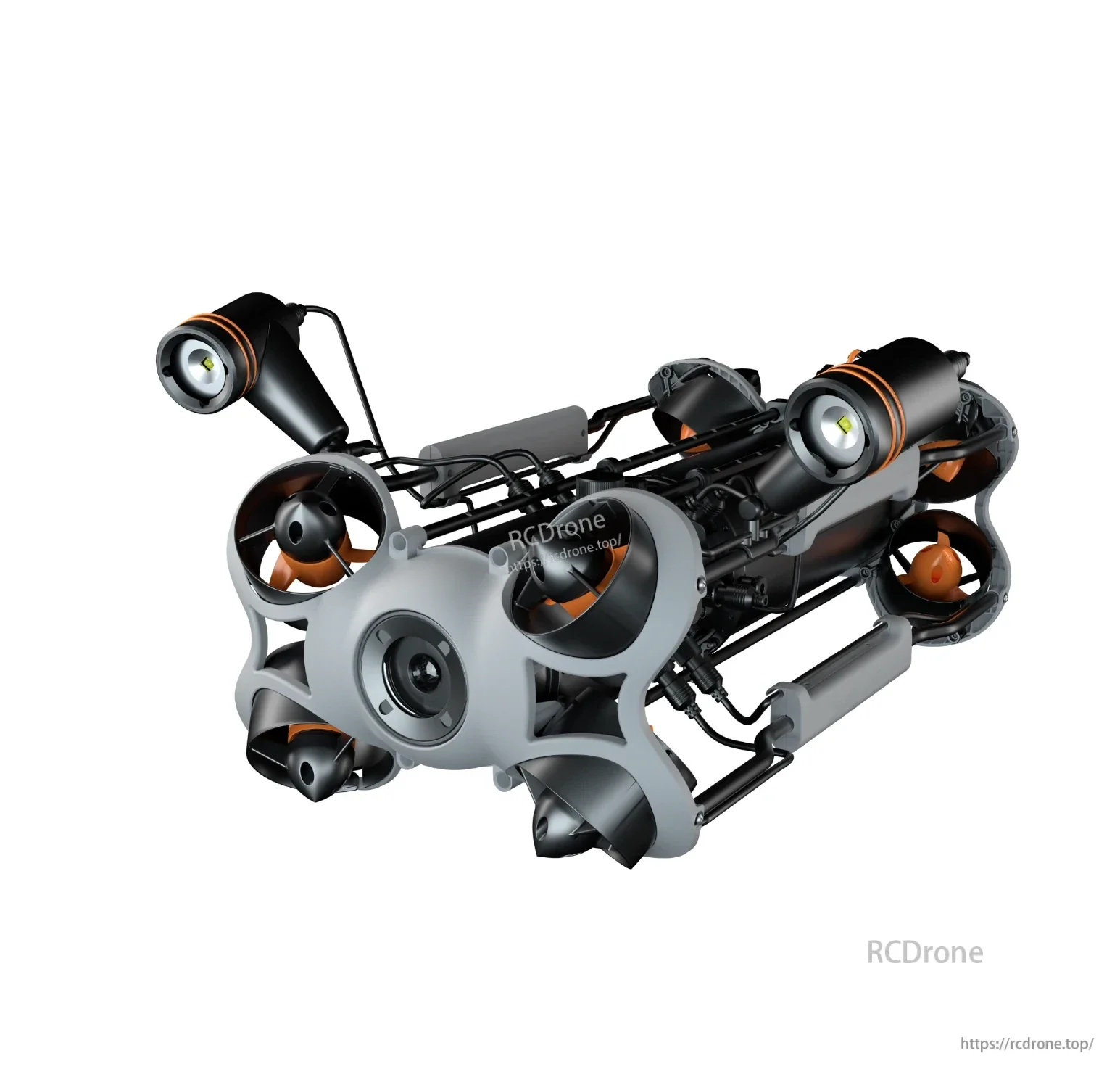

The CHASING M2 PRO MAX underwater ROV features a new mounting system with 5 accessory ports, allowing up to 5 accessories to be installed simultaneously. It supports over 20 types, including BP and GEMINI imaging sonars, distance lock sonar, laser scaler, water quality sensor, and auxiliary camera. Designed for diverse applications, it improves inspection, navigation, sampling, battery life, and control. Its modular design enables easy integration and flexible configuration for various underwater tasks.

M2 Pro Max ROV with interchangeable tools: grabber claws, sediment and water samplers.

M2 Pro Max ROV uses slide-in technology for quick accessory assembly and disassembly, enabling fast installation and removal to save time and effort. (36 words)

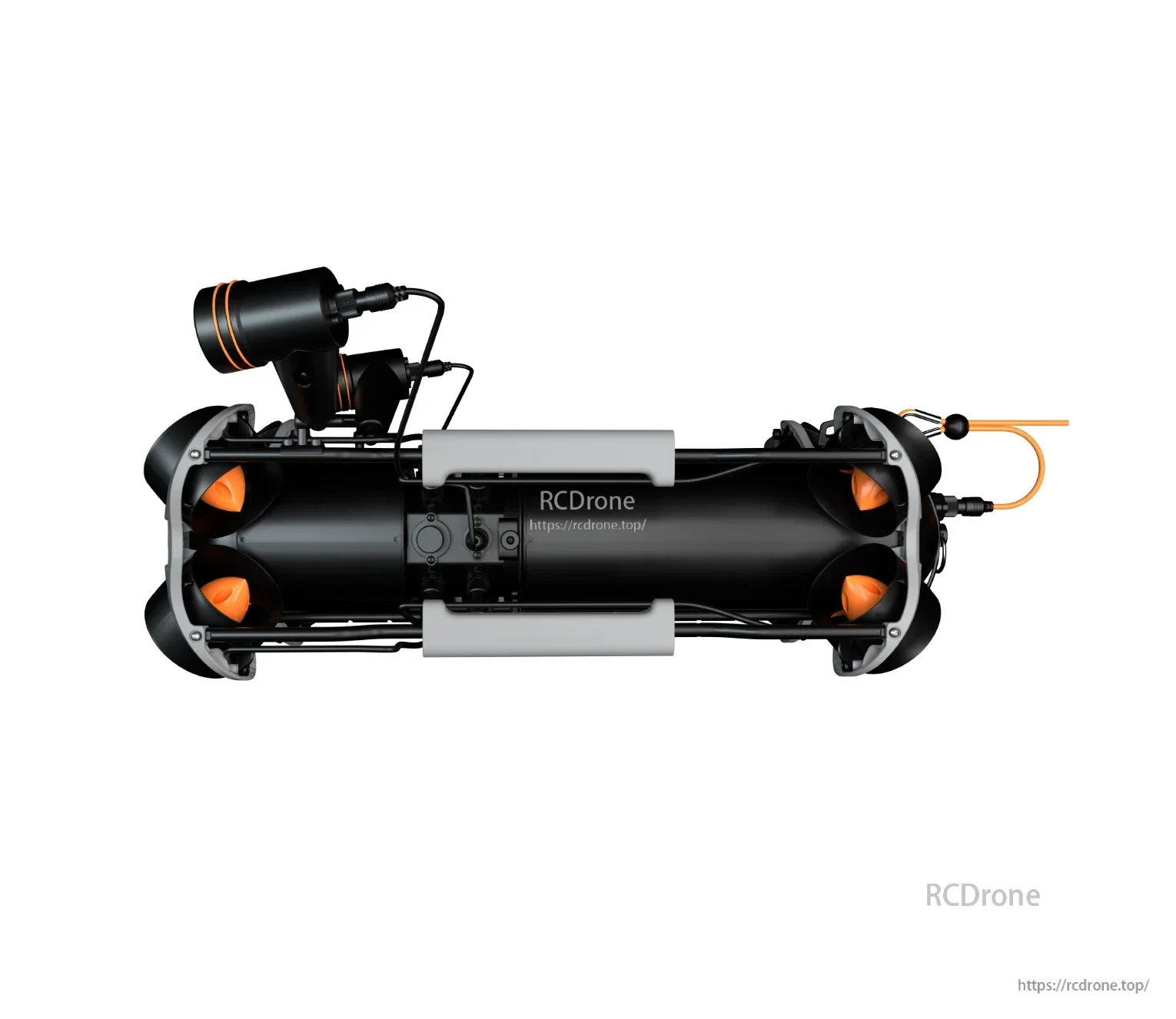

New generation shorebase power supply system supports 24-7 operation with 1500W output, enabling continuous ROV performance. Battery compartment design simplifies installation.

New generation floodlight design with 8,000 lumen LEDs, 150° beam angle, foldable dual lights, and 0-100% brightness adjustment to eliminate plankton reflection interference and enhance underwater visibility.

Second-generation anti-stuck motor with 30% more power, stronger anti-stuck performance, easier to clean, and more reliable.

4K + EIS Camera restores natural underwater color. Features 4K video, 12 megapixels, EIS, F2.8 aperture, 150° field angle, and 1/2.3" CMOS sensor for clear, vibrant underwater imaging.

ROV supports 200m diving depth and 400m movement radius, with adjustable tethers enabling versatile, wide-range underwater operations. (32 words)

Features a built-in 128GB removable SD card (expandable to 512GB), enabling real-time sharing of underwater footage and data—such as temperature and depth—across three mobile devices. Supports live video streaming, social media sharing, HDMI real-time projection, time-lapse photography, slow motion, and multi-device data sharing. Includes removable storage for easy file access. Enables seamless interaction and instant content distribution, ideal for aquatic exploration and monitoring.

Underwater ROV applications: rescue, inspection, exploration, and power facility checks.
