CaddxFPV Walksnail Avatar GT KIT - 1080P 120fps Camera 2W VTX 256G SD Card Support
-
Detail
Walksnail Avatar GT KIT Overview
The Walksnail Avatar GT KIT is designed to revolutionize your FPV experience with its advanced features and powerful performance capabilities. Engineered to significantly enhance signal transmission distance, the Avatar GT can achieve up to 2W power within legal and regulatory limits, ensuring uninterrupted and extensive flight explorations.

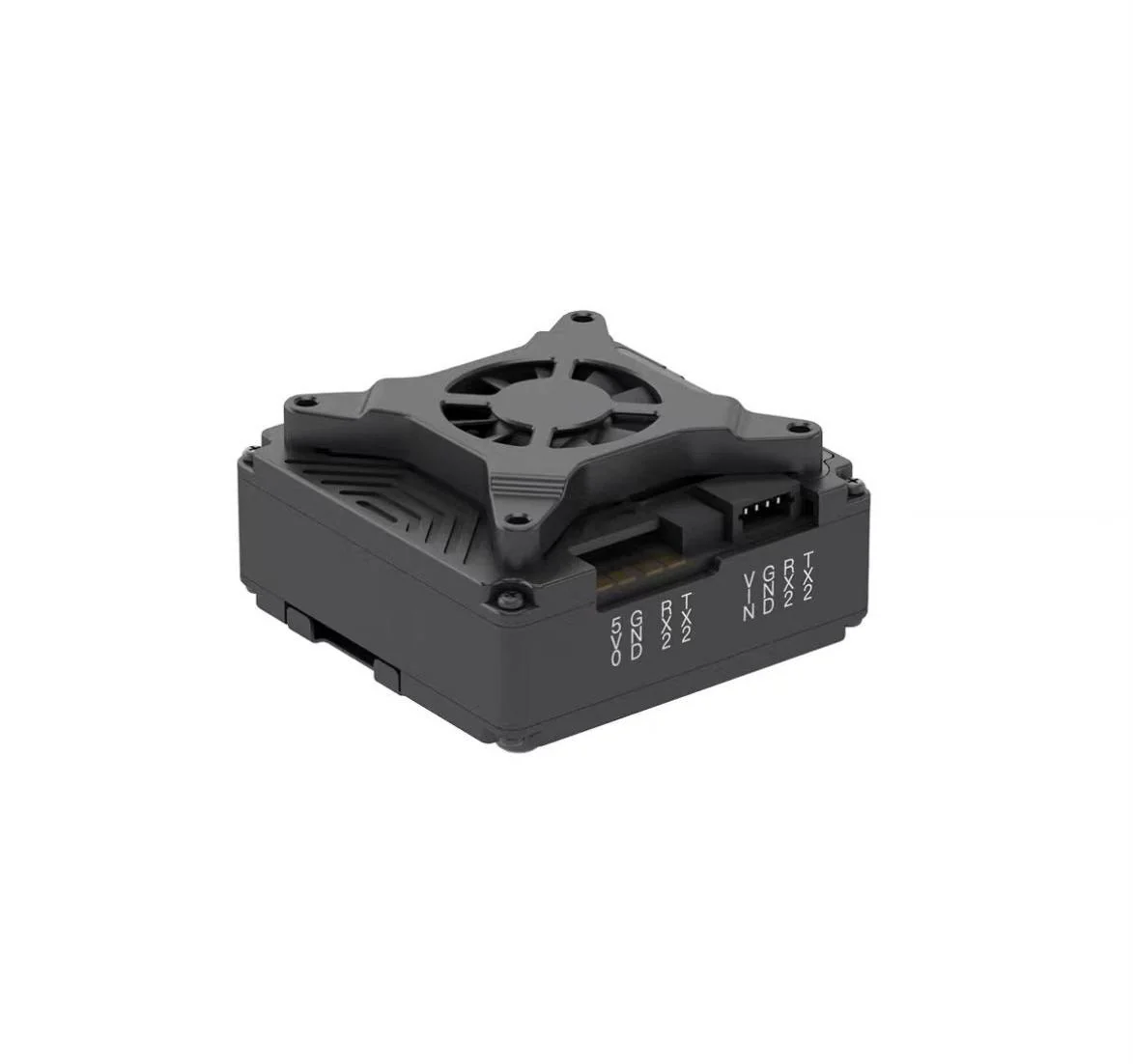

Equipped with a top-mounted heatsink, the Avatar GT efficiently dissipates heat, maintaining optimal performance even during extended use. The inclusion of a Micro SD card slot supports up to 256GB, allowing for continuous recording of HD flight videos in either 1080p or 720p resolution.
The internal ceramic antenna is optimized for low-power mode, reducing power consumption and heat generation. With improved resistance to GPS interference, the Avatar GT provides a stable and reliable flight experience, even in challenging environments.

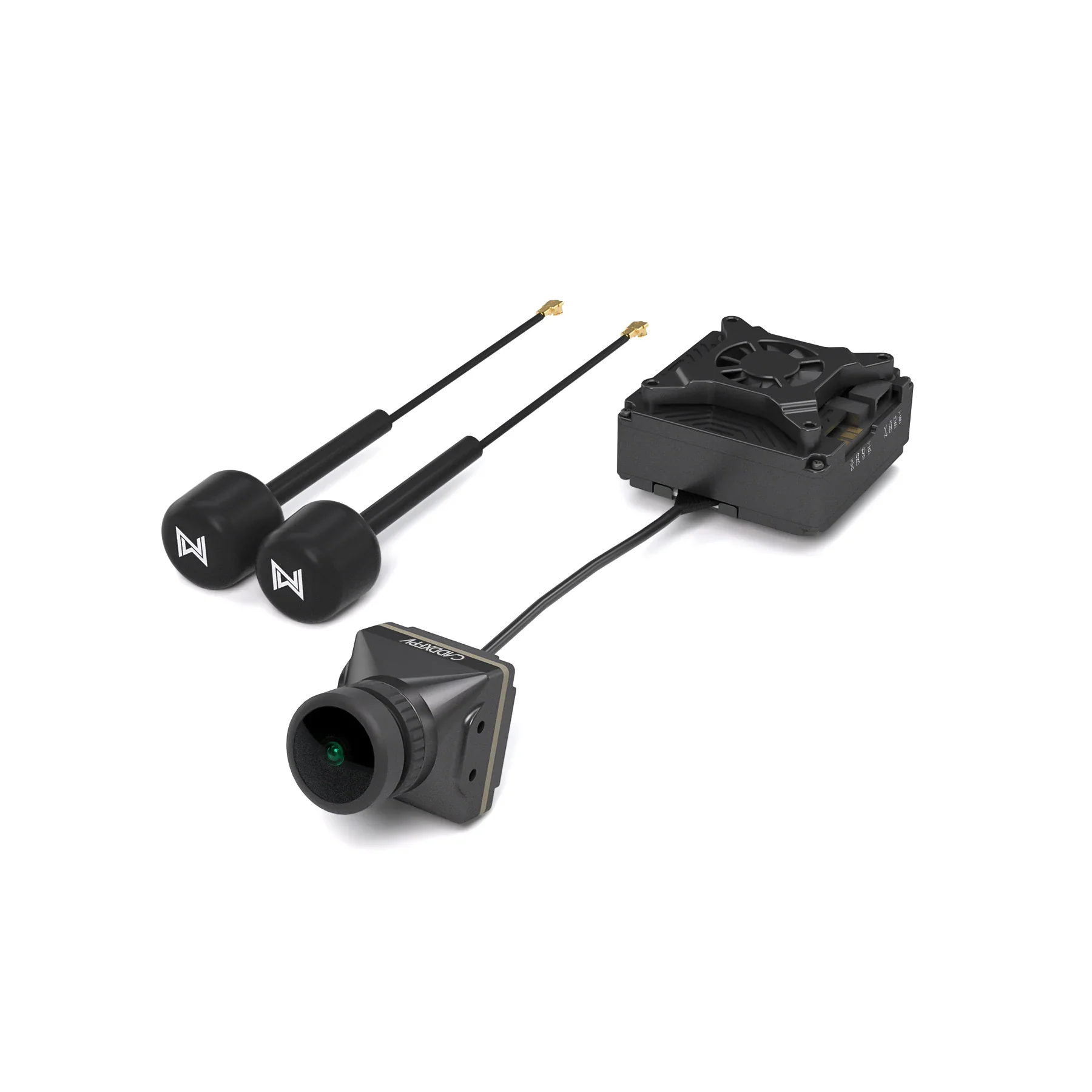

The kit comes with a Pro camera featuring a 1/1.8-inch Sony Starvis II sensor, delivering exceptional night vision capabilities with clarity comparable to daytime. The camera supports Gyroflow for smooth and stable video quality and offers both high frame rate and standard frame rate options, with an average delay of just 22ms.
Dual antennas ensure more stable and powerful signals, with upgraded quality for enhanced performance across the entire frequency band.
Avatar GT KIT Features:
- Extended Signal Transmission: The Avatar GT can reach up to 2W power, enhancing signal transmission distance within legal limits.
- Efficient Heat Dissipation: Top-mounted heatsink design maintains optimal performance during extended operations.
- Ample Storage: Supports up to 256GB Micro SD card for uninterrupted HD video recording in 1080p or 720p.
- Low-Power Optimization: Internal ceramic antenna minimizes power consumption and heat generation.
- GPS Interference Resistance: Improved resistance ensures stable and reliable flights in challenging environments.
- High-Performance Camera: 1/1.8-inch Sony Starvis II sensor offers excellent night vision, with Gyroflow support for smooth video quality.
- Dual Antennas: Enhanced signal stability and performance across the frequency band.
Walksnail Avatar GT KIT Specifications
Specification Camera Model Avatar HD Pro Camera Image Sensor 1/1.8-Inch Sony Starvis Ⅱ sensor Resolution 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps; Ratio 16/9; 4/3 Lens 8Mp FOV 160° Aperture F1.6 Shutter Rolling shutter Min.Illumination 0.00001Lux Weight 9.5g Dimensions 19*19*24mm Coaxial Cable 140mm Gyroflow supported Model Avatar GT Communication Frequency 5.725-5.850 GHz Transmitter Power (EIRP) FCC: <30dBm, MAX:33dBm ; CE: <14dBm;
SRRC: <20dBm; MIC: <25dBmI/O Interface Micro SD card slot; JST1.0*4(power cable) Supported SD Cards Micro SD (up to 256 GB) Mounting Holes 25.5*25.5mm; 20*20mm Dimensions 34*34*20mm Recording 1080p/720p Weight 41.6g (Antenna included) Operating Temperature -10-40℃ Channels 8 Wide Power Input 11.1V-25.2V Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPilot OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX) Note: Check area for risk of use before use.
Packing List：
1 x Walksnail Avatar GT KIT
1 x Quick Guide
2 x M2*4mm screws
2 x M2*5mm screws
2 x M2*6mm screws
2 x M2*5*0.5mm spacer
2 x SD card stickers
1 x 4pin power cord
2W (Max) Long Range 11.1V-25.2V 1080P 100fps Dual Antennas High Frame Starlight Micro SD Card Slot Compatible Moonlight Camera（DVR 4K） Bullet Points:
Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.
The Avatar GT features a top-mounted heatsink design, effectively dissipating heat to maintain optimal performance even during extended operation.
The Avatar GT is equipped with a Micro SD card slot, supporting up to 256GB of storage capacity, enabling uninterrupted recording of HD flight videos in either 1080p or 720p resolution.
The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.
The Walksnail Avatar GT KIT now features improved resistance to GPS interference, ensuring a more stable and reliable flight experience even in challenging environments.
Avatar GT comes with a Pro camera, equipped with a 1/1.8-inch Sony Starvis II sensor, providing excellent night vision capabilities with clarity comparable to daytime.
The camera supports Gyroflow, take you smooth and stable video quality.
It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
Connect SV output only to fan; connect GND to Uart RX/TX pads; input voltage 11.1V-25.2V; power consumption: 12V@1.5A, consider power supply capability; VTX generates heat, ensure airflow for heat dissipation.
Introducing the Walksnail Avatar GT Kit, featuring a high-quality 1080P camera capable of recording at 120fps, with 2-way VTX and support for up to 256GB SD cards.
-
