CaddxFPV Protos FPV Drone RTF Kit with Ascent Goggles, A-LINK ELRS Controller, 1080P/60 VTX, 2S Charger & Battery
-
Detail
Overview
The CaddxFPV Protos FPV Drone RTF Kit is a complete FPV drone RTF kit designed for instant, reliable flight. It integrates the Protos micro drone with Ascent Lite digital HD VTX, Ascent FPV goggles, an A-LINK ELRS controller, plus 2S battery and charging solutions. The system delivers 1080P/60FPS transmission, strong low-light imaging, and precise control for training, freestyle, and indoor/outdoor FPV.
Key Features
Feather-light digital VTX
6 g Ascent Lite HD VTX reduces weight while maintaining strong, stable FPV signal.
Optimized brushless power
1102 14000KV motors and efficient power delivery provide fast launches and responsive control; image shows 10 ms throttle response.
Your FPV view, refined
Ascent goggles feature a 4.5 inch high-resolution display (1920*1080 / 60 Hz), customizable diopter lenses, sleek LED accents, built-in high-gain antennas, and micro SD recording up to 256 GB.
Strong low-light performance
0.01 lux sensitivity, 1080P/60FPS video, and a 147° FOV help capture detail in challenging light; 16:9 aspect ratio.
Three intelligent flight modes

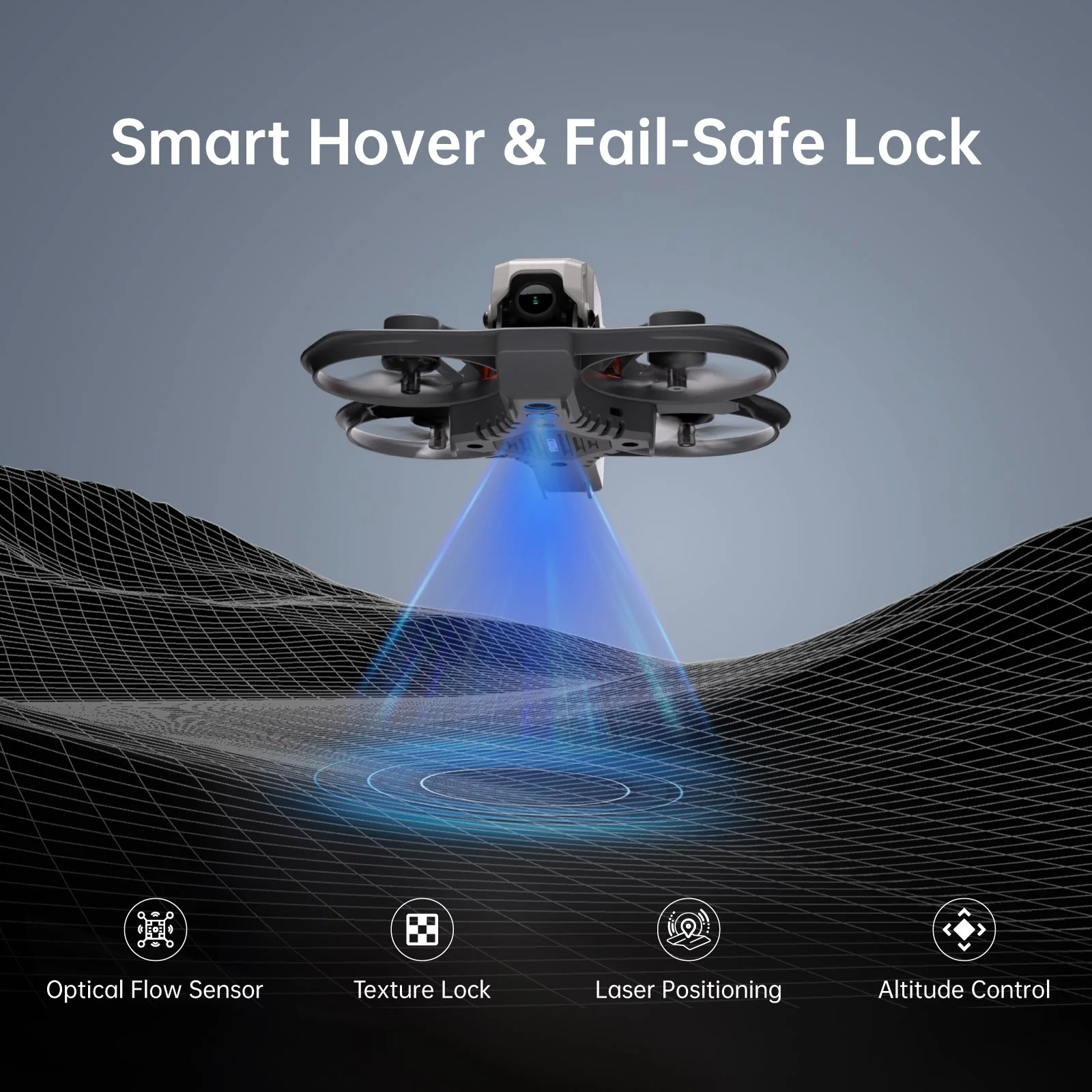

Poshold, Angle, and Acro modes support progression from beginner to advanced maneuvers. Optical flow enables precise indoor hovering; a fail-safe lock assists emergency recovery.
Stunts made easy
Flip, roll, 180° spin turn, and FOAC trick modes for smooth, repeatable acrobatics.

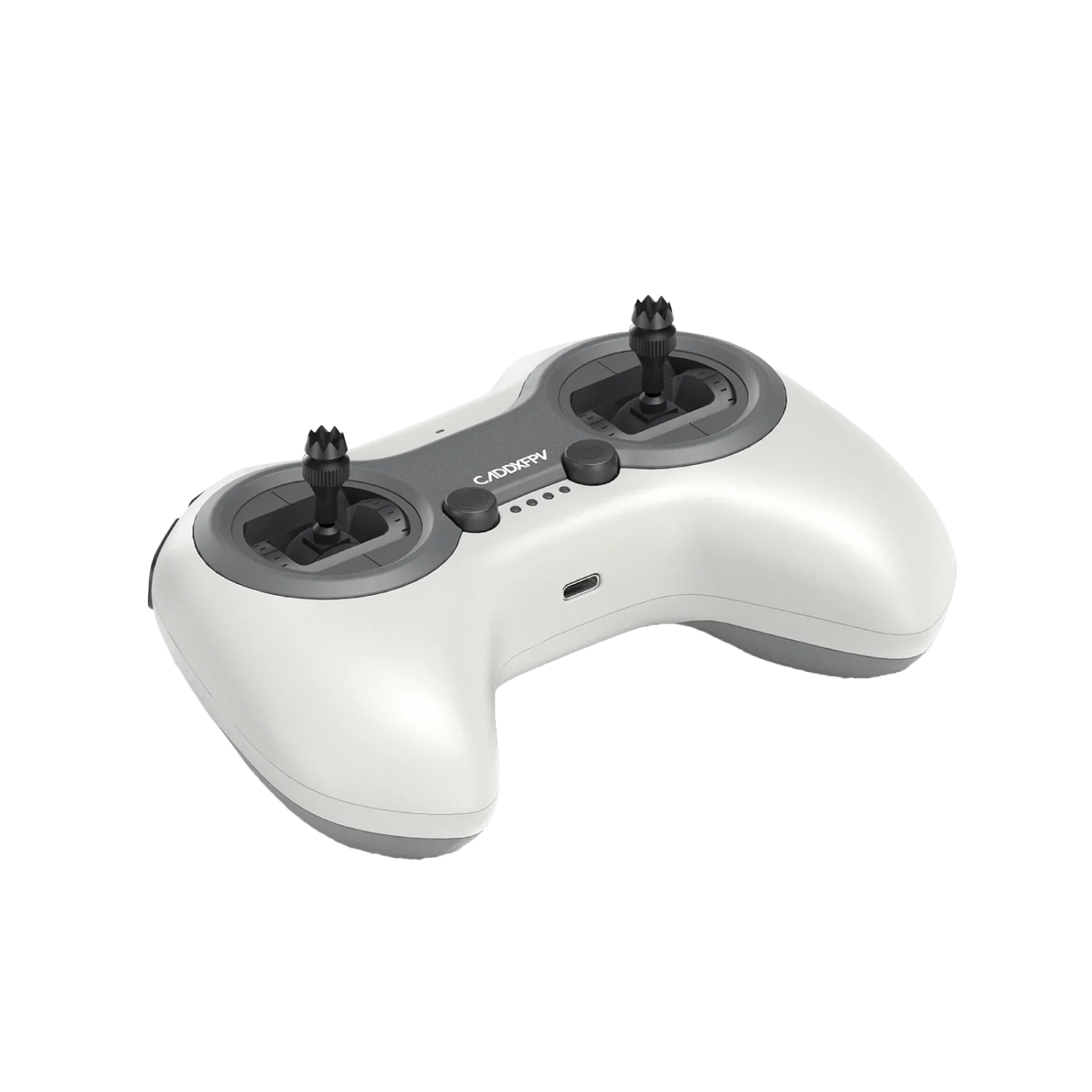

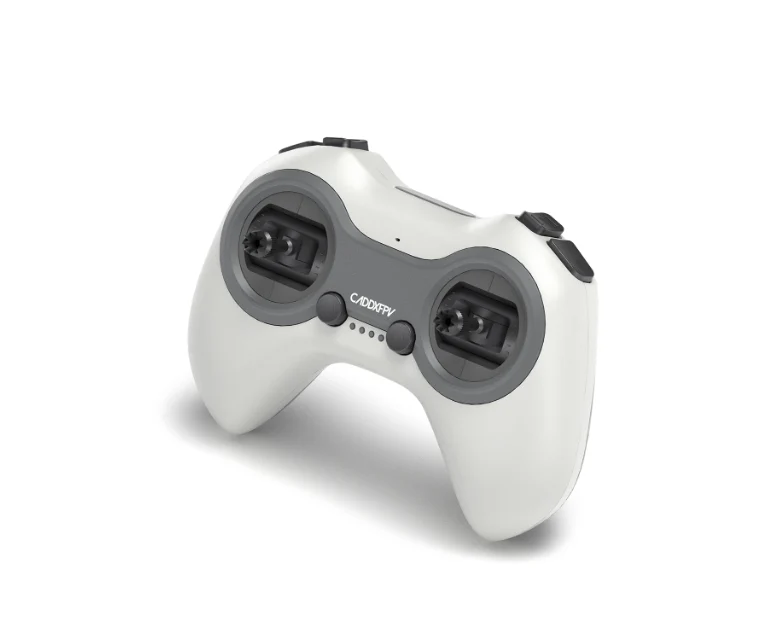

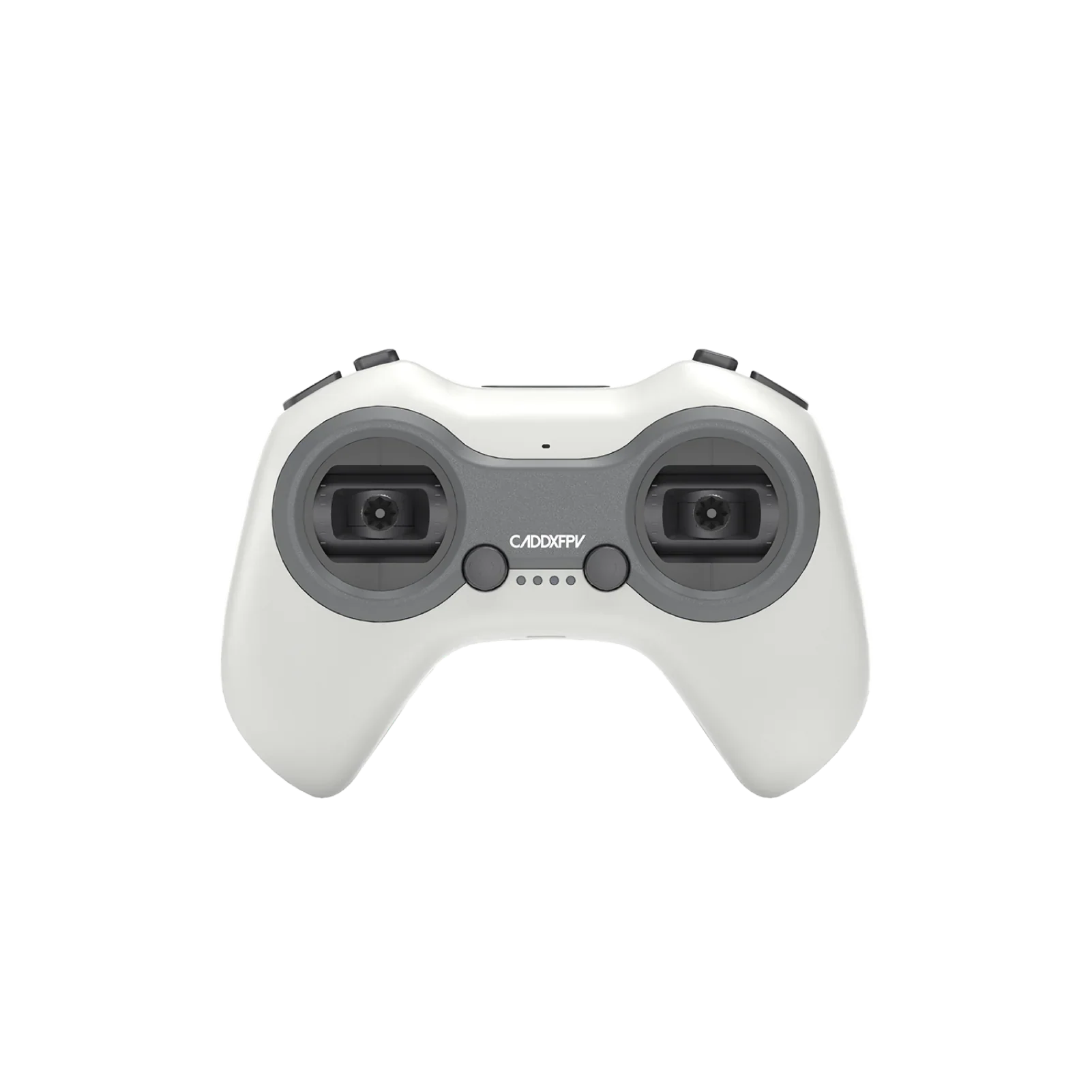

A-LINK ELRS control
ELRS 2.4 GHz link provides millisecond-level response, long-range performance, and simulator compatibility (e.g., Liftoff).

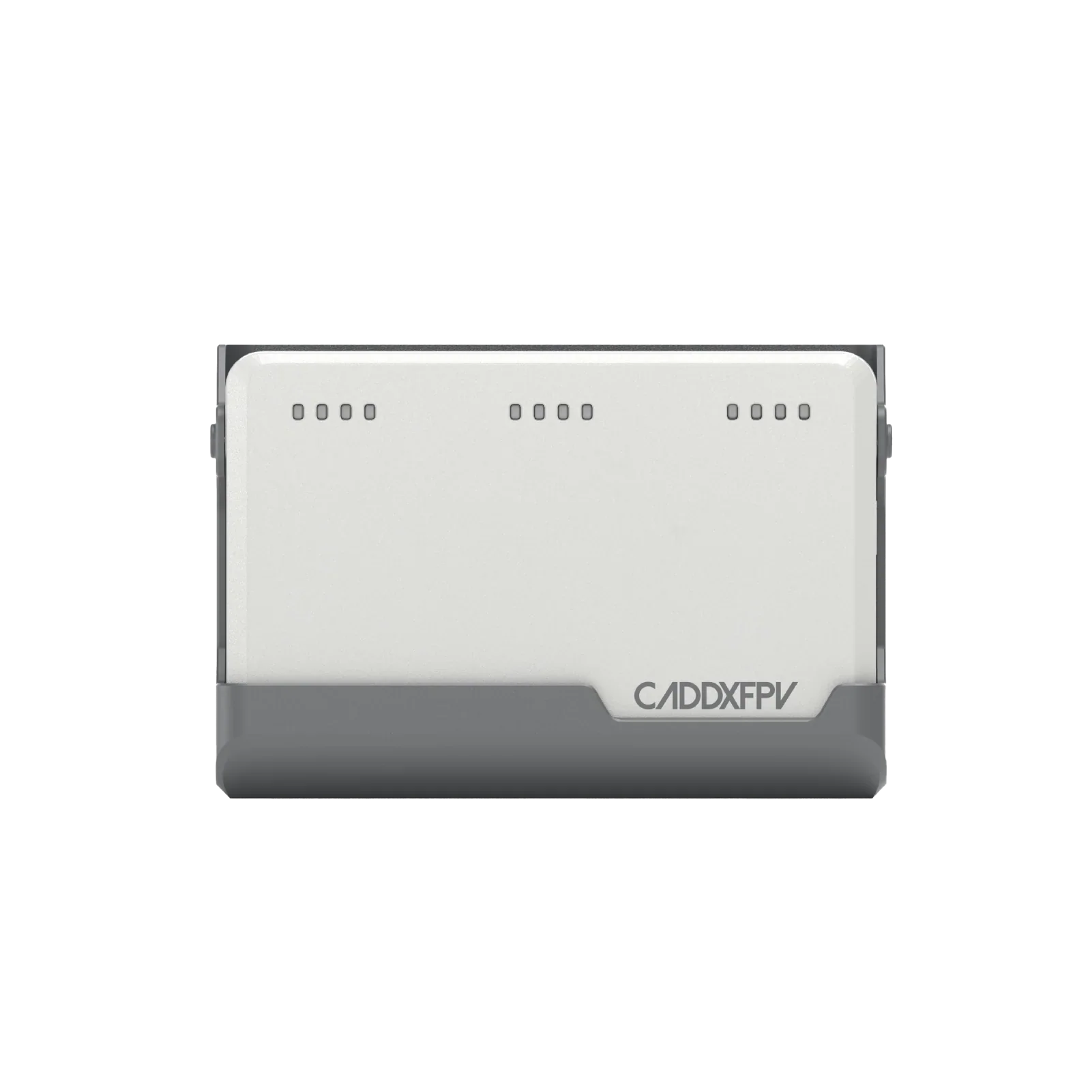

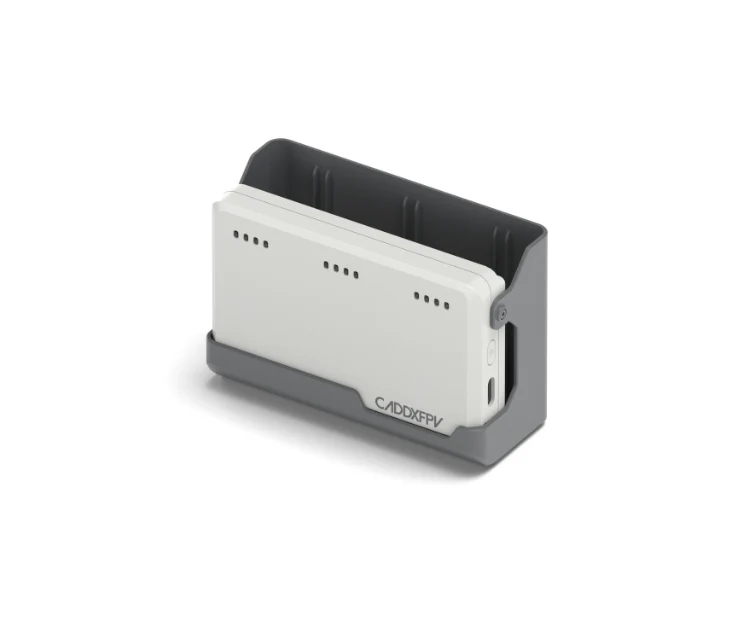

Smart charging
Type-C powered 2S charger with sequential 3-channel charging and storage mode; designed for convenient charging anywhere.
Customer service and after-sales support: support@rcdrone.top or https://rcdrone.top/.
Specifications

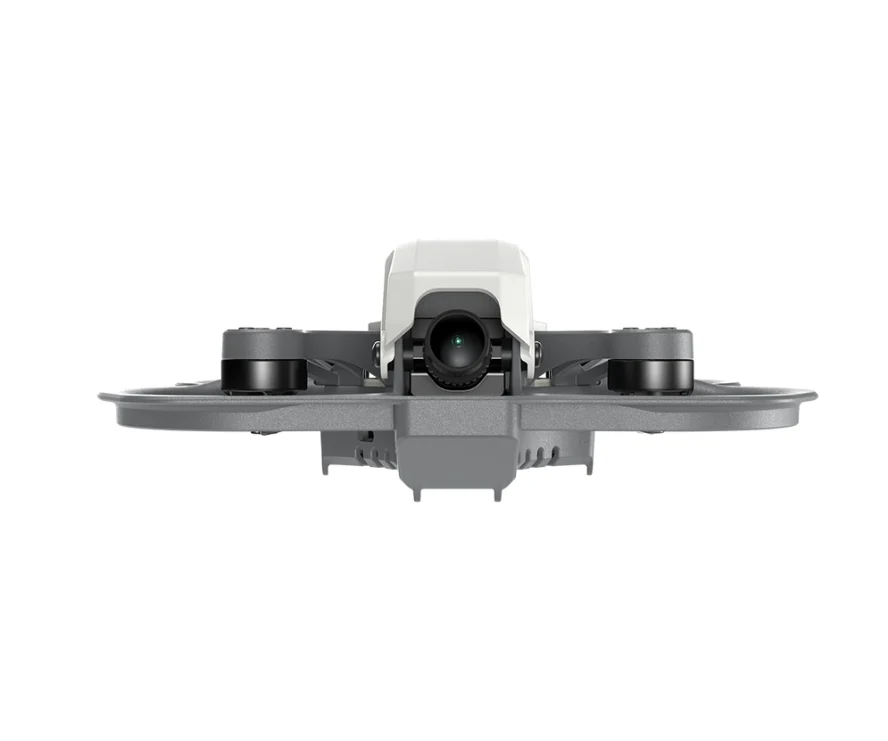

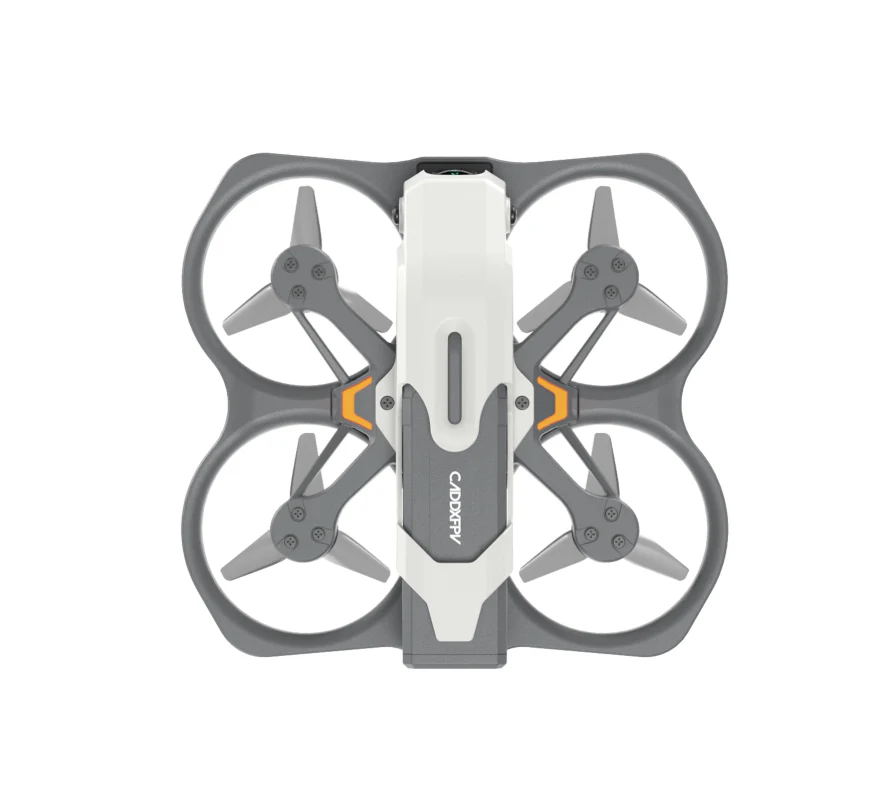

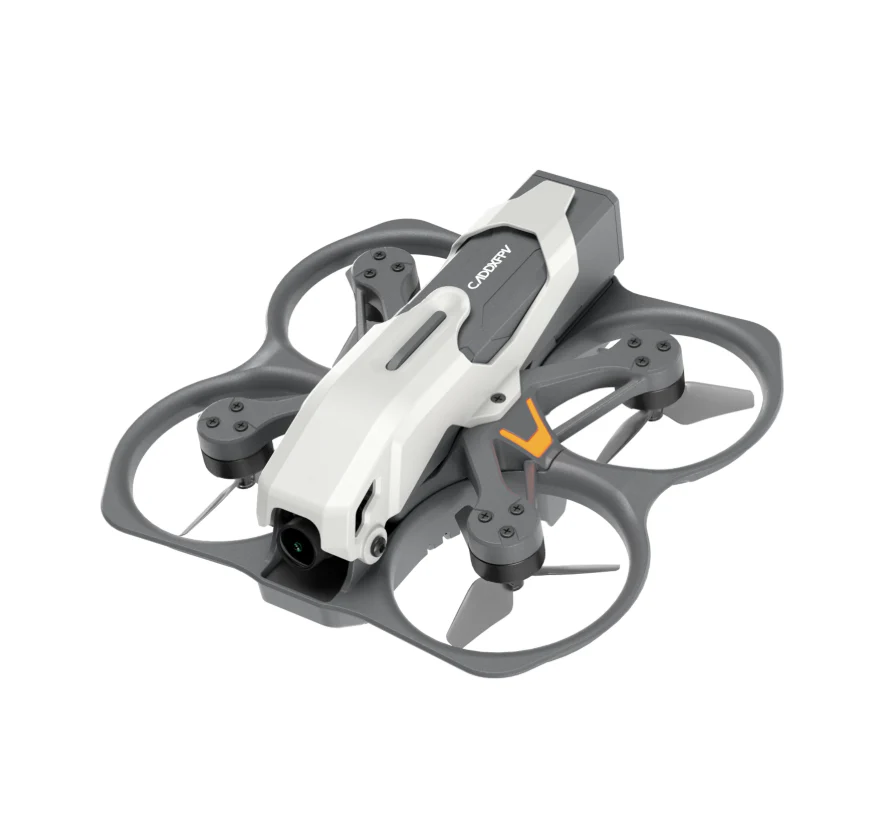

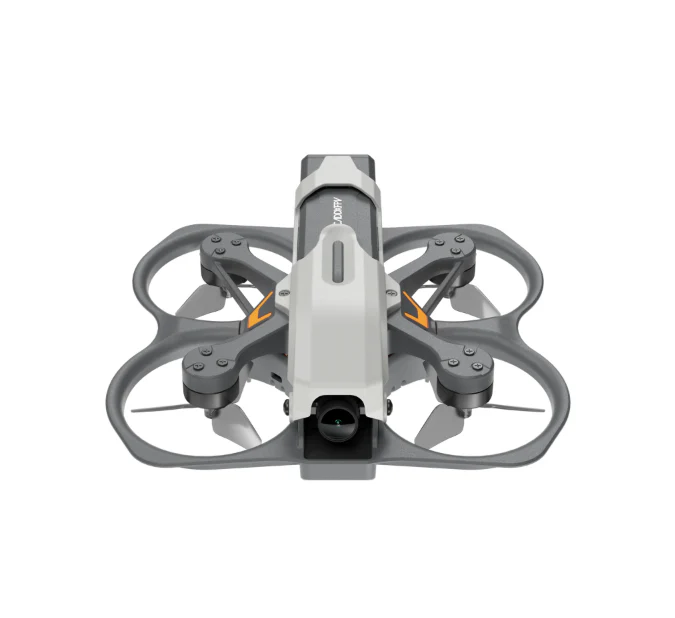

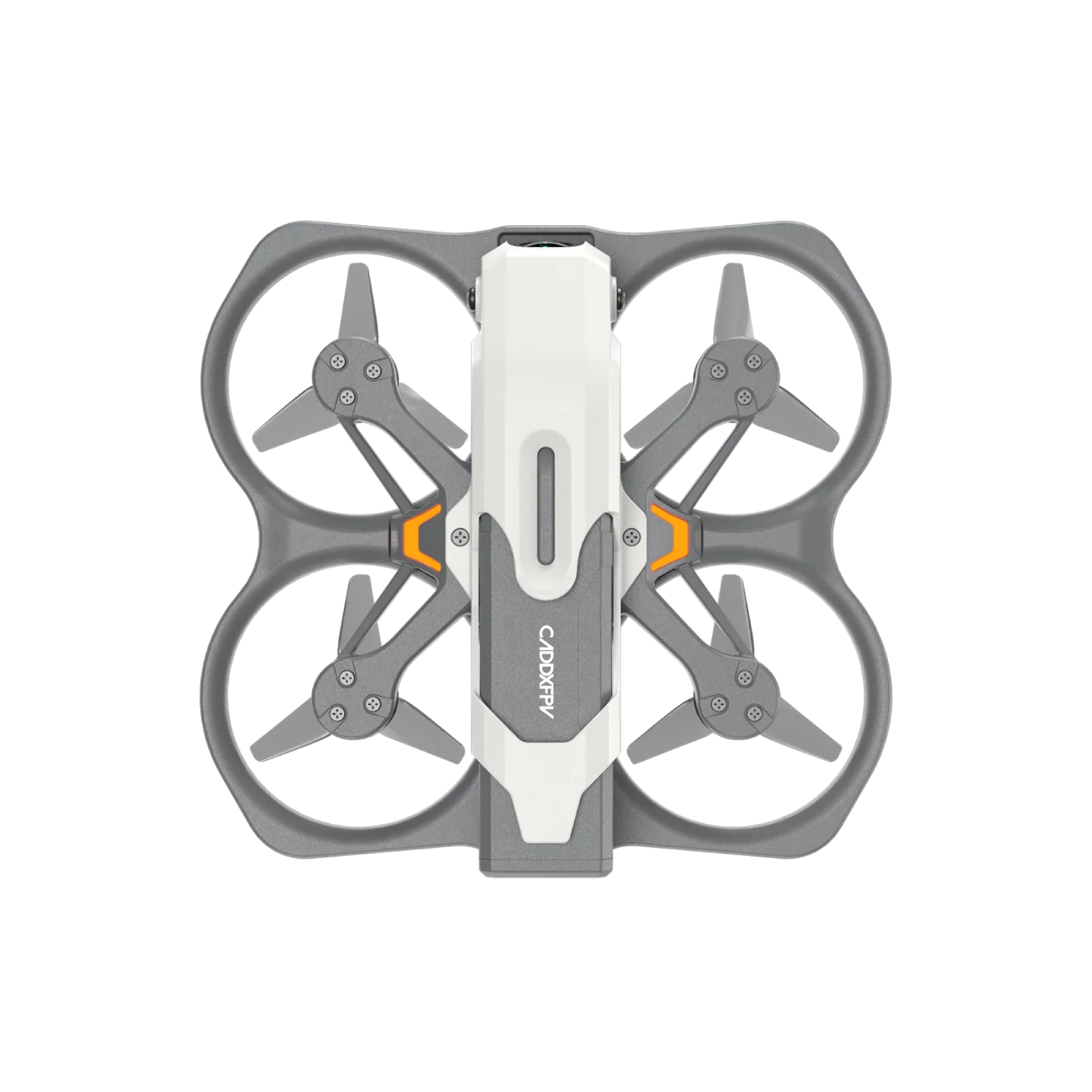

Protos Drone

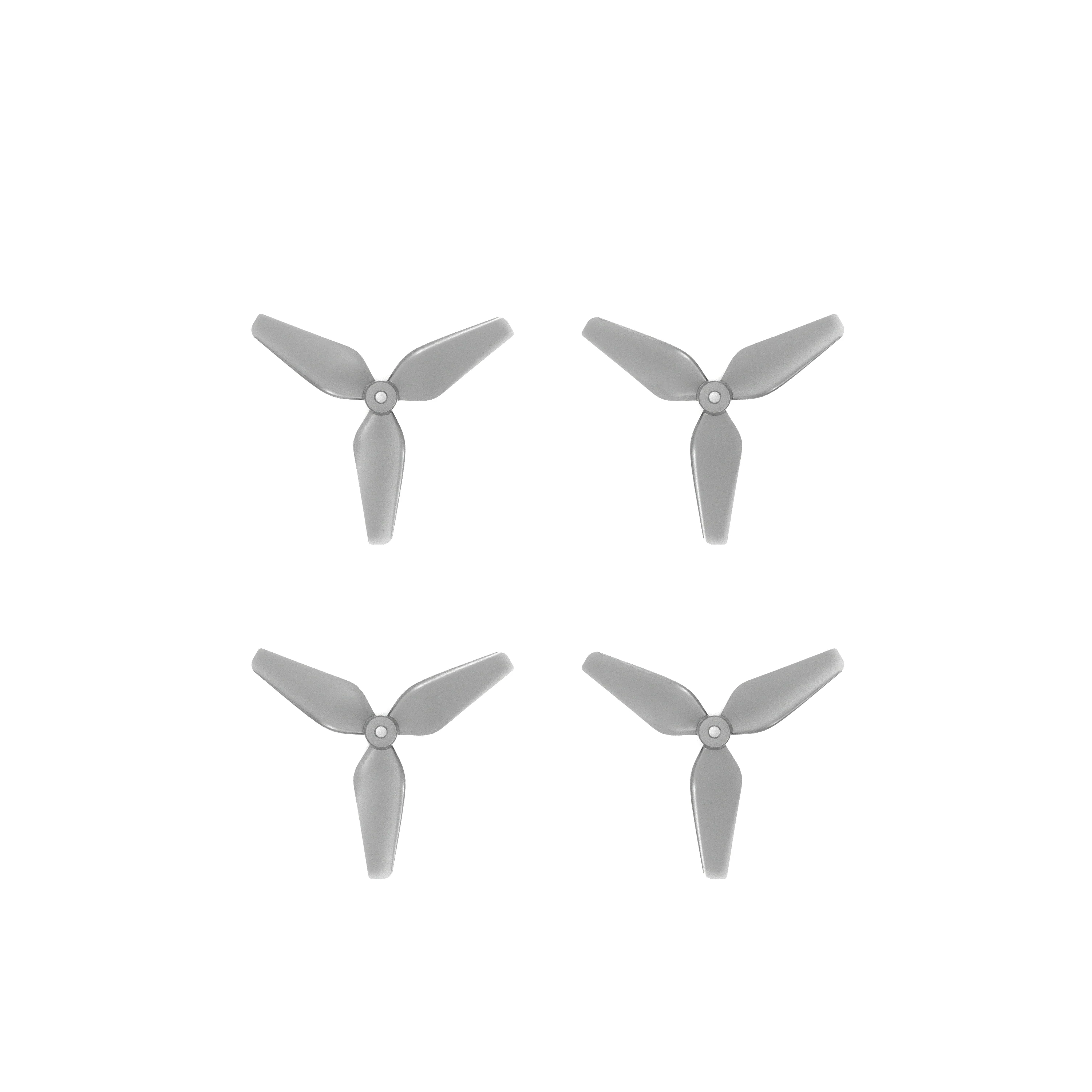

Flight control Caddx Protos Aio 1.0 Video transmission Ascent Lite Motor diagonal distance 78 mm Motor 1102 14000KV Propeller HQprop U40 mm x3GR-PC-1.5 mm Weight 104.4 g ±1.5 g Dimensions 110 x 102.8 x 41 mm Flight endurance 8.5 min ±0.5 min RC receiver ELRS 2.4 GHz Flight Controller
Main control chip STM32-F405RGT6 Gyroscope BMI270 Barometer SPL06 Onboard receiver ESP8285 ESC protocol compatibility Bluejay / BLHeli-S optional ESC maximum current 12 A (single channel) VTX (Ascent Lite)
Image sensor 1/2.8 inch sensor FOV 147° Aspect ratio 16:9 Resolution 1080P 60FPS; 720P 60FPS Built-in storage N/A Max transmission range Max 3 km Latency Average delay 35 ms Power 25–100 mW Ascent FPV Goggles
Communication frequency 5.725–5.850 GHz Transmit power (EIRP) FCC <30 dBm; CE <14 dBm; SRRC <20 dBm; MIC <25 dBm I/O interface 4-pin 3.5 mm plug; DC 5.5 x 2.1 mm; micro SD card slot Transmission resolution 1080P60FPS, 720P60FPS Code rate Max 50 Mbps Minimum latency Average 32 ms Average gain 4.9 dBi Polarization LHCP Transmission distance >4 km Channel 8 Screen resolution 1920*1080 / 60 Hz Screen material LCD Screen size 4.5 inch Wide voltage input 6 V–25.2 V (2S–6S) SD card slot Support 256 GB A-LINK ELRS Controller
Main control chip AT32 F413RCT7 RF module ELRS 2.4 GHz RF protocol CRSF Max RF power 100 mW (20 dB) Available channels 10 (including 4 joystick channels) Joystick type Full-bearing hall-sensor joystick assembly Function switch 1 x latching button; 2 x momentary buttons; 2 x 3-position toggle switches; 1 x scroll wheel Status indicators 4 LEDs; buzzer Charging/communication USB Type-C Battery specification LiPo 1S 1000 mAh Max charging power 5 V / 1 A / 3.50 W Operating voltage range DC 3.50–4.20 V Dimensions 158 x 108 x 58 mm Weight 180 g ±5 g 2S Charger
Name 2S Charger Display LED x4 Channel 3 (sequential charging) Function selection Charging; storage Input voltage 12–15 V (PD input; 5 V adapter not supported) Output voltage 8.7 V Input current Max 3 A Charging current Max 3 A Balancing current Max 0.21 A Charging power Max 25 W Discharging power Total 5 W (Max 1.6 W per channel) Operating temperature -10–45 °C Storage temperature -20–60 °C Dimensions 94 x 63 x 39.1 mm Weight 65 g ±0.5 g 2S Battery

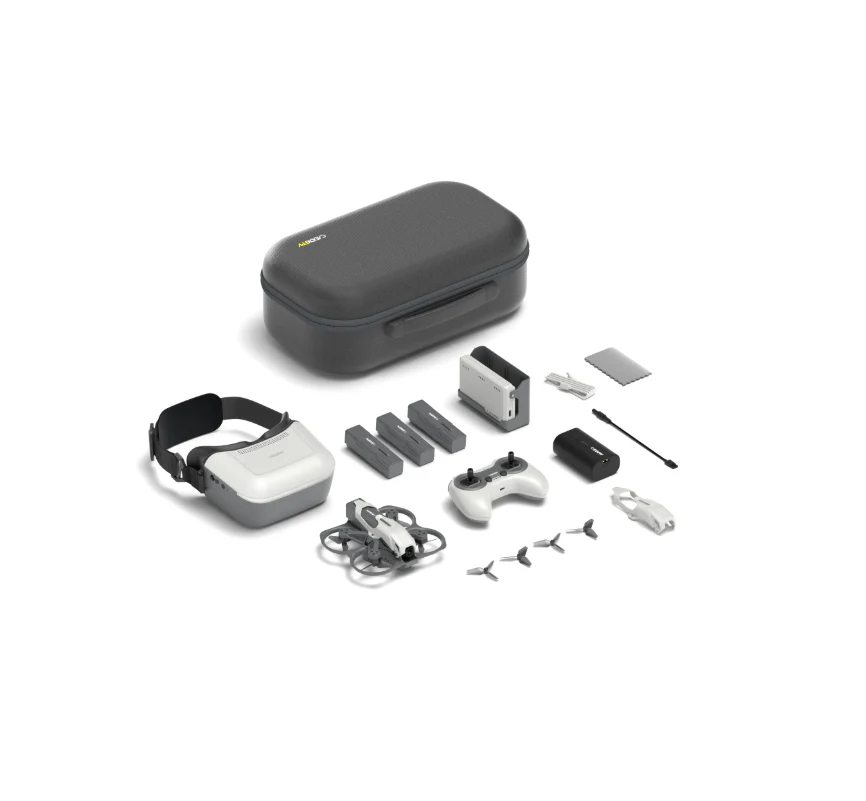

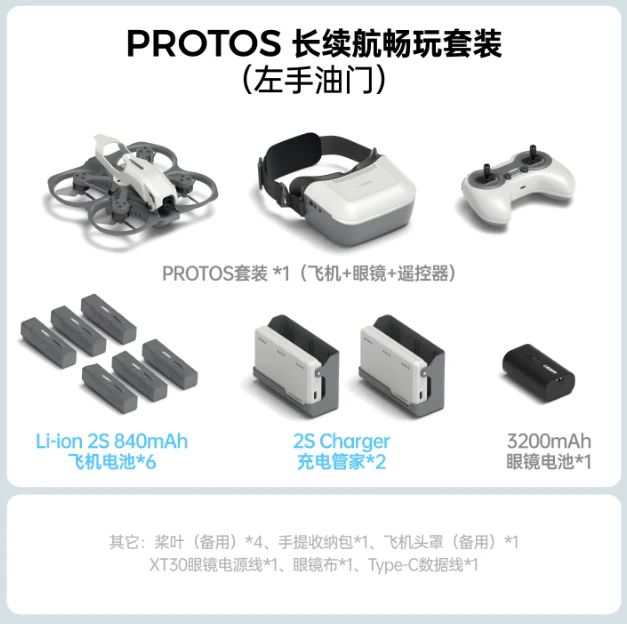

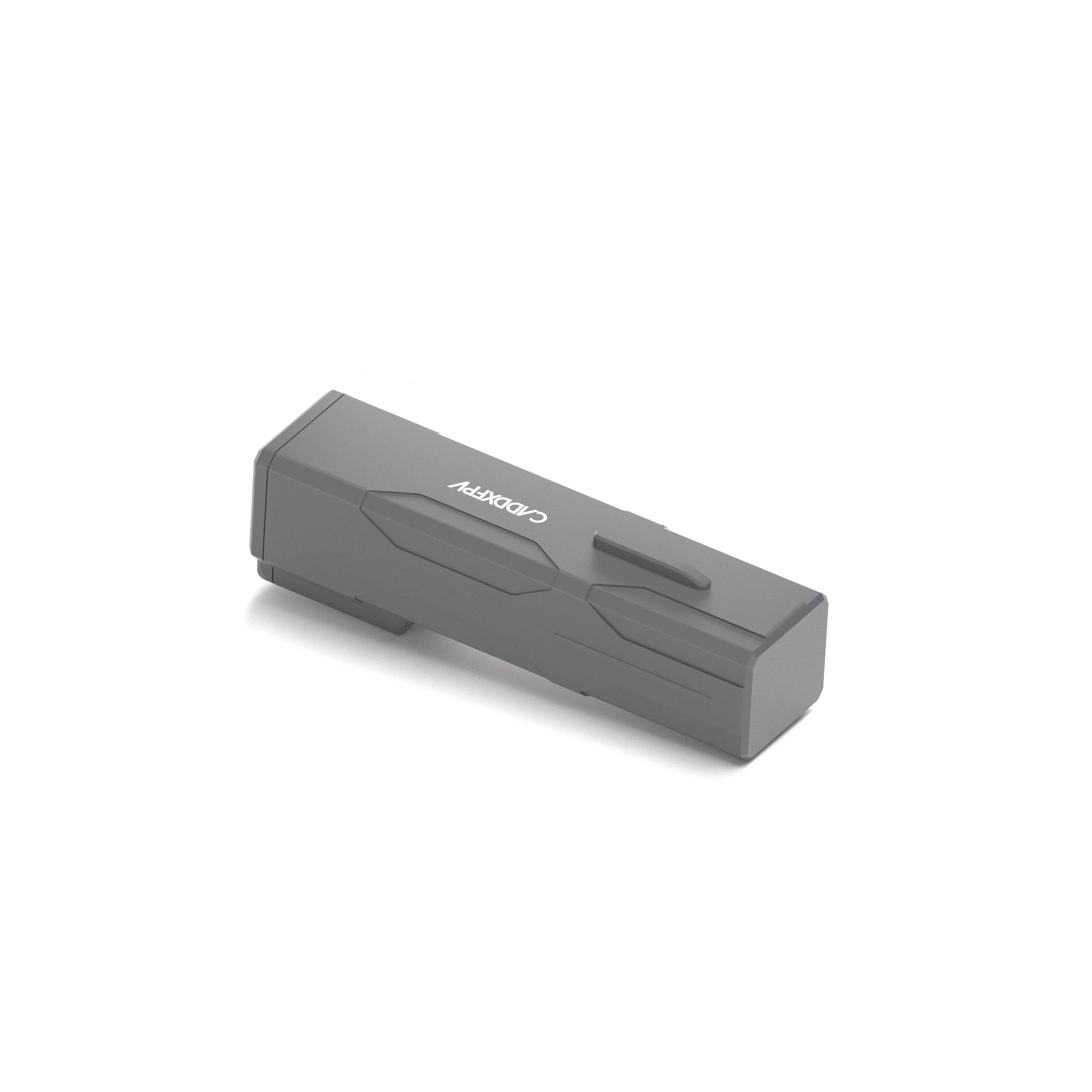

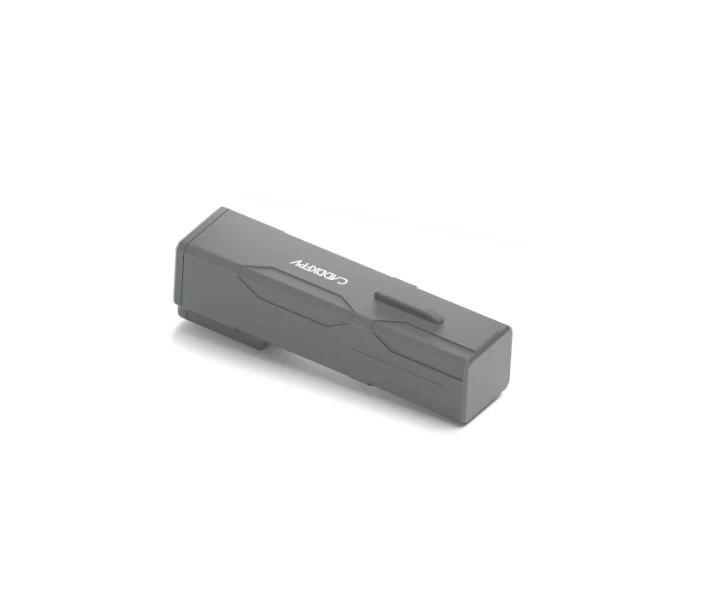

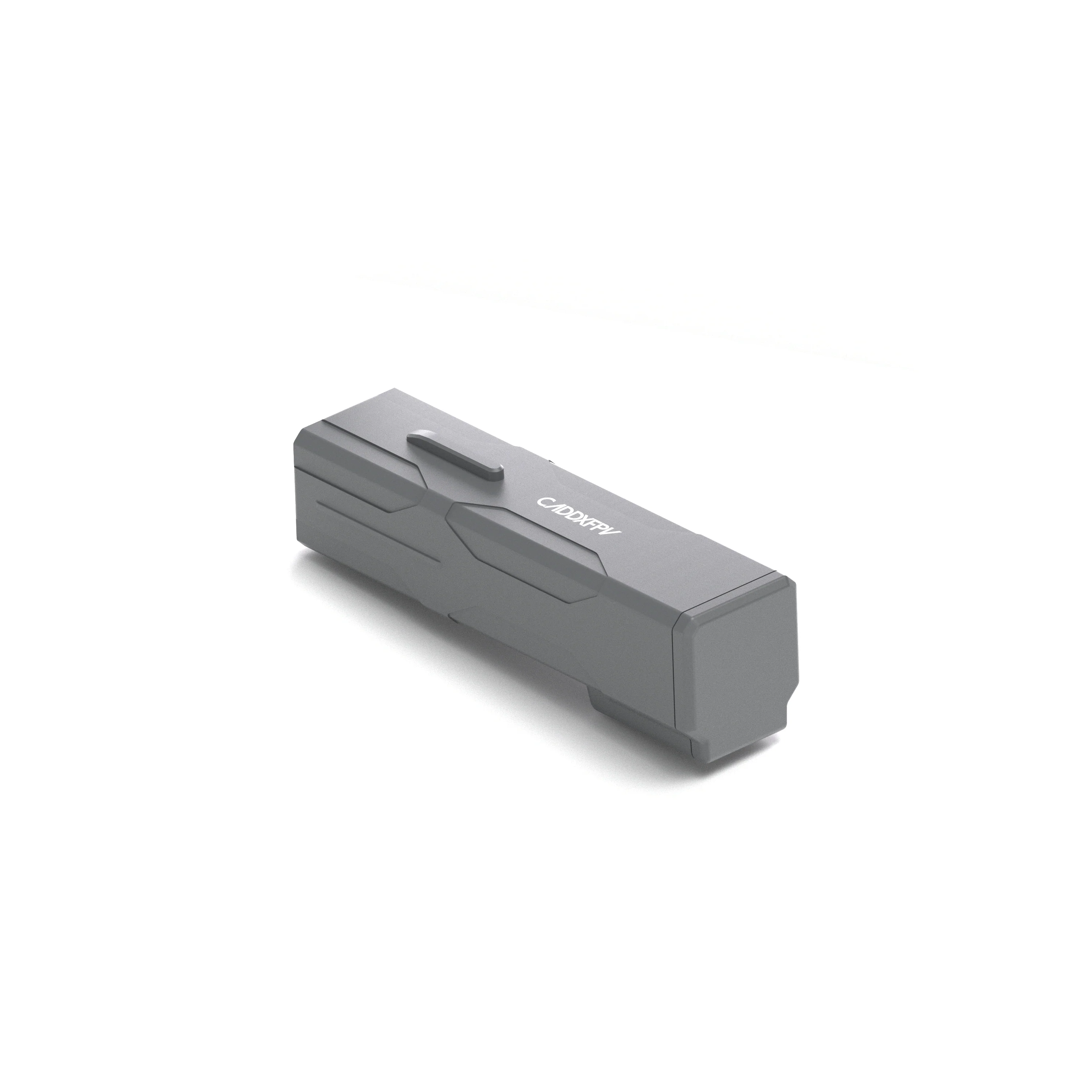

Name 2S Battery Battery type Li-ion Capacity 840 mAh Specification 2S1P (2 cells in series, 1 in parallel) Discharge rate 15C Maximum power 6.384 Wh Voltage range 6.80–8.70 V Max charging voltage 8.5 V Charging method 2S Charger Charging time <= 20 min Protection Cell <2.8 V triggers lock protection; charging required to reactivate Dimensions 77.5 x 24 x 21 mm Weight 41.9 g ±0.5 g What’s Included

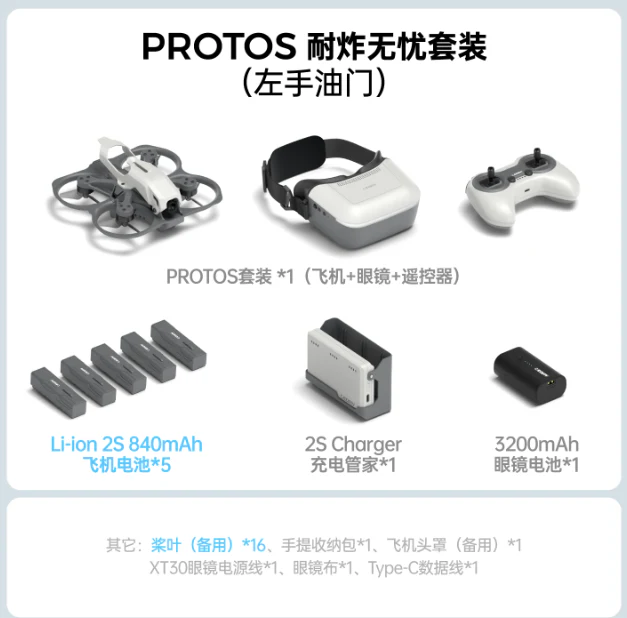

- Protos FPV drone with Ascent Lite digital HD VTX

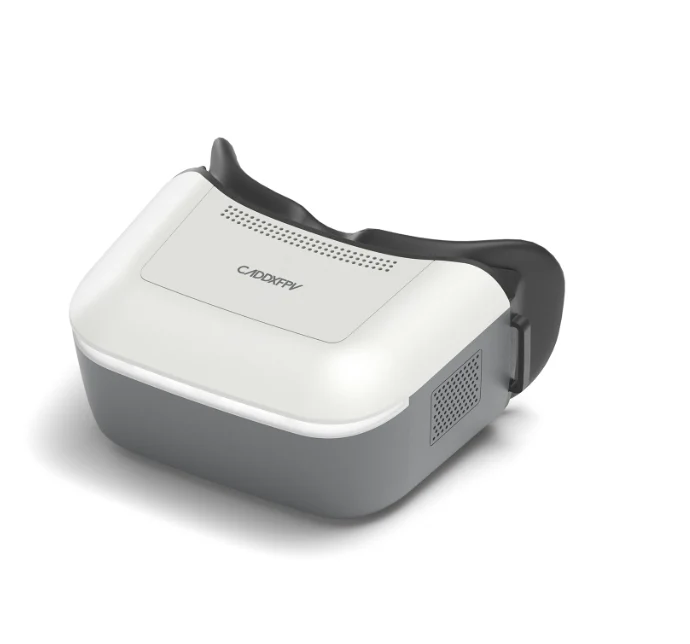

- Ascent FPV goggles (4.5 inch LCD, micro SD support)
- A-LINK ELRS controller
- 2S charger
- 2S Li-ion battery
*The first 200 orders include a complimentary charger plug; Type-C cable compatible.
Applications
- Indoor flight and hover training
- Outdoor camping and casual FPV
- Drone racing practice
- FPV training and skill progression
Manuals
Details
Features a 2MP FPV HD camera, 1080p/60fps video, 10-minute flight time, 100g lightweight design, 5.8GHz transmission, 10ms throttle response, and a max speed of 10 m/s.
Ultra Low Latency HD VTX System: 6g weight, 3km range, 30ms latency, strong signal penetration through dense forests for reliable FPV drone performance.
Man wearing VR headset views coastal cliff scene with telemetry data.

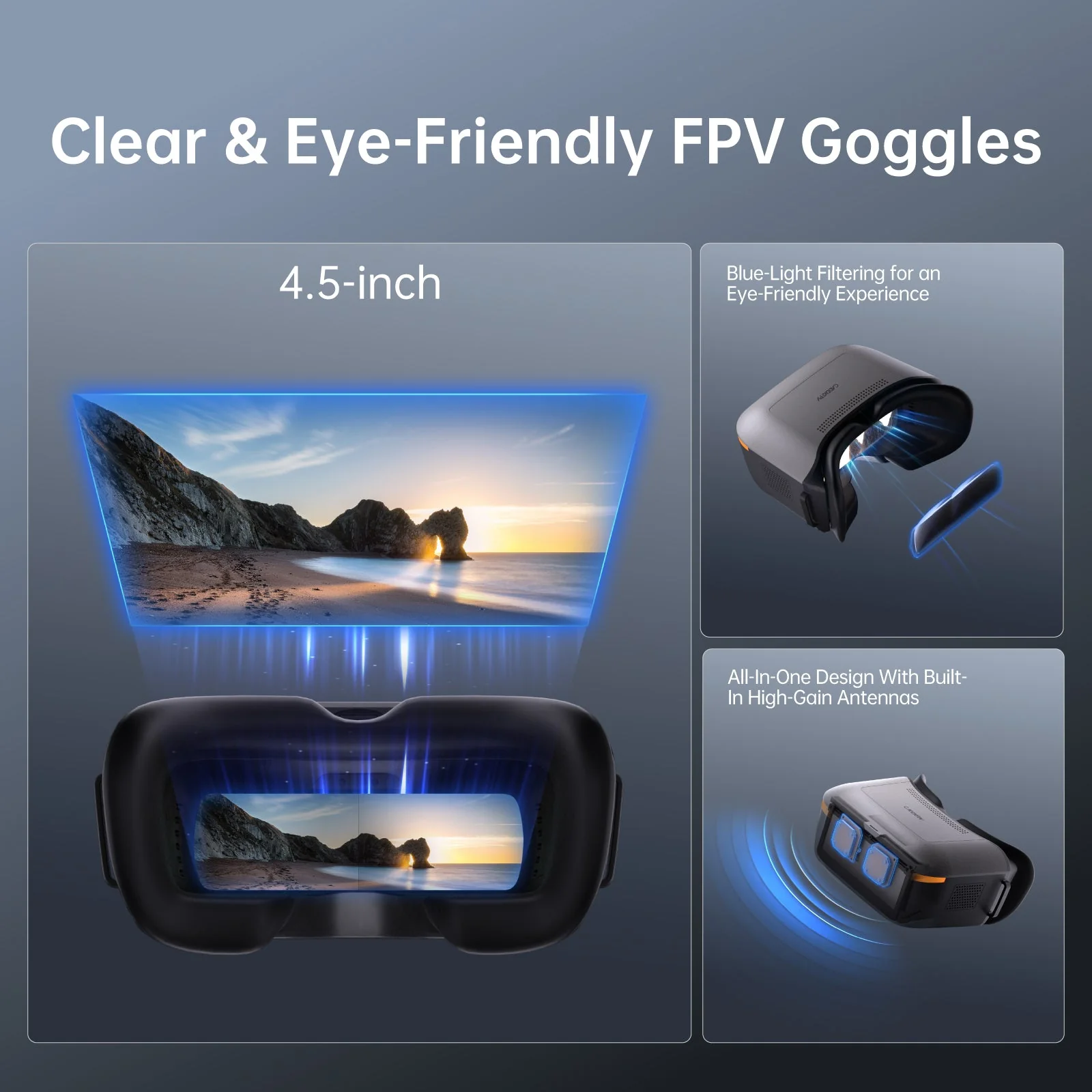

CaddxFPV offers 256GB storage, customizable lenses, sleek LEDs, and built-in high-gain antennas for enhanced performance.
Poshold, Angle, and Acro modes demonstrated for CaddxFPV drone flight capabilities.
CaddxFPV controller offers 100mW power, 10 channels, 30s frequency matching, and Hall Effect joysticks for precise outdoor drone control.
Indoor flight, outdoor camping, drone racing, FPV training scenes.
-
