CADDXFPV Gofilm 20 4S 2-Inch 4K Starlight Cinewhoop FPV Drone with Avatar Moonlight Kit, ELRS 2.4G

Overview

The CADDXFPV Gofilm 20 is a compact and powerful , designed to meet the demands of both freestyle pilots and professional filmmakers. As the first FPV drone from CADDXFPV, it integrates the Avatar Moonlight Kit to deliver ultra-low latency 4K/60fps starlight video performance, redefining the HD FPV experience both day and night. Weighing approximately 115g with a 94mm wheelbase, it combines lightweight agility with robust features, making it ideal for indoor, outdoor, cinematic, and competitive flights.

Key Features

• Starlight 4K Imaging: Equipped with the (F2.1, 160° FOV, ISO 100–25600) with EIS and Gyroflow support, capturing crisp and low-noise footage even in low-light conditions.

• Moonlight Digital VTX: Records in 4K@30/60fps, 1080p@100fps, and supports up to 150Mbps with 22ms average latency.

• Integrated CADDXF4 AIO Flight Controller: Includes ELRS 2.4G receiver (UART), STM32F405 MCU, ICM42688 gyro, and 20A 4-in-1 ESC with 8MB Blackbox.

• Optimized Power System: Custom paired with HQProp T2×2×3 props and a recommended 650mAh 4S battery for up to 5.5 minutes of stable flight.

• Durable Lightweight Frame: 94mm carbon frame with injection-molded damping system for smooth video, XT30 plug, crash resistance, and dual mounting holes (20mm / 25.5mm).

Specifications

Drone Parameters

Flight Controller (CADDXF4_AIO_ELRS)

VTX (Moonlight Kit)

Frame Kit Features

• 94mm wheelbase with camera damping structure

• Injection-molded body for tool-less installation

• Built-in XT30 port for secure power connection

• Standalone frame weight: 30.5g

• Supports analog and digital VTX systems

• Crash-resistant and heat-resistant

Package Includes

• 1 x Gofilm 20 Cinewhoop BNF HD w/ Walksnail Moonlight - ELRS 2.4GHz
• 4 × M2*6mm screws
• 4 × M2*8mm screws
• 1 × 1.5mm Allen wrench
• 1 × USB data cable
• 1 × Micro USB data cable
• 1 × 180mm battery strap
• 1 × Paddle set
• 1 × Instruction manual

Details

Amid the fast-paced evolution of the FPV industry and in response to market feedback, our R&D team proudly introduces the Gofilm 20—CaddxFPV’s first-ever FPV drone. Designed to meet the demands of a wide range of pilots, it also marks a milestone as the market’s first 4K starlight FPV drone.

Powered by the Avatar Moonlight Kit, the Gofilm 20 unlocks new creative potential for FPV pilots—delivering ultra-stable, high-definition footage with virtually no latency. Whether flying by day or capturing low-light scenes at night, it makes cinematic-quality imaging effortless, setting a new standard for HD FPV performance.

Compact and Refined Design:

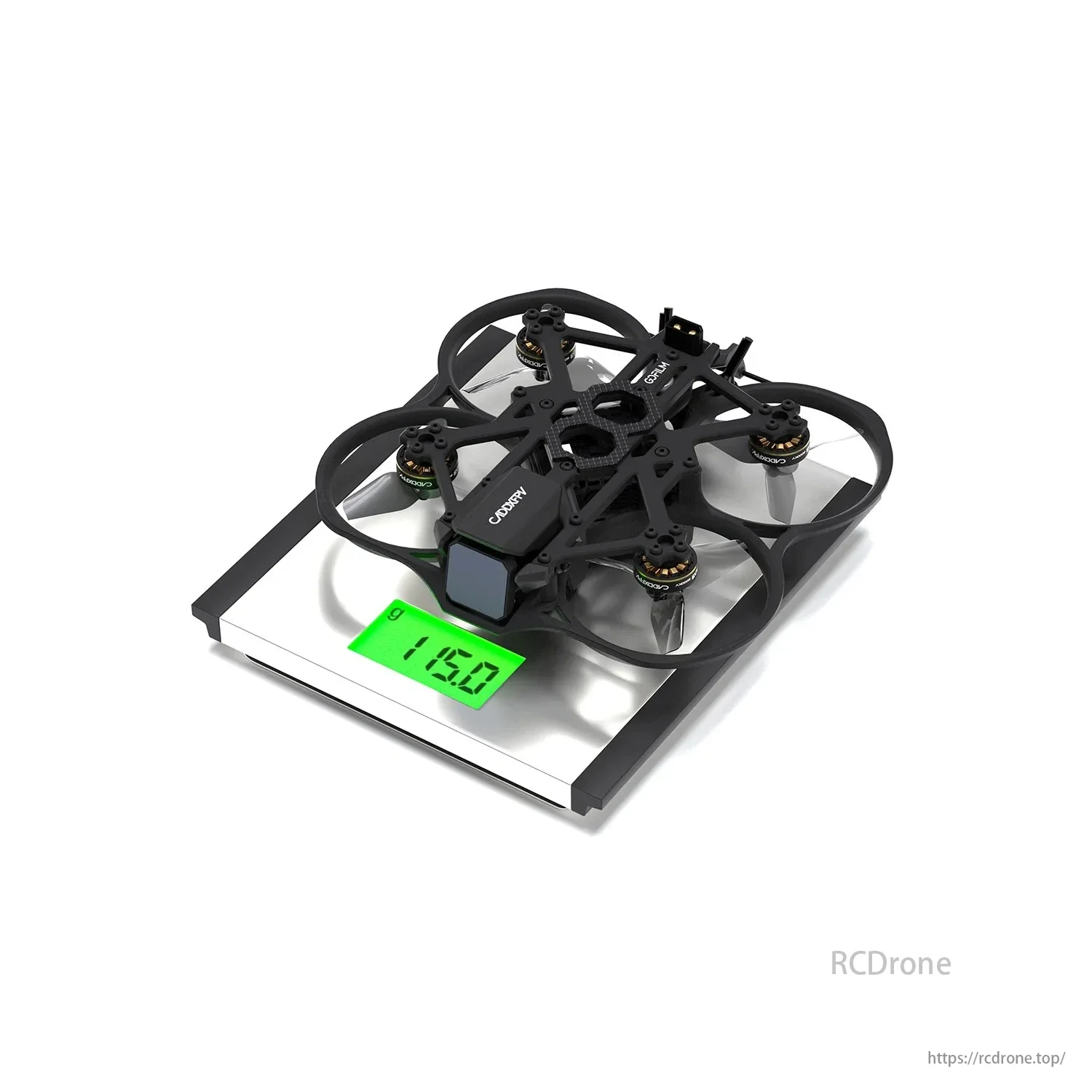

The Gofilm 20 boasts a lightweight, compact build, weighing approximately 115g for agile maneuverability and longer flight times. Its 94mm wheelbase, combined with a powerful propulsion system, delivers responsive handling and impressive speed—making it both nimble and performance-driven in tight indoor spaces or open outdoor skies.

HD Digital VTX System:
Equipped with the Moonlight Kit, the Gofilm 20 delivers outstanding image clarity and superior low-light performance, making it ideal for night-time FPV shooting. It supports true 4K resolution at 60fps, capturing smooth, high-definition footage with minimal latency to enhance the overall flying experience.
Advanced features like EIS and Gyroflow stabilization, along with manual shutter and ISO control, give pilots professional-grade control over their footage. The 160° field of view on the Moonlight camera ensures a wide, natural perspective for immersive visuals.
With both 25.5mm and 20mm mounting hole options, the system supports a wide range of compatible accessories for maximum flexibility.

Gofilm 20 Frame Kit:
Built with a 94mm wheelbase, the Gofilm 20 frame incorporates a camera damping design for smoother, more stable video capture. Its integrated injection molding construction simplifies assembly—no need to constantly adjust screw tension. A built-in XT30 plug reduces wire damage risks, while the frame itself weighs just 30.5g, offering excellent durability, crash resistance, and heat tolerance. Compatible with a wide range of analog and HD VTX systems for maximum flexibility.

Flight Controller:
The Gofilm 20 features an integrated AIO flight controller with a built-in ELRS receiver, supporting a 3S to 4S power input range. This setup ensures reliable signal performance and stable control for a seamless flying experience.

High-Efficiency Propulsion System:
Equipped with custom 1303 6000KV motors optimized for 2-inch propellers, the Gofilm 20 delivers smooth, responsive power. Paired with a recommended 650mAh battery, it offers up to 5.5 minutes of stable flight time—ideal for capturing breathtaking aerial shots without interruption. Experience next-level performance with every flight.

The Gofilm 20 is ideal for both indoor and outdoor use, performing exceptionally well in diverse scenarios like competitions and professional filming. Its adaptability enables you to explore various flying environments, greatly enriching your overall flight experience.

CADDXFPV GoFilm 20 drone with box, quick start guide, spare props, screws, and tools included.
