CaddxFPV Gazer Analog Camera – 1/1.8in sensor, F1.0 2.8mm lens, 1500TVL, PAL 720x576 50fps, 3x FC zoom, D/N filter

$76.3
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Overview

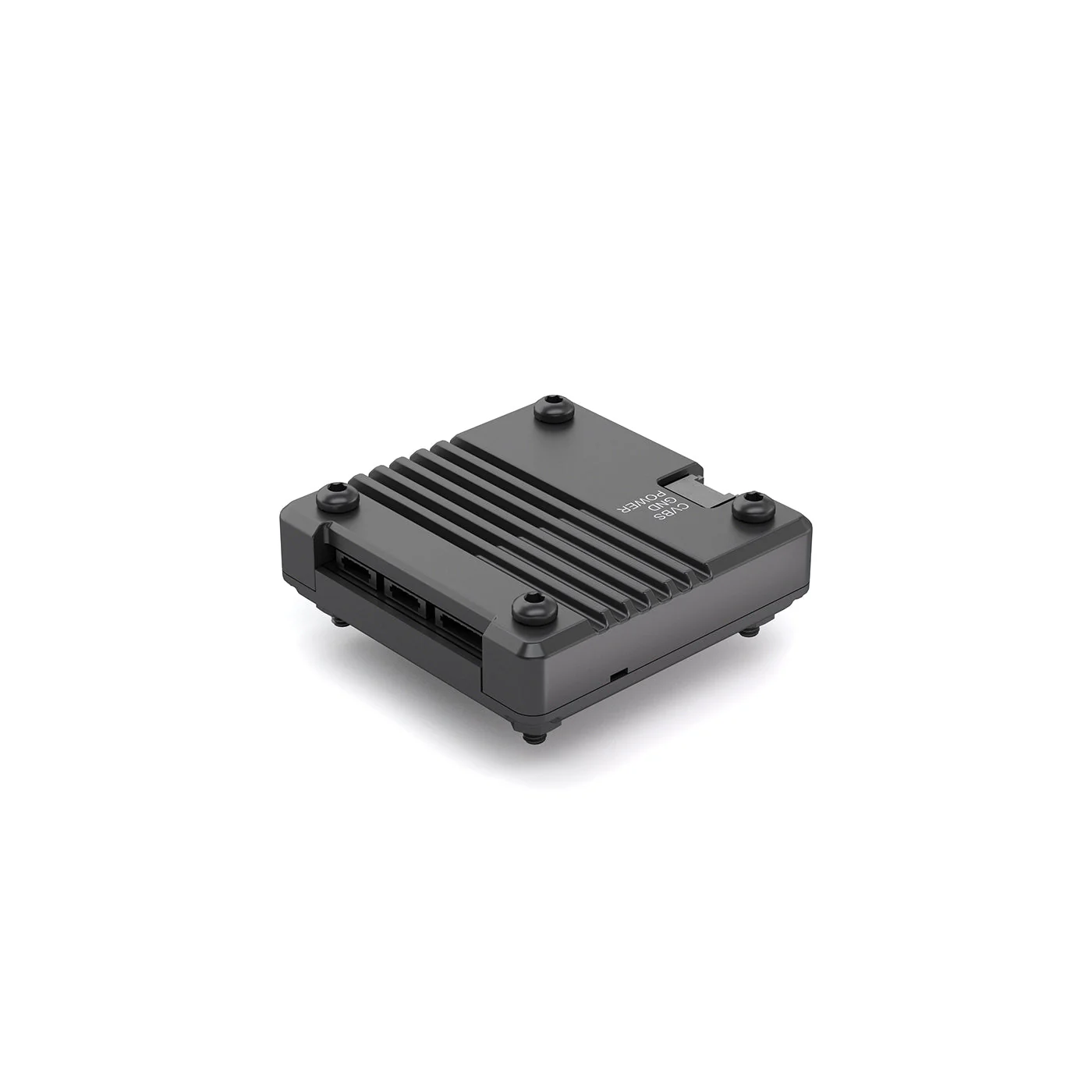

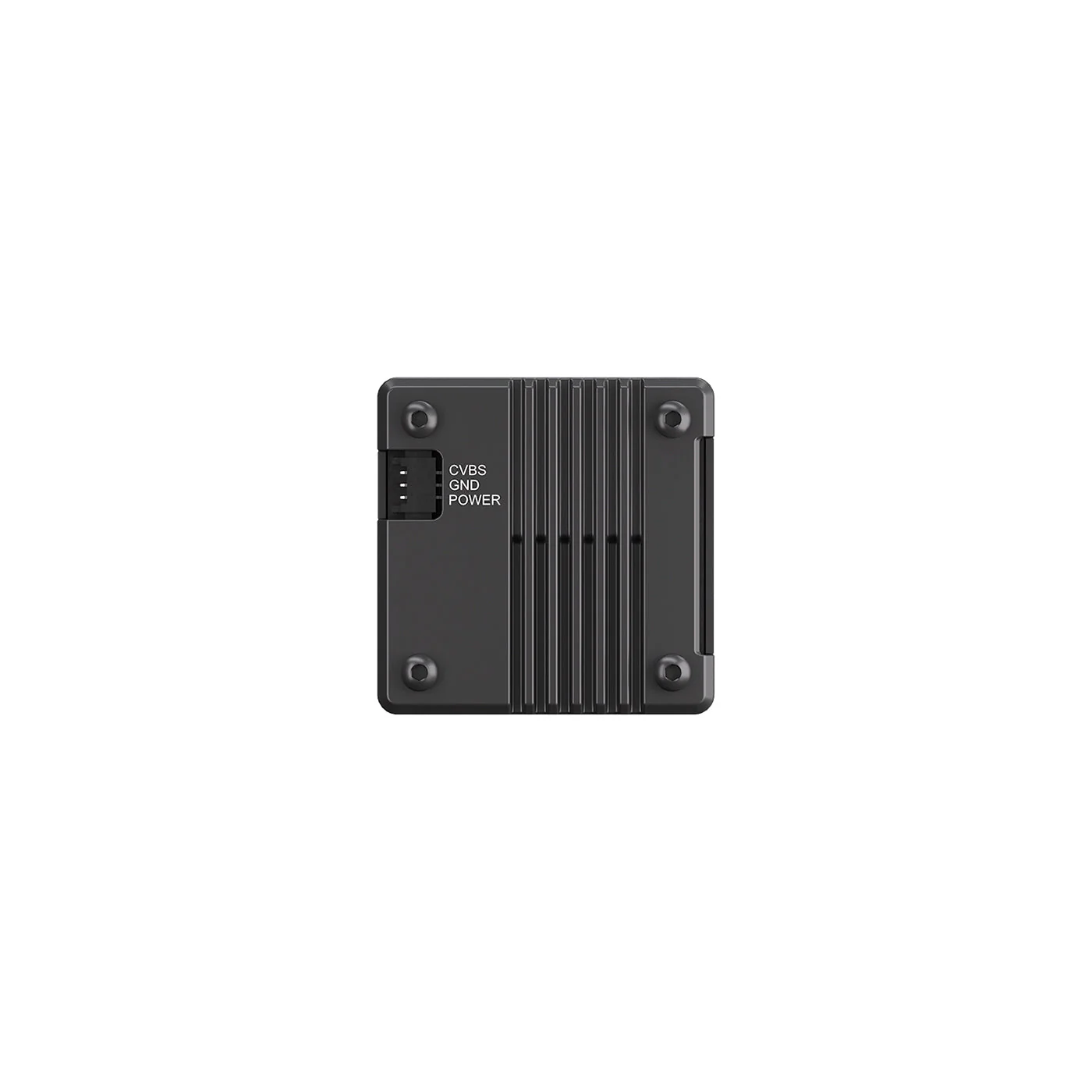

    The CaddxFPV Gazer Analog Camera is an analog FPV camera system built for full‑color visibility in ultra‑low light. It pairs a 1/1.8 in image sensor with an AI processing box to enhance brightness, reduce noise, and maintain natural colors in day or night conditions. The system outputs PAL 720x576 at 50 fps with 1500 TVL horizontal resolution for clear, consistent analog video.

    Key Features

    • Ultra‑low illumination performance for full‑color night vision
    • AI image enhancement: dynamic brightness boost and noise reduction
    • 3x magnification via flight controller (FC) control
    • Removable filter with FC‑controlled Day/Night switching
    • F1.0 aperture and 2.8 mm focal length for high light intake
    • 131.6° field of view, 4:3 aspect ratio
    • PAL output at 50 fps; video interface: 1x PAL
    • Wide operating voltage: 9–24 V; typical power consumption <2 W
    • Operating temperature: −20°C to 60°C

    For product questions or support, contact support@rcdrone.top or visit https://rcdrone.top/.

    Specifications

    ModelCaddx Gazer
    Image sensor1/1.8 in
    ResolutionSensor: 1920x1080 (2 MP); Output: 720x576
    Horizontal resolution1500 TVL
    Focal length2.8 mm
    ApertureF1.0
    FOV131.6°
    FilterManually removable
    Output formatPAL
    Frame rate50 fps
    Magnification3x (zoomed in by FC)
    Image quality modesD/N (switched by FC). Recommended: filter installed in D mode (day), removed in N mode (night)
    Aspect ratio4:3
    Video interface1x PAL
    Supply voltage9–24 V
    Typical power consumption<2 W
    Operating temperature−20°C to 60°C
    DimensionsCamera: 20x20x28.54 mm; AI Box: 34x34x8.65 mm

    What’s Included

    • Gazer camera system ×1
    • Quick Start Guide ×1
    • 6‑pin silicone cable ×1
    • 3‑pin silicone cable ×1
    • 6 mm screws ×2
    • 5 mm screws ×2
    • 4 mm screws ×2
    • Screw washers ×2

    Applications

    • FPV flight in low‑light and night environments
    • Wildlife observation
    • Industrial inspection
    • Search and rescue

    Manuals

    Quick Start Guide included in the package.

    Details

    CaddxFPV Gazer Analog Camera, The product combines a 1/1.8 inch image sensor with an AI processing box for improved brightness, reduced noise, and preserved color accuracy.CaddxFPV Gazer Analog Camera, Enhances brightness, reduces noise, and maintains natural colors for day or night photography using AI processing.CaddxFPV Gazer Analog Camera, Combines image sensor and AI box for enhanced brightness, reduced noise, and natural colors in daytime or nighttime conditions.CaddxFPV Gazer Analog Camera, Camera system for low-light and night environments, suitable for FPV flight, wildlife observation, industrial inspection, and search and rescue.CaddxFPV Gazer Analog Camera, FPV flight, wildlife observation, industrial inspection, search and rescue applications.

    FPV flight, wildlife observation, industrial inspection, search and rescue applications.

    CaddxFPV Gazer Analog Camera, Package includes Gazer camera, guide, cables, screws (5mm, 4mm, 6mm), and washers for easy setup.

    Package includes Gazer camera, Quick Start Guide, 6Pin and 3Pin silicone cables, 5mm, 4mm, and 6mm screws, plus screw washers. All components listed for setup assistance.
