Caddx Walksnail Avatar HD Kit V2 Camera V2 - Without Gyroflow+8G 32G VTX 1080P 120fps for Goggles Caddx FPV
-
Detail
Avatar HD Kit V2 V2 SPECIFICATIONS
Brand Name: KINGMODEL
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
Recommend Age: 3-6y
Recommend Age: 6-12y
RC Parts & Accs: Gyros
Size: Mainland China
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: Dot
Certification: RoHS
Certification: NONE
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Servos
Tool Supplies: Tools
Model Number: AMBITFUL
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgradeis around the corner.
Specification

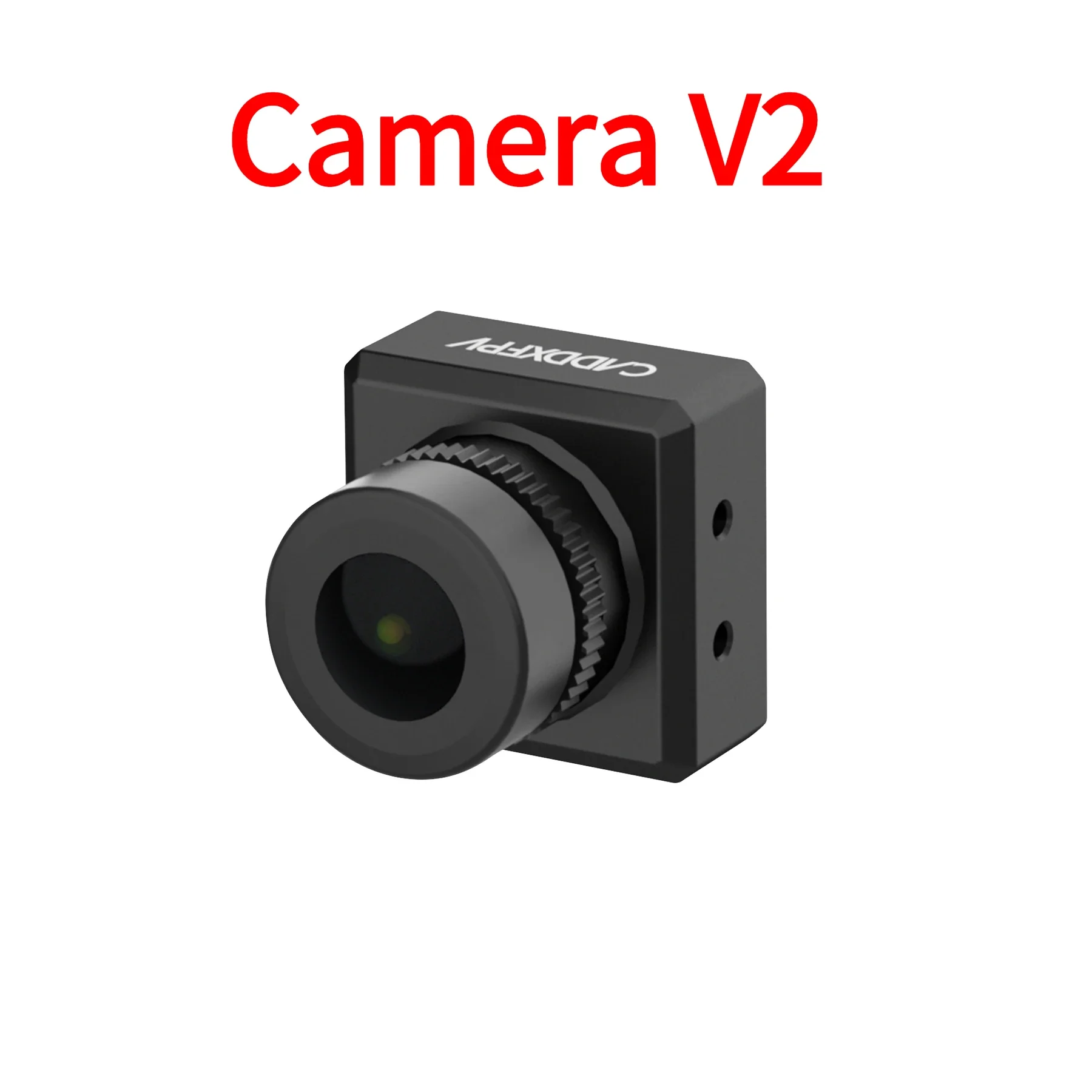

Camera
Model
Avatar V2 camera
Image Sensor
1/3.2-Inch 4Mp 4:3sensor
Resolution
1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
Ratio
4:3 native /16:9
Lens
2.1mm
FOV
160°
Aperture
F2.0
Shutter
Rolling shutter
Min.Illumination
0.001Lux
Weight
7.2g
Dimensions
19*19*22mm
Coaxial Cable
140mm
Gyroflow
Only 32G VTX Supported
VTX
Model
Avatar V2 module
Communication Frequency
5.725-5.850GHz
Transmitter Power (EIRP)
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm1/O Interface
JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes
25.5*25.5mm; 20*20mm
Dimensions
33.5*33.5*10.5mm
Storage
8G/32G
Recording
1080p/720p
Weight
17.6g
Operating Temperature
-20-40℃
Channels
8
Wide Power Input
6V-25.2V
Supported FC System
Betaflight; Inav; Fettec; ArduPilot; Kiss
OSD
Canvas mode
Latency
Average delay 22ms
Antenna
1(IPEX)
Avatar V2 antenna
Polarization
LHCP
Bandwidth
5600MHz-6000MHz
Gain
1.9dBi
VSWR
≤1.5
Input Impedance
50Ω
Interface
IPEX-1
Size
R15 X 45mm （without cable）
Weight
2g
Packing List
USB transfer extension cable
X1
4 Pin silicone cable
X1
M2*4mm screws
X8
M2*5mm screws
X4
M2*6mm screws
X4
M2*14mm screws
X4
M2*5*0.5mm gasket
X4
Product Description
Bullet Point for Camera
2K pixel, 120fps, 4:3 native sensor
Support Gyroflow
1080P HD FPV
F/2.0 Large Aperture
160° wide-angle FOV

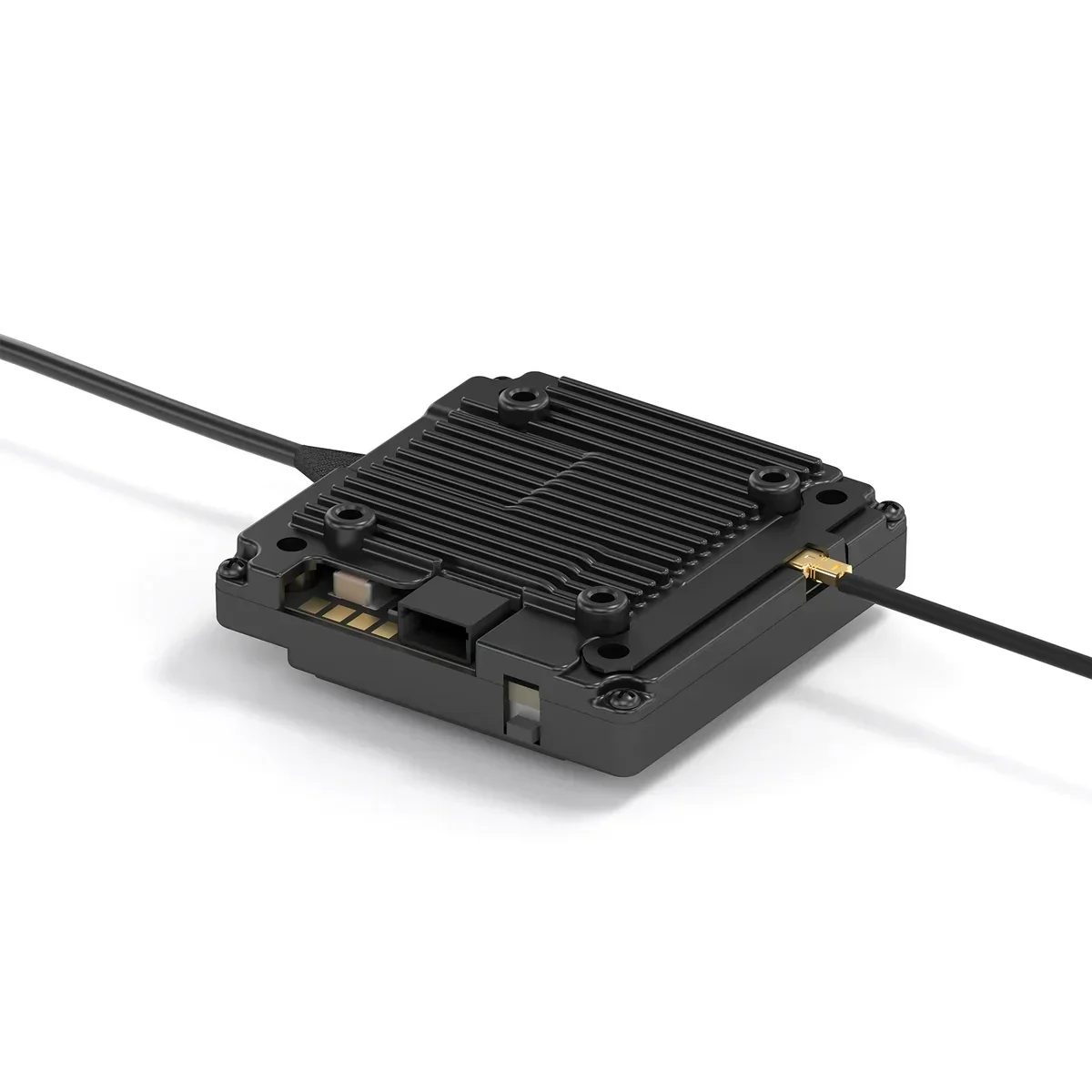

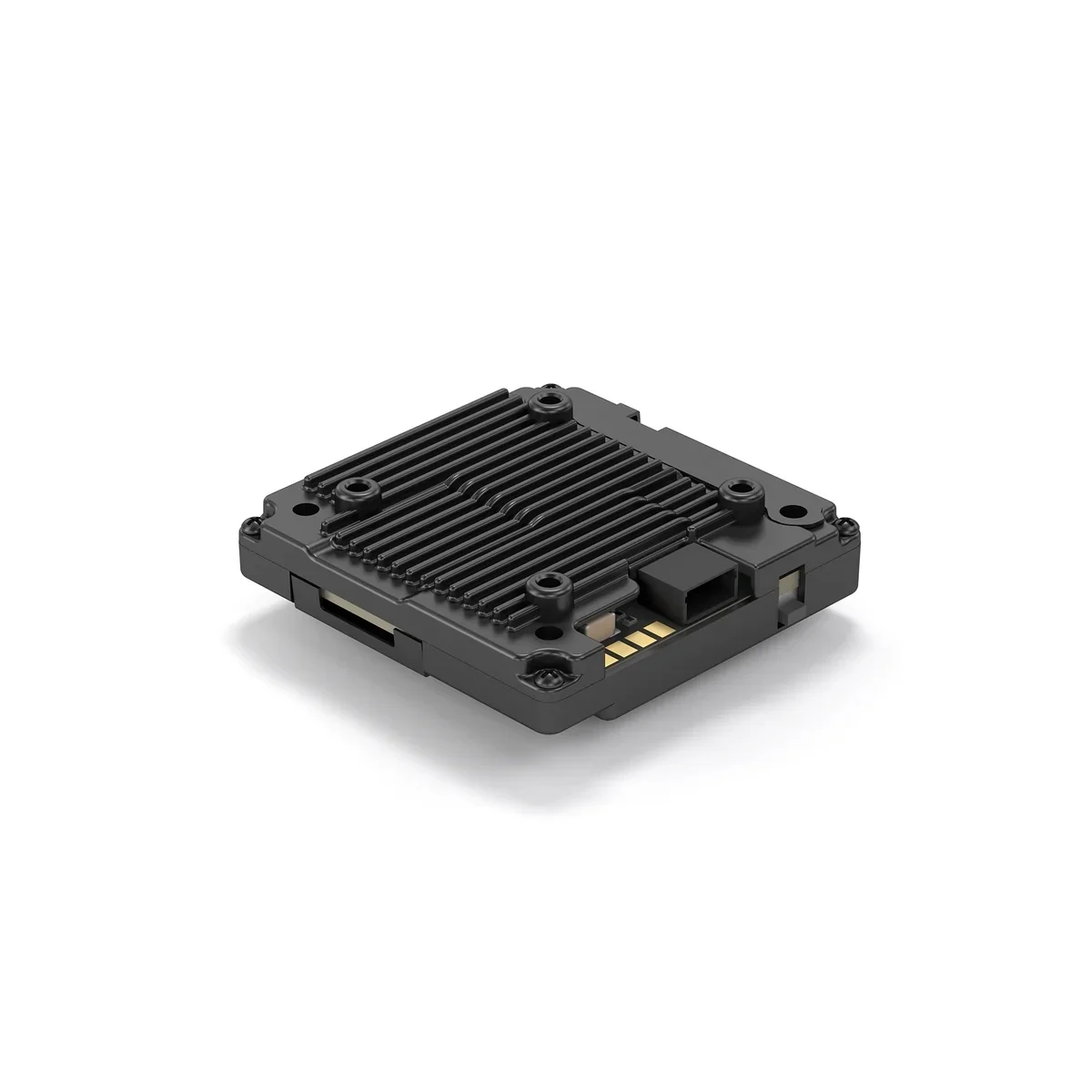

Bullet Point for VTX
Add another 20*20mm mounting holes
Add 8/32g built-in storage option
Updated the design of PCB board and outer shell
A spare pad is added to provide two power connection modes
Optimized antenna base design and frequency button position for greater convenience

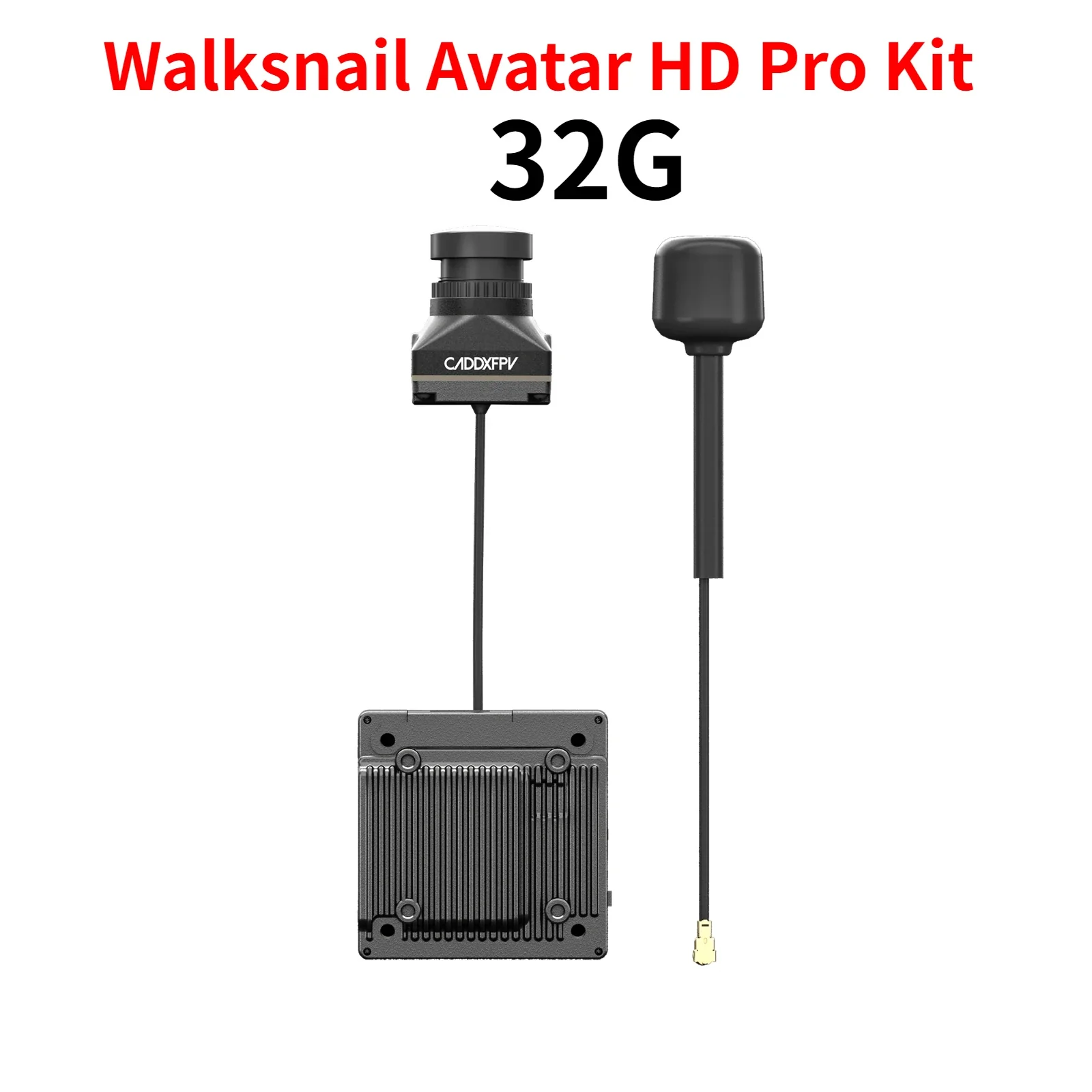

Avatar HD kit V2
Features
1080P 120fps compatibility
22ms low latency
Ranging Mode
4KM range
Light weight design
FOV160°
Built-in 8G/32G storage,
Support Gyroflow
GPS anti-jamming
6V-25.2V
The only native 4:3 high-definition sensor in the FPV industry
Bullet Point for Avatar HD kit V2
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency.
Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.
The camera ( 32G VTX KIT) supports Gyroflow, take you a smooth and stable video quality.
In addition to the original 25mm x 25mm mounting holes, the kit now added 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, so as to better protect the VTX.
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
A spare pad is added to provide two power connection modes.
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.
Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.
The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
HD 1080p OLED Dual Micro Displays
The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.
The goggles have the feature of adjusting the focus without the need to install, corrective lenses.
HDMI Output
Turn on the ranging mode to display the distance between the drone and goggles in real time,in case the drone is lost due to long distance flight.
Product specifications: 1236 settings, including 5.9G channel sharing, playback settings, device buzzer, ranging mode set to 'On' with weak signal reminder, reset option for all device information. Additional details include voltage ranges (25.4V, 7.4V), data transmission rate (25Mbps), latency time (22ms), and maximum range distance (259m).
-
