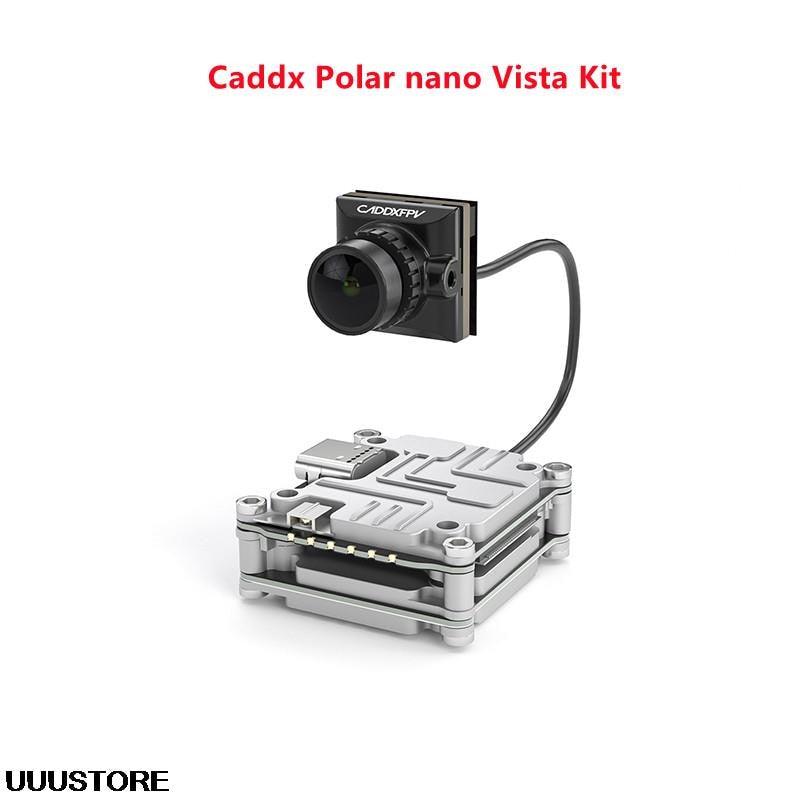

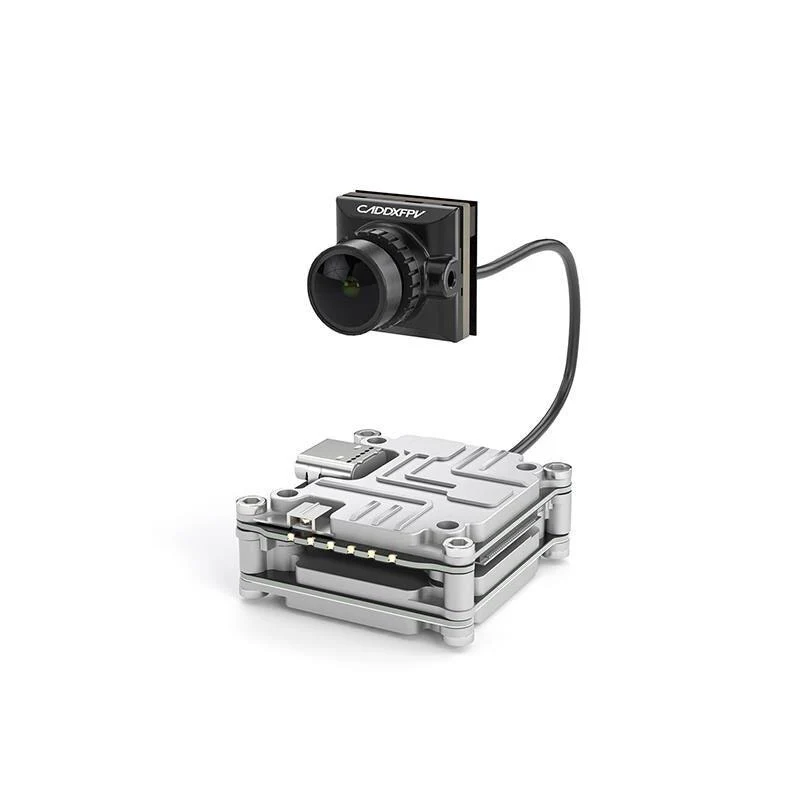

Caddx Polar Nano Vista Kit - Starlight Digital HD FPV System For DJI Digital HD FPV System 1/1.8”inch Sensor 14mm For Drone

●1/1.8lnch Sensor
Min.illumination: 0.00003Lux

●14mm nano size

●2.7g camera
The perfect partner for tiny drones

●F/1.8 large aperture lens

●720p/60fps
Low-latency HD image

●32ms/50Mbps
Video recorded by the FPV Goggle

●Individual pixel size of 5.5 μm
Excellent low light capability

●32ms/4km
Low-latency HD image transmission

●8 Drones
Drones can be flown simultaneously



PRODUCT SPECIFICATIONS
●Model: Polar nano vista kit

●Weight: Vista Kit(camera included): 22g; Antenna: 1.5g

●Dimensions: Vista Kit: 30×29×13mm; Camera: 14×14×15.8mm;
Coaxial Cable: 80mm

●Operating Frequency: 5.725-5.850GHz

●Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm; CE: <14dBm

●Min.latency(end-to-end): 720p 60fps: <32ms

●Max.Transmission Distance: FCC/SRRC: 4km;CE: 0.7km

●I/O Interface: USB-C,IPEX,3-in-1port

●Supported Flight control System: F3.F4.F7

●Operating Temperature Range: 32° to 104°F (0° to 40°C)

●Input Power: 7.4-26.4V

●Power Output: 25mW/200mW/500mW/700mW

●Hardware Included: Polar nano vista kit /m2 screw/bracket/3-in-1 cable/antenna

●Goggles: Work with DJI goggles

●Camera: Sensor: 1/1.8"inch starlight cmos;

●Min.Illumination:0.00003Lux;

●Lens: F/1.8;

●FOV: 162°(D);138°(H);75°(V);

●Aspect Ratio: 16:9

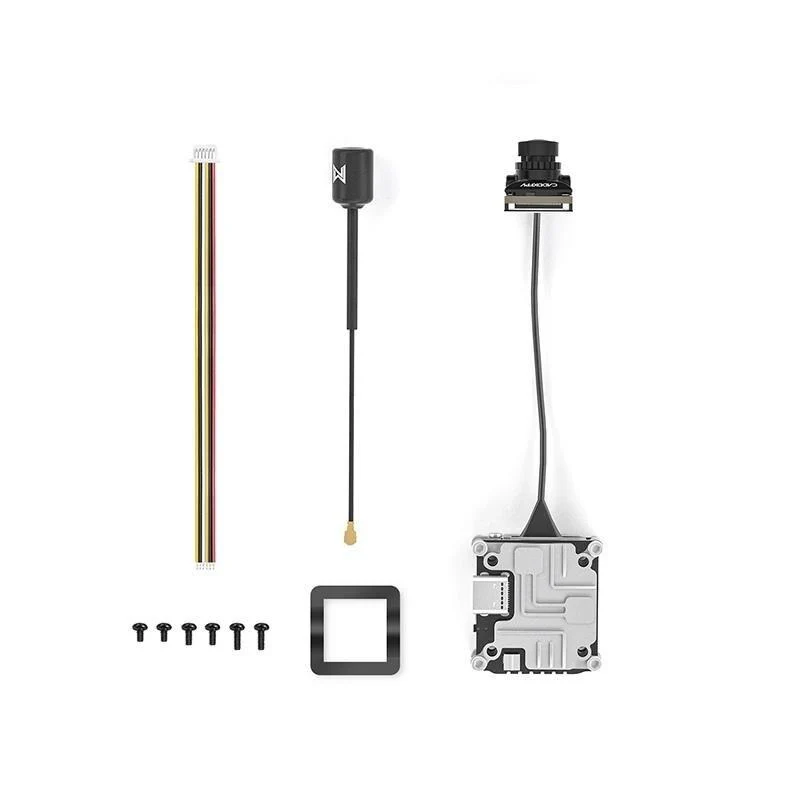

PACKING LIST
●Polar nano vista kit × 1

●M2 screws 3/4/5mm × 2

●3-in-1 cable × 1

●14mm-19mm bracket × 1
