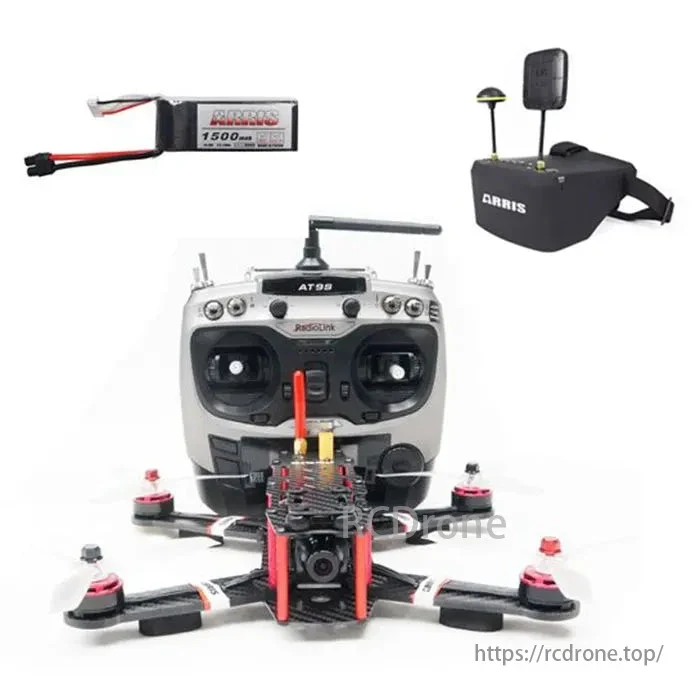

ARRIS X-Speed 250B 6-Inch FPV Racing Drone RTF with EV800D Goggles & 2 Batteries

Overview

The ARRIS X-Speed 250B V4 is an upgraded version of the V3, designed for enthusiasts and beginners. Featuring an improved Radiolink AT9S Pro transmitter, F4 flight controller, and ARRISHOBBY Cat 1200TVL FPV camera, this 6-inch FPV racing drone is built for speed, durability, and stability. With 4mm thick carbon fiber arms, it provides excellent crash resistance.

Pre-assembled, tuned, and tested, the version lets you start flying immediately. Simply plug in the battery, turn on the EV800D FPV Goggles, and dive into an immersive FPV experience.

Key Features

✅ Upgraded Electronics: Integrated 4-in-1 ESC tower with OSD, reducing wiring clutter and improving reliability.
✅ Durable Carbon Fiber Frame: 4mm thick arms for better crash resistance.
✅ Adjustable FPV Camera: The ARRISHOBBY Cat 1200TVL camera supports 0-45° tilt adjustment, offering a better field of view.
✅ High-Powered Brushless Motors: ARRIS S2205 2300KV motors deliver efficient and smooth power output.
✅ Strong FPV Transmission: Equipped with a 5.8GHz 200mW 32CH FPV transmitter and 5.8G antenna for stable signal transmission.
✅ Extended Flight Time: Comes with two 4S 1500mAh 50C LiPo batteries for longer sessions.
✅ Customizable LED Lights: Built-in 7-color LED lighting system for better visibility and aesthetics.

Technical Specifications

Details

Optimized Tower Structure for Maximum Performance

The Raptor-S Tower ESC system integrates the flight controller and ESC into a compact two-layer design, improving reliability while reducing interference.

• Modular Design: Easy to replace damaged components.
• Lower Center of Gravity: Enhances flight stability.
• Compact & Lightweight: Weighs only 22g, reducing unnecessary weight.

With an upgraded 40A ESC, the centralized power port ensures efficient power distribution while protecting the ESC from damage.

ARRIS S2205 2300KV Brushless Motors – High Efficiency & Durability

The ARRIS X-Speed 250B is powered by high-performance ARRIS S2205 2300KV brushless motors, delivering powerful and stable performance.

🔹 Knurl Design: Secure propeller installation.
🔹 N52SH Curved Magnets: Increases power output and efficiency.
🔹 Precision NSK Bearings & CNC Machining: Ensures durability and longevity.
🔹 Low Center of Gravity: Provides smoother and more controlled flights.
🔹 Integrated Cooling System: Prevents overheating and extends motor lifespan.

Paired with 5045 three-blade propellers, this setup provides 10% higher efficiency than standard propellers, enhancing speed and control.

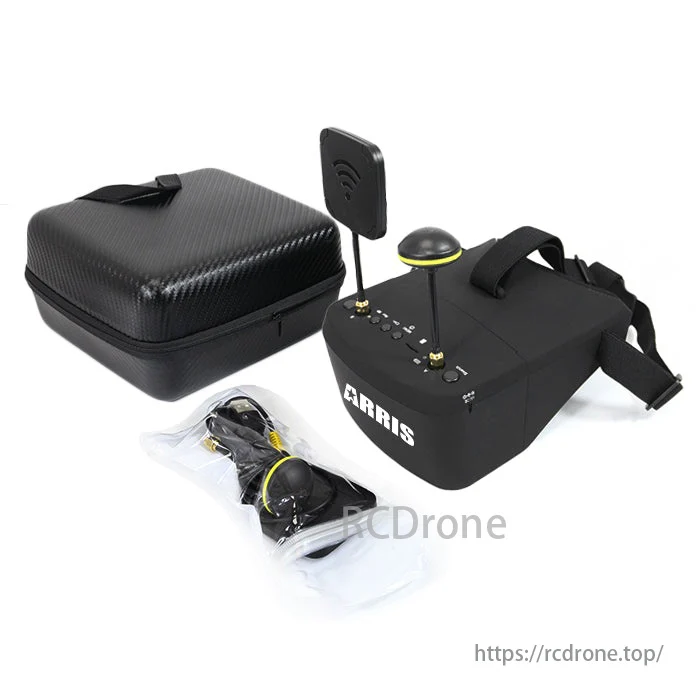

EV800D FPV Goggles – Crystal-Clear HD FPV Experience

The ARRIS EV800D FPV Goggles deliver an immersive, high-definition FPV experience with low latency video transmission.

Key Features:

• 5-inch HD Display: 800x480 resolution with 140° wide viewing angle.
• DVR Recording: Built-in video recording function.
• Dual Antenna Reception: Ensures stable signal transmission.
• 40CH 5.8GHz Receiver: Supports RaceBand frequencies for competitive FPV racing.
• Long Battery Life: 3.5-hour runtime (DVR off), 2.5 hours (DVR on).
• Versatile Power Options: Supports USB charging, power banks, or 2S/3S LiPo batteries.

EV800D FPV Goggles Specifications:

Smart Battery & Safety Features

The ARRIS 4S 1500mAh 50C LiPo battery is built for FPV racing drones, ensuring maximum power output and reliability.

• Extended Flight Time: Up to 10 minutes per charge.
• Battery Warning Buzzer: Alerts pilots when voltage is low.
• Secure Connection: Prevents accidental power loss.

All batteries undergo UN38.3 safety testing, 1.2M drop testing, and MDS certification for maximum reliability.

Flight Modes & Control Features

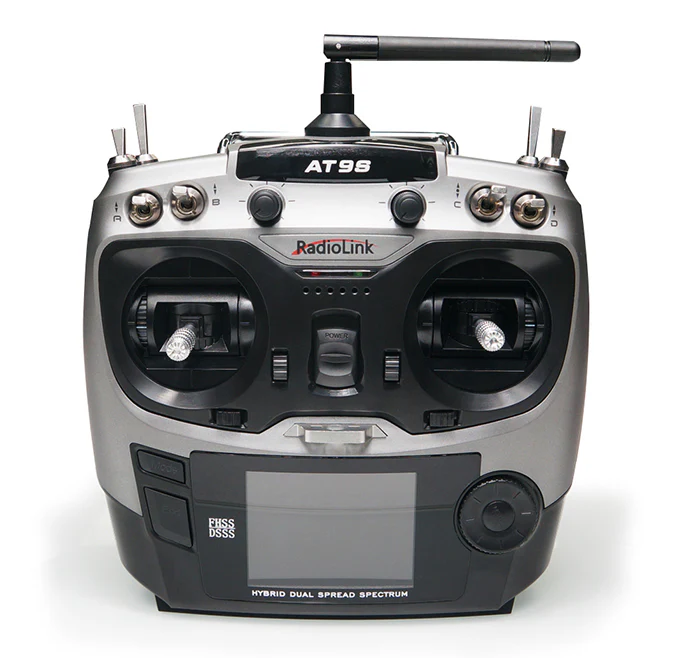

The Radiolink AT9S Pro transmitter provides long-range control with customizable flight settings.

🔸 Self-Level Mode: Ideal for beginners, keeping the drone stable.
🔸 Acro (Manual) Mode: Preferred by experienced pilots for full control and advanced maneuvers.
🔸 Built-in Buzzer: Helps locate the drone after a crash.
🔸 Customizable LED Lights: Adjust brightness and color with DIP switches.

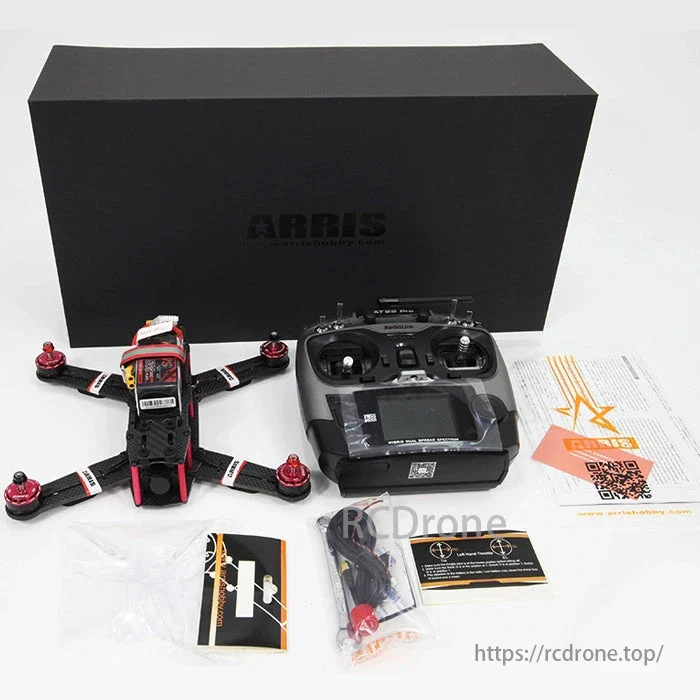

What’s Included in the Package?

✔ 1x ARRIS X-Speed 250B 6-Inch FPV Racing Drone (Fully Assembled & Tuned)
✔ 2x ARRIS S2205 2300KV CW Brushless Motors
✔ 2x ARRIS S2205 2300KV CCW Brushless Motors
✔ 4x ARRIS 5045 3-Blade Propellers (2CW + 2CCW)
✔ 1x Flycolor Tower (F4 Flight Controller + 40A 4-in-1 ESC + OSD + PDB)
✔ 1x ARRISHOBBY Cat 1200TVL FPV Camera
✔ 1x 5.8G 200mW 32CH FPV Transmitter
✔ 1x FPV Transmitter Antenna
✔ 1x Radiolink AT9S Pro Transmitter + Receiver
✔ 1x High-Brightness LED Module
✔ 2x ARRIS 4S 1500mAh 50C LiPo Batteries
✔ 1x ARRIS EV800D FPV Goggles

📌 Note: Battery charger sold separately.

Why Choose ARRIS X-Speed 250B 6-Inch FPV Racing Drone?

✅ RTF (Ready-to-Fly) – Fully pre-assembled & tested
✅ High-speed brushless motors for racing performance
✅ Crash-resistant carbon fiber frame
✅ Integrated OSD & FPV camera for real-time video
✅ Includes EV800D FPV Goggles with DVR

Experience top-tier FPV racing performance with the ARRIS X-Speed 250B 6-Inch !

Image Descriptions

ARRIS 5042 propeller and S2205 2300KV Brushless Motor are components of a drone setup.

XT60 Female Plug, ARRIS FPV Racing 5.8G TX Antenna, 7 Colors RGB 5050LED Board, 5.8G 200mw 40CH TX.

AT9 remote control. Turn off with Switch D. Beep beep... Turn on with Switch D. Drone shown in circular inset.

Especially with RaceBand, built-in super sensitivity 5.8GHz 40CH receiver. Auto-Searching Frequency Table includes bands A, B, E, F, and R with various frequencies. Menu Setting allows adjustments for picture contrast, color, sharpness, volume, power, language, and exit options.
