APM2.8 APM 2.8 flight controller Ardupilot +M8N GPS built-in compass +gps stand+shock absorber for RC Quadcopter Multicopter
-
Detail
APM2.8 APM 2.8 Ardupilot +M8N GPS built-in compass +gps stand+shock absorber for RC Quadcopter Multicopter SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: shock absorber
Tool Supplies: Assembled class
Technical parameters: Value 2
Remote Control Peripherals/Devices: Servos
Recommend Age: 14+y
RC Parts & Accs: Spinners
Quantity: 1 pcs
Origin: Mainland China
Model Number: APM2.8 APM 2.8 flight controller
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: U-Angel-1988
Note:Now the latest Mission planner 1.3.77 has bug ,it can not calibrate Accel for APM,Waiting for the official fix of this bug, please use version 1.3.74.
APM V2.8.0 description:
- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
- V2.52 I2C interface changes to multifunctional MUX interface
- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

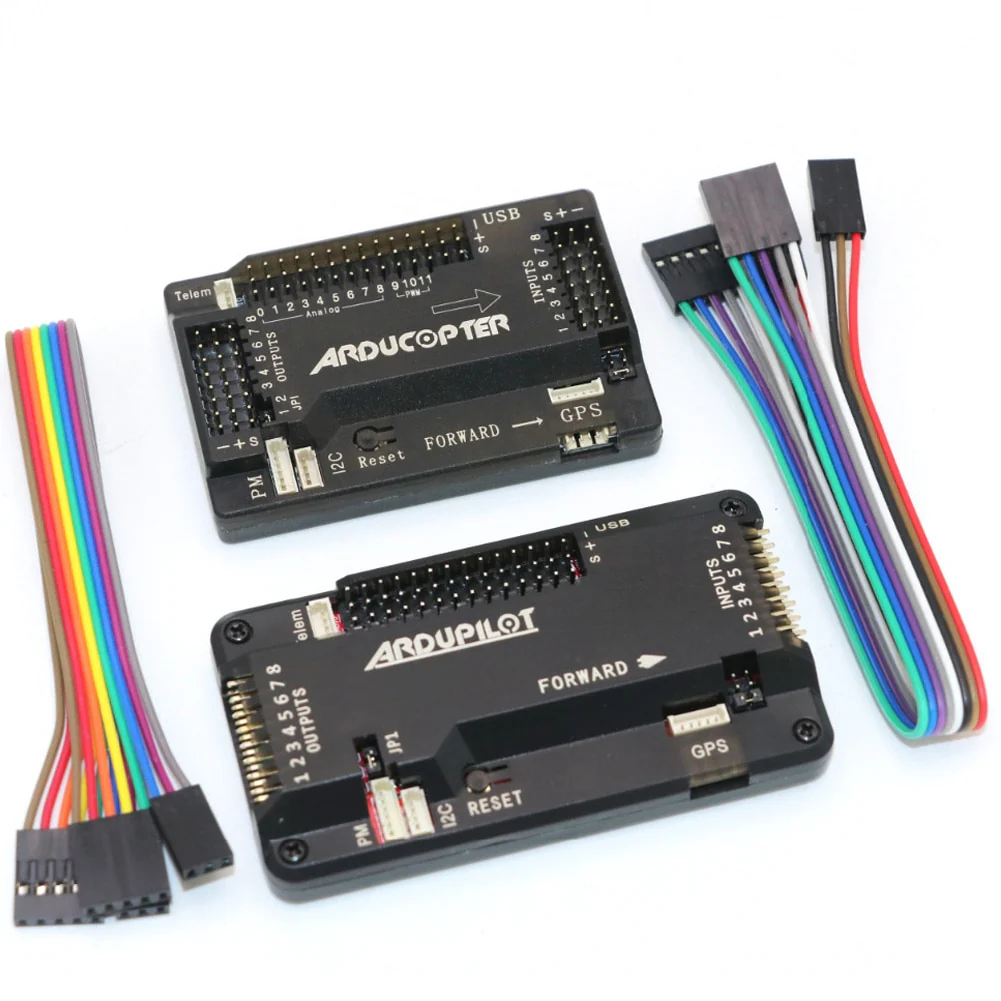

APM V2.8.0 Flight Controller
- Needle: staight
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)
Jumper cap choose:
- Built-in compass: plug the jumper cap in the MAG pin header.
- External compass: pull up the jumper cap from the MAG pin header.

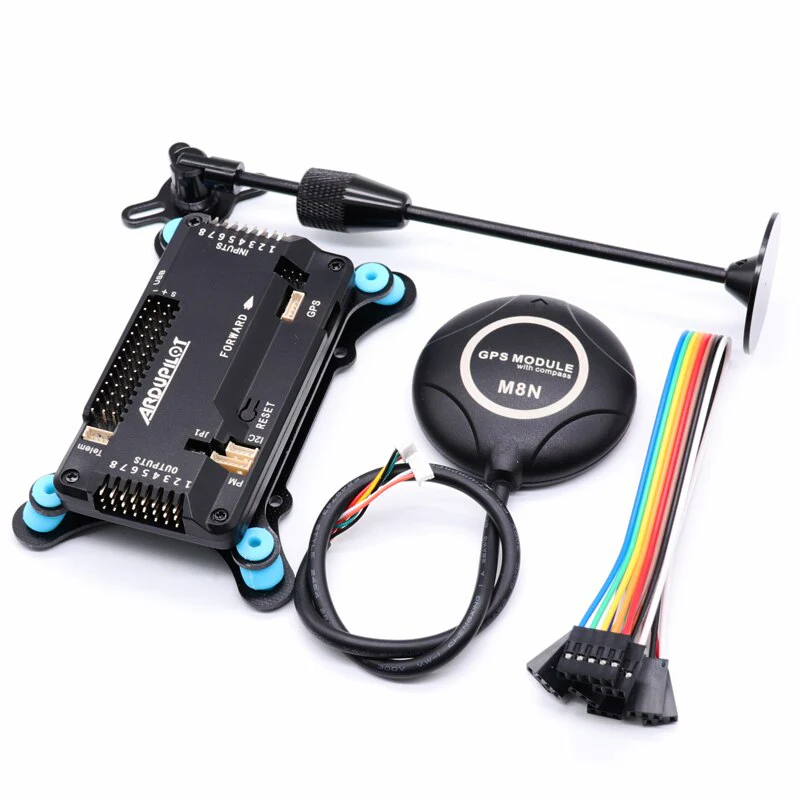

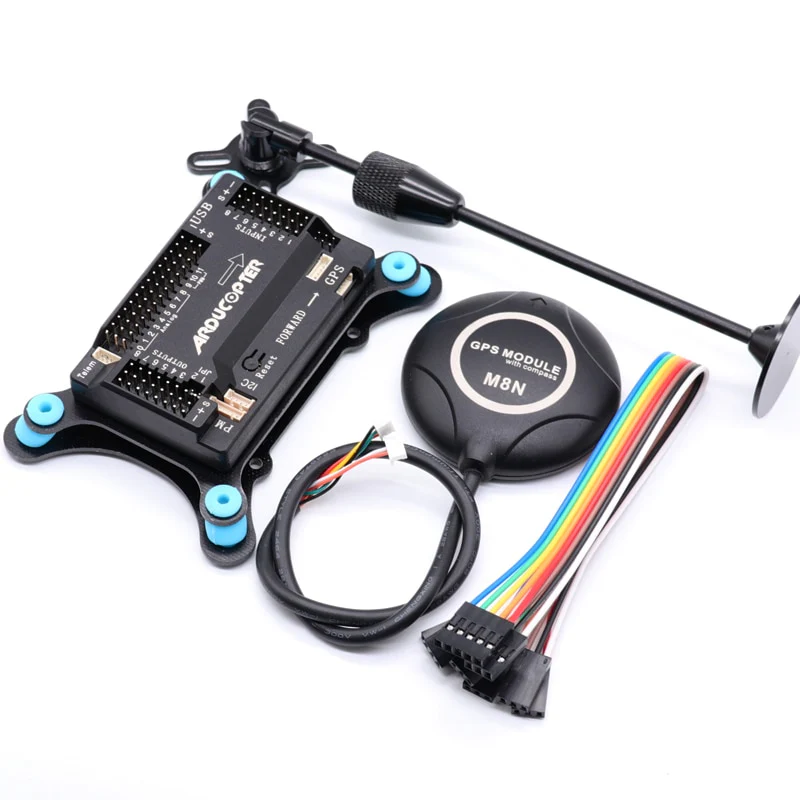

Note: Now the latest Mission planner 1.3.76 has bug ,it can not calibrate Accel for APM,Waiting for the official fix of this bug, please use version 1.3.74.packageA included:
1x APM2.8 flight controller board with shell(without Built-in compass )

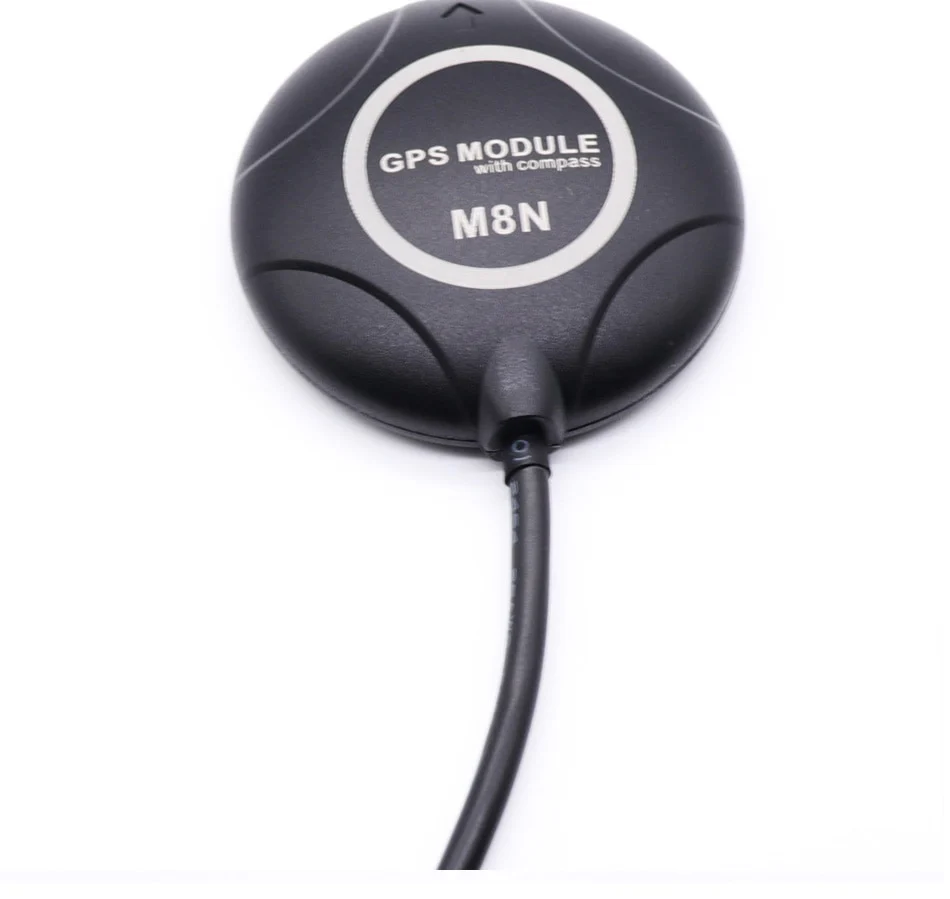

1x M8N GPS Moudule with shell(with external compass)

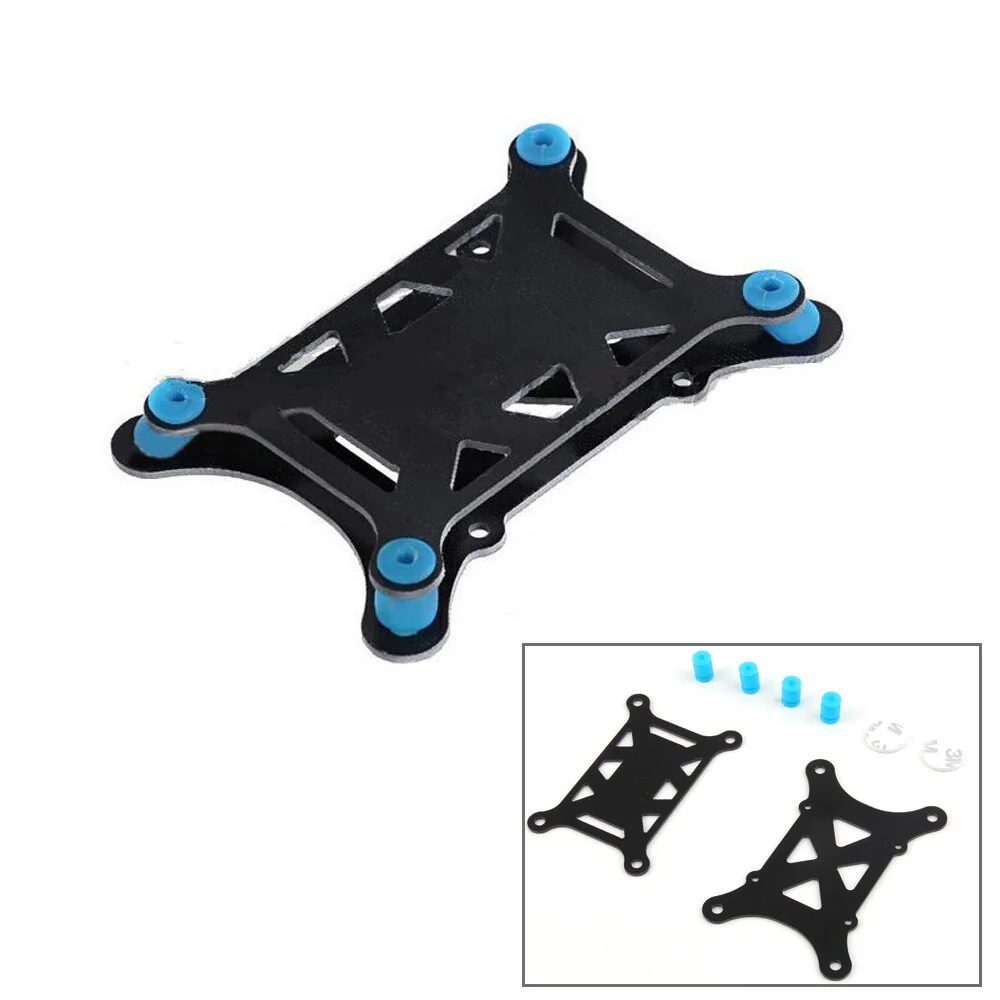

1x Shock absorber

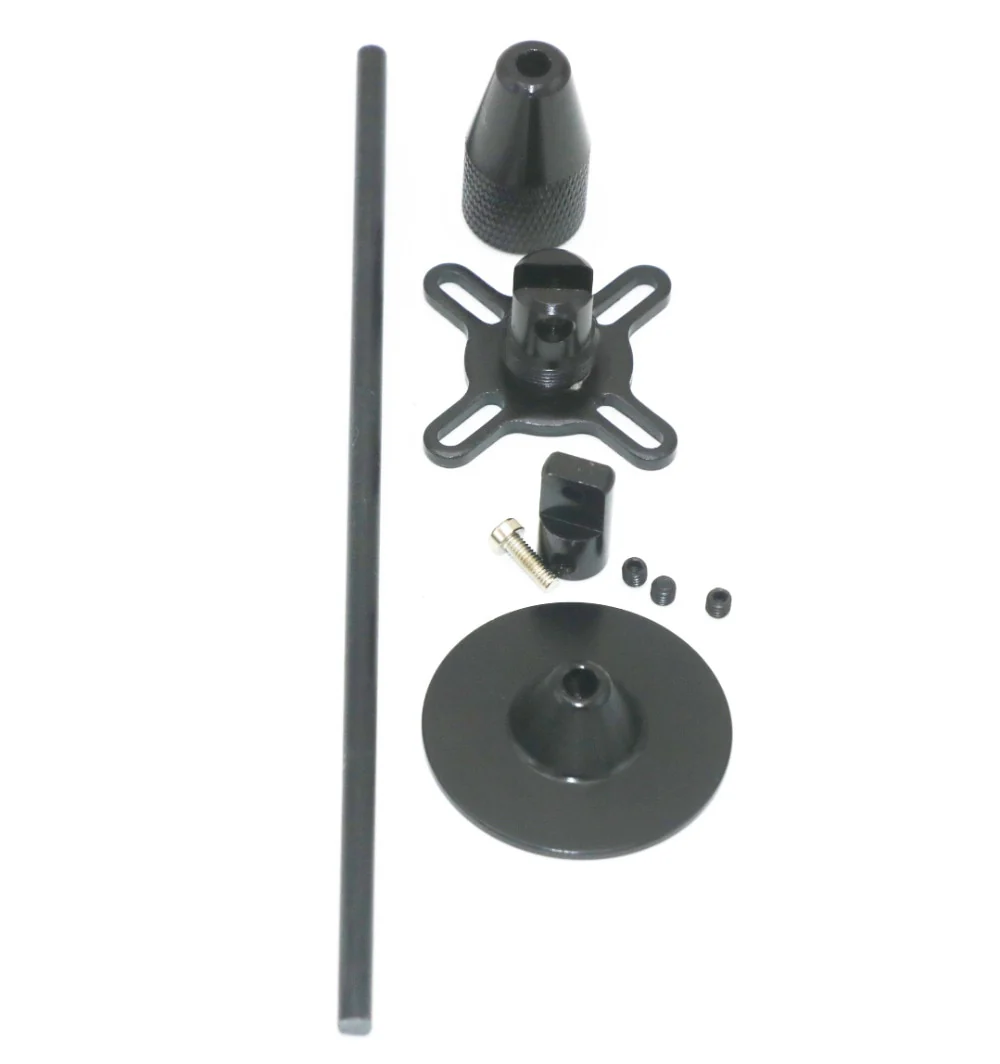

1x GPS stand
1x RC receiver cable

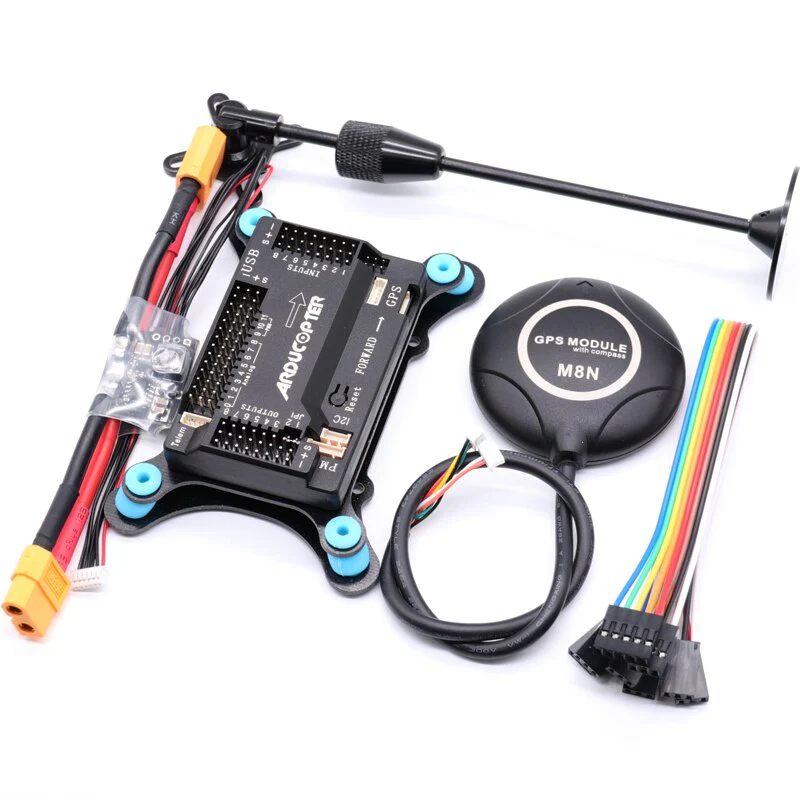

packageB included:
1x APM2.8 flight controller board with shell(without Built-in compass )
1x M8N GPS Moudule with shell(with external compass)
1x Shock absorber
1x GPS stand
1x RC receiver cable
1x xt60 3DR Power Module

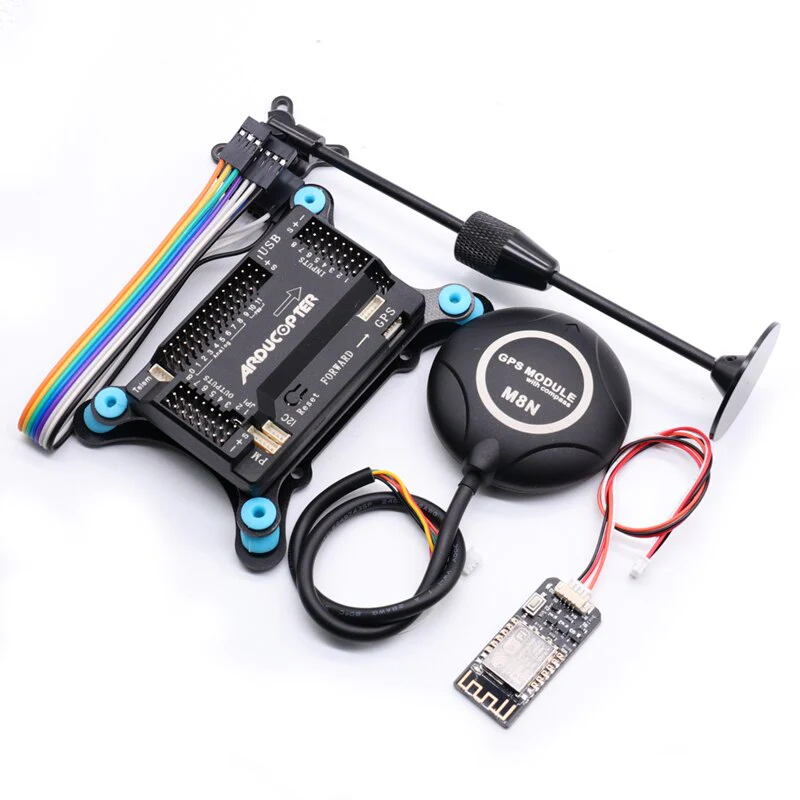

packageC included:
1x APM2.8 flight controller board with shell(without Built-in compass )
1x M8N GPS Moudule with shell(with external compass)
1x Shock absorber
1x GPS stand
1x RC receiver cable
1x WIFI Module

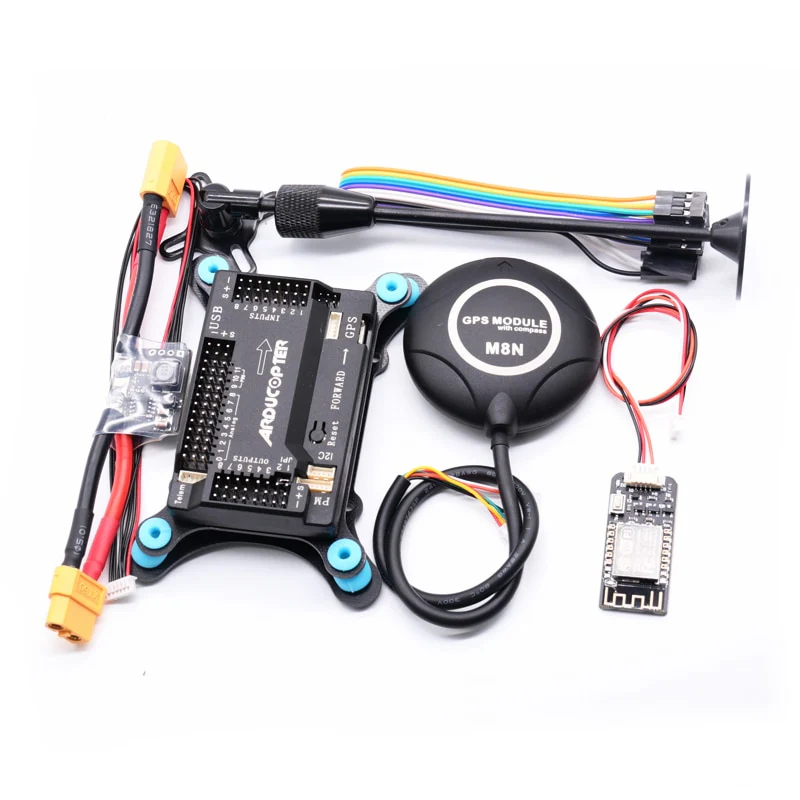

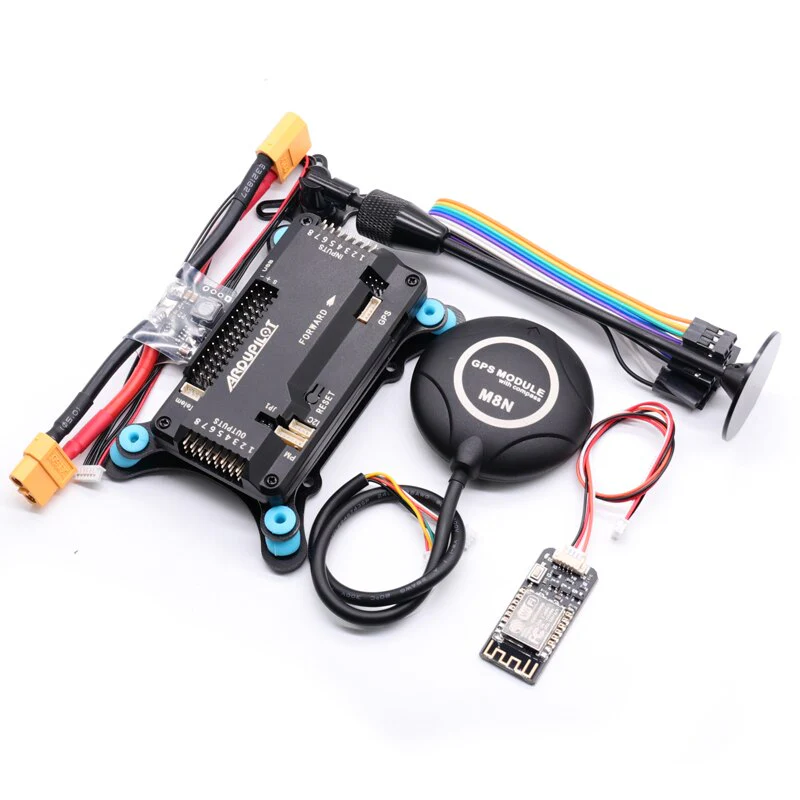

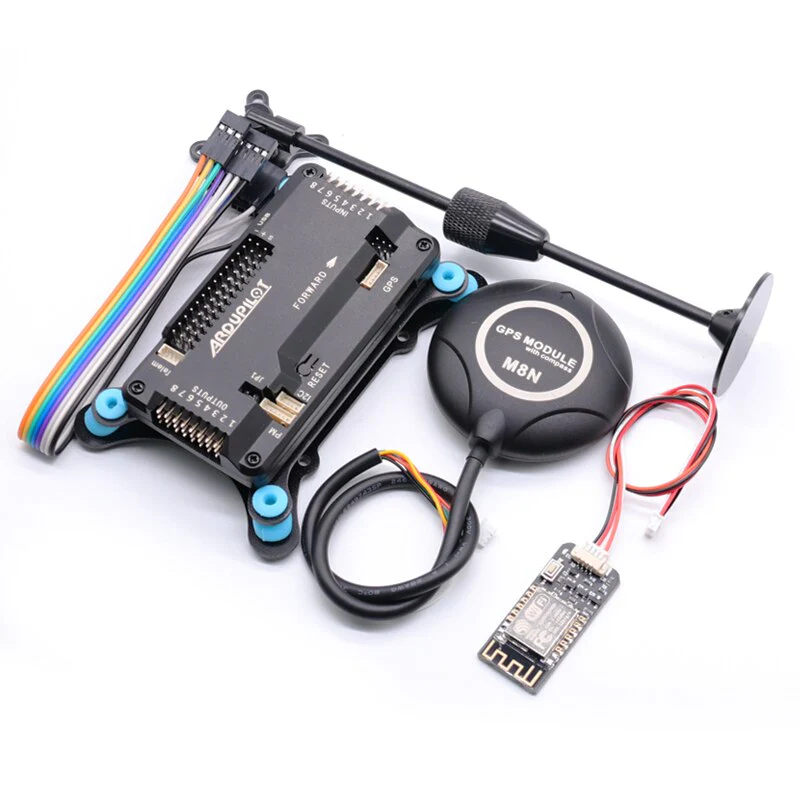

packageD included:
1x APM2.8 flight controller board with shell(without Built-in compass )
1x M8N GPS Moudule with shell(with external compass)
1x Shock absorber
1x GPS stand
1x RC receiver cable
1x xt60 3DR Power Module
1x WIFI Module
-
