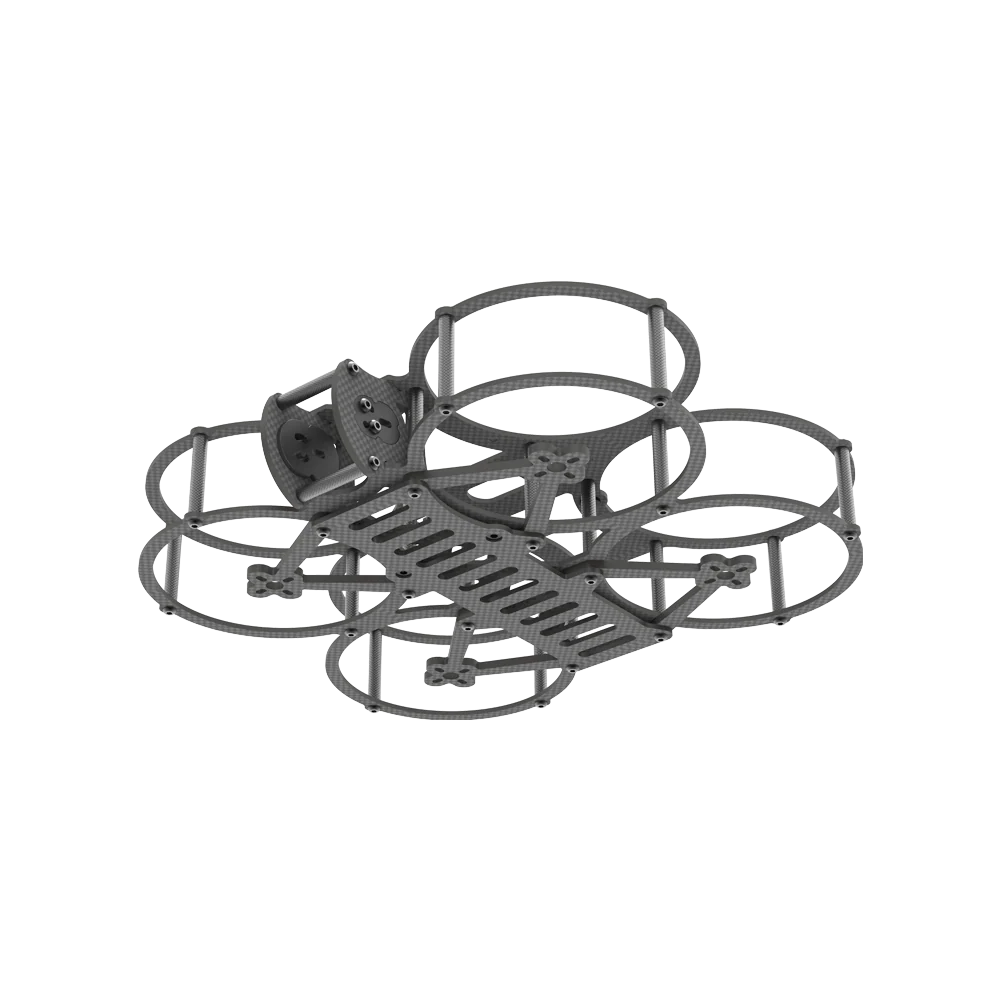

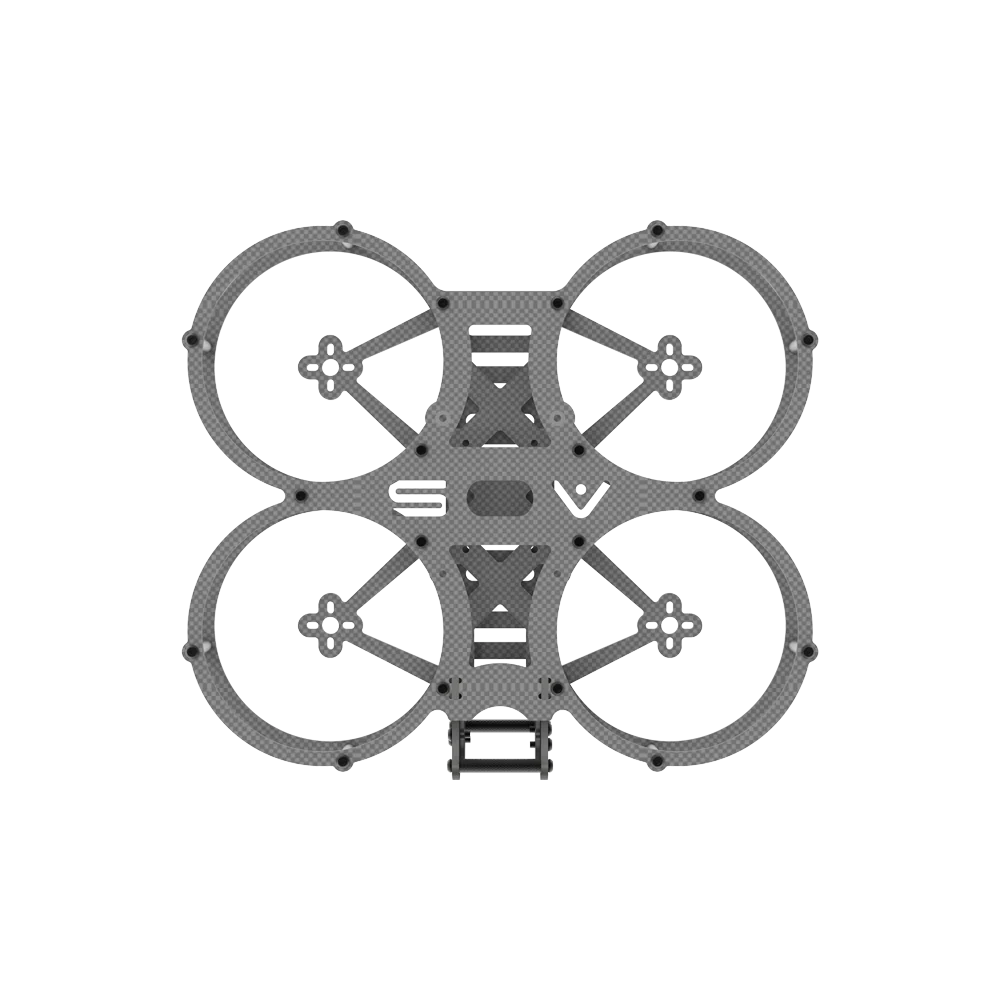

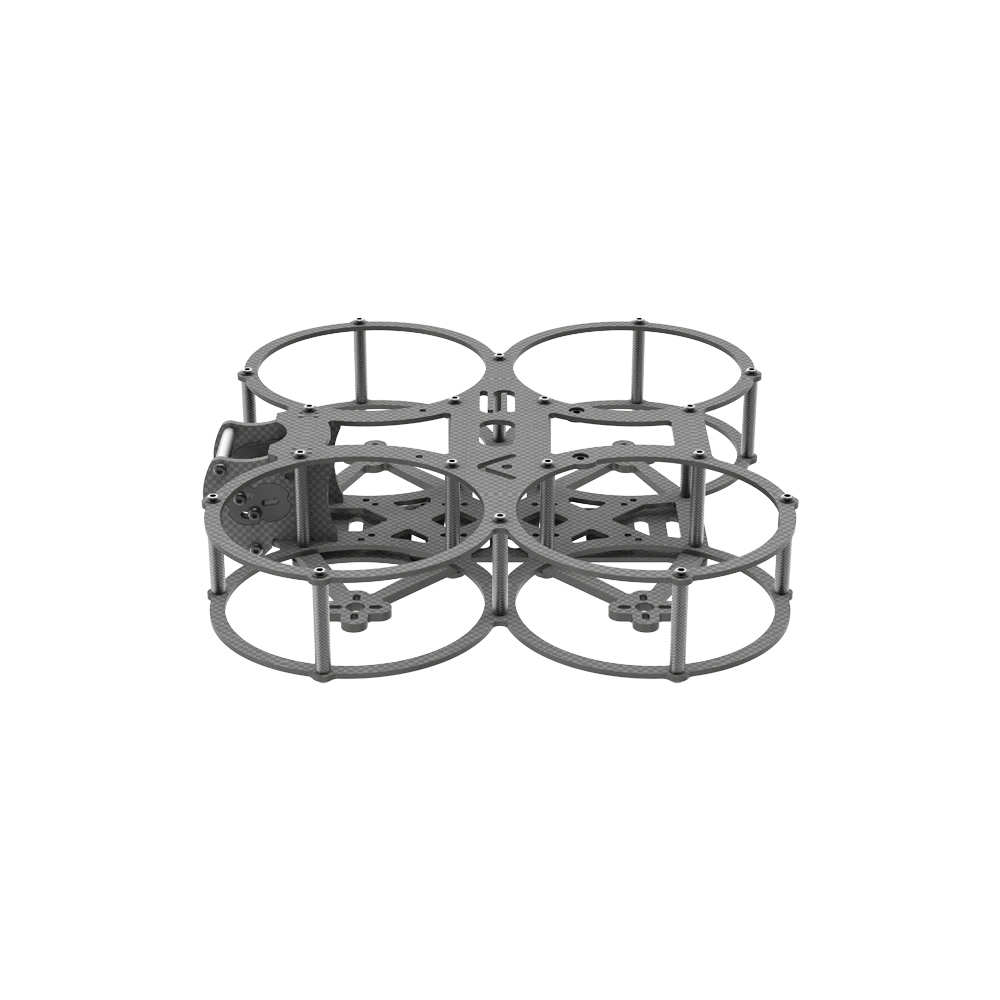

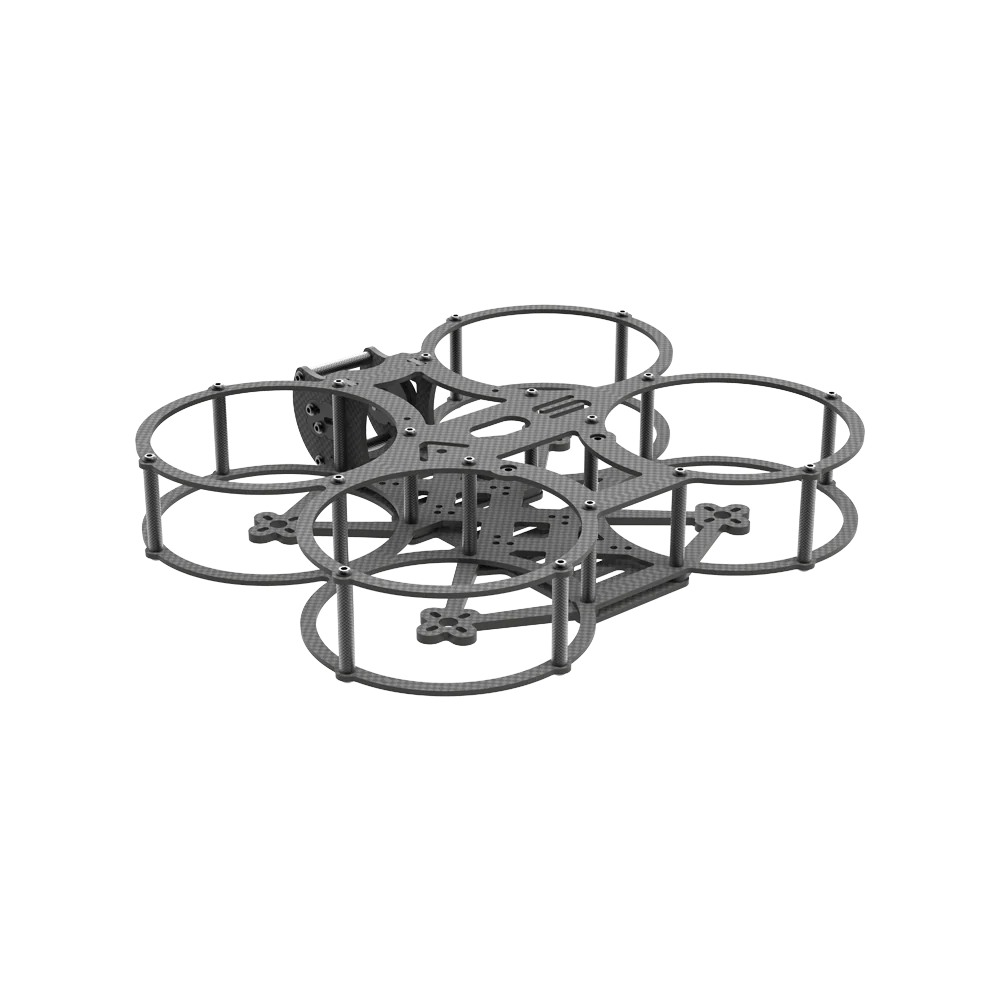

AOS Cine25 EVO V1.2 Cinewhoop 2.5 Inch FPV Frame Kit

$59.96
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    AOS Cine25 EVO V1.2 FPV Frame SPECIFICATIONS

    Wheelbase: Bottom Plate

    Use: Vehicles & Remote Control Toys

    Upgrade Parts/Accessories: Frame

    Tool Supplies: Cutting

    Technical parameters: Value 2

    Size: 2.5inch

    Remote Control Peripherals/Devices: Remote Controller

    Recommend Age: 12+y

    RC Parts & Accs: Antennas

    Quantity: 1 pcs

    Origin: Mainland China

    Model Number: AOS Cine25 EVO V1.2

    Material: Carbon Fiber

    Four-wheel Drive Attributes: Assemblage

    For Vehicle Type: Airplanes

    Certification: CE

    Brand Name: IFLIGHT

    Description:
    • The latest version of this frame is the AOS Cine25 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.
    Features
    • Designed for 2.5 inch props, no props in view.
    • 2.5 mm Truss Arms
    • Up to two 25.5 or 20 mm stacks (front and rear)
    • One 25.5 or 20 mm stack (center)
    • 32x32mm M2 GoPro mounting holes in top plate with installed press-nuts
    • XT30 pass through top plate
    • Captive battery strap slots for lengthwise or toilet tank mounting
    • Fits 19-20mm FPV cameras including DJI O3
    • Recommended motor size 1404
    • 9x9 mm motor mounting
    • Standoffs, carbon and hardware included
    Specifications:
    • Product Name: AOS Cine25 EVO
    • Frame wheelbase: 125mm
    • Frame Dimension: L99*W75.5*H32 mm  / L175*W151*H32 mm (with propguard)
    • Arm Thickness: 2.5mm
    • Top Plate Thickness: 1.5mm
    • Bottom Plate Thickness: 1.5mm
    • Upper Plate Thickness: 1.5mm
    • Motor Mounting: 9x9mm / 12*12mm
    • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
    Packing List
    • 1 x AOS Cine25 EVO Frame Kit
    • 1 x Screw Bag
    • 1 x Battery Strap
