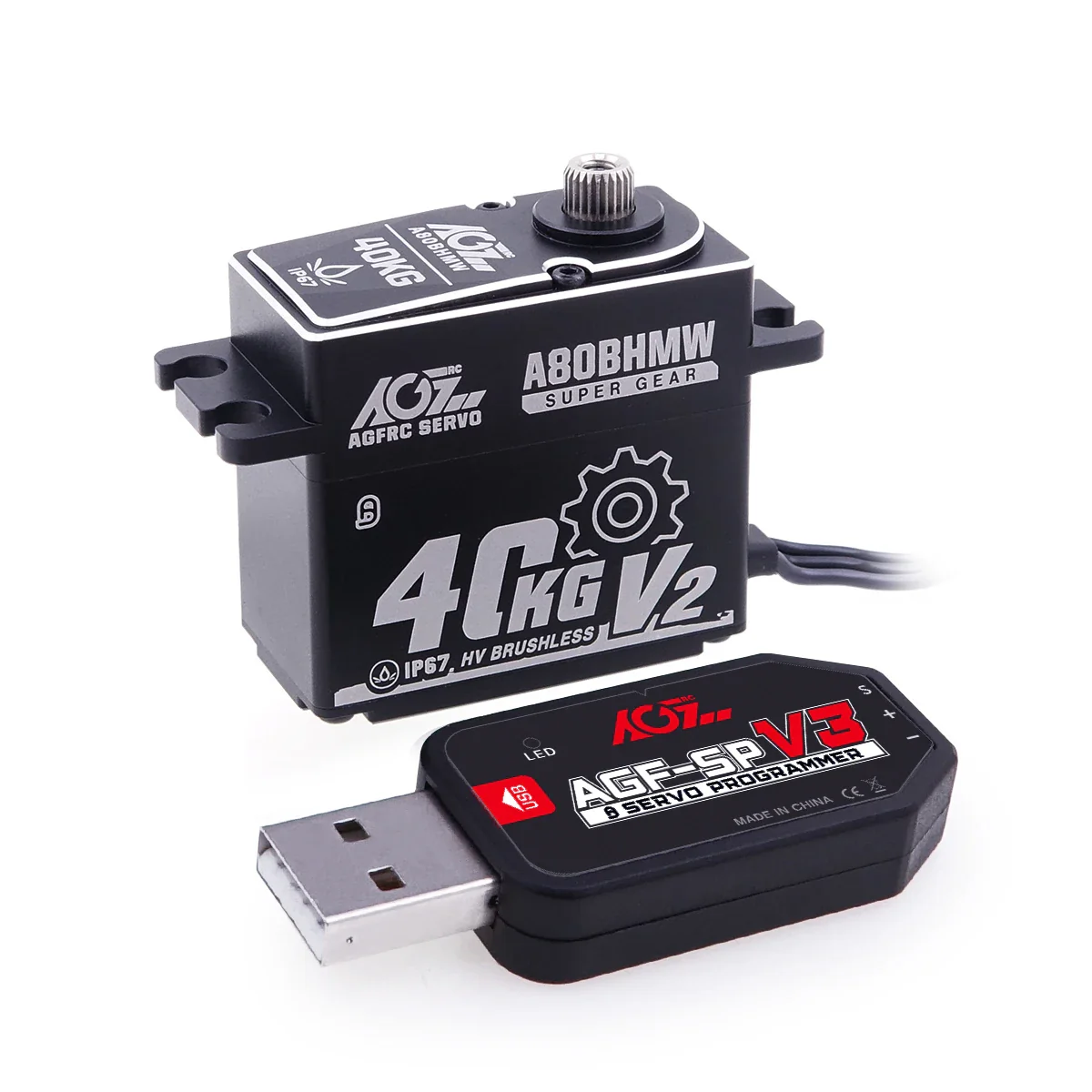

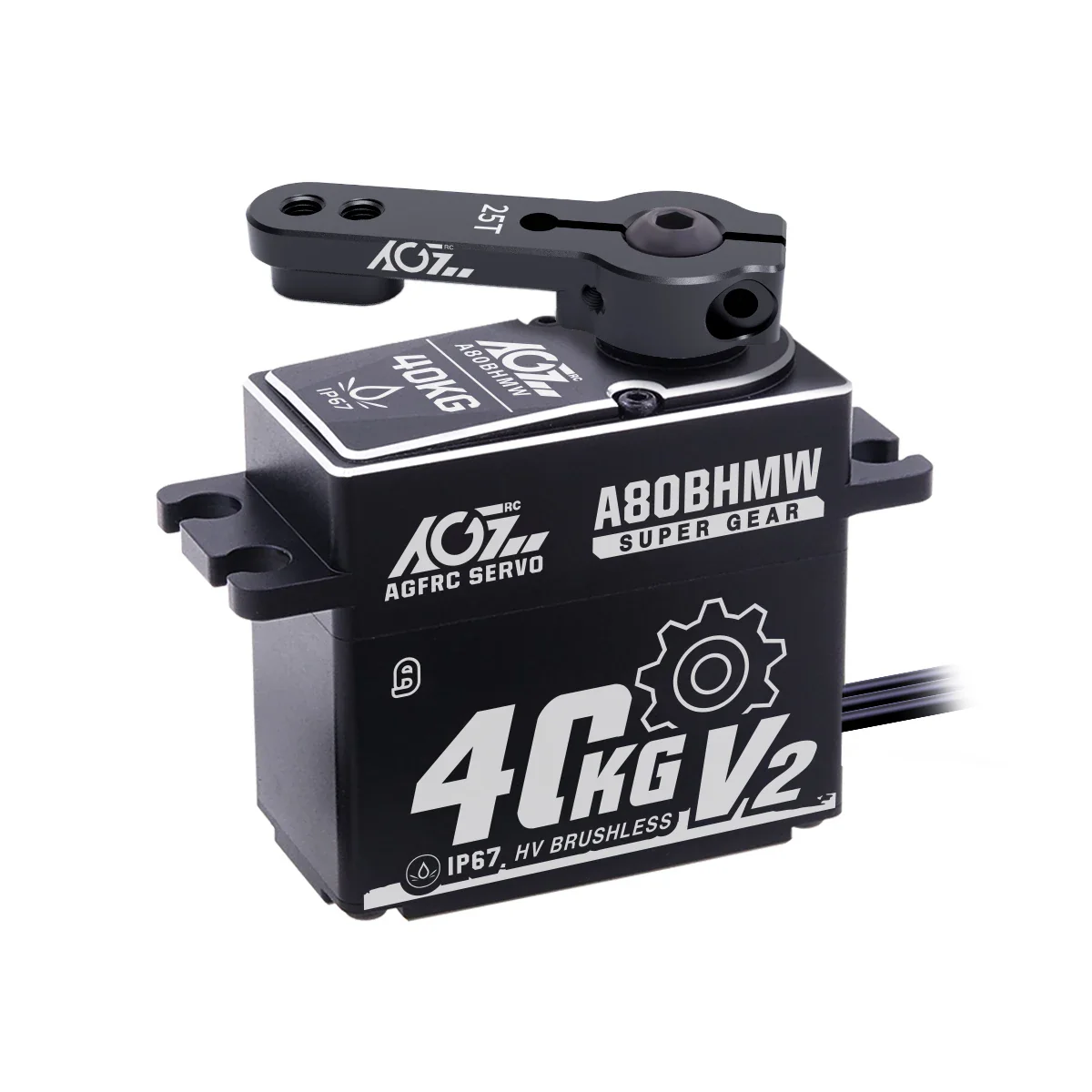

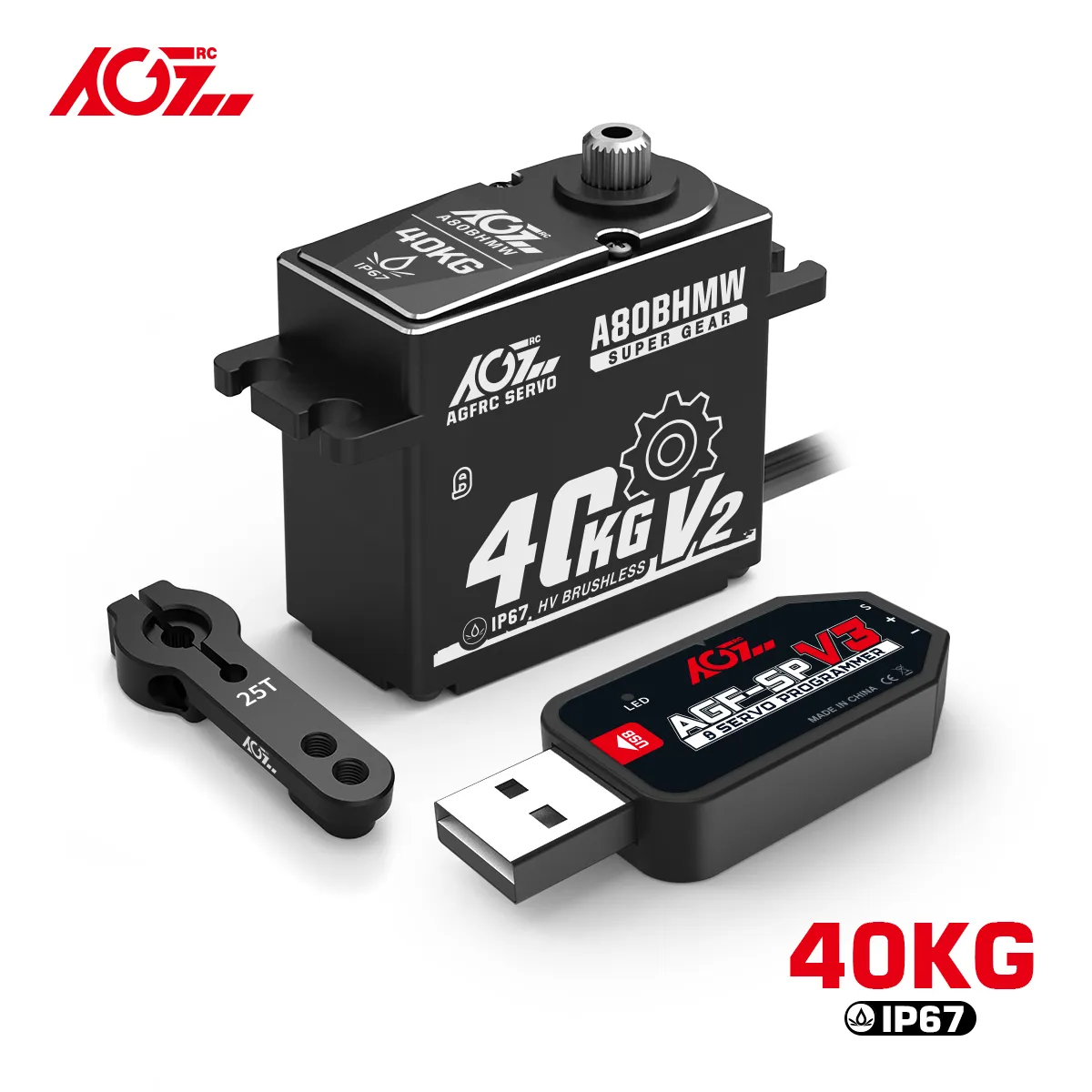

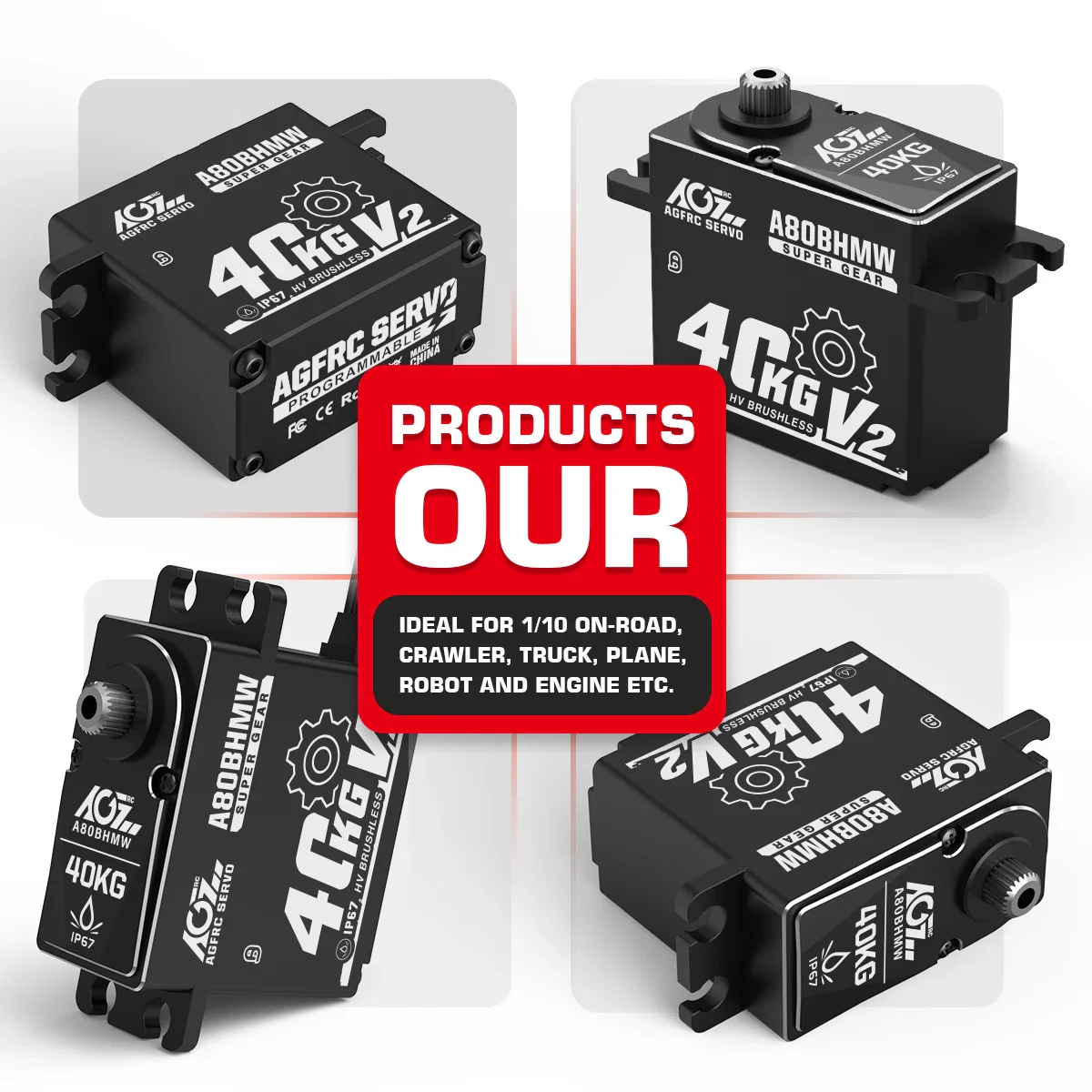

AGFRC A80BHMW V2 - Steel Gears 40KG Programmable Waterproof BLS RC Steering Servo For 1/10 Scale Car Crawler Buggy Truck Off-Road
-
Detail
AGFRC A80BHMW V2 SPECIFICATIONS
Brand Name:
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Receivers
Tool Supplies: Battery
Quantity: 1 pcs
Model Number: A80BHMW V2
Four-wheel Drive Attributes: Assemblage
Color: Black
Gear Material: Steel
Motor Type: Brushless
Weight: 81g
Connector Wire: TYU 300 mm / 22AWG
Operating Voltage: 4.8-8.4 V
Feature 1: Full CNC Aluminium Shell
Feature 2: Strength 3 Ball Bearings
Feature 3: Fully Waterproof Up To IP67 Grade
Feature 4: More robust 2mm PIN shaft
Feature 5: Ideal for 1/10 On-Road, Off-Road, Truck, Plane, Robot and Engine etc.
AGFRC A80BHMW V2 Robust Steel Gears 8.4V 40KG 0.085Sec Programmable Waterproof BLS RC Servo for 1/10 Scale Crawler Buggy Truck
If you are looking for a high quality and reliable servo but in a good price, you got the right one here. AGFrc A80BHMW V2 super torque waterproof steel gears will be the great option which support to use with high voltage and damp situation. A80BHMW V2 servo make almost 500oz-in torque with speed 0.11sec at 7.4V. While using voltage up to 8.4V, it can deliver 555oz-in super torque and 0.085sec high speed at 8.4V. Perfect for scale crawlers, 1/10 monster truck, 1/10 2WD and 4WD buggies, as well as 1/10 scale buggies and trucks. In addition, this A80BHMW V2 is great choice for boats and other application which require high power, high voltage and waterproof servo.

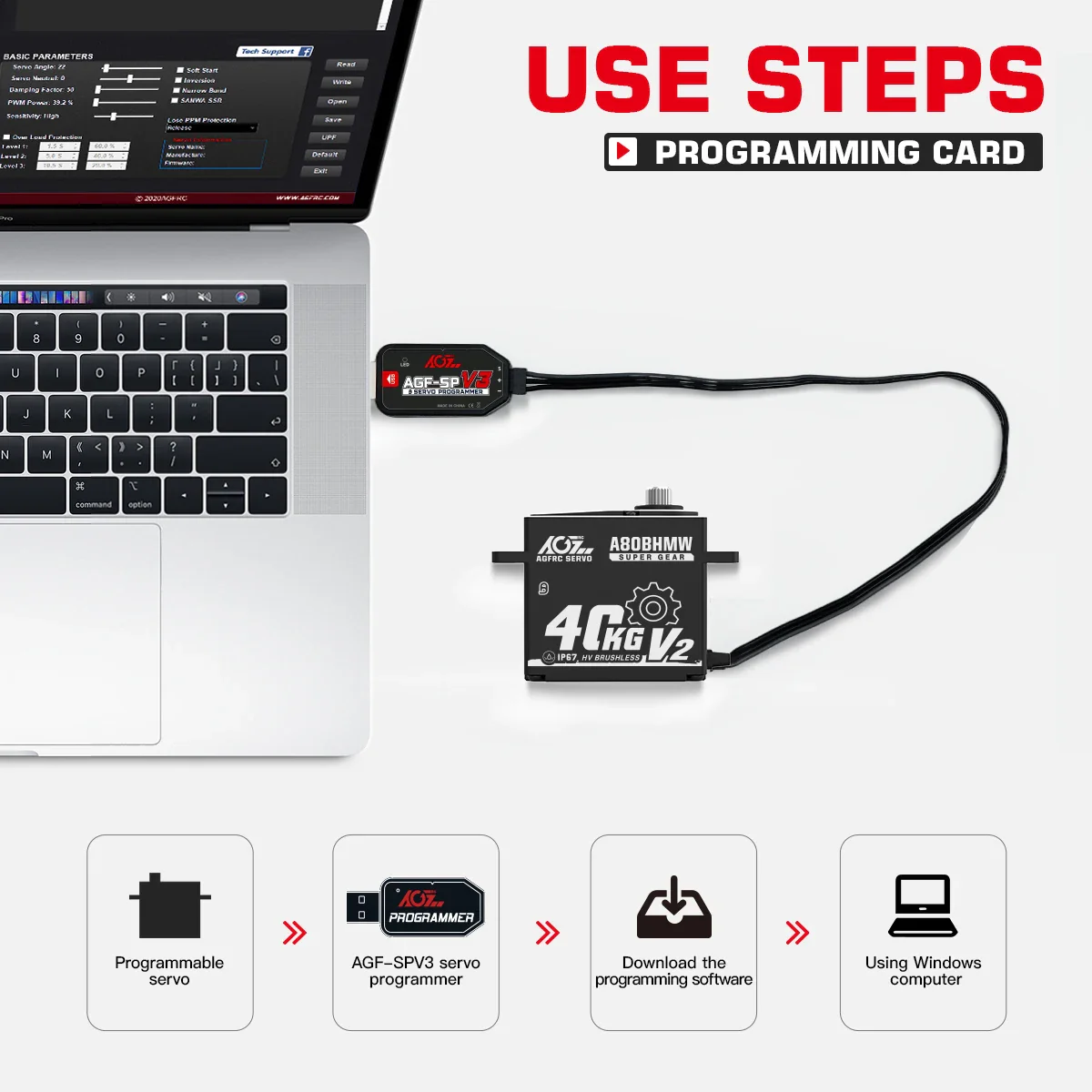

This A80BHMW is waterproof IP67 level up to 1 meter which allow driving in the rain, puddles, snow and mud. High reliable and durable patent gear design which can be longer service life. Full aluminun CNC case for fast heat disppation. High precision digital control circuitry. If you need some modification based on our default setting, pls contact us directly.Note: Currently, USB programming cards are only applicable to Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit) system.

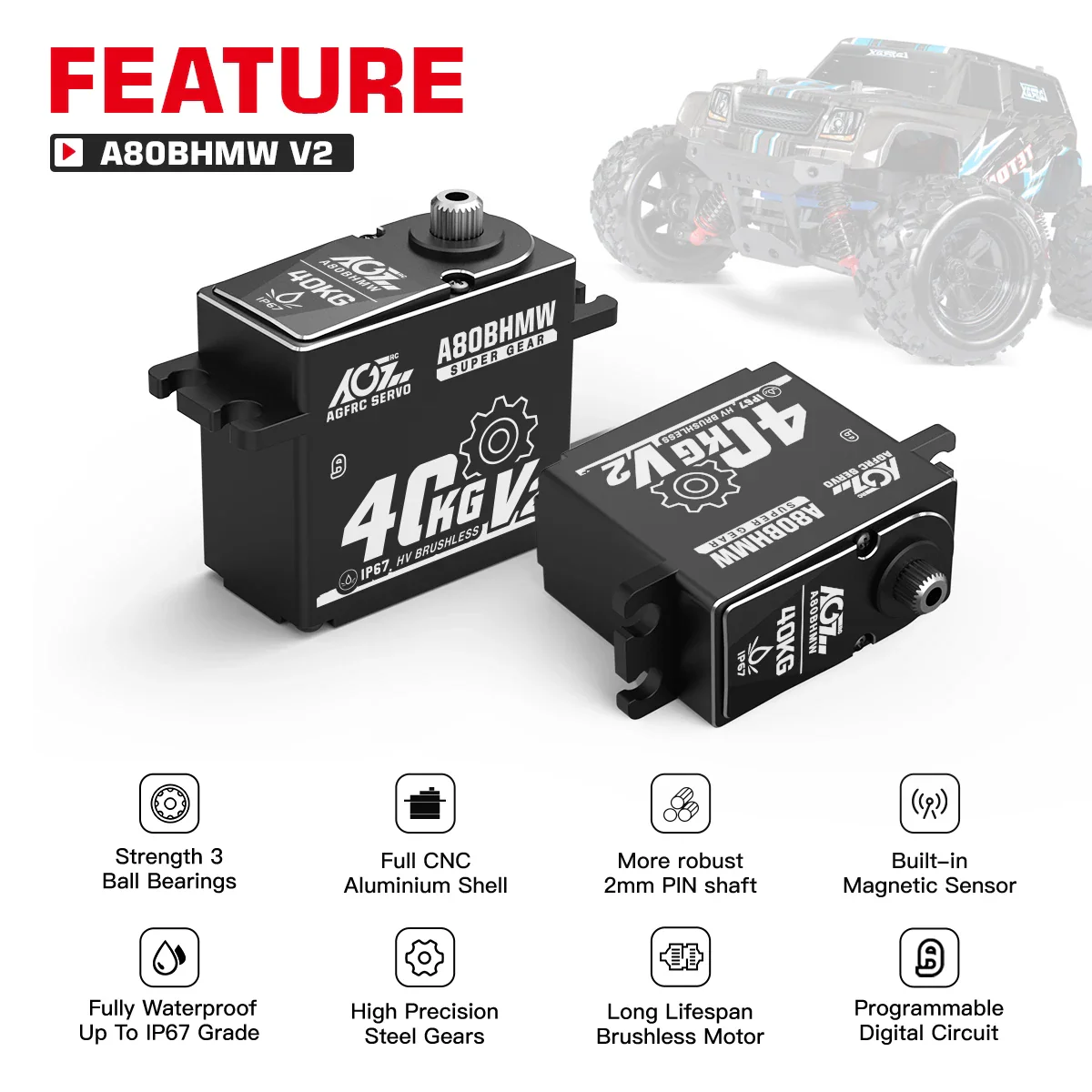

Feature
Full CNC Aluminium Shell
Long Lifespan Brushless Motor
Strength 3 Ball Bearings
High Precision Steel Gears
Fully Waterproof Up To IP67 Grade
Built-in Magnetic Sensor
More robust 2mm PIN shaft
High Reliability Standard Digital Servo
Ideal for 1/10 On-Road, Off0Road, Truck, Plane, Robot and Engine etc.Specification
A80BHMW V2
Operating Voltage: 4.8-8.4 V
Operating speed: 0.120sec/60° @ 6.0V
Operating speed: 0.100sec/60° @ 7.4V
Operating speed: 0.085sec/60° @ 8.4V
Stall Torque: 31 kg-cm (430.51 oz-in) @ 6.0V
Stall Torque: 36 kg-cm (499.95 oz-in) @ 7.4V
Stall Torque: 40 kg-cm (555.50 oz-in) @ 8.4V
Gear: Steel
Motor: BLS
Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)
Weight: 81g
Connector Wire: TYU 300 mm / 22AWG
This servo has the following specifications: 33.8ms average speed, 0.085 seconds fast speed at 8.4V, 0.100 seconds average speed at 7.4V, 805.95 degrees total rotation, 25 turns per second, 0.120 seconds fast speed at 60° and 6.0V, 40 milliseconds slow speed at 60° and 4.8V.
This servo features:* Three ball bearings for mechanical stability* No-limit size: 40mm x 20mm x 37mm (smallest dimension)* Net weight: 79 grams* Wire length: 300mm with a gauge of 22AWG* Operating travel: 180° (full range) + 108° (positive offset)* Signal resolution: 500-2500 microseconds* Stall torque: 27 kg-cm (375 oz-in) at 4.8V with a current draw of 280mA.
AGF-RC Electronic Technology Co., Ltd., located in Huizhou, is a high-tech enterprise that owns over 1,200 square meters of dust-free electronic manufacturing workshop space. Since 2009, AGFRC has focused on designing and manufacturing a wide range of RC servos, speed controllers (ESC), receiver modules, and car gyros. Additionally, our company holds certifications from recognized organizations such as CE, ROHS, and FCC.
AGFRC does not guarantee specific delivery times for international shipments, as customs clearance processes vary significantly by country. International buyers are responsible for any additional customs fees that may apply. Additionally, we offer a 1-month free replacement policy; if you need to request a replacement, please do so within 15 days of receiving your product.
-
