ACASOM ROC2 Drone WIFI 5W 2.4G/5.8G Dual-Band Signal Booster Antenna Range Extender
-
Detail
ACASOM ROC2 Drone WiFi 5W 2.4G/5.8G Dual-Band Signal Booster Antenna Range Extender
Elevate your drone’s performance and range with the ACASOM ROC2, a high-power dual-band signal booster designed for enhanced FPV and drone signal extension. This compact device integrates an amplifier, antenna, and battery, providing powerful 2.4G and 5.8G signal boosting capabilities for a stable and extended connection in challenging environments. With a 5W maximum transmitting power and a robust 7.4V 5000mAh battery, the ROC2 enables uninterrupted drone operation for extended flights and remote locations.
Ideal for both professional drone pilots and FPV enthusiasts, the ROC2 is engineered to provide a reliable signal boost for enhanced control and extended range, making it an essential tool for those looking to push the boundaries of drone performance.
Key Specifications
Items Specifications Frequency Range 2400-2500MHz (2.4G) / 5725-5850MHz (5.8G) Type-C Voltage 5V / 2A Receiving Gain 15dB ± 1 Transmission Gain 19dB ± 1 Max Output Power (P1dB) 37dBm (5W) Input Trigger Power Min: 5dBm, Max: 23dBm EVM 3% @ 28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz (2.4G)
3% @ 28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz (5.8G)Noise Figure < 2.5dB Current Supply 550mA @ Pout 28dBm, 12V TX/RX Switch Time Delay < 1 µs LED Indicator Battery power indicator Operating Temperature -30℃ to +70℃ Storage Temperature -40℃ to +150℃ Operating Humidity Up to 95% relative humidity RF Connector Input: SMA-K Power Socket Type-C Shell Size 183 x 88 x 70 mm Shell Material Aluminum Net Weight 0.43 kg Battery Capacity 7.4V 5000mAh Features and Highlights
- Dual-Band Super Booster: The ROC2 operates on both 2.4G and 5.8G bands simultaneously, allowing you to extend your drone’s range and maintain a stable signal across both frequency bands.
- Integrated Design: This signal booster integrates an amplifier, high-gain antenna, and a powerful battery into a single, compact unit, making it easy to install and transport for any drone mission.
- High Output Power: With a maximum transmitting power of 5W (37dBm), the ROC2 provides robust signal boosting to support extended range and stable connectivity, even in challenging areas.
- Long-lasting Battery: The 7.4V 5000mAh battery offers extended operational time, allowing for prolonged flights and ensuring you stay connected over greater distances.
- Rugged and Reliable: Constructed with durable aluminum housing and capable of operating in extreme temperatures (-30℃ to +70℃), the ROC2 is built to withstand tough environments, making it suitable for outdoor and professional use.
Applications
- FPV Signal Booster: Provides stable FPV transmission for drone racing or long-distance exploration.
- Drone Signal Extender: Extends the operational range of drones, making it ideal for aerial photography, mapping, and surveying in remote locations.
Package Includes:
- 1 x ACASOM ROC2 Dual-Band Signal Booster
- 1 x Type-C Charging Cable
- 1 x User Manual
The ACASOM ROC2 is your solution for extended range and stability in drone operations. With its dual-band capability, high output power, and integrated design, the ROC2 empowers you to reach new distances and elevate your drone’s performance.
ACASOM ROC-II 2.4GHz and 5.8GHz signal booster antenna amplifies weak WiFi signals for stable drone connectivity, perfect for outdoor flying, improving range and reducing interference, ideal for photographers and videographers.
ACASOM ROC II boosts 2.46/5.8G signals for stable drone WiFi connectivity.

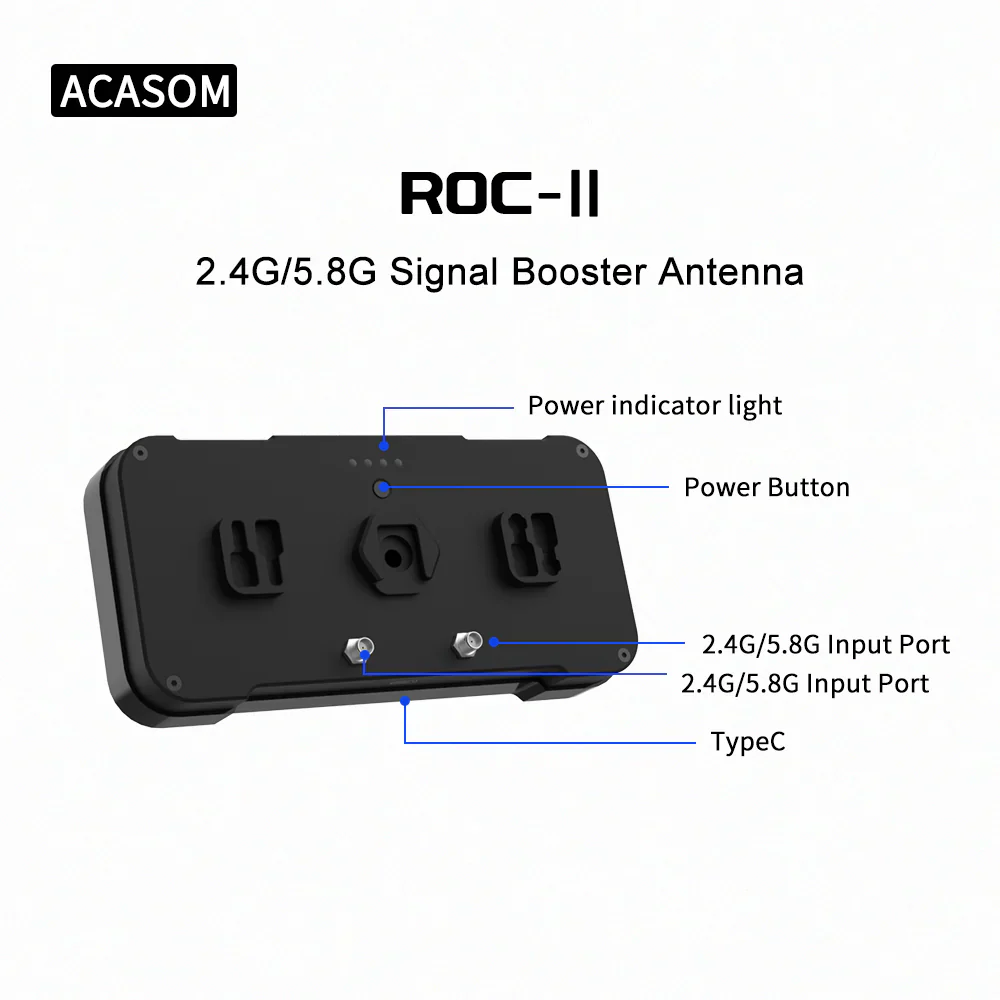

ROC II Drone WiFi Booster: This product features a 2.46/5.8 GHz signal booster, an antenna with a power indicator light and power button, as well as a 2.46/5.8 GHz input port and Type-C input port.
ACASOM ROC-II 2.4GHz and 5.8GHz signal booster antenna with an impressive range of 183mm and frequency between 7000-8000MHz, perfect for enhancing drone WiFi connectivity.
-
