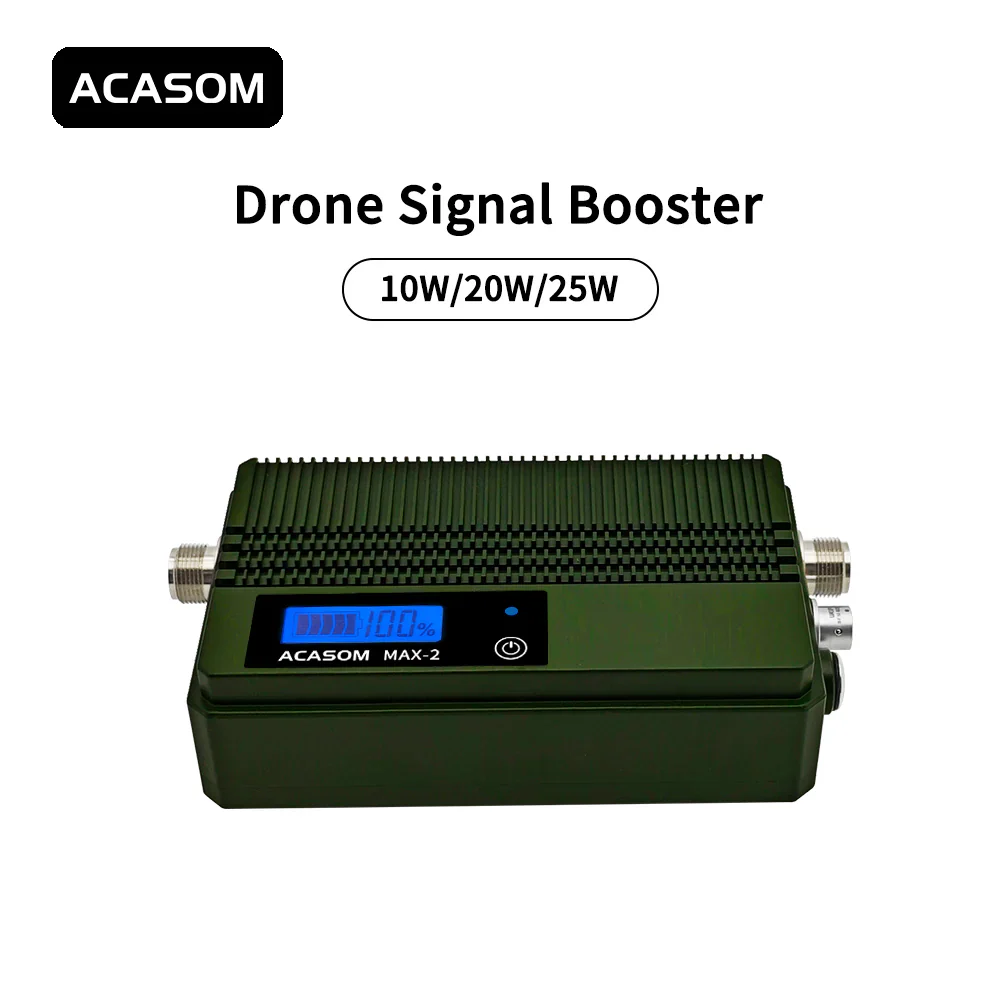

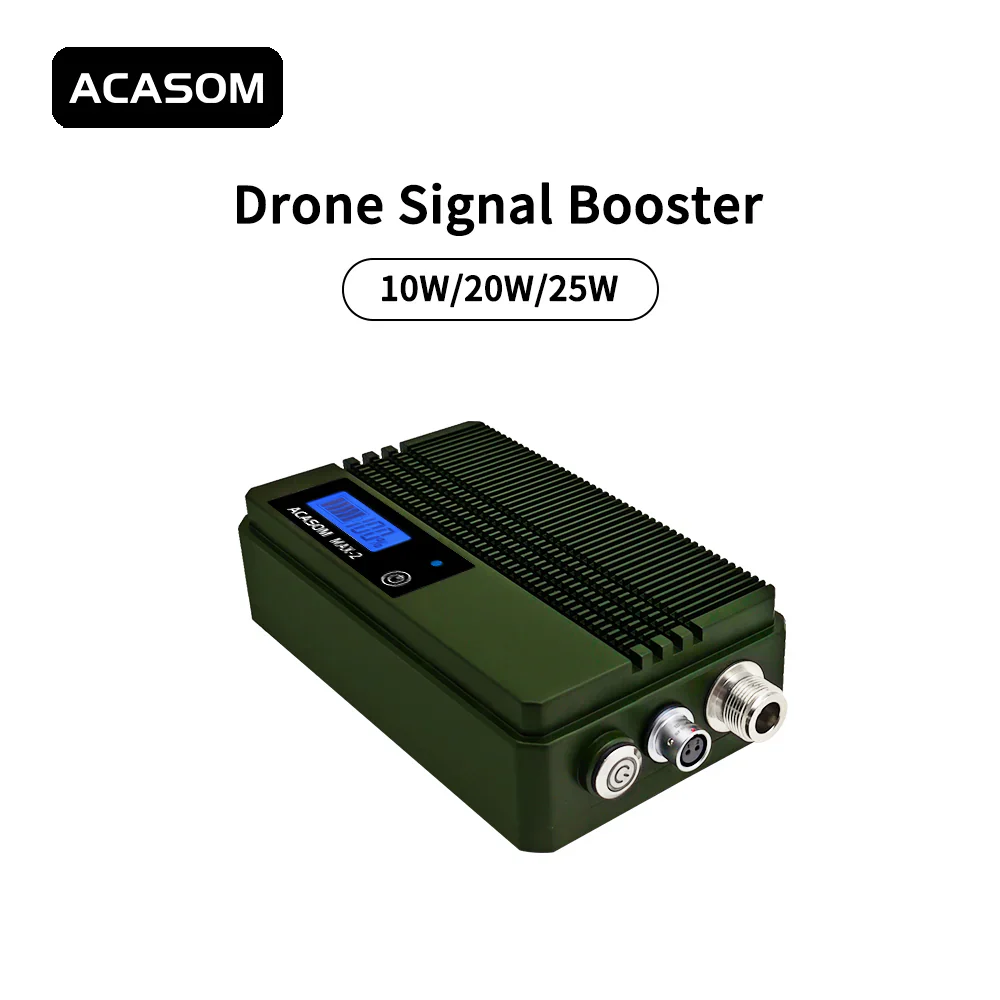

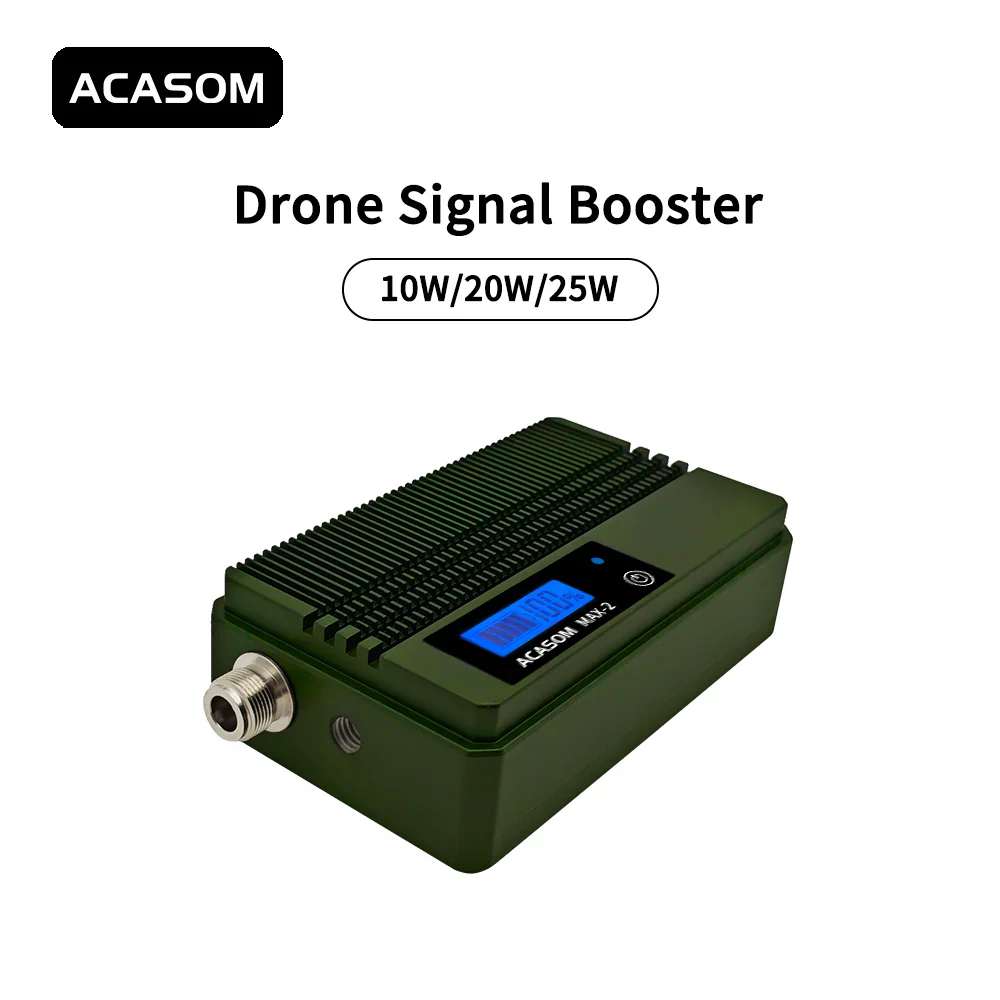

ACASOM MAX-2 2.4GHz Drone Signal Booster - 10W 20W 25W Signal Amplifier FPV Image Transmission Range Extender

The ACASOM MAX-2 is a high-performance, single-band signal booster engineered specifically for enhancing 2.4GHz FPV drone image transmission. This compact and portable booster features a powerful 10W module, providing significant range extension and stability in challenging outdoor environments. With an IP68 waterproof rating and a 22.2V/5000mAh lithium battery, the MAX-2 delivers over five hours of continuous operation, ensuring reliability during extended drone missions.

Product Overview

• Dedicated 2.4GHz Signal Boosting: Operating in the 2.4GHz frequency range (2400-2500MHz), the MAX-2 enhances FPV image transmission, providing a stable and extended signal connection for long-range flights.
• Extended Battery Life: Equipped with a high-capacity 22.2V 5000mAh battery, the MAX-2 allows for more than five hours of uninterrupted use, perfect for long-duration drone operations.
• IP68 Waterproof Design: Built to withstand harsh environments, the MAX-2’s IP68 waterproof rating ensures reliable performance in rain, dust, and rugged terrains, making it suitable for outdoor use.
• Portable and Lightweight: Weighing less than 1.5 kg, the MAX-2 is easy to carry and mount, offering flexible options like arm-mounted, waist-hung, or chest-hung configurations for added convenience.

Key Specifications

Features and Highlights

1. Enhanced 2.4GHz Range Extension: Optimized for the 2.4GHz band, the MAX-2 significantly boosts FPV image transmission range, ensuring stable connectivity in remote or challenging environments.
2. Durable and Waterproof Design: With an IP68 waterproof rating, the MAX-2 is rugged enough to handle wet, dusty, or harsh outdoor conditions, making it ideal for professional drone applications.
3. Extended Operational Time: Powered by a robust 22.2V 5000mAh battery, the MAX-2 provides over five hours of continuous boosting, perfect for extended missions without frequent recharges.
4. Portable and Flexible: Weighing only 1.5 kg, the MAX-2 is designed for portability, allowing for versatile mounting options such as arm, waist, or chest, providing comfort and flexibility for operators.
5. User-Friendly Indicators: Featuring LED indicators (green for transmitter, red for receiver) and a battery capacity tester, the MAX-2 provides real-time feedback, making it easy to monitor performance.

Applications

• FPV Image Transmission Extension: Ideal for enhancing signal stability and range during FPV drone flights, especially in areas with potential signal interference.
• Professional Drone Operations: Perfect for aerial photography, mapping, and surveying, providing reliable and long-distance signal support for various professional applications.

Package Includes:

• 1 x MAX-2 10W Signal Booster
• 1 x 22.2V Charging Adapter

The ACASOM MAX-2 is an essential tool for drone operators who require extended range and reliable signal stability. With its 2.4GHz optimization, rugged waterproof design, and extended battery life, the MAX-2 is crafted to meet the demands of challenging outdoor FPV and professional drone applications.

ACASOM MAX-2 2.4GHz Drone Signal Booster amplifies signals up to 20W, increasing range and reliability for seamless flights.

ACASOM MAX-2 2.4GHz Drone Signal Booster, amplifying signals up to 1000 feet.

Boost drone signals up to 10W or 20W with this ACASOM MAX-2 2.4GHz signal booster, ideal for long-range flights and improved connectivity.

Boost weak drone signals with the ACASOM MAX-2 2.4GHz Signal Booster, featuring 10W/20W output power and 25 dB gain.

Boost drone signal with ACASOM MAX-2 2.4GHz amplifier, offering strong reliable transmission for improved connectivity and control.

Boost your drone signal with the ACASOM MAX-2 2.4GHz signal booster, offering 10W and 20W power options.

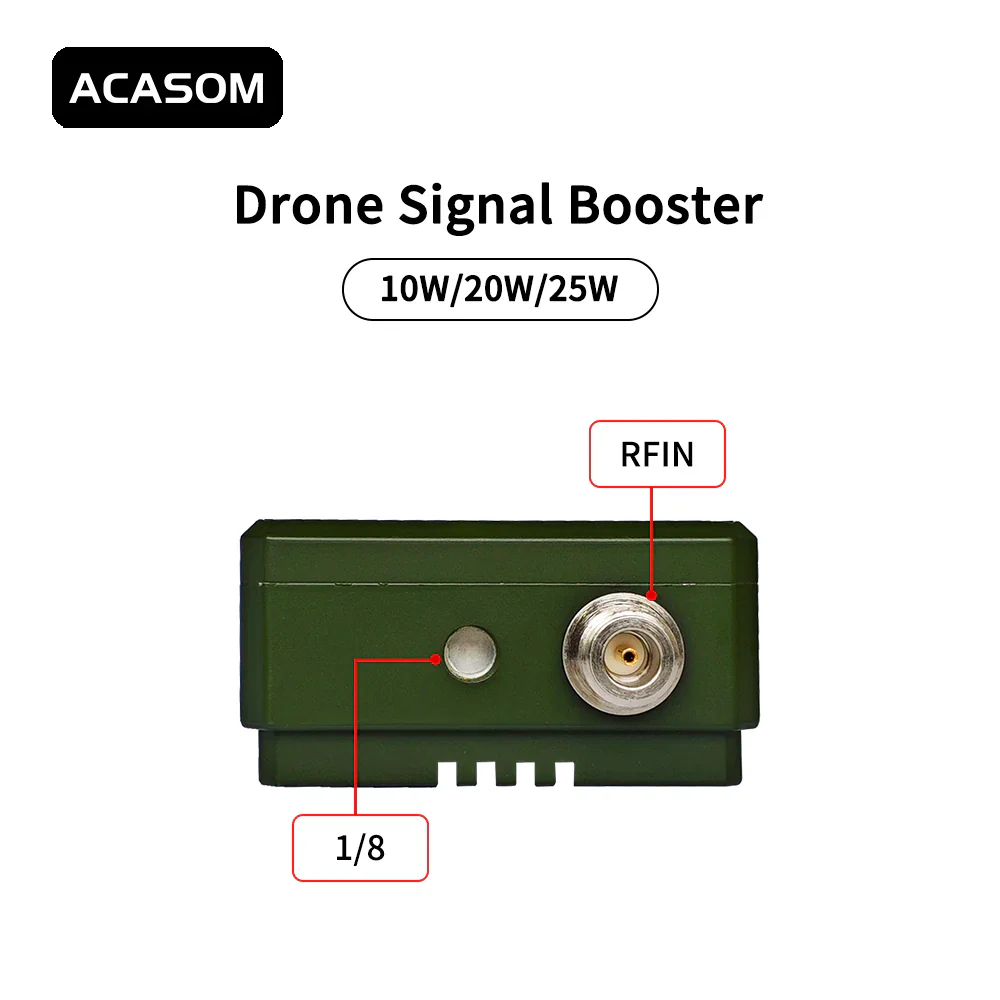

ACASOM MAX-2 Drone Signal Booster amplifies 2.4GHz signals for improved drone connectivity, featuring 10W and 20W options with a 1/8 inch connector.

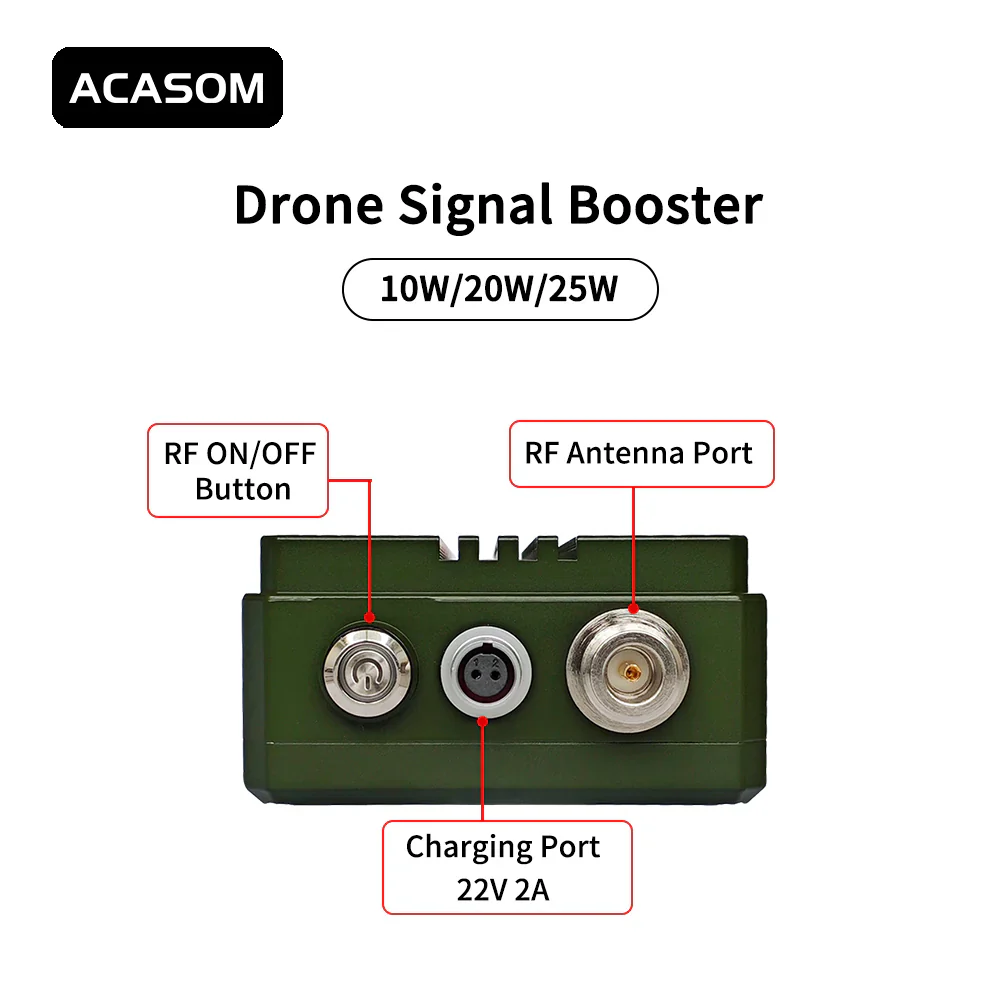

MAX-2 2.4GHz Drone Signal Booster features a 10W/20W output, RF on/off button, and antenna port for enhanced signal transmission and reception. It also includes a charging port that supports 22V and 2A.

Boost your drone signal with ACASOM MAX-2, a reliable 2.4GHz booster that enhances range and stability for a stronger connection.
