ACASOM MAX-2 1.2GHz Drone Signal Booster - 10W 20W 25W Signal Amplifier Portable FPV Range Extender
-
Detail
The ACASOM MAX-2 is a robust single-band signal booster designed specifically for FPV drone operations, providing enhanced signal stability and extended range in challenging environments. Operating at 1.2GHz with a powerful 10W booster module, the MAX-2 empowers drone operators to maintain a reliable connection over long distances. Equipped with an IP68 waterproof rating, a high-capacity battery, and a compact design, the MAX-2 is built to withstand outdoor conditions while remaining easy to carry and mount.
Product Overview
- High-Performance 10W Signal Amplification: The MAX-2 operates in the 1.2GHz frequency range (1120-1280MHz), providing a robust 10W output to significantly boost signal stability and range.
- Extended Battery Life: With a 22.2V 5000mAh lithium battery, the MAX-2 offers more than 5 hours of continuous operation, ensuring uninterrupted performance during extended drone missions.
- IP68 Waterproof and Durable Design: Designed for rugged conditions, the MAX-2 is IP68 rated, meaning it can function in rainy or harsh outdoor environments, making it suitable for wilderness and demanding operational settings.
- Portable and Lightweight: Weighing less than 1.5 kg, the MAX-2 is easy to carry and versatile in mounting options, including arm-mounted, waist-hung, and chest-hung configurations, providing flexibility for various operational needs.
Key Specifications
Item Specification Frequency Range 1120-1280MHz Operating Voltage 22.2V Receiving Gain 18dB ± 1 Transmission Gain 18dB ± 1 Max Output Power (P1dB) 40dBm (10W) Input Trigger Power Min: 3dBm, Max: 22dBm EVM 3% @ 34dBm, 802.11g 54Mbps OFDM 64QAM BW 20MHz Noise Figure < 2.5dB Current Supply 1.0A @ Pout 34dBm, 22V TX/RX Switch Time Delay < 1 µs LED Indicator Transmitter: Green; Receiver: Red Operating Temperature -30℃ to +70℃ Storage Temperature -40℃ to +150℃ Operating Humidity Up to 95% relative humidity RF Connector Input: N-F; Output: N-F Power Socket IP68 Aviation Plug Shell Size 174 x 87.5 x 44.5 mm Shell Material Aluminum Net Weight 1.5 kg Waterproof IP68 Battery Capacity Tester Yes Color Green Features and Highlights
- Optimized Signal Amplification for FPV Drones: Operating at 1.2GHz with 10W output power, the MAX-2 enhances FPV signal range and stability, ideal for extended-range drone flights.
- Rugged and Waterproof Design: The IP68-rated aluminum shell ensures the MAX-2 can operate reliably in wet, muddy, or harsh outdoor conditions, making it suitable for extreme environments.
- Long Battery Life: With a 22.2V, 5000mAh battery, the MAX-2 provides over 5 hours of continuous signal boosting, allowing for extended missions without frequent recharging.
- Compact and Portable: Designed for portability, the MAX-2 weighs just 1.5 kg, making it easy to carry and mount in multiple configurations, including arm, waist, and chest mounts.
- User-Friendly Indicators: Equipped with LED indicators (green for transmitter, red for receiver) and a battery capacity tester, the MAX-2 provides real-time operational feedback for ease of use.
Applications
- Drone Signal Extension: Enhances the signal range and stability of drones, ideal for professional drone operations, long-distance FPV racing, and remote aerial photography.
- Field Operations: Suitable for challenging outdoor conditions, ensuring signal reliability in remote and wilderness environments.
Package Includes:
- 1 x MAX-2 10W Signal Booster
- 1 x 22.2V Charging Adapter
The ACASOM MAX-2 is the ideal tool for drone operators seeking enhanced signal stability and extended range. With its powerful amplification, rugged waterproof design, and long battery life, the MAX-2 ensures reliable performance even in the most challenging environments.
Improve your drone connectivity and reliability with ACASOM Max-2, a high-powered signal booster offering reliable transmission and reception for seamless flight operation.

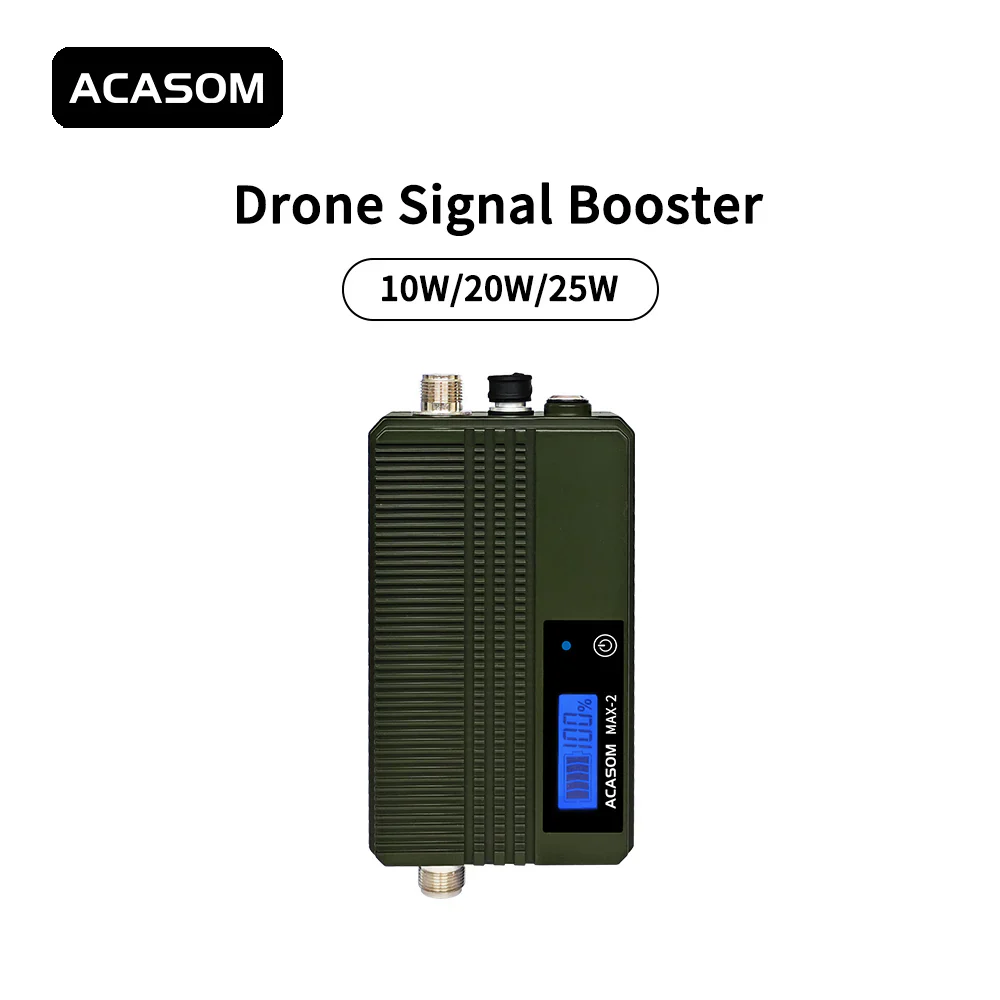

ACASOM MAX-2 1.2GHz Drone Signal Booster for Clearer Reception and Stronger Connection

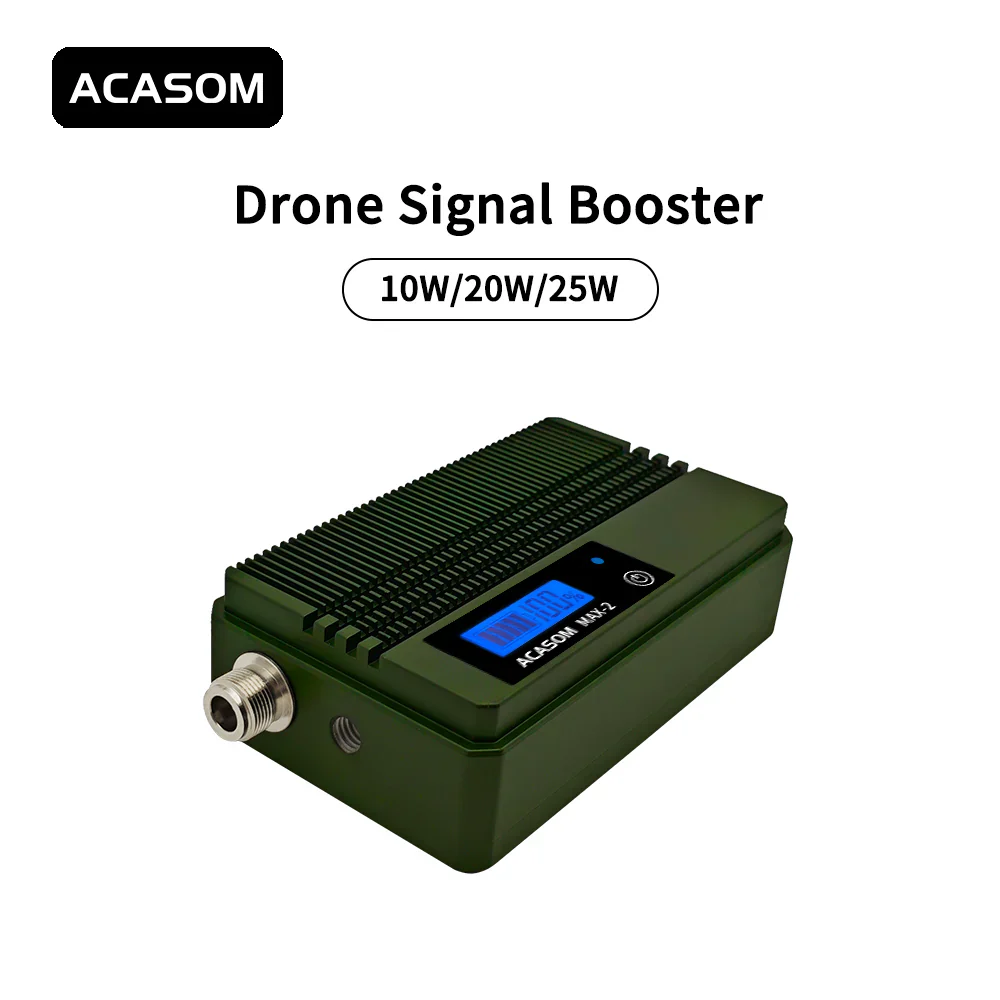

ACASOM MAX-2 1.2GHz Drone Signal Booster amplifies weak drone signals to improve range and clarity, perfect for long-distance flights or video transmission.

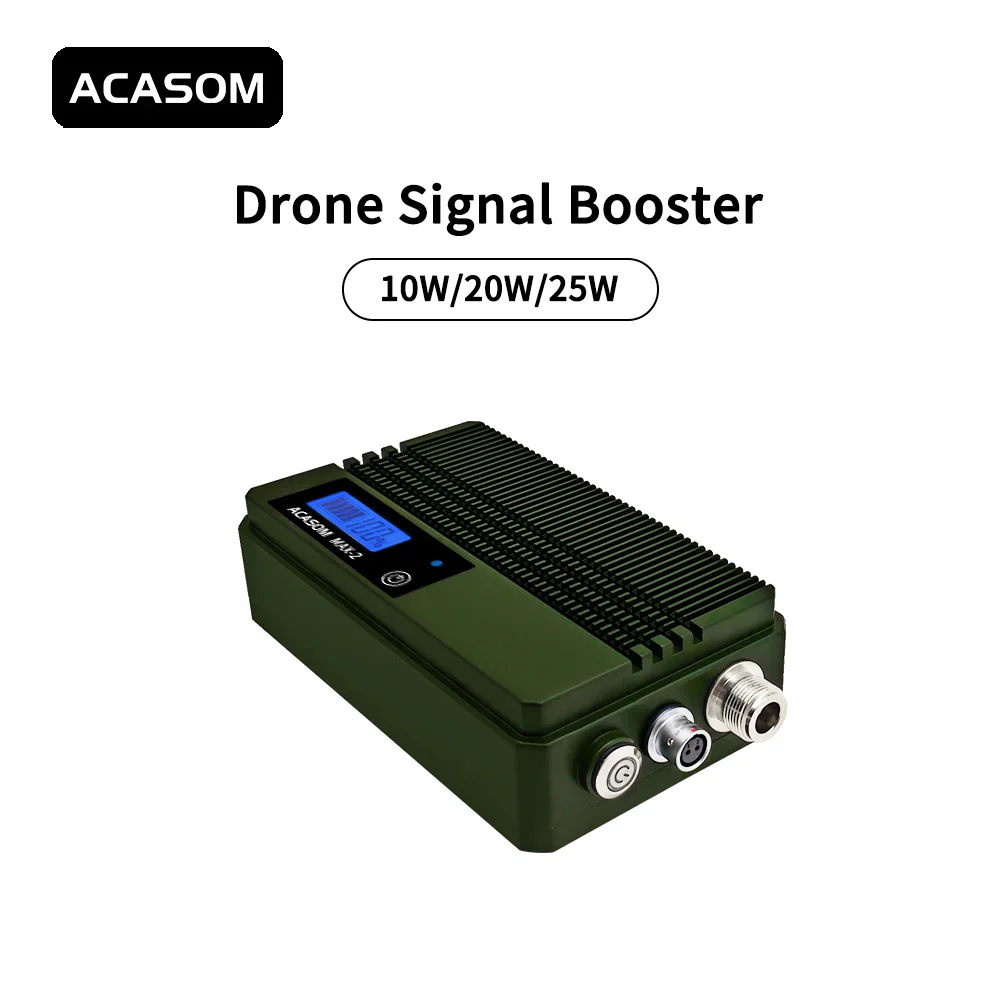

ACASOM MAX-2 1.2GHz Drone Signal Booster Amplifies Stronger Signals Up to 20W

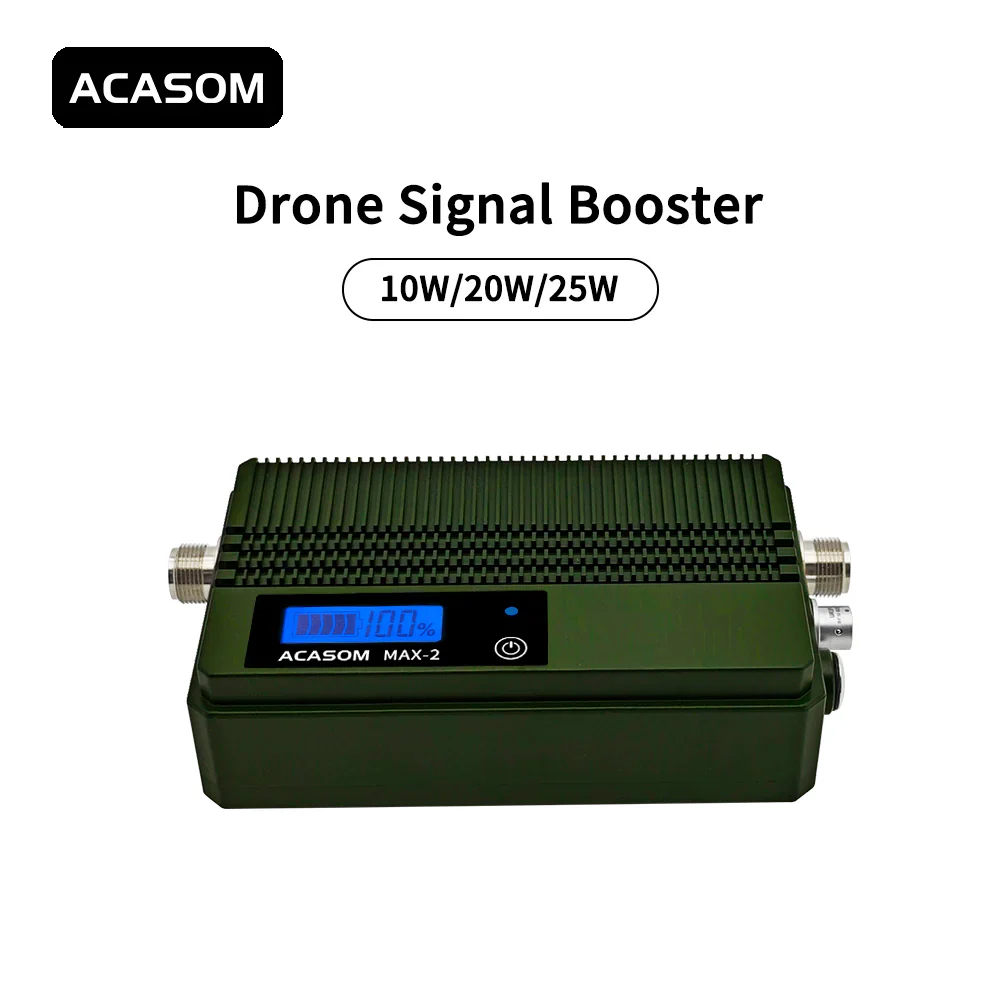

MAX-2 drone signal booster with 1.2GHz frequency and 10W/20W output power, enhancing signal strength for reliable transmission.

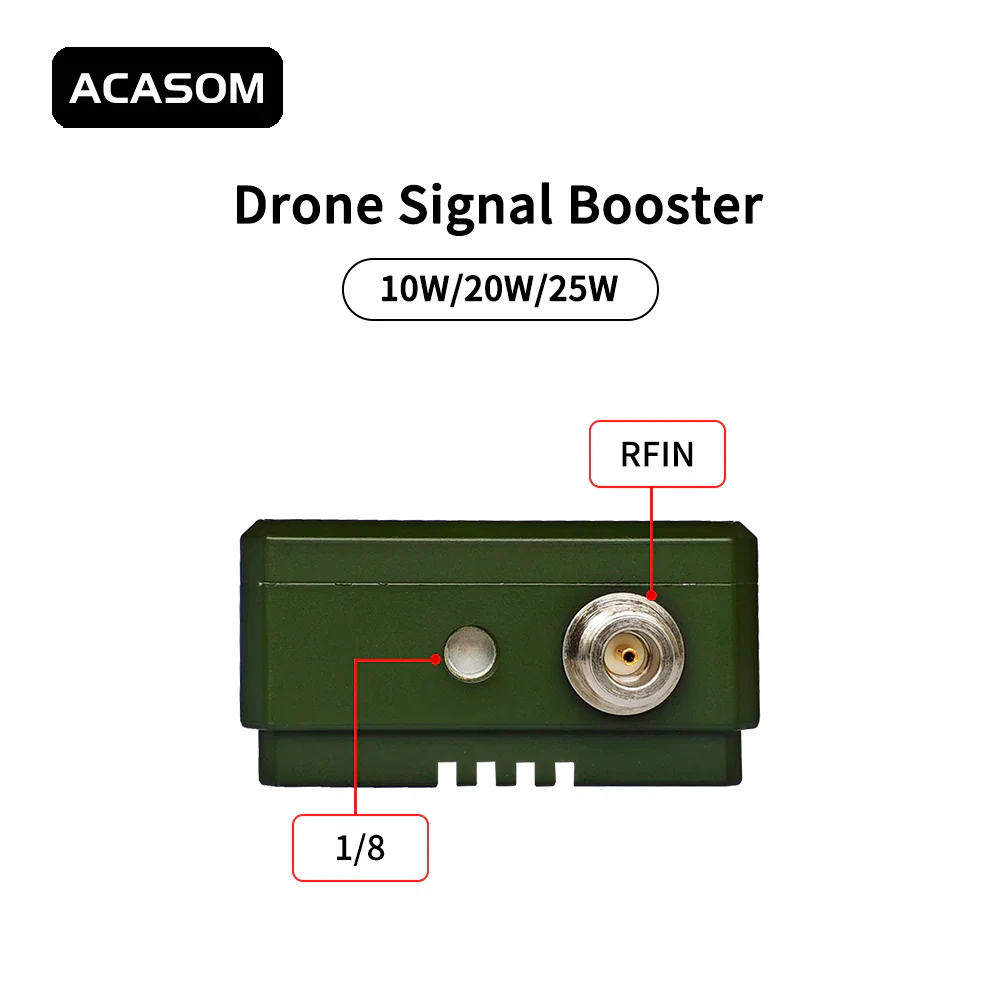

ACASOM MAX-2 1.2GHz Drone Signal Booster features a 10W/20W output, RF On/Off button, and antenna port. It also includes a charging port that supports up to 22V at 2A.
Boost drone signals with this ACASOM MAX-2 booster, offering 10W to 25W of power for reliable transmission
Amplify your drone connectivity up to 20W with ACASOM Max-2 1.2GHz Drone Signal Booster, perfect for long-range flights.
-
