ACASOM 1.4GHz Drone Signal Amplifier - 10W 20W 40W 50W 100W RF High Power Amplifiers Wireless Signal Extender
-
Detail
The ACASOM 1.4GHz RF High Power Amplifier is a high-performance unidirectional amplifier tailored for drone and WiFi applications within the 1.42-1.47GHz frequency range. With an impressive output power of up to 47dBm (50W), this amplifier significantly enhances the transmission channel (TX) for long-range, robust communication. Designed for customization, the ACASOM amplifier can be tailored to specific power and gain requirements, making it an ideal solution for advanced drone communication and wireless signal extension.
Product Overview
- Unidirectional Amplification: Specifically boosts the transmitting channel (TX), enhancing outbound signal strength for superior long-range communication.
- High Output Power: Provides up to 47dBm (50W) output power, delivering strong signal amplification for applications in the 1.42-1.47GHz frequency range.
- Customizable Power and Gain: ACASOM offers customization options, allowing adjustments to output power and gain to match specific project requirements.
- Durable, Efficient Design: Featuring high power efficiency (45%) and durable aluminum casing, the amplifier is designed for reliable performance in various environments.
Key Specifications
Item Specification Frequency Range 1420-1470MHz Operating Voltage 20-24V (customizable to 28-32V) Gain (S21) 37dB (customizable 25-37dB) Input Return Loss (S11) -15dB Flatness ±0.5dB Output Power 47dBm (50W) Current 4.3A @ 24V, 47dBm Efficiency 45% @ 46dBm LED State Red Operating Temperature -30℃ to +85℃ Storage Temperature -40℃ to +150℃ Operating Humidity < 95% RH RF Connector Input: SMA-Female; Output: SMA-Female Power Socket 5.5 x 2.0 mm DC (default) or 15cm red/black wire Shell Material Aluminum Shell Size 96 x 53 x 17 mm Net Weight 0.15 kg Features and Highlights
- Exceptional Transmission Power: Boosts transmission signals with up to 50W of output power, extending signal reach and improving quality for drones and WiFi.
- Customizable Specifications: Options to adjust gain (25-37dB) and voltage (20-32V) provide flexibility for specific use cases and performance needs.
- Efficient and Reliable Design: High efficiency (45%) and a robust aluminum casing ensure reliable operation, even in challenging environments.
- Ideal for Drone and Industrial Use: With high output and stability, it’s suited for long-range drone communication, industrial control, and remote sensing applications.
Applications
- Drone Communication: Extends the reach of drone signals for improved communication and data transmission over large distances.
- WiFi and Wireless Networking: Ideal for enhancing WiFi signal strength and extending coverage in outdoor and industrial settings.
- Industrial Control Systems: Provides strong signal extension for remote industrial monitoring and control, ensuring reliable communication in demanding environments.
Important Notes
- Power Supply Requirements: Requires a 24V/5A power supply for optimal performance.
- Heat Dissipation: It’s recommended to add a heat sink or radiator fan to prevent overheating during extended use.
- Setup Instructions: Attach the antenna first, then plug in the power adapter, and finally connect the device for safe operation.
- Power Output Optimization: Achieves up to 47dBm output when input power is 10dBm or 11dBm, with the default gain set at 37dB.
Package Includes
- 1 x ACASOM 1.4GHz (50W)
For customization or bulk orders, please contact . This high-power amplifier offers a tailored solution for maximizing signal strength and communication range in demanding applications.
ACASOM 1.4GHz Drone Signal Amplifier boosts drone signals for clearer reception and improved connectivity

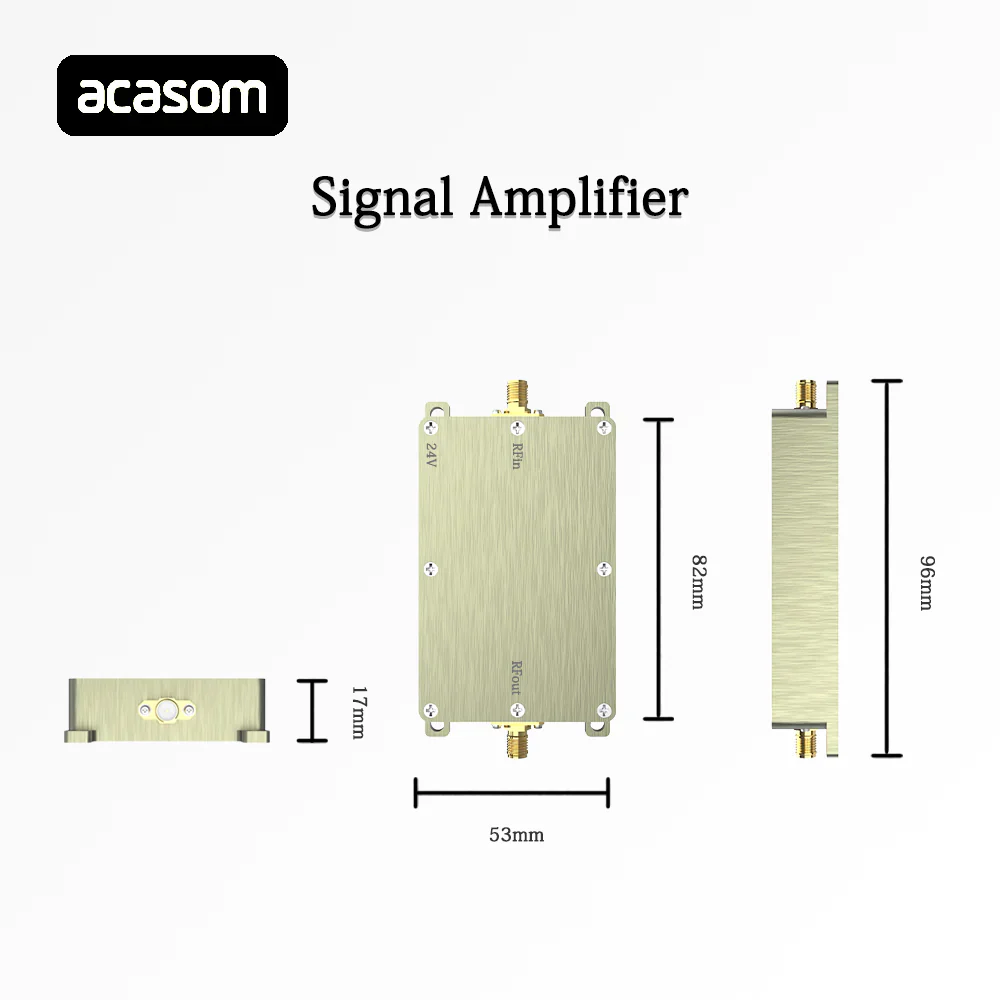

1.4GHz Drone Signal Amplifier: Boosts drone signals from RFin to RFout, powered by 24V DC.
-
