A203 Mini PC, Jetson Xavier NX 8GB, 128GB NVMe SSD, 2x USB 3, RS232, WiFi/BLE, Aluminum Case, JetPack 5.0.2
-
Detail
Overview

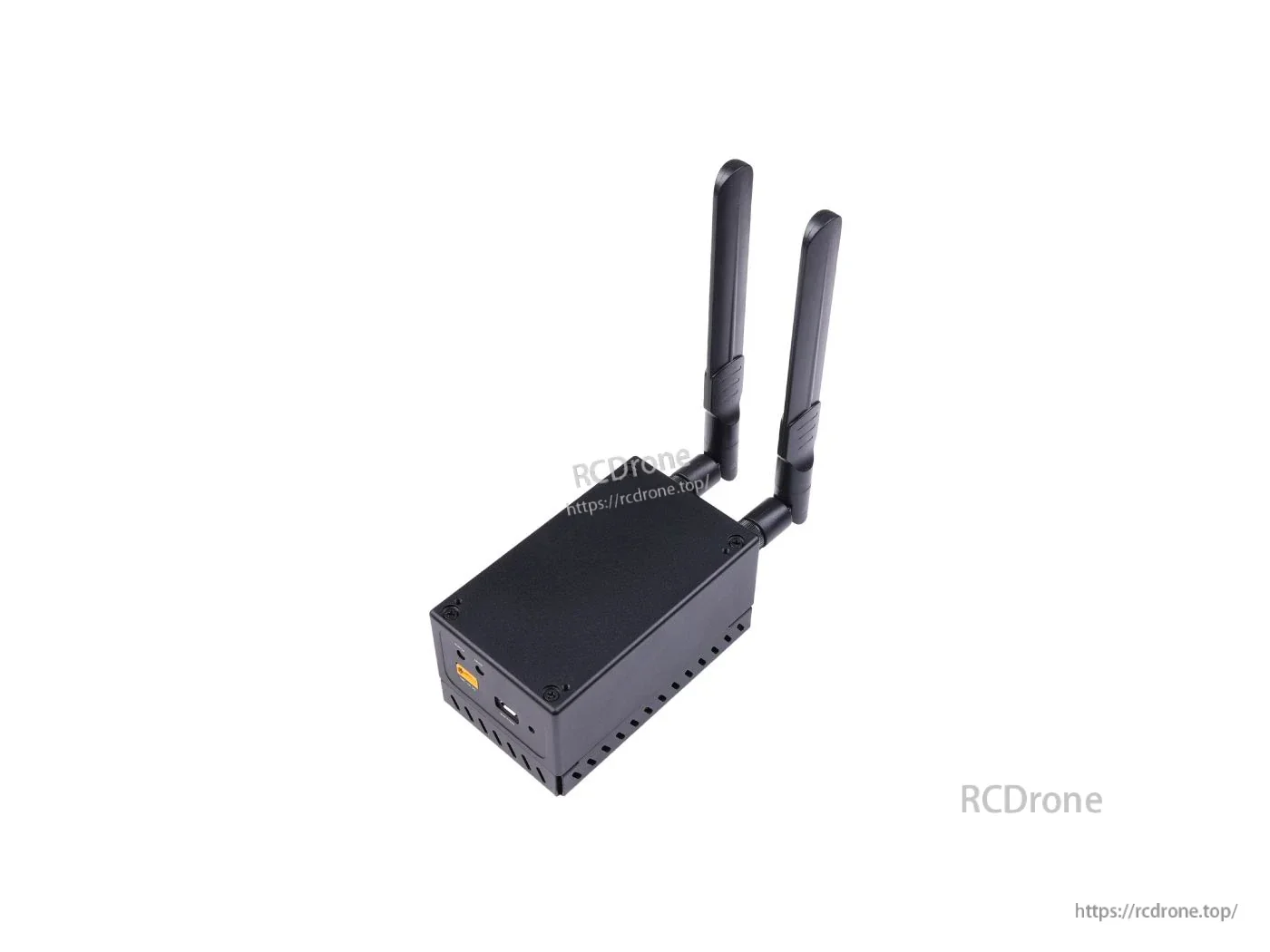

The A203 Mini PC is an industrial Mini PC built around the NVIDIA Jetson Xavier NX 8GB module, delivering up to 21 TOPS of edge AI performance in a compact enclosure with an aluminum case. It integrates 128GB NVMe SSD storage, WiFi/BLE, HDMI, USB, RS232, CAN, GPIO, and more, and comes pre-installed with NVIDIA JetPack 5.0.2 for rapid development and deployment in smart cities, security, industrial automation, and smart factory applications. It supports an operating range from -20°C to 80°C in a power-efficient, small form factor.
Key Features
- Extremely small form factor full system: 100mm x 44mm x 59mm edge AI box packs Jetson Xavier NX 8GB production module, rich-interfaces carrier board, 128 GB NVME SSD, WIFI module, heatsink, fan, and enclosure case.
- Advanced embedded AI system: 384 NVIDIA CUDA Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines.
- Rich I/O (based on ): 1 x RJ45 Gigabit Ethernet, 1 x HDMI, 1 x Audio Jack, 2 x USB 3, 1 x Micro USB, CAN, microSD card slot, reset button.
- Energy efficient: +9V to +19V DC Input @ 3A; Jetson Xavier NX delivers up to 14 TOPS at 10W or 21 TOPS at 15W or 20W.
- Pre-installed NVIDIA JetPack 5.0.2: supports the entire and .
- Certifications: FCC, CE, RoHS.
Jetson Xavier NX provides 59.7GB/s memory bandwidth with hardware video encode/decode, enabling multiple modern neural networks to run in parallel and processing of high‑resolution data from multiple sensors.
Specifications
Module NVIDIA Jetson Xavier NX AI Performance Up to 21 TOPS (INT8) CPU 6‑core 64‑bit NVIDIA Carmel ARMv8.2 GPU 384‑core NVIDIA Volta GPU Memory 8 GB 128‑bit LPDDR4x, 59.7GB/s Storage 128GB M.2 NVMe SSD; MicroSD card slot Display 1 x HDMI Type A Video Decoder H.265: 2x 4K@60 | 4x 4K@30 | 12x 1080p@60 | 32x 1080p@30; H.264: 2x 4K@30 | 6x 1080p@60 | 16x 1080p@30 Ethernet 1 x RJ45 Gigabit Ethernet (10/100/1000) Wireless M.2 Key E (WiFi/BT included) USB 4 x USB3.0 (USB 2.0 integrated), 1 x Micro USB Audio 1 x Audio Jack; 1 x I2S (3.3V level) Camera 1 x CSI Industrial Interfaces 1 x RS232, 1 x CAN Expansion 1 x 40‑Pin header; 2 x I2C (+3.3V I/O); 5 x GPIO; 1 x UART; 2 x SPI RTC 1 x RTC socket Operating System JetPack 5.0.2 (pre‑installed) Power +9V to +19V DC input @ 3A Operating Temperature -20°C to 80°C Mechanical 100mm x 50mm x 59mm (per comparison table) Ready for Development
The A203 Mini PC is pre-installed with , ideal for building AI systems for smart factories, automated optical inspection, and other AIoT embedded deployments using the full and .
Edge Deployment Made Easy
Supports : choose from 130+ pre-trained models or train custom models, deploy to the A203 Mini PC within minutes, enable OTA containerization and device monitoring, run offline, and auto-start on boot. An extensive library supports customization and real-time analytics integration.
Applications
- Industry 4.0:, , visual anomaly detection with NVIDIA DeepStream.
- Robotics:under‑ice sensing ROV, warehouse towing robot.
- Retail: sentiment analysis (webinar), retail items detection.
- Traffic management:edge AI for ITS; license plate, car, and pedestrian detection.

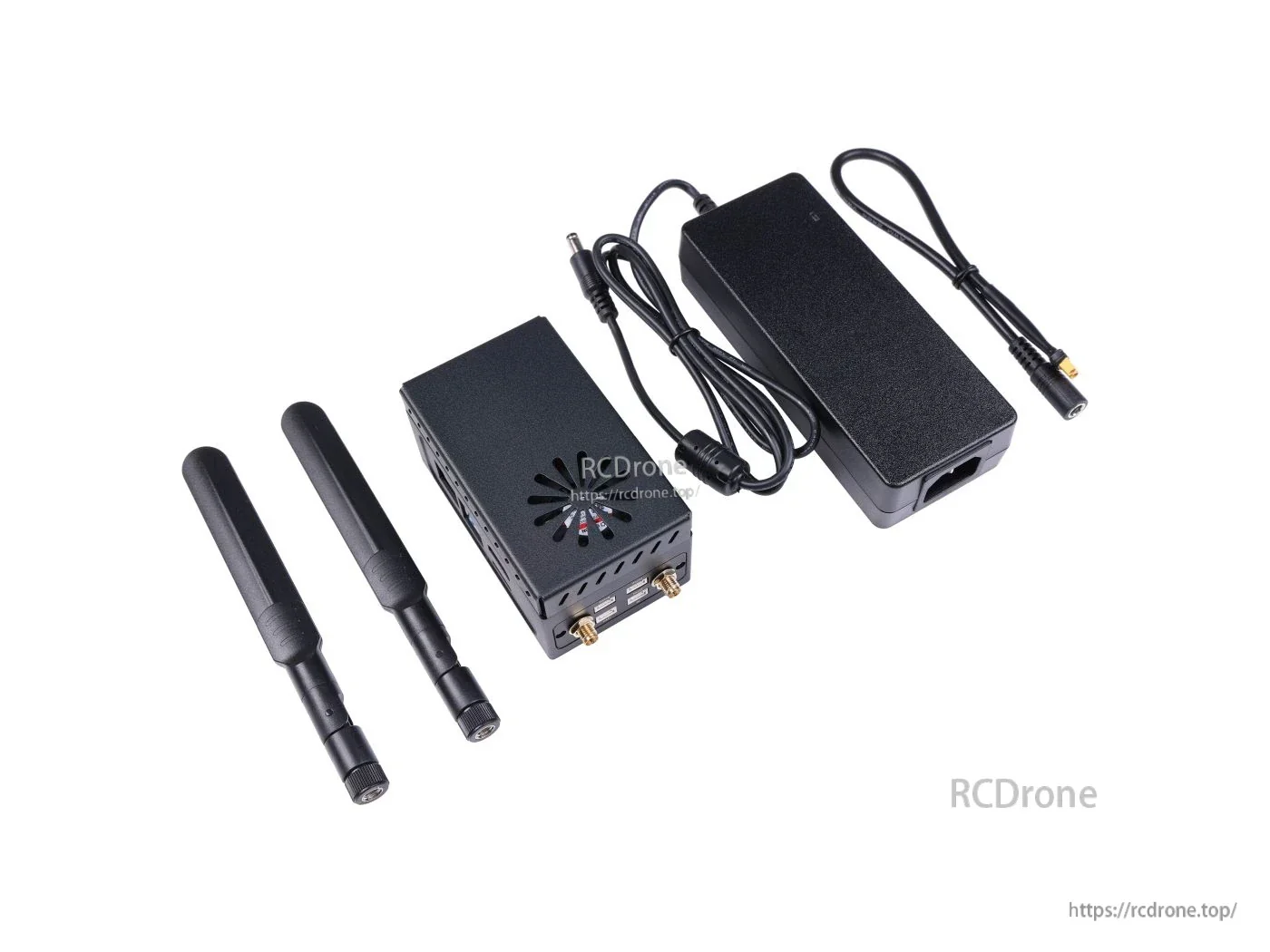

What’s Included
- A203 Mini PC x1
- Antenna x2
- Power adapter (Without Power cord) x1
Manuals / Documents
Certification
HSCODE 8471419000 USHSCODE 8517180050 EUHSCODE 8471707000 COO CHINA Details
