3 Axis Brushless   SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Tools

Technical parameters: Value 3

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y,14+y

RC Parts & Accs: Brushless Gimbal

Origin: Mainland China

Model Number: 3 Axis Brushless Gimbal

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Color: As picture shows

Brand Name: Readytosky

ReadyToSky is a professional manufacturer specializing in FPV (First-Person View) RC module accessories. For inquiries regarding wholesale or bulk purchases, please feel free to contact us.

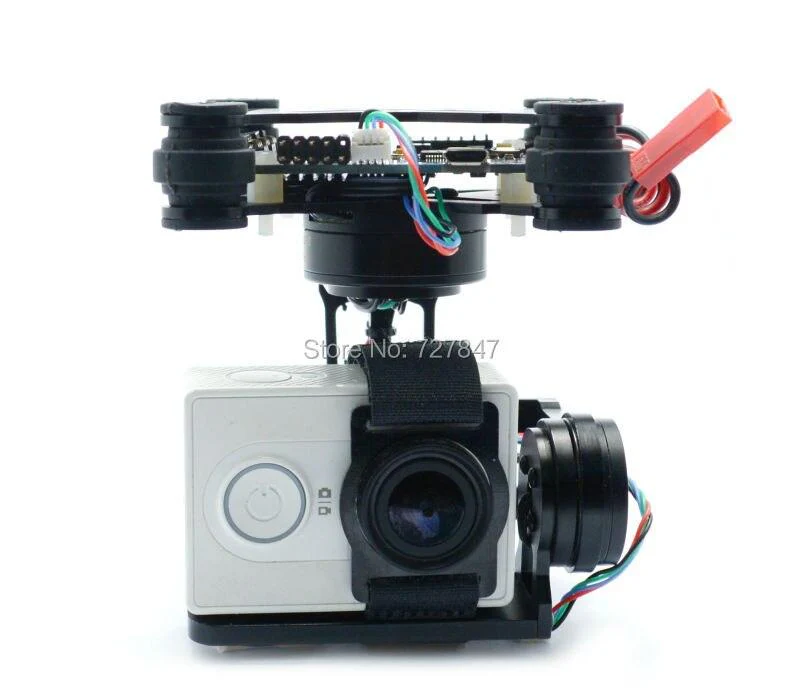

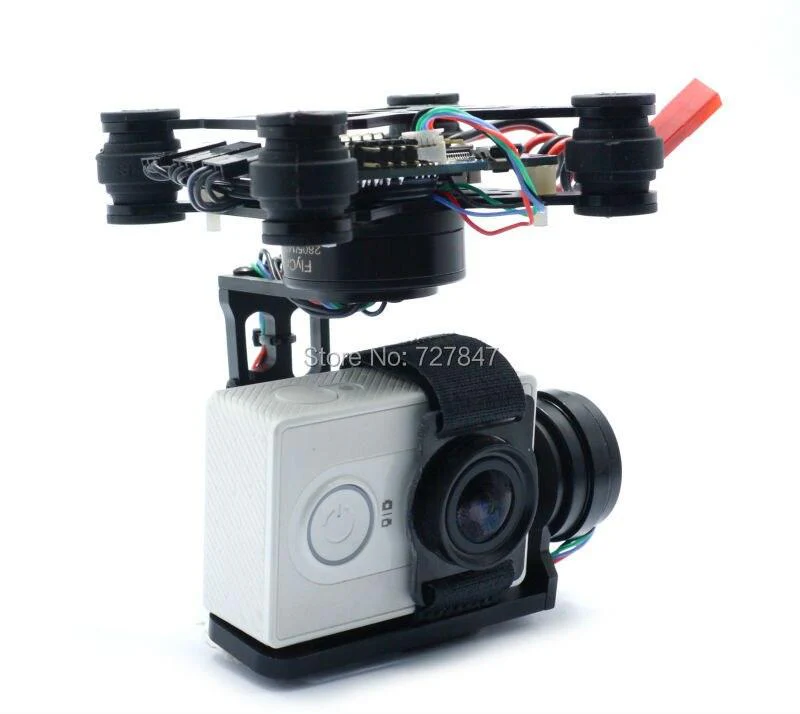

RTF CNC FPV 3 Axis  Brushless Gimbal  W/  2204 2805   Motor & Storm32 Controlller  for DJI Phantom Walkera X350 Gopro 3 4  SJ4000 Xiaomixiaoyi

Features:

Color: black

Axis: 3 axis gyro

Flight controller:  Storm32

Motor : 2 pcs 2204 260kv & 1 pc 2805 140kv

Battery plug: JST

Weight: about  177.5±2 g

Compatible camera: Gopro 4,3,2 ; SJ4000 , Xiaomi xiaoyi camera( not included)

compatiable frame : DJI Phantom 1 2 / Walkera X350

Strom32 Gimbal Controller

 Features:

board color: blue

motor drivers in DFN packages: yes

on-board MPU: yes

on-board bluetooth module: no

I2C plug type: picoblade (1.25mm JST)

I2C#2 plug type: picoblade (1.25mm JST)

pin headers: no

Included accessories:

MPU module

cable with connectors for MPU module

Points to note:

Firmware  : 051

The pins on connector I2C#2 are reversed as with respect to connector I2C

ALL boards HAVE the diode required for running a bluetooth module!!!

SPECIFICATIONS

supply voltage: 3s battery

motor current: max. 1.5 A per motor

Comment: This is not yet fully exploited, motors with resistances of 12 Ohm , motors with 10 Ohm may be handled with care (see here andhere).

board dimensions: 50 mm x 50 mm, 45 mm bolt to bolt, holes Ø3 mm

Warm notice:

1. Recommended power supply is 12V(3s battery);

2, Camera must be fixed in the head (without any loosening);

3. Adjust the Gopro camera to the left or right,so that the camera is at Horizontal level;

4. Before camera fixed in the gimbal , please do not push " on " button to have power.

5,The gimbal camera must be use belt tight, otherwise it will have problems. And if you do this many times, it will cause damage to the flight controller.

- 1 x Aluminum gimbal installed 3 motors(assembled)

- 1 x Gimbal controller (2 kinds of board send at random)

- 1 x Sensor

- 3 x servo wire(10cm)

- Wiring

( camera not included)
