SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Unit Type: Pack

Tool Supplies: Battery

Technical parameters: Value 4

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Motor Components

Package Weight: 0.45kg (0.99lb.)

Package Size: 20cm x 19cm x 18cm (7.87in x 7.48in x 7.09in)

Origin: Mainland China

Model Number: 3-Axis Brushless

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: uuustore

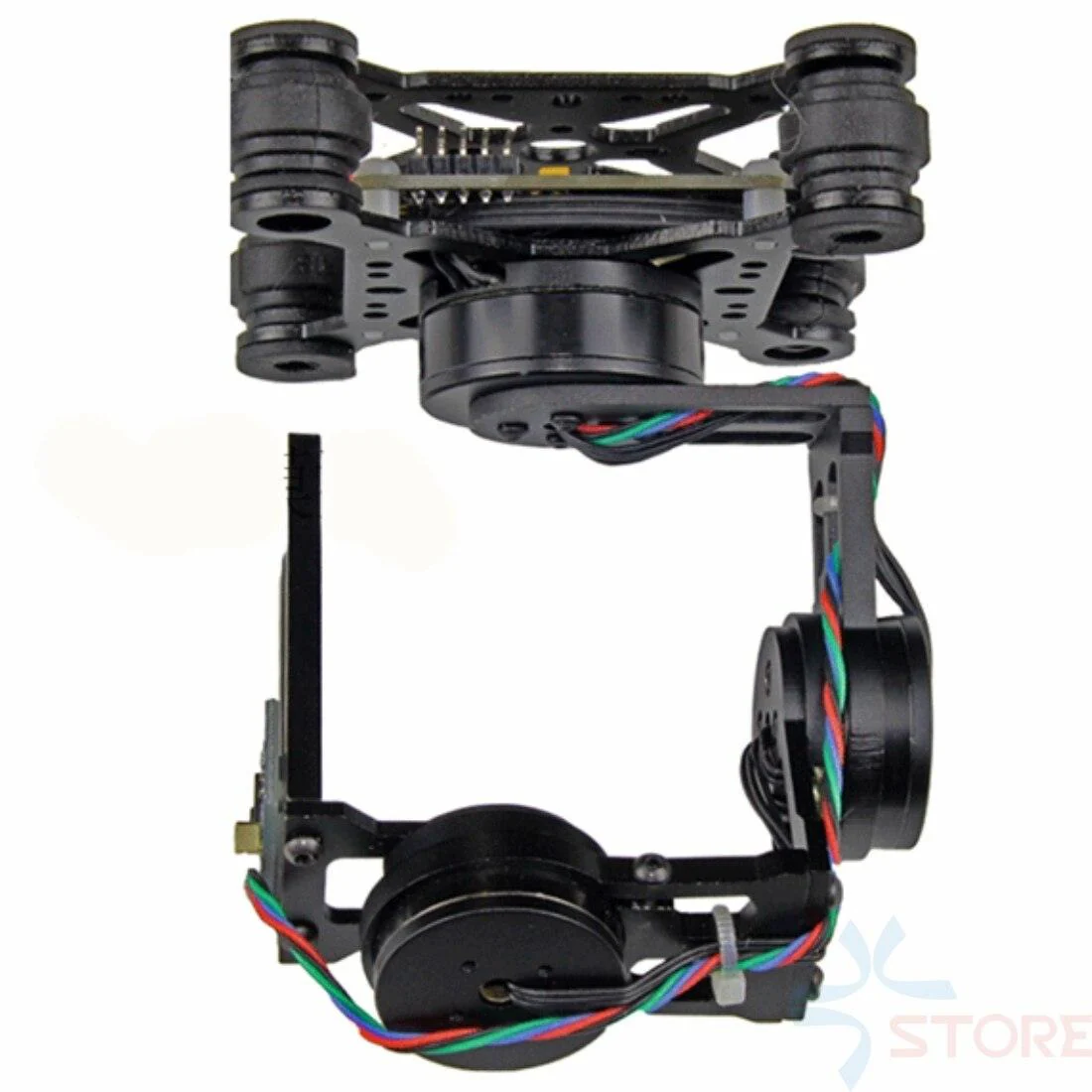

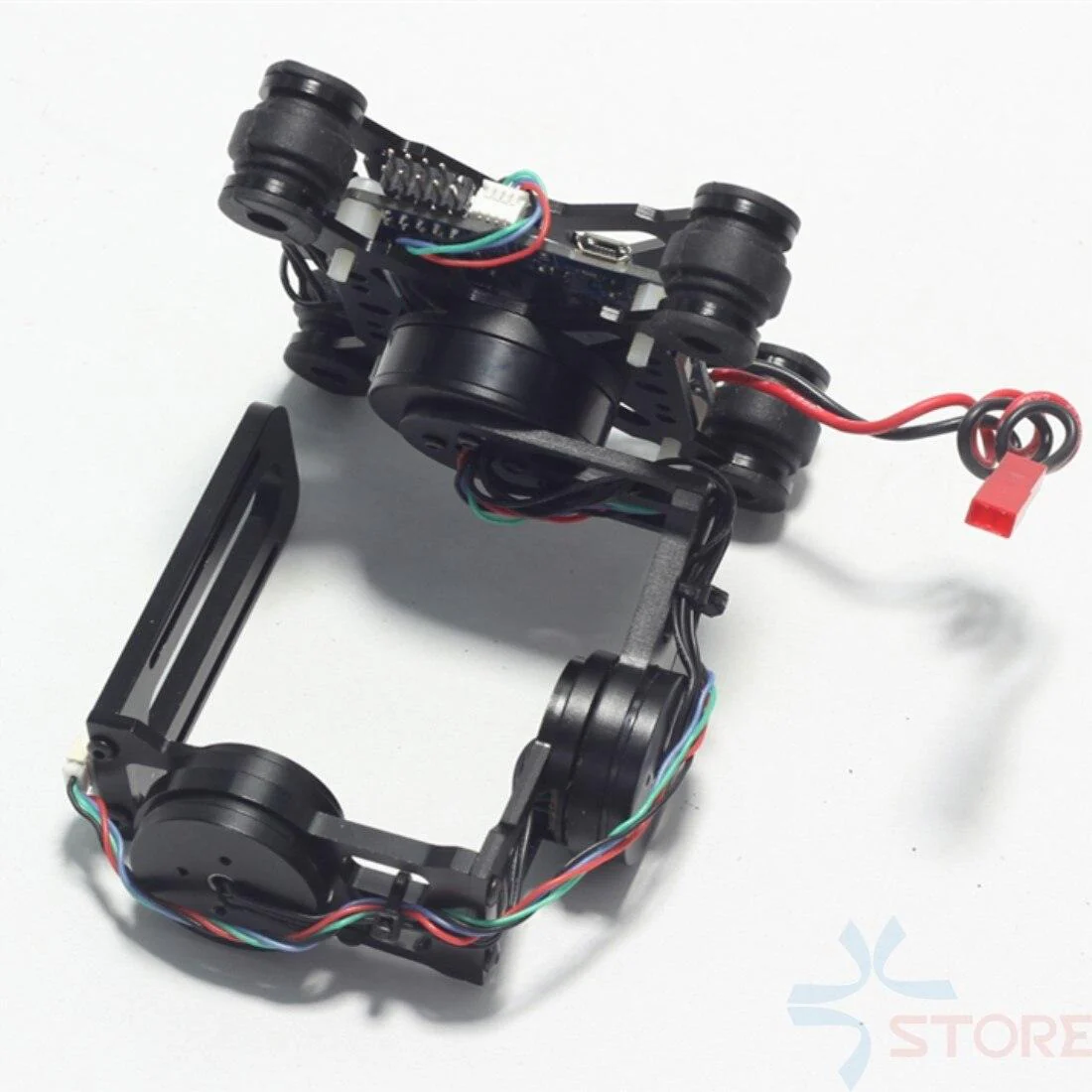

3 Axis Gimbal Storm32 BGC Lightweight Brushless Gimbal W/ Motors Free Debug 3-4S For Gopro3 Gopro4 SJ4000 Xiaoyi Camera DIY FPV



Type: FPV Fittings

Item Name: Storm32 3 Axis Brushless Gimbal

Storm32 board version: V 1.32

Compatible: Gopro3 Gopro4

Color: Black/White

Input voltage: 3 - 4S ( 11.1 - 16.8V )

Package: 1 x 3 Axis Brushless Gimbal

FPV Equipments: Gimbal

Camera Gimbals: Brushless Gimbals

Package weight: 0.304 kg

Package size (L x W x H): 13.00 x 13.00 x 13.00 cm / 5.12 x 5.12 x 5.12 inches

Package Contents: 1 x 3 Axis Brushless Gimbal



Item Name: Storm32 3 Axis Brushless Gimbal

Compatible camera : Gopro3 Gopro4 SJ4000 Xiaomi xiaoyi

Compatiable frame : DJI Phantom 1 2 / Walkera X35

Color: Black

Input voltage: 3S



Note : (very important )

1. the camera must fixed in the head (without any loosening )

2 Adjust the camera to the left or right so that the camra is at Horiziontal Level

3 Before camera fixed in the gimbal , please do not supply power to the board

4 .the parameters on the  gimbal is for gopro , sj4000 or xiaoyi camera , if you use ther camera , it may not fit or you may need to change the parameters.



Question 1: Why the gimbal shaking so much after power supply?

1:When receive the gimbal, first install the camera, then supply the power, otherwise the gimbal will shake if not install the camera.

2:The gimbal can only load the camera, becausethe gimbal has requirement to the weight, if equipped with a light camera , it will also shake, because it is too light.

3: If the cable bind the gimbal , the motor will also shake, pls let the cable far away from the gimbal.



Question 2: The Gimbal cannot work after supply the power?

1: pls insert the sensor again, the sensor may be loose during transportation. Just insert once again.



Question 3: Why the gimbal board  burned?

1: the current is too large, the breakdown of the IC module,pls use batteriy of low Amperage。



Question 4: What voltages can be used of the gimbal?

1:we proposed using 11.1-16.8V ( 3S LiPo battery )

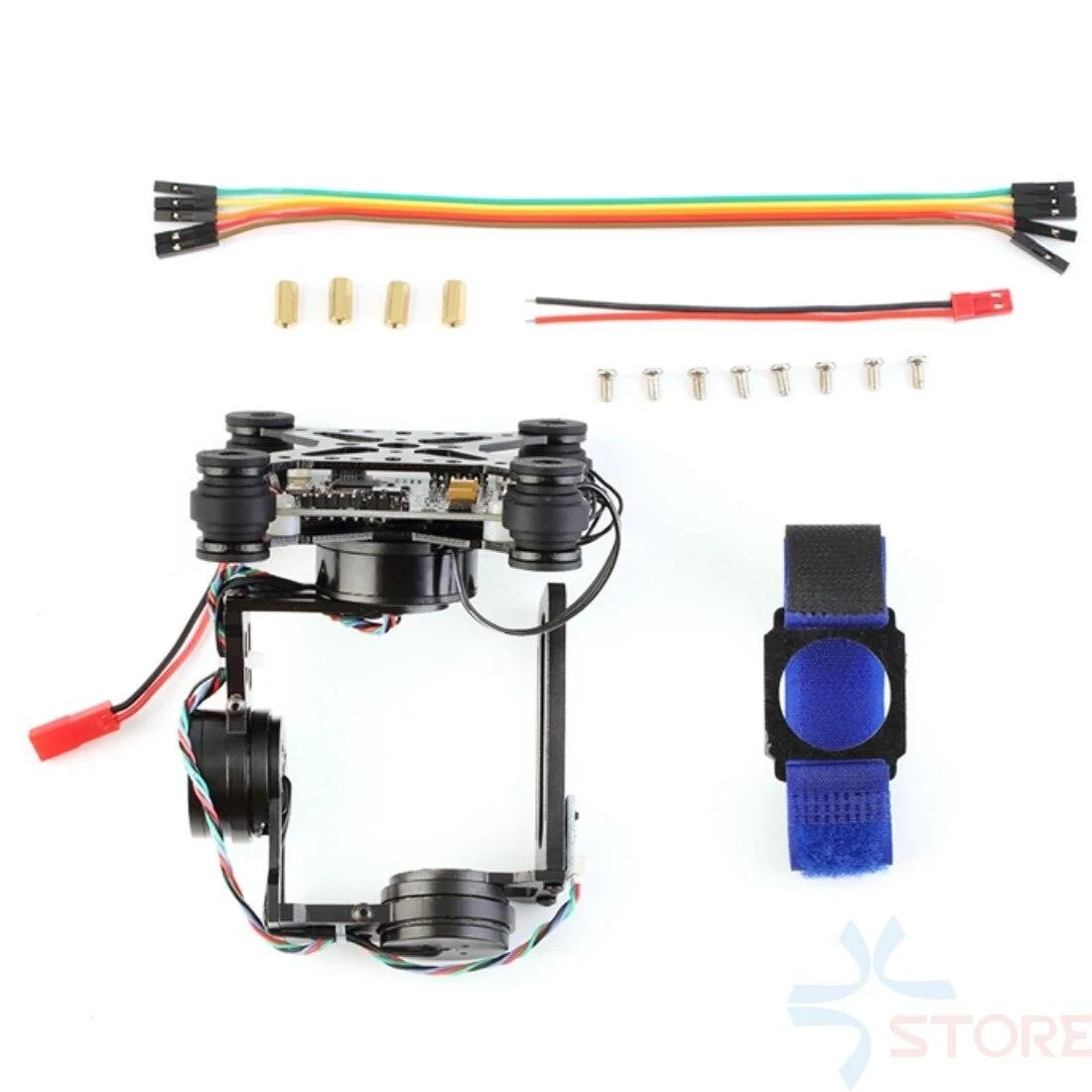

Package included:

- 1 x Aluminum gimbal Frame(you can select the color)

- 1 x 2805 140kv Motor

- 2 x 2204 260kv Motor

- 1 x Gimbal controller

- 1 x Sensor

( camera not included)



Note:

1. Please do not make any change in the board,if you make it broken and need to flash firmware,please ask us for software.

2. Old version is Pitch roll is IMU1 and Yaw is IMU2,Now we do all in one and make one IMU.



About how to use your receiver to connect Storm32 to control,here is the information:

www.olliw.eu/storm32bgc-wiki/Configure_the_RC_Input
