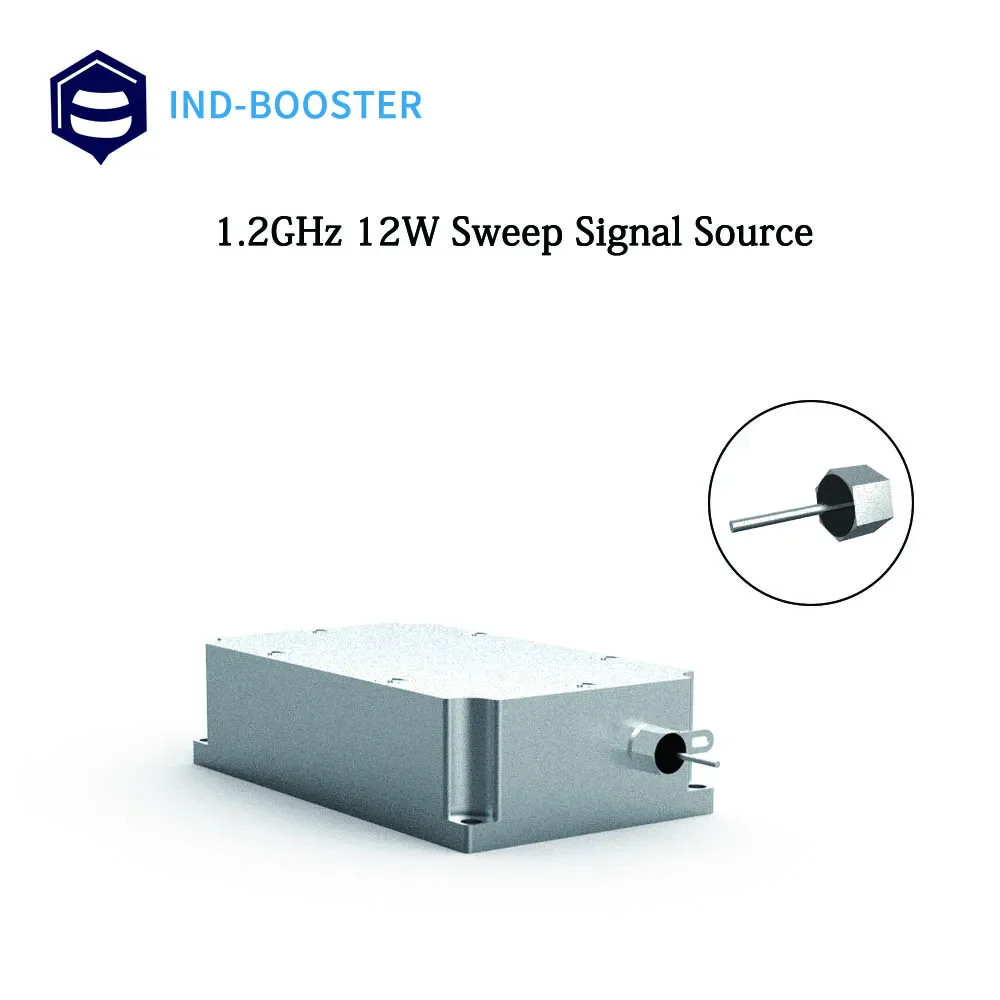

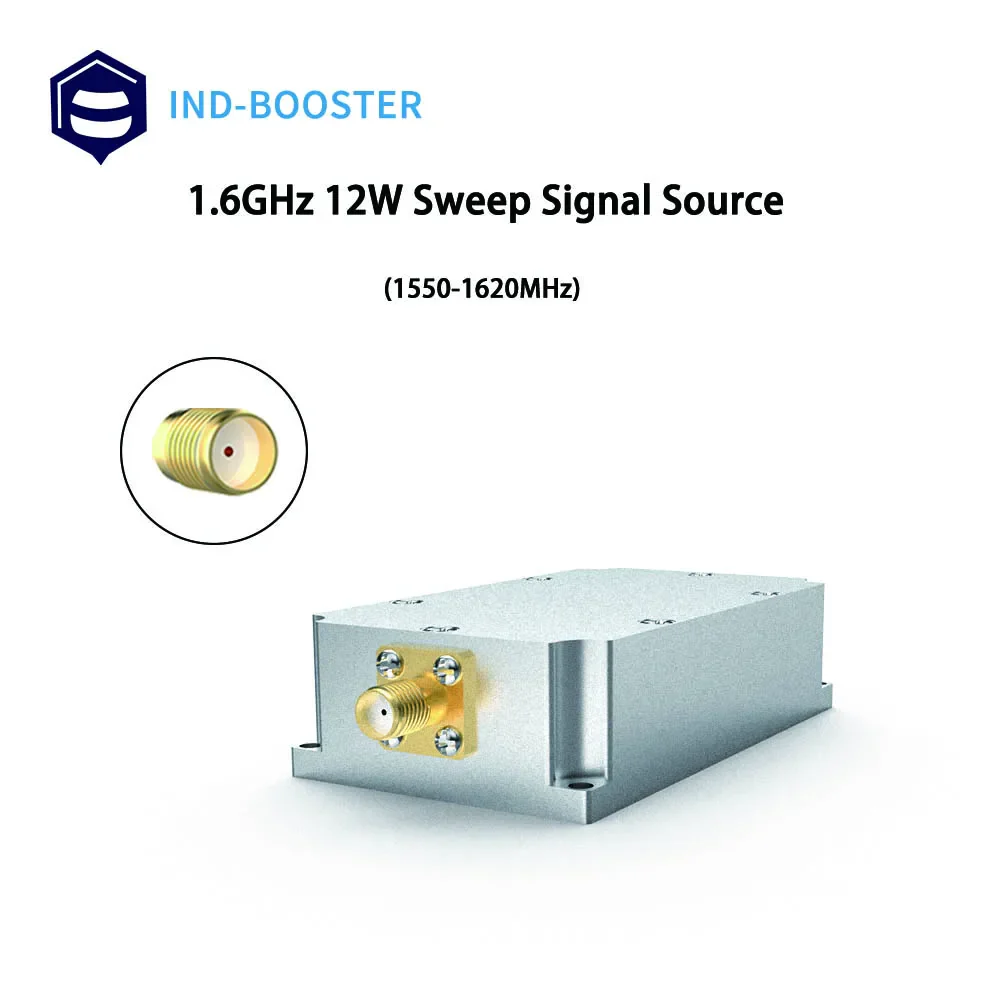

12W Anti Drone Module - 12watt signal sweep source anti drone signal module 0.9 1.2 1.6 2.4GHz for Dji FPV
-
Detail
12W SPECIFICATIONS
Brand Name: NoEnName_Null
Item Type: original
Origin: Mainland China
Model Number: 12w blocking
12W SWEEP SOURCE FOR WiFi/ DRONE
Only the Tansmitting Channel (TX), NO RX
Frequency:2.4GHz-2.5GHz(3 other optional)
RFOUT POWER=47dBm(12W)
IND-BOOSTER accept customizing the power you need!

No.
Items
Specifications
1
Frequency Range
2400-2500MHz
2
Operating Voltage
20-24V(customizable28-32V)
3
Flatness
±0.5dB
4
Output Power
41dBm
5
Current
1.0A @24V, 41dBm
6
Efficiency
50%@41dBm
7
LED State
Red
8
Operating Temperature
-30℃~85℃
9
Storage Temperature
-40℃~150℃
10
Operating Humidity
<95%RH
11
RF PORT
Output: SMA-F
12
Power Socket
Feed-through Cpacitor
13
Shell Material
Aluminum
14
Shell Size
80*46*21mm
15
Net Weight
0.13Kg

1 24V /4.5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter.

1:
Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will
also provide very favorable price, please contact us for specific express price.2:
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note
that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.3:
Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
-
