12KW Tethered Drone Power System with Automated Winch and 110-330m Cable
-
Detail
12KW Tethered Drone System Overview

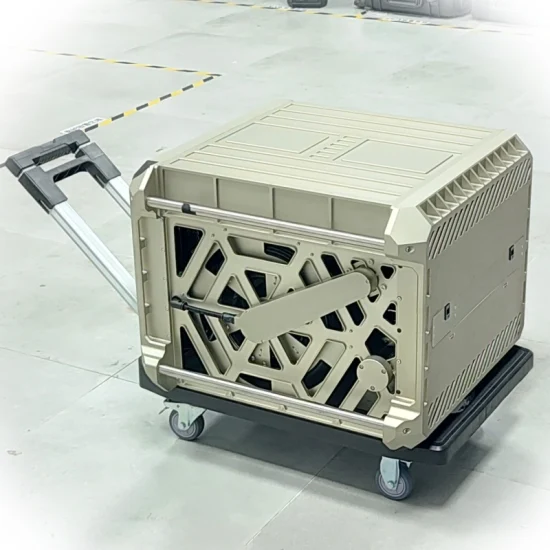

The TPS110M-12KW Ver. 2.0 Tethered Drone Power System is a state-of-the-art solution engineered to deliver continuous, reliable power for drones with maximum takeoff weights of up to 60kg. Designed for long-endurance operations, this system supports flight altitudes of up to 300m, with cable lengths available in 110m, 220m, and 330m options. With a peak power output of 15,000W and automated tension management for the tether cable, it ensures smooth and safe operation throughout extended missions. The system’s robust IP54-rated construction, integrated fiber optic communication, and wide input voltage range of 380Vac make it suitable for both industrial and commercial UAV applications in demanding environments. The TPS110M-12KW Ver. 2.0 is housed in a durable aviation aluminum alloy shell and is easy to transport with optional pallet and roller components.
12KW Tethered Power System for Drone Specifications:

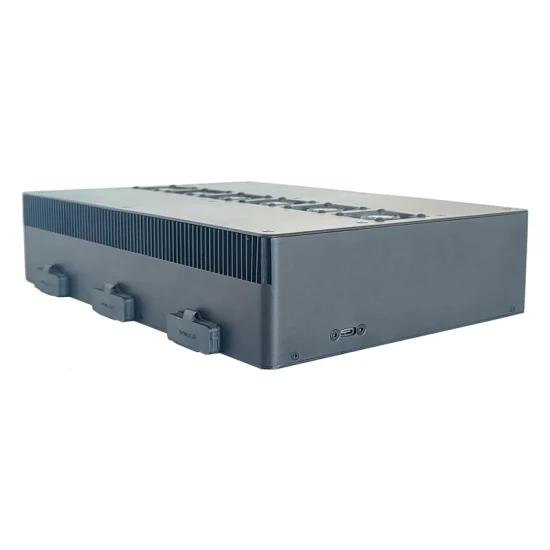

Component Technical Parameters Tethering Power Module Input Voltage 380Vac wide range input, three-phase five-wire system 380Vac @ 50/60Hz Output Power 12,000W (rated long-term), 15,000W (peak ≤ 10s) Storage Cable Length 110m, 220m, 330m options available Retraction Speed 0-3m/s, adjustable Reel In/Out Tension 0-20N, adjustable Interface Aviation socket input, optional fiber optic FC port, communication Type-C port, LP20 aviation connector output Protection Level IP54 Size 600 × 570 × 460 ± 0.5mm (excluding foot pads) Weight 54.0 ± 0.5kg (excluding tether cable) Tether Cable Material Alloy lightweight high-temperature resistant aviation wire with composite insulation and high-tensile aviation fiber braid Cable Length 110m, 220m, 330m options available DC Resistance 2.3 ± 0.1 Ω (100m @ 20 ºC loop) Tensile Strength ≥ 200kg (resistant to 1000+ retraction cycles) Insulation Strength ≥ 3500Vdc (no breakdown for 1 minute) Outer Diameter 5.0 ± 0.2mm Weight 29g ± 1g/m Air Module Input Voltage 580-810Vdc wide range input Output Voltage 50 ± 0.5Vdc, constant stable output Output Power 12,000W (rated long-term), 15,000W (peak ≤ 10s) Protection Function Overvoltage, undervoltage, overcurrent, short circuit, and over-temperature protection Isolation Voltage 3000V (Vin to Vout), 1min with no breakdown Installation Method Fixed with screws using reserved installation ears Heat Dissipation External fan with forced air cooling Interface Input LP20 aviation connector, output XT90 × 6 Protection Level IP54 Size 302 × 200 × 68 ± 0.5mm Weight 4200 ± 100g (excluding external connectors) 12KW Tethered Drone Power System Key Features:
Automated Winch and Tether Management: The system automatically adjusts cable tension and reel-in/out speeds based on UAV altitude, ensuring smooth operation. It also allows for manual retraction in the event of power loss, providing an extra layer of safety during critical missions.
High Power Output for Extended Missions: The TPS110M-12KW Ver. 2.0 delivers a stable 12,000W output with peaks up to 15,000W, supporting continuous flights of up to 48 hours. This makes it ideal for long-duration operations such as surveillance, inspections, and communications.

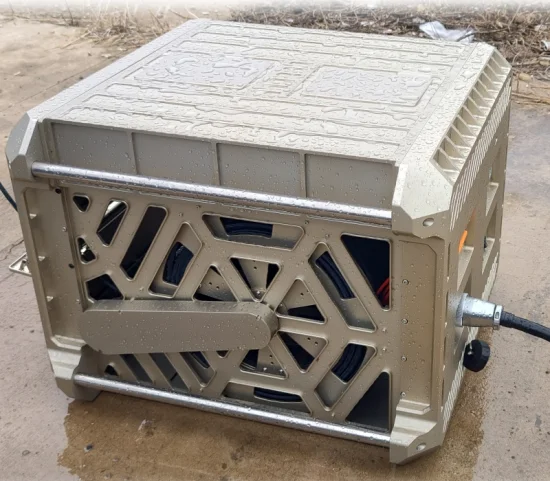

Durable and Portable Design: Housed in an aviation aluminum alloy shell, the system is lightweight yet robust, offering IP54-rated protection against harsh environments. Optional pallet and roller components make transportation and setup quick and easy.
Integrated Fiber Optic Communication: The tether cable can be optionally equipped with single-mode fiber optic communication, enabling high-speed data transfer and remote control functionality, crucial for industrial and security applications.
Comprehensive Safety Features: The system includes extensive protection measures, such as input overvoltage, undervoltage, overcurrent, short circuit, and overheating safeguards. The touch screen interface provides real-time data monitoring and alarm alerts for immediate response.
Customizable Display and Control Settings: Operators can easily adjust tension, reel speed, output voltage, and other key parameters using the 4.0-inch touch screen interface, which supports both English and Chinese languages.
Versatile Applications: The TPS110M-12KW Ver. 2.0 is compatible with a wide range of UAVs with takeoff weights between 40-60kg, making it suitable for various mission profiles, from high-altitude communications to emergency response.
Applications:
- High-Altitude Relay Communication
- Emergency Response and Disaster Relief
- Sea and Coastal Patrol Monitoring
- Industrial and Infrastructure Inspections
- Long-Duration Surveillance and Security Operations
- Firefighting and High-Rise Building Monitoring
Product Summary:
The TPS110M-12KW Ver. 2.0 Tethered Drone Power System is engineered for UAV operators requiring reliable, high-capacity power in challenging environments. Its automated winch, integrated communication options, and extensive safety features make it an ideal choice for industrial, commercial, and security applications. Whether for long-endurance surveillance, emergency response, or complex infrastructure inspections, this system provides the power, flexibility, and control needed to complete demanding missions efficiently and safely.
Original factory price available; OEM accepted; fast shipping for this 12KW tethered drone power system with automated winch and 110-330m cable, featuring a S0V constant winch reel.
Equipped for high-altitude tasks like fire extinguishing, building surveillance, and sea patrol monitoring with reliable tethered drone power system.
-
